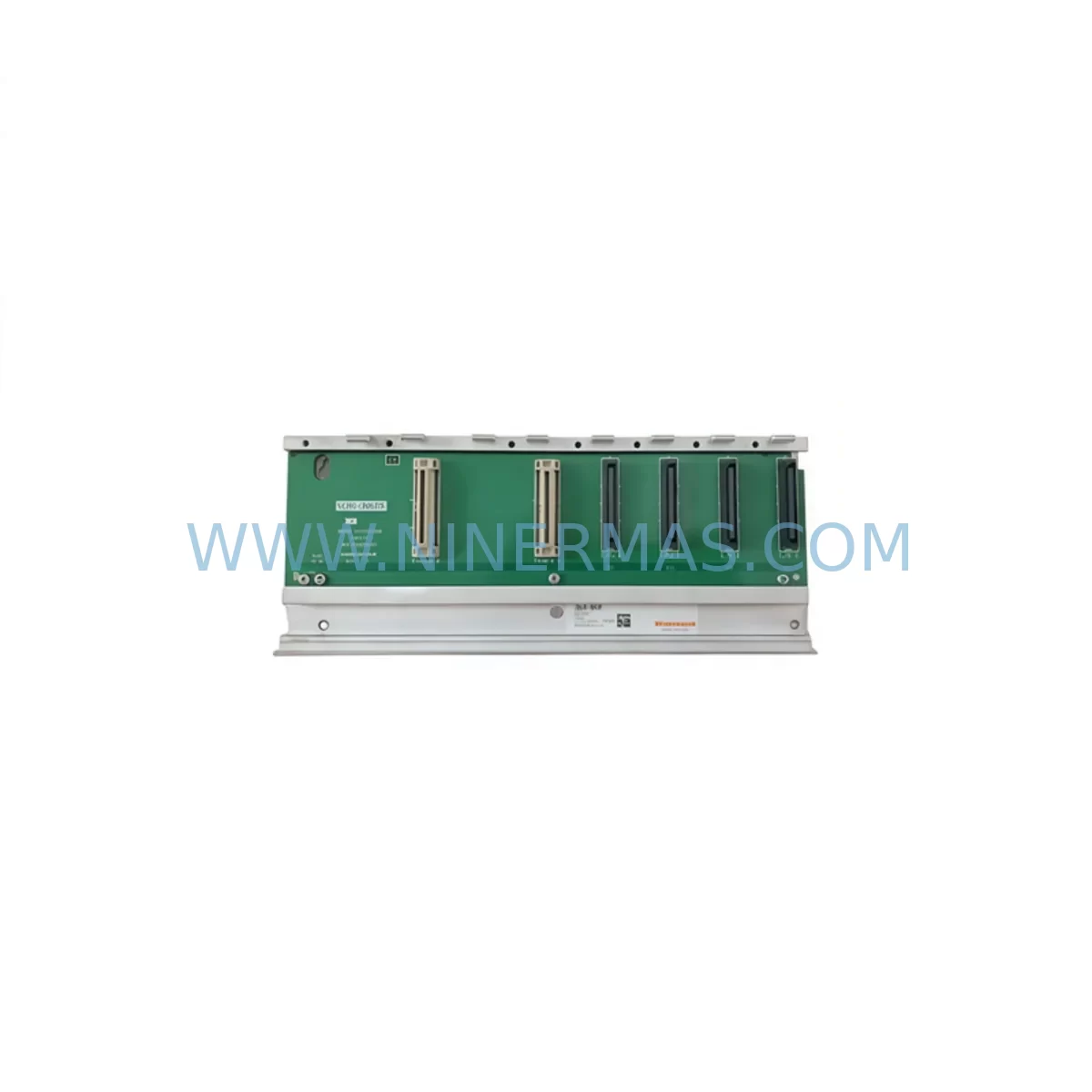

Honeywell 2MLR-M02P Safety-Reliable I/O Module for Critical Control

Honeywell 2MLR-M02P Safety-Reliable I/O Module for Critical Control Sites

The Honeywell 2MLR-M02P is a high-integrity I/O module engineered for the MasterLogic 200R programmable logic controller platform — a proven solution deployed across continuous production facilities, critical interlock systems, and heavy-duty control cabinets worldwide. Designed to operate reliably in the most demanding industrial environments, the 2MLR-M02P delivers consistent signal integrity, robust surge protection, and stable communication performance where unplanned downtime is simply not an option.

In industries such as petrochemical refining, electric power generation, mining extraction, water treatment, metallurgical processing, port logistics, and marine vessel automation, control system reliability is directly tied to operational safety. The 2MLR-M02P addresses this requirement by providing a hardened I/O interface that minimizes the risk of signal drift, false triggering, communication anomalies, and power fluctuation-induced faults — all of which can cascade into costly and dangerous process interruptions.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In a well-engineered control cabinet for continuous or safety-critical processes, the Honeywell 2MLR-M02P I/O module serves as a foundational signal interface layer. Its optical isolation on each I/O channel prevents ground loops and cross-channel interference — a critical safeguard when the module shares a backplane with the Honeywell 2MLR-CPU1P central processing unit and communicates across the MasterLogic 200R rack bus.

Power quality is a primary concern in heavy industrial environments. Voltage sags, switching transients, and inductive load kickback from motor starters and solenoid valves can corrupt I/O readings and trigger nuisance trips. The 2MLR-M02P’s built-in transient suppression works in conjunction with a properly specified Honeywell 2MLR-PS1P power supply module to maintain stable 24V DC rail voltage across the entire rack. For installations where power redundancy is required, pairing with a secondary power supply and an automatic switchover relay further eliminates single-point failure risk.

In high electromagnetic interference environments — such as those near variable frequency drives (VFDs), large transformer banks, or arc furnaces — the 2MLR-M02P’s IEC 61000-compliant EMI shielding ensures that analog signal channels maintain accuracy within specification. This is particularly important when the module is used alongside Honeywell 2MLR-AO4P analog output modules driving control valves or positioners, where even minor signal drift can result in process deviation or safety system activation.

For communication-intensive architectures, the 2MLR-M02P integrates seamlessly with Honeywell 2MLR-COM1P communication modules supporting Modbus RTU, PROFIBUS DP, or Ethernet/IP protocols. This ensures that field data collected by the I/O module is transmitted to the SCADA or DCS layer without latency or packet loss — a requirement in safety instrumented systems (SIS) where response time directly affects emergency shutdown (ESD) performance.

In dusty, humid, or chemically aggressive environments such as cement plants, wastewater treatment facilities, or offshore platforms, the module’s conformal-coated PCB construction resists corrosion and contamination ingress. When installed alongside Honeywell 2MLR-DI16P digital input modules monitoring safety interlocks — such as pressure switches, flow switches, and emergency stop circuits — the 2MLR-M02P contributes to a layered protection architecture that reduces the probability of dangerous failure on demand (PFD).

Surge protection is equally critical at the field wiring terminals. Pairing the 2MLR-M02P with DIN-rail-mounted surge protective devices (SPDs) on signal cables entering from outdoor or long-run field installations prevents transient overvoltage from damaging the module’s input circuitry. This is standard practice in lightning-prone regions or facilities with extensive cable runs between control rooms and field junction boxes.

Critical Industrial Safety Applications

Petrochemical & Refining: In continuous process plants handling flammable or toxic media, the 2MLR-M02P supports critical interlock logic for emergency shutdown systems, high-pressure relief valve control, and burner management systems (BMS). Its stable I/O performance under high-temperature ambient conditions — up to 60°C — ensures reliable operation in hot utility areas and compressor buildings.

Electric Power Generation: In thermal, hydro, or gas turbine power plants, the module interfaces with turbine protection systems, generator excitation control, and auxiliary equipment monitoring. Its optical isolation prevents ground potential differences between control room and switchyard from corrupting protection relay signals.

Mining & Mineral Processing: Underground and surface mining operations subject control equipment to extreme vibration, dust, and humidity. The 2MLR-M02P’s IEC 60068-2-6 vibration compliance and conformal coating make it suitable for conveyor control, crusher interlock, and ventilation safety systems in these harsh environments.

Water & Wastewater Treatment: Municipal and industrial water treatment facilities require 24/7 uninterrupted operation of pumping, dosing, and filtration systems. The 2MLR-M02P’s long-term reliability and availability as a stocked spare part ensures that maintenance teams can restore control system functionality rapidly following any module failure.

Metallurgy & Steel Production: In electric arc furnace (EAF) and continuous casting environments, electromagnetic interference levels are among the highest in industry. The module’s robust EMI shielding maintains signal integrity for temperature control, hydraulic press sequencing, and cooling water interlock systems.

Port & Marine Automation: Cargo handling cranes, ship loading arms, and vessel automation systems demand control components that withstand salt air corrosion, vibration from wave motion, and wide temperature swings. The 2MLR-M02P’s environmental ratings support reliable deployment in these demanding maritime applications.

Safety and Quality FAQ

Q1: What warranty coverage is provided with the Honeywell 2MLR-M02P?
Every 2MLR-M02P supplied by NINERMAS COMPANY LIMITED carries a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Our warranty support includes technical diagnosis, replacement dispatch, and documentation for your maintenance records.

Q2: How is each unit tested before shipment?
All modules undergo pre-shipment functional verification including power-on self-test, I/O channel continuity checks, and communication bus handshake confirmation. Units are shipped in anti-static packaging with inspection documentation to ensure they arrive in field-ready condition.

Q3: Is the 2MLR-M02P compatible with existing MasterLogic 200R installations?
Yes. The 2MLR-M02P is a direct original-specification replacement for MasterLogic 200R racks. It is compatible with existing backplane configurations, firmware versions, and I/O addressing schemes without requiring hardware modification or software reconfiguration in most standard installations.

Q4: Can NINERMAS guarantee long-term supply for ongoing maintenance needs?
NINERMAS maintains dedicated inventory of Honeywell MasterLogic 200R series components to support long-term spare parts programs. We provide stable supply commitments for maintenance contracts, turnaround shutdowns, and emergency replacement scenarios — ensuring your critical control systems are never left without qualified spare parts support.
