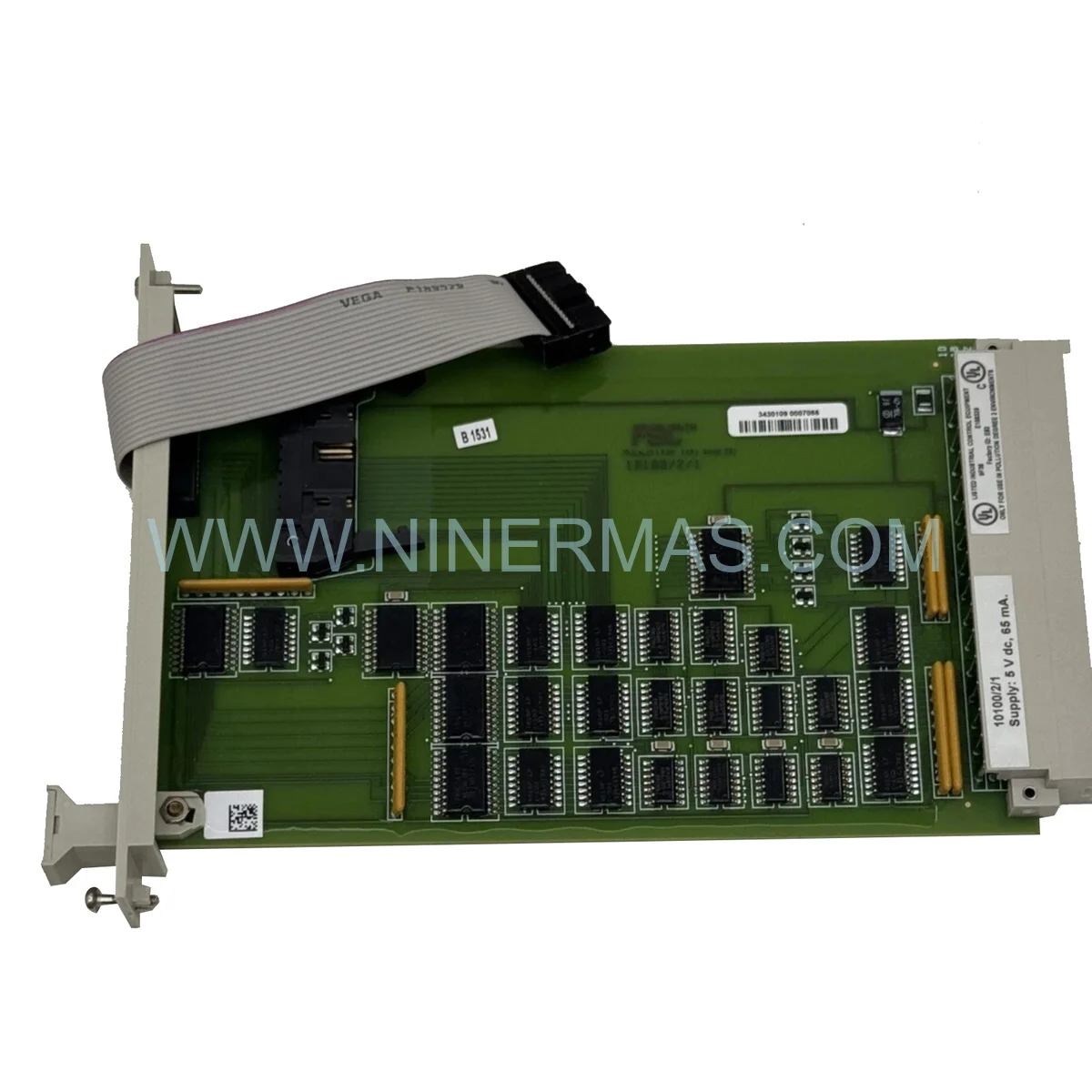

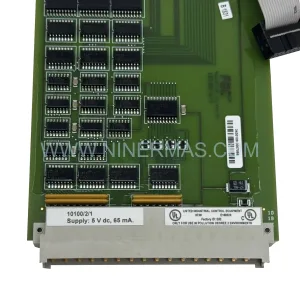

Honeywell 10100/2/1 Horizontal Bus Driver Module – Industrial Process Solution

Technical Overview & First Impression

From the perspective of an Industrial Solution Architect, few components carry as much operational weight as the Honeywell 10100/2/1 Horizontal Bus Driver Module within a Fail-Safe Controller (FSC) architecture. This module serves as the critical communication bridge between the central processing unit and distributed I/O racks — a role that directly determines the integrity of Process Control loops in high-stakes environments such as oil & gas, petrochemical refining, and offshore platforms. Without a functioning Honeywell 10100/2/1, the entire FSC rack communication chain is compromised, triggering unplanned shutdowns that cost facilities tens of thousands of dollars per hour.

What distinguishes this module from generic alternatives is its engineered compatibility with Honeywell’s proprietary Fieldbus architecture. The 10100/2/1 supports A1, A21, and A22 flat cable configurations, enabling non-redundant, single-rack redundant, and dual-rack redundant topologies — a flexibility that makes it indispensable for both legacy system maintenance and phased DCS Hardware upgrades. Engineers who have worked with Distributed Control System platforms for over a decade recognize this part as a cornerstone of FSC rack integrity.

Original stock of the 10100/2/1 is increasingly scarce. As Honeywell transitions its portfolio, Factory Sealed units sourced through verified global supply chains represent the last reliable buffer for facilities that cannot afford system redesigns. Securing this Legacy Component now is not merely a procurement decision — it is a risk management imperative.

Key Technical Highlights

Dual-Mode Bus Communication: Supports both vertical bus (CN1) and horizontal bus (CN3) flat cable connections, enabling flexible rack-to-rack data routing within FSC systems.
Redundancy-Ready Architecture: Compatible with A1 (non-redundant), A21 (single-rack redundant), and A22 (dual-rack redundant) cable configurations — critical for SIS and DCS Hardware redundancy requirements.
Low Power, High Stability: Operates at 5 VDC with only 35-65 mA draw and ripple content below 50 mV peak-to-peak, ensuring clean signal integrity across the Fieldbus backbone.
Industrial-Grade Environmental Tolerance: Rated for 0°C to +60°C operating range and 5% 95% non-condensing humidity — built for demanding plant floor conditions.
Compact Form Factor: 4 TE — 3 HE (4HP — 3U) footprint integrates seamlessly into existing FSC I/O rack slots without mechanical modification.
Certified for Safety-Critical Deployments: Carries CE, T V, and UL certifications, meeting the compliance requirements of global industrial safety standards.

Vertical Industry Applications

The 10100/2/1 is deployed across a broad spectrum of process-intensive industries where system downtime is not an option:

Petrochemical & Refining: In continuous process plants, the module maintains real-time I/O communication between the FSC controller and field instruments. A single failed bus driver can cascade into a full unit shutdown — making Factory Sealed spares a standard procurement requirement for turnaround planning.

Oil & Gas Upstream & Offshore: Offshore platforms operating Honeywell FSC-based Safety Instrumented Systems (SIS) rely on this module for Emergency Shutdown (ESD) logic execution. Its T V certification aligns with IEC 61511 functional safety requirements.

Mining & Mineral Processing: High-vibration, dusty environments demand components with proven mechanical robustness. The 10100/2/1’s sealed construction and wide temperature tolerance make it suitable for underground and open-pit control rooms alike.

Marine & Shipboard Automation: Vessel automation systems using Honeywell FSC platforms for engine room and cargo management depend on reliable Fieldbus communication — a function this module delivers with consistent uptime.

Power Generation & Utilities: Turbine control and boiler management systems integrated with Honeywell DCS Hardware use the 10100/2/1 to sustain high-speed data exchange between controllers and I/O subsystems, reducing mean time to repair (MTTR) during maintenance windows.

Data Sheet & Specifications

Quality Assurance & Supply Chain

Every unit of the 10100/2/1 supplied through our network undergoes a rigorous multi-stage verification process before dispatch. We source exclusively from authorized distribution channels and decommissioned plant inventories with full traceability documentation. Key assurance commitments include:

100% Original Components: All modules are verified against Honeywell’s original part specifications. No counterfeit, rebranded, or third-party substitute parts are accepted into our inventory.

Factory Sealed Condition: Where available, units are supplied in original Honeywell packaging with intact tamper-evident seals — the gold standard for Legacy Components procurement in safety-critical applications.

12-Month Comprehensive Warranty: Each 10100/2/1 is backed by a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Replacement or full refund is guaranteed.

Emergency Delivery via DHL / FedEx / UPS: For facilities facing unplanned shutdowns, we offer same-day dispatch with express international freight options. Most destinations in Asia, Europe, and the Americas receive delivery within 3-5 business days. This is a Critical Part for Industry Safety — delays are not acceptable, and our logistics infrastructure is built around that reality.

Buyer’s FAQ — Selection & Sourcing Guide

Q1: How can I verify that the 10100/2/1 I receive is a genuine Honeywell original and not a counterfeit?
Authentic units carry Honeywell’s part label with a traceable serial number, original PCB markings, and CE/T V/UL certification stamps. We provide a Certificate of Conformance (CoC) and, upon request, third-party inspection reports. Factory Sealed units include original Honeywell anti-static packaging with unbroken seals.

Q2: Where can I obtain the official datasheet and FSC system manual for the 10100/2/1?
The official FSC System Manual is published by Honeywell Process Solutions. We can provide the relevant technical documentation package — including wiring diagrams and rack configuration guides — as part of our after-sales support. Contact our technical team with your system version details.

Q3: Is the 10100/2/1 compatible with all versions of the Honeywell FSC platform?
The 10100/2/1 is designed for the FSC series and is compatible with standard FSC I/O rack configurations using A1, A21, and A22 flat cables. Compatibility with specific firmware versions or expanded FSC variants should be confirmed against your system’s rack configuration drawing. Our engineers can assist with cross-referencing.

Q4: What is the lead time for emergency orders, and do you support partial shipments?
For in-stock units, same-day dispatch is available for orders confirmed before 14:00 local time. Partial shipments are supported for multi-unit orders where immediate partial delivery reduces downtime risk. Emergency Repair scenarios are prioritized in our fulfillment queue.

Q5: Can this module be used as a direct replacement in a Maintenance Stock program without system reconfiguration?
Yes. The 10100/2/1 is a plug-and-play replacement within compatible FSC rack slots. No firmware flashing or system reconfiguration is required for like-for-like substitution. This makes it ideal for Maintenance Stock programs where rapid swap-out capability is essential.

Q6: What happens if the module fails within the warranty period?
Contact our support team with the unit’s serial number and a description of the failure mode. We will initiate a replacement shipment within 48 hours of fault confirmation — no lengthy RMA processes. For critical SIS applications, advance replacement (ship-before-return) is available upon request.

—
