Hollysys FM910 Retrofit-Compatible I/O Module for Legacy Systems

Hollysys FM910 Retrofit-Compatible I/O Module for Legacy Systems

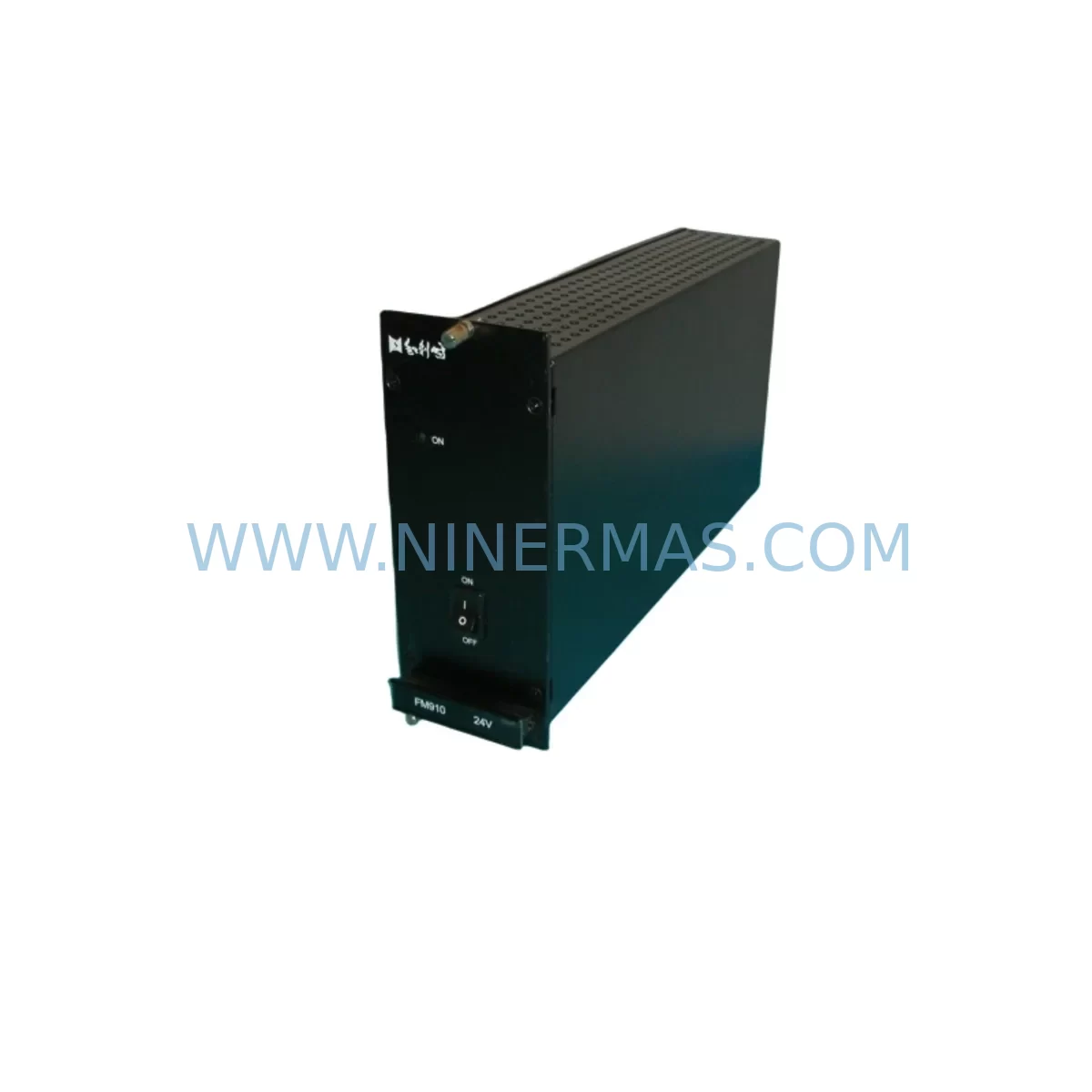

The Hollysys FM910 is a field-proven I/O module designed for the MACS DCS (Distributed Control System) platform — one of Hollysys’s most widely deployed process automation architectures across petrochemical, power generation, pharmaceutical, and municipal water treatment facilities. As aging MACS-based control systems approach end-of-life or require capacity expansion, the FM910 serves as a critical retrofit component enabling engineers to extend system lifespan, restore degraded I/O capacity, and maintain process continuity without committing to a full platform migration.

Sourced from verified supply channels and subjected to pre-shipment functional testing, each FM910 unit shipped by NINERMAS is validated against original Hollysys factory specifications. Our 12-month warranty covers all tested spare parts, giving procurement and maintenance teams the confidence to plan long-term retrofit schedules around confirmed inventory availability.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing an FM910 in an operating MACS DCS environment requires careful pre-work to avoid unplanned process interruptions. Before scheduling the physical swap, maintenance engineers should audit the existing rack configuration to confirm the target slot address and verify that the replacement module’s firmware is compatible with the installed Hollysys MACS controller — typically an FM801 or FM811 main controller card — running the site’s control logic.

Field wiring connected to the FM910 must be documented prior to removal. In marshalling cabinet configurations common to MACS installations, signal cables from field instruments — pressure transmitters, thermocouples, solenoid valves, or discrete limit switches — terminate at dedicated terminal blocks before routing to the I/O module. Confirming signal type (4–20 mA analog input, discrete 24 VDC, or analog output) prevents miswiring during reinstallation. Where the original FM910 served analog input channels, engineers should also verify loop power supply capacity from the associated FM power supply module (such as the FM301 or FM302 series) to ensure adequate current budget for all active channels post-retrofit.

Backplane integrity is another critical checkpoint. MACS racks — including the FM-series backplane chassis — use a passive backplane bus to distribute power and communication signals to installed modules. Before inserting the replacement FM910, inspect the backplane connector for bent pins, oxidation, or mechanical damage that could cause intermittent faults after installation. In older installations where the backplane itself has reached end-of-life, a concurrent backplane replacement may be warranted to prevent repeat failures.

For sites running MACS V6 or earlier, engineers should confirm that the engineering workstation software version supports the FM910 module definition. In some upgrade scenarios, a software patch or module library update from the Hollysys engineering platform is required before the new module can be correctly addressed and configured. This is particularly relevant when the FM910 is being introduced into a rack that previously housed a different I/O module type, requiring a configuration change in the MACS project database.

HMI integration should also be reviewed. Operator stations running Hollysys MACS SCADA or third-party HMI platforms connected via OPC-DA or Modbus TCP gateways may reference specific I/O channel tags tied to the FM910’s slot address. After module replacement and I/O reconfiguration, verify that all affected HMI faceplates, alarm setpoints, and historian tags are correctly mapped to the new module’s channel assignments. Where communication interfaces such as the FM520 communication module or FM530 Profibus gateway are part of the same rack, confirm that the communication link remains stable after the I/O module swap.

Signal isolators installed between field instruments and the FM910’s input channels — common in high-noise petrochemical environments — should be inspected and recalibrated as part of the retrofit scope. Replacing the I/O module without verifying isolator output ranges can introduce calibration offsets that affect process variable accuracy at the controller level.

NINERMAS maintains stocked inventory of the FM910 and related MACS spare parts to support planned and emergency retrofit schedules. Our team can confirm lead times, provide documentation support, and coordinate multi-unit orders for sites managing phased system upgrades across multiple control loops or process units.

Downtime Control During System Migration

Minimizing unplanned downtime during an FM910 replacement requires a structured hot-swap or scheduled maintenance window approach. For processes that cannot tolerate extended interruptions, the preferred method is to pre-configure the replacement FM910 offline — assigning the correct module address and verifying channel configuration in a test rack or engineering simulator — before bringing it to the field. This reduces the live installation window to the physical swap, wiring verification, and a brief loop check, typically achievable within a single shift.

Before removing the failed or degraded FM910, place all affected control loops in manual mode at the DCS operator station. This prevents the controller from generating spurious output signals or triggering interlock logic during the module absence window. Document the current output states of any analog output channels served by the FM910 so that manual setpoints can be maintained by the board operator during the swap interval.

After installing the replacement module, re-download the I/O configuration from the MACS engineering station and perform a channel-by-channel loop check against the field instrument list. Confirm that all analog input channels are reading within expected engineering unit ranges and that discrete input and output channels are responding correctly to field device states. Only after successful loop verification should affected control loops be returned to automatic mode.

For sites managing a broader MACS platform upgrade — for example, migrating from MACS V6 to a newer control architecture — the FM910 replacement can be staged as part of a phased migration plan that preserves existing control logic, HMI graphics, and historian configurations while progressively modernizing hardware. This approach protects the investment in existing process knowledge embedded in the control system and reduces the risk associated with large-scale cutover migrations.

Retrofit Support FAQ

Q1: Is the FM910 a direct drop-in replacement for a failed unit in my existing MACS rack?
In most cases, yes — the FM910 is designed for the MACS backplane and uses the same slot form factor. However, you should confirm the module address assignment in your MACS engineering project and verify that your controller firmware version supports the FM910 module definition. If the failed unit was running a different firmware revision, a configuration update may be required before the replacement module is recognized correctly by the system.

Q2: What pre-shipment testing does NINERMAS perform on the FM910?
Each FM910 unit undergoes functional testing prior to dispatch to verify that all I/O channels, backplane communication, and power interfaces are operating within specification. Test records are available upon request. All units are covered by a 12-month warranty from the shipment date, covering manufacturing defects and functional failure under normal operating conditions.

Q3: Can the FM910 be used in a MACS system that has been partially upgraded to newer hardware?
Yes, in most hybrid retrofit scenarios the FM910 can coexist with newer MACS modules in the same rack, provided the backplane generation is compatible. Confirm with your site’s MACS system documentation or contact our technical team with your rack configuration details. We can advise on compatibility based on the specific controller version and backplane chassis installed at your site.

Q4: What is the typical lead time and inventory availability for the FM910?
NINERMAS maintains stock of the FM910 for immediate dispatch. For urgent replacement requirements, same-day or next-business-day shipment is available subject to stock confirmation at time of order. For planned maintenance programs requiring multiple units, we offer inventory reservation and staged delivery scheduling to align with your maintenance windows. Contact our sales team to confirm current stock levels and lead times for your specific quantity requirement.
