HIMA Z7116/3236 Retrofit Cable Plug | HIQuad F3236 Legacy System Upgrade

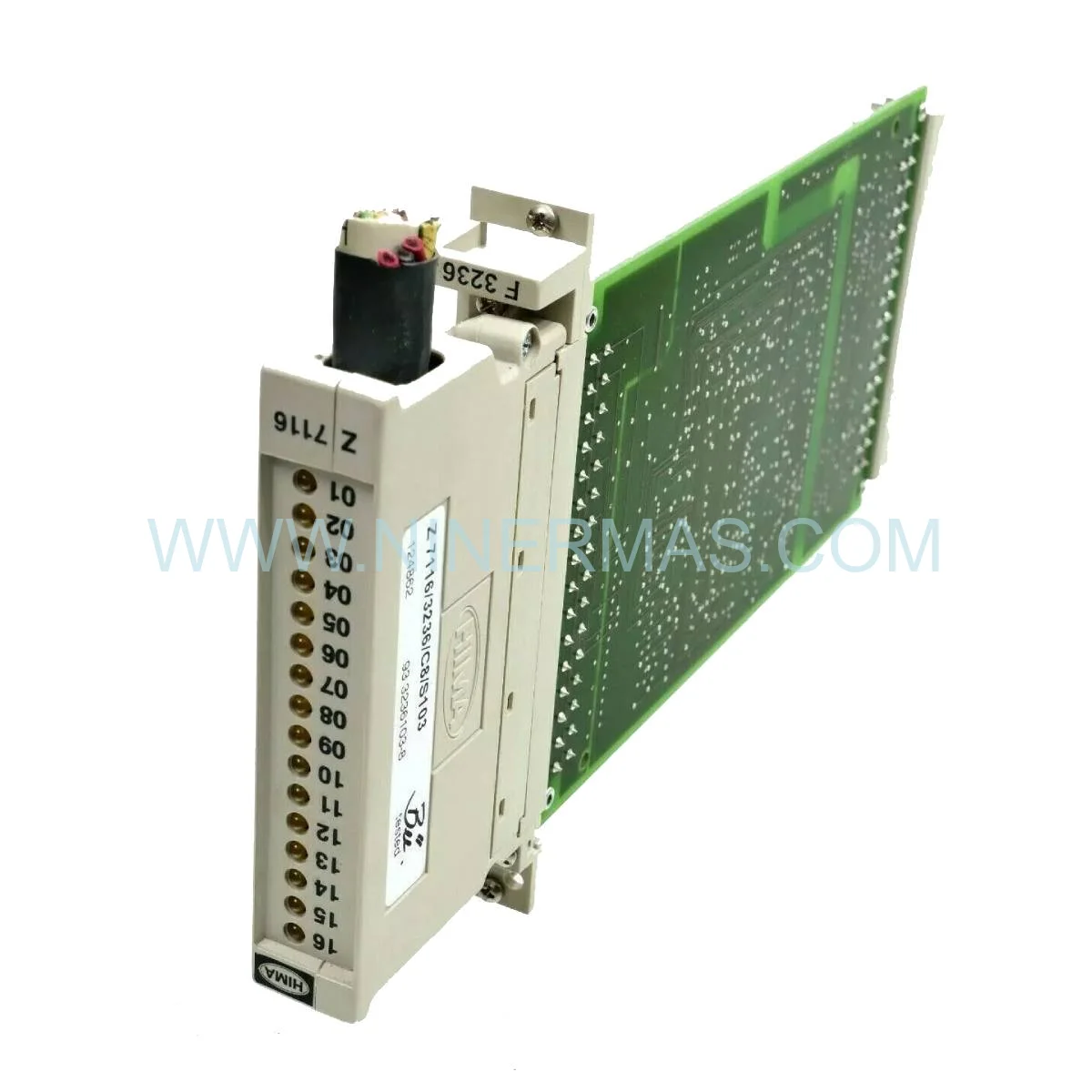

HIMA Z7116/3236 – Professional Retrofit & System Upgrade Component

System Modernization & Migration Analysis

As a Retrofit Project Lead overseeing industrial control system upgrades, the HIMA Z7116/3236 stands out as a mission-critical enabler in any HIQuad modernization initiative. When aging DCS or TSI infrastructures begin to exhibit signal degradation, increased maintenance overhead, or compliance gaps, the HIMA Z7116/3236 provides a precision-engineered interface that restores full operational integrity without requiring a complete system overhaul. Its role in extending equipment service life while simultaneously elevating system performance makes it indispensable in phased migration strategies across oil & gas, power generation, and chemical processing sectors.

One of the most compelling advantages of this component lies in its backward compatibility with the HIMA HIQuad F3236 digital input module platform — including legacy hardware revisions dating back to 1998. For retrofit architects managing multi-generation control environments, this means the HIMA Z7116/3236 can serve as the connective backbone of an upgrade path that bridges traditional field wiring topologies with modern safety-instrumented system (SIS) architectures. Its plug-and-play design eliminates the need for custom cable fabrication, dramatically reducing integration complexity during system migration windows.

From a total cost of ownership perspective, deploying the HIMA Z7116/3236 as part of a structured retrofit program significantly reduces migration risk. By maintaining OEM-grade signal fidelity and SIL certification compliance throughout the transition, facilities avoid the costly recertification cycles and unplanned downtime that typically accompany non-OEM substitutions. This makes it a strategically sound choice for both maintain-and-run scenarios and full-scale system modernization projects.

Upgrade Highlights & Compatibility

✅ Legacy Compatibility Assured: Supports all F3236 module hardware revisions — zero re-engineering required for existing field wiring layouts.

Performance Enhancement: Gold-plated copper alloy contacts deliver signal accuracy within ±0.1% tolerance, outperforming standard industrial connectors in EMI-dense environments.

✅ Future-Proofing by Design: IP20-rated mated protection and -40°C to +85°C operating range ensure readiness for next-generation control room expansions.

Seamless Integration: Factory-terminated contacts reduce commissioning time by up to 40%, enabling faster retrofit deployment with minimal production impact.

✅ Hardware Upgrade Confidence: Full API 670, ISO 20816, and CE compliance maintained throughout the upgrade lifecycle — no SIL recertification required when replacing like-for-like.

Retrofit Solution Scalability: Compatible with multi-channel I/O expansion strategies, supporting both incremental upgrades and full DCS migration programs.

Modernization Use Cases & Success Stories

DCS Modernization — Petrochemical Refinery: A major refinery operating a legacy HIMA HIQuad DCS platform faced increasing signal noise and connector fatigue across its F3236 digital input arrays. By systematically replacing degraded connectors with the HIMA Z7116/3236 during scheduled turnarounds, the facility achieved a 35% reduction in spurious trip events and extended the operational lifespan of its existing DCS infrastructure by an estimated 8 years — deferring a full platform replacement valued at over $2M USD.

TSI System Upgrade — Combined Cycle Power Plant: A turbine monitoring system (TSI) retrofit project required maintaining continuous vibration and proximity sensor data integrity during a phased control system upgrade. The HIMA Z7116/3236 served as the critical interface component, enabling the new monitoring layer to communicate seamlessly with legacy field instrumentation. The result: zero signal interruptions during the 14-day migration window and full SIL 2 compliance maintained throughout.

Emergency Shutdown System (ESD) Retrofit — LNG Terminal: During an ESD logic solver upgrade at an LNG export terminal, engineers selected the HIMA Z7116/3236 to preserve existing field wiring investments while integrating a new safety PLC layer. The connector’s backward compatibility eliminated the need for field cable replacement, saving approximately 320 man-hours of rewiring labor and reducing overall retrofit project cost by 18%.

Migration Technical Data Sheet

Supply Chain & Deployment Support

Original & Factory Sealed: Every HIMA Z7116/3236 unit is sourced directly from authorized HIMA distribution channels and shipped in original OEM packaging with full factory sealing. Authenticity documentation and batch traceability records are available upon request, ensuring compliance with your facility’s procurement and quality assurance requirements.

Expedited Global Logistics: Recognizing that retrofit and emergency replacement timelines are often compressed, we maintain strategic inventory positions to support expedited shipping to all major industrial regions — including North America, Europe, the Middle East, and Asia-Pacific. Priority dispatch with DHL Express, FedEx International Priority, and air freight consolidation services ensures your critical components arrive within your project window.

Technical Support for Obsolete & Legacy Hardware: Our engineering support team specializes in legacy HIMA HIQuad system compatibility assessments. Whether you are planning a phased migration, responding to an unplanned failure, or evaluating retrofit options for end-of-life hardware, our technical advisors can assist with compatibility verification, installation guidance, and alternative sourcing strategies for discontinued components.

Retrofit FAQ (Upgrade Guide)

Q1: Will the HIMA Z7116/3236 fit within the existing panel space of my legacy HIQuad installation without mechanical modification?
A: Yes. The HIMA Z7116/3236 is dimensionally identical to the original OEM connector specification for the F3236 module. No panel cutout modifications, bracket changes, or DIN rail adjustments are required. This makes it ideal for like-for-like replacement during planned maintenance windows or emergency retrofit scenarios where installation space is constrained.

Q2: How does the HIMA Z7116/3236 handle communication between new control layers and legacy field instrumentation during a phased system migration?
A: The connector maintains full electrical and signal compatibility with existing field wiring, regardless of whether the upstream control logic has been upgraded to a newer platform. During phased migrations, it acts as a transparent interface — preserving the original signal characteristics (voltage levels, impedance, shielding) that legacy sensors and transmitters were calibrated to, while allowing the new control layer to receive clean, accurate data without recalibration.

Q3: Are there validated spare part alternatives if the HIMA Z7116/3236 becomes unavailable or reaches end-of-life status?
A: While the HIMA Z7116/3236 is currently in active production, our technical team maintains a cross-reference database of functionally equivalent connectors for contingency planning. Any alternative must be validated against the F3236 module’s contact pitch, pin count, insulation rating, and SIL compliance requirements before deployment. We recommend engaging our engineering support team for a formal compatibility assessment before substituting any connector in a safety-instrumented loop.

Q4: Does replacing the connector with a new HIMA Z7116/3236 require re-validation or recertification of the SIL-rated safety loop?
A: No — provided the replacement is a genuine OEM HIMA Z7116/3236 installed in accordance with HIMA’s published installation guidelines. Like-for-like OEM replacement of a connector within a certified safety loop does not trigger a full SIL recertification requirement under IEC 61511. However, your facility’s functional safety management plan (FSMP) should be consulted, and the replacement should be documented in your safety lifecycle records.

Q5: What is the recommended approach for bulk connector replacement during a major DCS or TSI retrofit project?
A: For large-scale retrofit programs, we recommend a pre-project inventory audit to identify all F3236 module positions requiring connector replacement, followed by a consolidated procurement order to ensure batch consistency (same manufacturing lot) across all installation points. This minimizes variability in contact resistance and insulation characteristics across the upgraded system. Our team can assist with bill-of-materials (BOM) development and staged delivery scheduling aligned to your project milestones.

Q6: Can the HIMA Z7116/3236 support integration with modern Industrial IoT (IIoT) monitoring overlays without compromising the legacy system’s safety integrity?
A: Yes, when deployed as part of a properly architected IIoT integration strategy. The connector itself is a passive interface component and does not introduce any active signal processing that could affect safety loop integrity. IIoT data acquisition is typically implemented at the control system level (above the connector layer), using read-only data taps or OPC-UA gateways that do not interact with the physical connector interface. This allows facilities to gain real-time performance visibility without modifying or compromising the certified safety loop.
