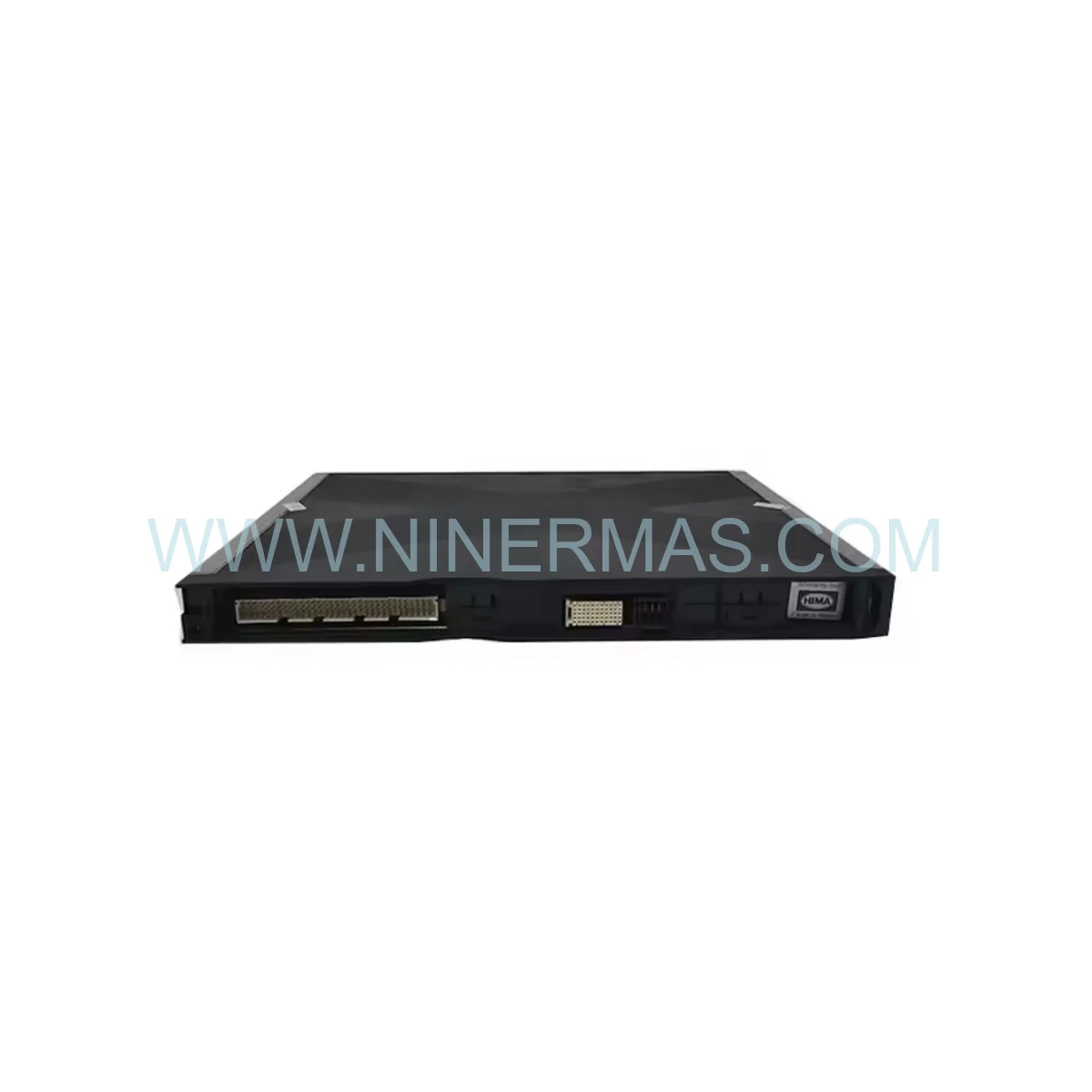

HIMA X-AO1601 — Professional Retrofit & System Upgrade Component

System Modernization & Migration Analysis

As a Retrofit Project Lead overseeing industrial control system upgrades across global manufacturing and energy facilities, the HIMA X-AO1601 stands out as a cornerstone component in any modernization initiative. This 16-channel analog output module delivers precision 4-20 mA current loop signals within the HIMax safety platform, enabling facilities to dramatically enhance control accuracy, diagnostic coverage, and system responsiveness — all without requiring a full-scale infrastructure overhaul. The HIMA X-AO1601 directly addresses the performance gaps that aging analog output hardware introduces into safety instrumented systems (SIS), making it an indispensable asset for any retrofit roadmap.

One of the most compelling advantages of this module in a legacy compatibility context is its ability to slot into existing HIMax rack architectures while maintaining backward compatibility with established field wiring and 4-20 mA loop devices. Whether your facility is running decade-old valve positioners from Fisher or Masoneilan, or interfacing with legacy SCADA systems, the X-AO1601 bridges the gap between traditional control infrastructure and modern safety-rated performance standards — serving as the upgrade path core for DCS and TSI modernization projects.

From a migration risk and cost perspective, deploying the X-AO1601 as part of a phased retrofit strategy significantly reduces the financial exposure associated with full system replacement. Its hot-swap capability eliminates planned downtime windows, while factory-calibrated outputs remove the need for costly field calibration services. The result: a lower total cost of migration, faster commissioning timelines, and a measurable reduction in operational risk during the transition from legacy to modern control architecture.

Upgrade Highlights & Compatibility

✅ Seamless Integration: Drop-in compatible with HIMax racks — no backplane modifications required, preserving existing field wiring investments.

✅ SIL 3 Performance Enhancement: Certified to IEC 61508 SIL 3 in redundant configurations (1oo2 / 2oo3), elevating legacy systems to modern functional safety standards.

Legacy Compatibility: Supports industry-standard 4-20 mA loop devices from all major vendors — Fisher, Masoneilan, Flowserve, and more — ensuring hardware upgrade without field device replacement.

Future-Proofing via Diagnostics: >99% diagnostic coverage with integrated self-test detects wire breaks, short circuits, and out-of-range conditions in real time, feeding alarms directly to DCS or SCADA.

✅ Hot-Swap Architecture: Replace modules under live system conditions — a critical advantage for continuous-process facilities where unplanned shutdowns carry significant financial penalties.

Extended Temperature Range: Operates reliably from -40°C to +70°C, supporting retrofit deployments in harsh outdoor or non-climate-controlled environments.

Modernization Use Cases & Success Stories

DCS Modernization in Petrochemical Facilities: A major refinery operating legacy analog output cards with limited diagnostic capability integrated the X-AO1601 into their HIMax-based safety layer during a phased DCS upgrade. The result was a 40% reduction in spurious trip events attributed to output signal drift, alongside full SIL 3 compliance achieved without replacing field valve positioners — a textbook performance upgrade through hardware retrofit.

Turbine Safety Instrumented System (TSI) Retrofit: In a combined-cycle power plant, aging turbomachinery protection systems were generating false alarms due to degraded analog output accuracy. By deploying the X-AO1601 as the analog output backbone of the upgraded TSI architecture, the plant achieved ±0.1% full-scale accuracy across all 16 channels, eliminating nuisance trips and extending the proof test interval to 10 years — a direct outcome of the module’s superior diagnostic coverage and factory calibration.

Compressor Control System Migration: An offshore gas platform required a system migration from a proprietary legacy controller to an open, IEC 61131-3 compliant HIMax architecture. The X-AO1601 enabled seamless integration of existing 4-20 mA actuator loops into the new platform, with SILworX pre-validated function blocks accelerating engineering by an estimated 35% compared to custom-coded alternatives.

Migration Technical Data Sheet

Supply Chain & Deployment Support

Original & Factory Sealed: Every HIMA X-AO1601 unit supplied is sourced as genuine OEM hardware, factory sealed with full traceability documentation. No refurbished or third-party remanufactured units — critical for SIL-rated applications where component provenance directly impacts functional safety validation.

Expedited Global Logistics: Recognizing that retrofit and migration projects operate on compressed timelines, we maintain strategic inventory positions to support urgent dispatch. Air freight and express courier options are available to all major industrial hubs across Asia-Pacific, Europe, the Middle East, and the Americas — with full export documentation for customs clearance.

Technical Support for Obsolete & Legacy Hardware: Our engineering team specializes in bridging the gap between legacy control architectures and modern safety platforms. Whether you need assistance with HIMax rack configuration, SILworX programming support, or compatibility analysis between the X-AO1601 and your existing field devices, our retrofit specialists are available to provide pre-sales technical consultation and post-delivery commissioning guidance.

Retrofit FAQ (Upgrade Guide)

Q: Will the HIMA X-AO1601 fit into my existing HIMax rack without mechanical modifications?
A: Yes. The X-AO1601 is designed for direct installation into standard HIMax rack slots. No backplane modifications, bracket changes, or mechanical adaptations are required, making it an ideal drop-in retrofit component for facilities upgrading individual I/O modules within an existing HIMax architecture.

Q: How does the X-AO1601 communicate with legacy DCS or SCADA systems during a phased migration?
A: The module operates within the HIMax platform’s communication framework, supporting standard industrial protocols via the HIMax processor and communication modules. During phased migrations, the HIMax system can be configured to interface with legacy DCS platforms through protocol gateways, enabling parallel operation of old and new systems until full cutover is achieved — minimizing migration risk.

Q: Can the X-AO1601 replace older analog output modules from other vendors in a cross-brand retrofit?
A: The X-AO1601 is a HIMax-native module and requires a HIMax rack environment. For cross-brand retrofit scenarios where the target platform is not HIMax, our technical team can assess compatibility and recommend appropriate migration pathways, including platform consolidation strategies that leverage the HIMax architecture as the unified safety layer.

Q: What spare part substitution options exist if the X-AO1601 reaches end-of-life in the future?
A: The X-AO1601 is currently an Active lifecycle product with full OEM production support. HIMA’s HIMax platform roadmap ensures long-term spare part availability. For future-proofing, our team can provide lifecycle management advisory services, including recommended stocking levels and migration path analysis to next-generation HIMA platforms when required.

Q: How long does commissioning typically take when integrating the X-AO1601 into an existing safety system?
A: For like-for-like module replacement within an existing HIMax system, commissioning can be completed in under 2 hours per module, including functional testing and loop verification. For new HIMax deployments as part of a broader system migration, SILworX pre-validated function blocks significantly accelerate engineering, with typical analog output loop configuration completed in minutes per channel.

Q: Is proof testing required after installing the X-AO1601 as a retrofit component?
A: Yes, as per IEC 61508 and IEC 61511 requirements, a proof test must be performed after any safety-rated module replacement to validate the safety function. The X-AO1601’s >99% diagnostic coverage supports extended proof test intervals of up to 10 years in SIL 3 redundant configurations, reducing the long-term maintenance burden compared to legacy modules with lower diagnostic coverage.
