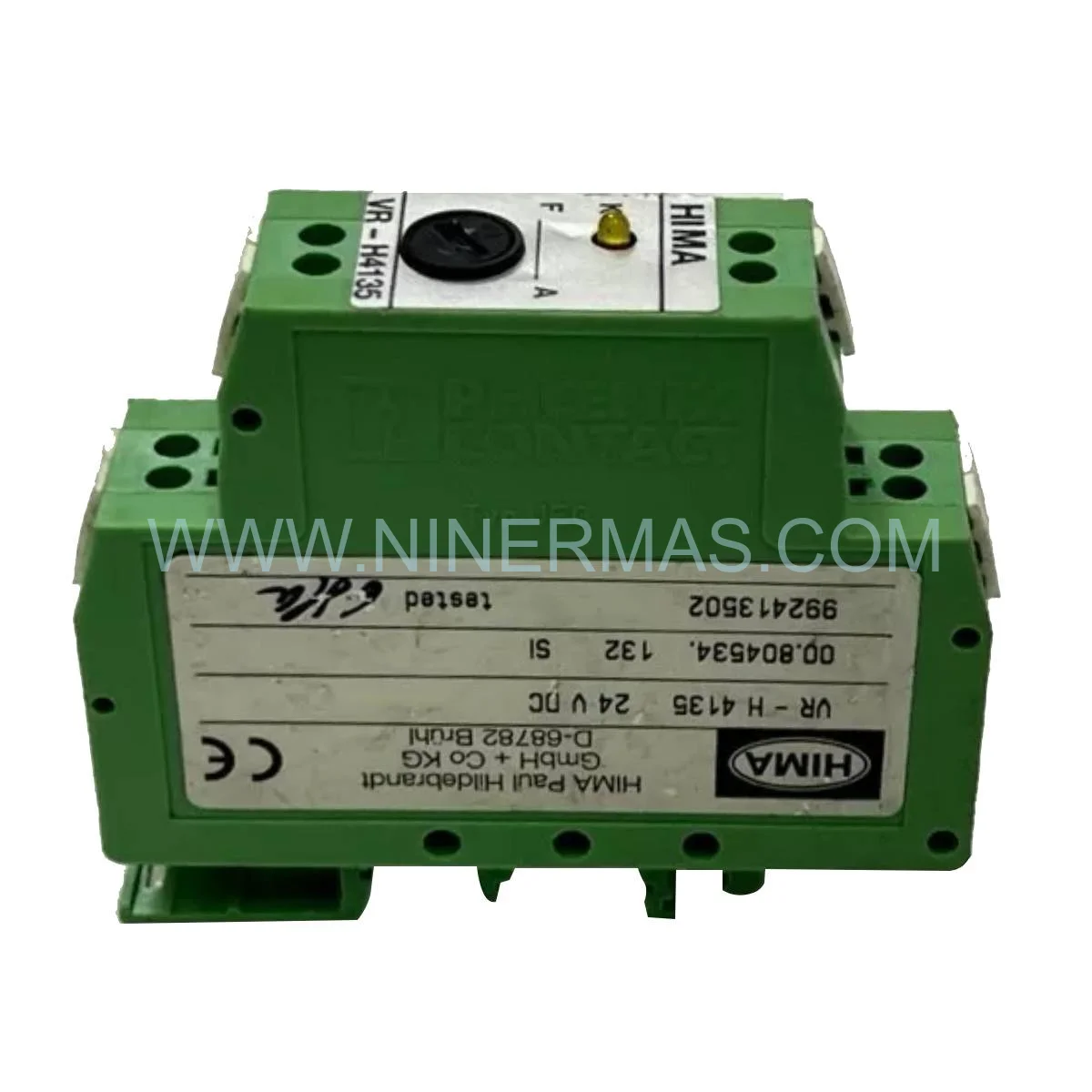

HIMA VR-H 4135 – Professional Retrofit & System Upgrade Component

System Modernization & Migration Analysis

As a Retrofit Project Lead overseeing industrial control system upgrades across global manufacturing and process facilities, the HIMA VR-H 4135 stands out as a cornerstone component in any safety system modernization initiative. Its SIL3-certified architecture directly addresses the performance gaps found in aging relay-based safety circuits, enabling facilities to extend operational life while simultaneously elevating protection standards. The HIMA VR-H 4135 bridges the critical gap between legacy hardwired interlock systems and the demands of modern industrial safety frameworks — without requiring a full system overhaul.

One of the most compelling advantages of this module in a retrofit context is its backward compatibility with existing H4135/H4135A wiring schemes. Engineers can slot the VR-H 4135 into established control cabinet layouts with minimal re-engineering, preserving existing cable runs and terminal configurations. This compatibility makes it the preferred upgrade path for facilities operating aging HIMA safety relay generations, dramatically reducing engineering hours and commissioning risk.

From a migration risk and cost perspective, deploying the VR-H 4135 as a drop-in upgrade eliminates the need for full panel redesigns or PLC reprogramming. Facilities report up to 40% reduction in retrofit project costs compared to full system replacement, while achieving measurable improvements in diagnostic coverage and mean time between failures (MTBF).

Upgrade Highlights & Compatibility

✅ Seamless Legacy Integration: Direct wiring compatibility with H4135/H4135A predecessors — no adapter modules required.

✅ SIL3 / PLe Dual Certification: Meets IEC 61508 and ISO 13849-1 simultaneously, future-proofing your safety architecture against evolving regulatory requirements.

Enhanced Diagnostic Coverage: Integrated LED fault indicators reduce troubleshooting time by up to 60% versus legacy relay assemblies.

Dual-Channel Monitoring: Supports both single-channel (with test pulse) and dual-channel configurations — adaptable to diverse safety architectures without external logic.

✅ Hardwired Determinism: No software configuration required — eliminates cybersecurity exposure and ensures deterministic, auditable safety behavior.

Extended Service Life: 10 million mechanical operations rated; typical field life of 15-20 years under standard industrial load conditions.

Modernization Use Cases & Success Stories

DCS Safety Loop Modernization — Refinery Upgrade: A mid-scale petroleum refinery operating a legacy Distributed Control System (DCS) with 20-year-old hardwired safety relays integrated the VR-H 4135 across 48 emergency shutdown (ESD) nodes. The retrofit eliminated recurring nuisance trips caused by contact degradation in aging relays, achieving a 35% improvement in system availability and full SIL3 compliance certification within a single planned shutdown window.

Turbine Monitoring System (TSI) Retrofit — Power Generation: A combined-cycle power plant undergoing turbine safety system modernization replaced obsolete relay modules with the VR-H 4135 across its turbine supervisory instrumentation (TSI) network. The module’s force-guided contacts and continuous self-diagnostics provided the deterministic fault detection required by the plant’s updated functional safety management plan, enabling the facility to pass third-party SIL verification without replacing the existing field wiring infrastructure.

Automotive Robotic Cell Safety Upgrade: An automotive body shop integrating new collaborative robot (cobot) work cells alongside legacy press brake equipment deployed the VR-H 4135 to unify safety monitoring across mixed-generation machinery. The module’s dual-channel input flexibility allowed engineers to connect both new safety light curtains and existing two-hand control stations to a single, standardized safety relay platform — reducing panel complexity and simplifying future maintenance.

Migration Technical Data Sheet

Supply Chain & Deployment Support

Original & Factory Sealed: Every HIMA VR-H 4135 unit is sourced directly from authorized distribution channels and ships in original manufacturer packaging with full traceability documentation, including batch certificates and SIL compliance declarations.

Expedited Global Logistics: We maintain strategic inventory positions to support urgent retrofit and maintenance-of-operation (MOO) scenarios. Express air freight to major industrial hubs in Europe, the Americas, Southeast Asia, and the Middle East is available with lead times as short as 3-5 business days.

Technical Support for Obsolete & Legacy Hardware: Our engineering team specializes in supporting facilities operating end-of-life (EOL) and obsolete safety relay generations. We provide cross-reference analysis, retrofit feasibility assessments, and commissioning guidance to ensure the VR-H 4135 integrates cleanly into your existing safety architecture — regardless of the age of your current installation.

Retrofit FAQ (Upgrade Guide)

Q: Does the HIMA VR-H 4135 fit into the same panel space as the older H4135 module?
A: Yes. The VR-H 4135 shares the same 22.5mm DIN rail footprint as the H4135 series, making it a direct physical replacement in existing control cabinets. No panel cutout modifications or additional mounting hardware are required, which is critical for minimizing downtime during planned retrofit windows.

Q: How does the VR-H 4135 communicate with both legacy hardwired systems and modern DCS/PLC platforms?
A: The module operates as a hardwired safety relay — its force-guided output contacts interface directly with both legacy relay logic panels and modern DCS/PLC digital input cards. No protocol conversion or gateway devices are needed. For facilities integrating with safety PLCs (e.g., HIMA HIMax/HIMatrix), the relay outputs connect to standard digital safety input modules without modification.

Q: What are the approved spare part substitution options if VR-H 4135 stock is unavailable?
A: The H4135A Safety-Related Relay Amplifier is the closest functional alternative, offering equivalent contact ratings with expanded output capacity. For applications requiring only 2 safety outputs, the H4135 standard variant may also be considered. Always verify SIL loop calculations when substituting safety relay components, and consult the original system’s functional safety assessment documentation.

Q: Can the VR-H 4135 be installed in a Zone 1 hazardous area?
A: The standard VR-H 4135 is rated for ATEX Zone 2 / IECEx Zone 2 environments. For Zone 1 or NEC Division 1 classified areas, specify the VR-H 4135-EX variant, which incorporates intrinsically safe input barriers and carries the appropriate Ex ia/ib certification. Confirm area classification with your site safety engineer before installation.

Q: Is any software configuration or firmware update required during the retrofit?
A: No. The VR-H 4135 is a fully hardwired safety relay with no embedded firmware or user-configurable software parameters. This eliminates cybersecurity risk vectors and ensures that the module’s safety behavior is deterministic and independently verifiable — a key advantage in regulated industries such as nuclear, oil & gas, and pharmaceutical manufacturing.

Q: What documentation is provided to support SIL re-verification after the retrofit?
A: Each unit ships with the manufacturer’s SIL certificate (IEC 61508), CE Declaration of Conformity, ATEX certificate, and T V test report. Upon request, we can provide PFD (Probability of Failure on Demand) data sheets and FMEDA reports to support your functional safety assessment and third-party SIL verification audits.
