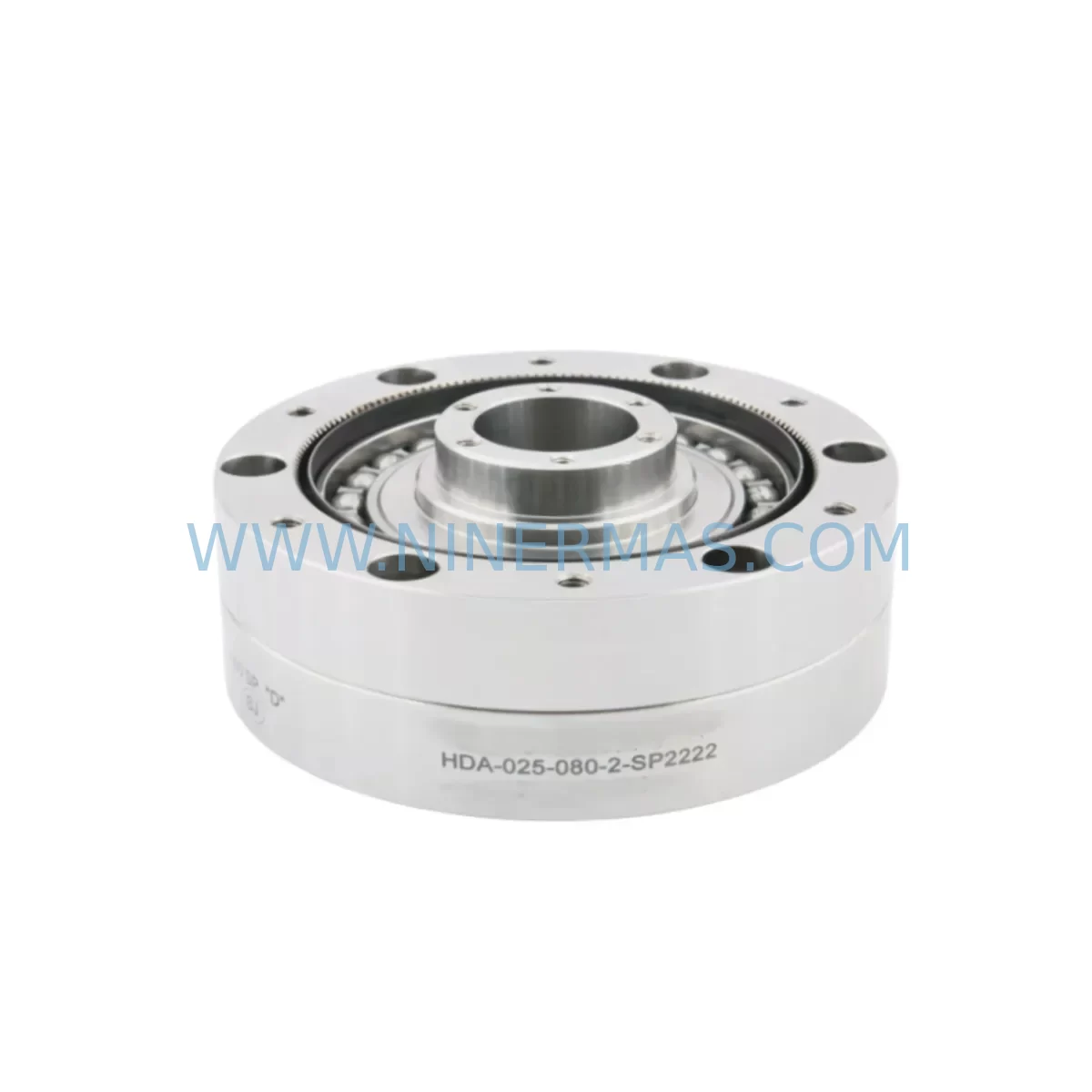

The Harmonic Drive HDA-025-080-2-SP2222 is a high-precision hollow shaft gear actuator engineered for safety-critical industrial control environments where zero-tolerance for mechanical failure is mandatory. Designed around Harmonic Drive’s proven strain wave gear technology, this unit delivers exceptional torsional rigidity, near-zero backlash, and repeatable positioning accuracy — qualities that are indispensable in continuous production lines, critical interlock circuits, and heavy-duty control cabinet installations operating under demanding electrical and mechanical stress.

In industrial automation, the consequences of actuator failure extend far beyond equipment downtime. Unplanned stops in petrochemical processing, power generation, or metallurgical operations can trigger cascading safety events, regulatory violations, and significant financial loss. The HDA-025-080-2-SP2222 is purpose-built to eliminate these risks by providing a mechanically stable, thermally resilient, and electromagnetically robust motion control solution that maintains precise output under load fluctuations, vibration, and harsh ambient conditions.

With a gear ratio of 80:1 and a compact size-25 hollow shaft configuration, this actuator integrates seamlessly into servo-driven axis systems, robotic joint assemblies, and precision positioning stages where space constraints and output torque density are both critical design parameters. The SP2222 configuration denotes a specific bearing and sealing arrangement optimized for extended service life in environments exposed to dust ingress, moisture, and thermal cycling — conditions routinely encountered in mining, port logistics, and continuous manufacturing facilities.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

Deploying the HDA-025-080-2-SP2222 within a safety-engineered control cabinet architecture requires careful coordination of all surrounding components to ensure the actuator’s mechanical precision is matched by equivalent electrical and signal integrity. In high-reliability servo axis applications, the gear unit is typically paired with a Harmonic Drive CSF-25-80-2A-GR component set or a compatible CSD-2A-25 cross-roller output bearing assembly, which together form a complete, pre-tested motion module ready for direct integration into the machine frame.

On the drive side, Beckhoff AX5000 series servo drives or Siemens SINAMICS S120 drive modules are commonly used to command the HDA-025-080-2-SP2222 in closed-loop position control. These drives provide real-time current limiting, encoder feedback monitoring, and safe torque off (STO) functions that complement the mechanical safety characteristics of the gear unit. When the servo axis is part of a safety-rated interlock circuit, Pilz PNOZmulti 2 safety relay modules or Sick Flexi Soft safety controllers are integrated to supervise the STO channel and provide certified safe-stop functionality in accordance with IEC 62061 and ISO 13849.

Power supply stability is equally critical. Phoenix Contact QUINT POWER 24 VDC power supplies with active buffer modules are recommended to prevent control voltage dips from causing spurious drive faults or encoder signal loss during load transients. For applications in high electromagnetic interference environments — such as near large variable frequency drives or arc welding stations — Schaffner FN 3258 series EMC line filters installed upstream of the servo drive protect the entire axis from conducted interference that could otherwise cause position drift or communication errors on the drive’s PROFINET or EtherCAT interface.

At the PLC level, Siemens S7-1500 controllers with TM PTO pulse train output modules or Beckhoff CX5130 embedded PCs running TwinCAT 3 provide the deterministic motion control environment required to exploit the HDA-025-080-2-SP2222’s positioning accuracy. Omron NX-series safety CPU units are also widely deployed in conjunction with this gear unit in collaborative robot and precision assembly applications where functional safety certification is mandatory. Cable management within the control cabinet should include Igus chainflex CF9 servo cables rated for continuous flexing, ensuring signal integrity is maintained across the full mechanical travel range without insulation fatigue.

Critical Industrial Safety Applications

The HDA-025-080-2-SP2222 is deployed across a broad spectrum of safety-critical industrial sectors where mechanical precision and long-term reliability are non-negotiable operational requirements.

In petrochemical and refinery facilities, this gear unit drives valve actuator assemblies and reactor positioning systems in classified hazardous zones. Its sealed bearing configuration and passive mechanical design eliminate ignition risk while maintaining precise flow control in high-pressure process loops. In power generation plants — including thermal, hydro, and nuclear facilities — the HDA-025-080-2-SP2222 is used in turbine blade pitch control and generator excitation positioning systems, where a single mechanical fault can trigger a full unit trip and grid instability.

In underground mining operations, the actuator’s resistance to dust, vibration, and thermal shock makes it the preferred choice for conveyor diverter drives, drill positioning systems, and ventilation damper actuators. The sealed SP2222 bearing module prevents fine particulate ingress that would otherwise accelerate wear and cause premature failure in abrasive environments. Water and wastewater treatment plants rely on this gear unit for precise chemical dosing pump drives and sluice gate positioning, where consistent torque output and corrosion-resistant sealing are essential for regulatory compliance and public safety.

In metallurgical and steel mill environments, the HDA-025-080-2-SP2222 withstands radiant heat, scale dust, and high-frequency vibration from rolling mill drives. Its high torsional stiffness prevents angular windup under shock loads, protecting the servo drive from overcurrent faults. Port and terminal automation systems use this actuator in container crane slewing drives and automated guided vehicle steering assemblies, where 24/7 continuous duty cycles demand a gear unit with proven fatigue life and predictable maintenance intervals. In marine and offshore applications, the sealed bearing arrangement provides corrosion protection in salt-laden atmospheres, supporting reliable operation of deck machinery and dynamic positioning thruster control systems.

Safety and Quality FAQ

Q1: What does the 12-month warranty cover for the HDA-025-080-2-SP2222?
The 12-month warranty covers all manufacturing defects, dimensional non-conformances, and functional failures occurring under rated operating conditions from the date of shipment. This includes bearing failure, gear mesh degradation, and sealing defects attributable to production quality. Warranty claims are supported by pre-shipment test records provided with each unit, enabling rapid root cause analysis and replacement processing without extended lead times.

Q2: What pre-shipment testing is performed before dispatch?
Every HDA-025-080-2-SP2222 unit undergoes a full functional inspection prior to shipment, including dimensional verification of the hollow shaft bore and output flange interface, backlash measurement, rotational torque check across the full gear ratio, and visual inspection of the SP2222 bearing seal integrity. Test results are documented and available upon request, providing full traceability for quality-critical procurement processes.

Q3: Is the HDA-025-080-2-SP2222 compatible with third-party servo motors and drives?
Yes. The HDA-025-080-2-SP2222 uses the standard Harmonic Drive size-25 input interface, which is compatible with a wide range of servo motor flanges from Siemens, Beckhoff, Yaskawa, Mitsubishi, and Fanuc. Custom motor adapter flanges are available for non-standard motor shaft diameters. Compatibility with specific drive brands should be confirmed against the motor’s rated output torque and maximum input speed relative to the gear unit’s rated input specifications.

Q4: Can NINERMAS guarantee long-term supply and replacement support for this model?
NINERMAS maintains dedicated stock of the HDA-025-080-2-SP2222 and related HDA-025 series components as part of our end-of-life and long-term supply program for critical automation spare parts. Reserved inventory agreements are available for customers with scheduled maintenance programs or multi-unit installations requiring guaranteed availability over a 12–36 month horizon. Contact our technical sales team to discuss consignment stock or priority supply arrangements.
