Hardy HI 1756-2WS Service-Ready Spare Part for Industrial Maintenance

Hardy HI 1756-2WS Service-Ready Spare Part for Industrial Maintenance

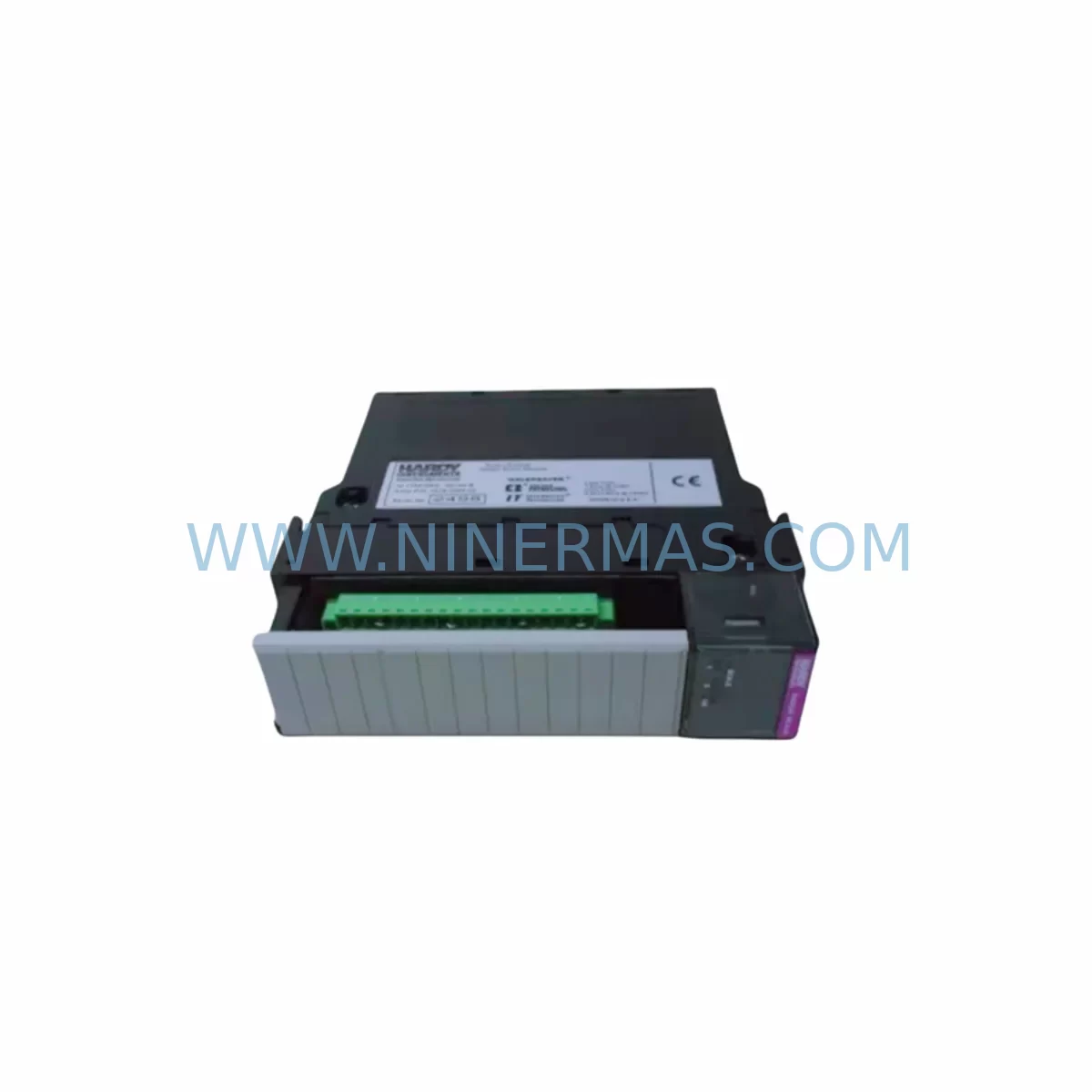

The Hardy HI 1756-2WS is a process weighing interface module engineered for integration within Allen-Bradley ControlLogix 1756 backplane architectures. Designed for continuous industrial operation, this module provides precision weight measurement, C2 electronic calibration support, and direct PLC communication via the 1756 local or remote I/O chassis. For maintenance engineers managing weighing systems on production lines, batching stations, or bulk material handling equipment, the HI 1756-2WS represents a critical spare that directly impacts uptime and process accuracy.

Sourced as an original Hardy Instruments component, each unit available through NINERMAS undergoes pre-shipment functional verification to confirm signal integrity, backplane communication, and calibration response before dispatch. With a 12-month warranty and long-term supply commitment, this spare part is suitable for both emergency breakdown replacement and planned annual maintenance stock.

Maintenance teams operating legacy ControlLogix 1756 platforms frequently encounter challenges sourcing original Hardy weighing modules as production lines age. The HI 1756-2WS bridges that gap — providing a drop-in replacement that preserves existing ladder logic, calibration parameters, and HART or C2 wiring without requiring system redesign. Procurement engineers can consolidate this SKU into standing spare parts orders alongside other 1756-series modules to reduce emergency sourcing lead times.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the HI 1756-2WS in a ControlLogix 1756 system, a thorough site inspection of the surrounding electrical environment is essential to prevent repeat failures and ensure a clean restoration of weighing accuracy. Maintenance engineers should begin by verifying the 1756 chassis backplane for slot integrity and connector wear — a damaged backplane slot can cause intermittent communication faults that mimic module failure. Inspect the 1756-PA72 or 1756-PB72 power supply module to confirm it is delivering stable DC voltage within specification; an aging or undersized power supply is a common root cause of weighing module instability.

Load cell wiring should be inspected at the 1492 terminal block or field wiring termination point, checking for shield continuity, moisture ingress, and correct mV/V signal levels. If the system uses C2 junction boxes for multi-load-cell summing, verify that the C2 ID resistors are intact and that no individual load cell has drifted beyond acceptable tolerance. For installations with remote I/O, confirm that the 1756-ENBT or 1756-EN2T EtherNet/IP communication module in the same chassis is functioning correctly, as network faults can prevent the HI 1756-2WS from being polled by the controller.

Review the 1756-L series ControlLogix processor firmware version to ensure compatibility with the replacement HI 1756-2WS module revision. In systems where the weighing data feeds into batching or dosing sequences, also inspect any 1756-OB16 or 1756-OW16 digital output modules used to trigger discharge valves or conveyor drives — a faulty output module can cause process errors that are incorrectly attributed to the weighing module. Where signal isolation is required between the weighing system and downstream instrumentation, check DIN-rail mounted signal isolators or loop-powered transmitters for correct zero and span calibration.

For facilities running Hardy weighing systems alongside Rockwell Automation PLC infrastructure, it is also advisable to maintain a spare HI 1756-1WS single-channel weighing module and a HI 1756-WS weight controller as complementary inventory items. Procurement teams should also consider stocking Hardy HI 4050 or HI 6500 series weight controllers for standalone weighing applications that may share the same load cell infrastructure. Keeping a documented spare parts list that includes chassis, power supply, communication, and I/O modules alongside the HI 1756-2WS ensures that any single-point failure can be resolved within a single maintenance window.

Site Replacement Workflow

Step 1 — Isolation & Safety: Place the ControlLogix controller in Program mode via RSLogix 5000 / Studio 5000. Inhibit the HI 1756-2WS module in the I/O tree to prevent faulting the controller during removal. De-energize the 1756 chassis power supply if a hot-swap is not supported by the site safety procedure.

Step 2 — Documentation: Record the existing module configuration, including channel scaling, C2 calibration data, filter settings, and rate-of-change limits. Export the RSLogix 5000 project file as a backup before proceeding. Note the slot number and chassis address for the replacement module.

Step 3 — Physical Replacement: Remove the faulty HI 1756-2WS by pressing the top and bottom latches and sliding the module out of the chassis slot. Insert the replacement HI 1756-2WS into the same slot. Reconnect the load cell field wiring to the module’s RTB (removable terminal block), verifying polarity and shield grounding.

Step 4 — Configuration Restore: Re-enable the module in the I/O tree and download the project to the controller. Verify that the module status LED indicates normal operation. Perform a C2 electronic calibration or traditional calibration sequence as required by the process specification. Confirm live weight readings against a known reference weight before returning the system to automatic mode.

Step 5 — Functional Verification: Run the process through at least one complete batch or weighing cycle under operator supervision. Log the calibration certificate and replacement date in the site maintenance management system (CMMS) to support future spare parts planning and warranty tracking.

Spare Parts Support FAQ

Q1: Is the HI 1756-2WS compatible with all ControlLogix 1756 chassis sizes?
Yes. The HI 1756-2WS occupies a single slot in any standard 1756 chassis (4, 7, 10, 13, or 17 slot) and communicates via the ControlLogix backplane. Compatibility with the controller firmware version should be confirmed against the Hardy Instruments compatibility matrix for the specific RSLogix 5000 / Studio 5000 version in use at the site.

Q2: What pre-shipment testing is performed on each unit?
Each HI 1756-2WS unit supplied by NINERMAS undergoes functional verification prior to dispatch, including backplane communication check, channel signal response, and power-on self-test confirmation. Units are packaged in anti-static protective packaging with inspection documentation included.

Q3: Can this module replace an older revision HI 1756-2WS without reprogramming?
In most cases, yes. The HI 1756-2WS is designed for backward compatibility within the 1756 series. However, if the controller project was built with an older module revision profile, the RSLogix 5000 / Studio 5000 project may require a module revision update and re-download. NINERMAS technical support can advise on revision compatibility prior to shipment.

Q4: What is the warranty coverage and long-term supply commitment?
All HI 1756-2WS units are covered by a 12-month warranty from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions. NINERMAS maintains long-term supply capability for legacy Hardy Instruments 1756-series modules to support facilities operating extended equipment lifecycles beyond the original manufacturer’s active production period.
