GEMS 2200BGA2501A3UA Retrofit-Compatible Pressure Module

GEMS 2200BGA2501A3UA Retrofit-Compatible Pressure Module for Legacy System Modernization

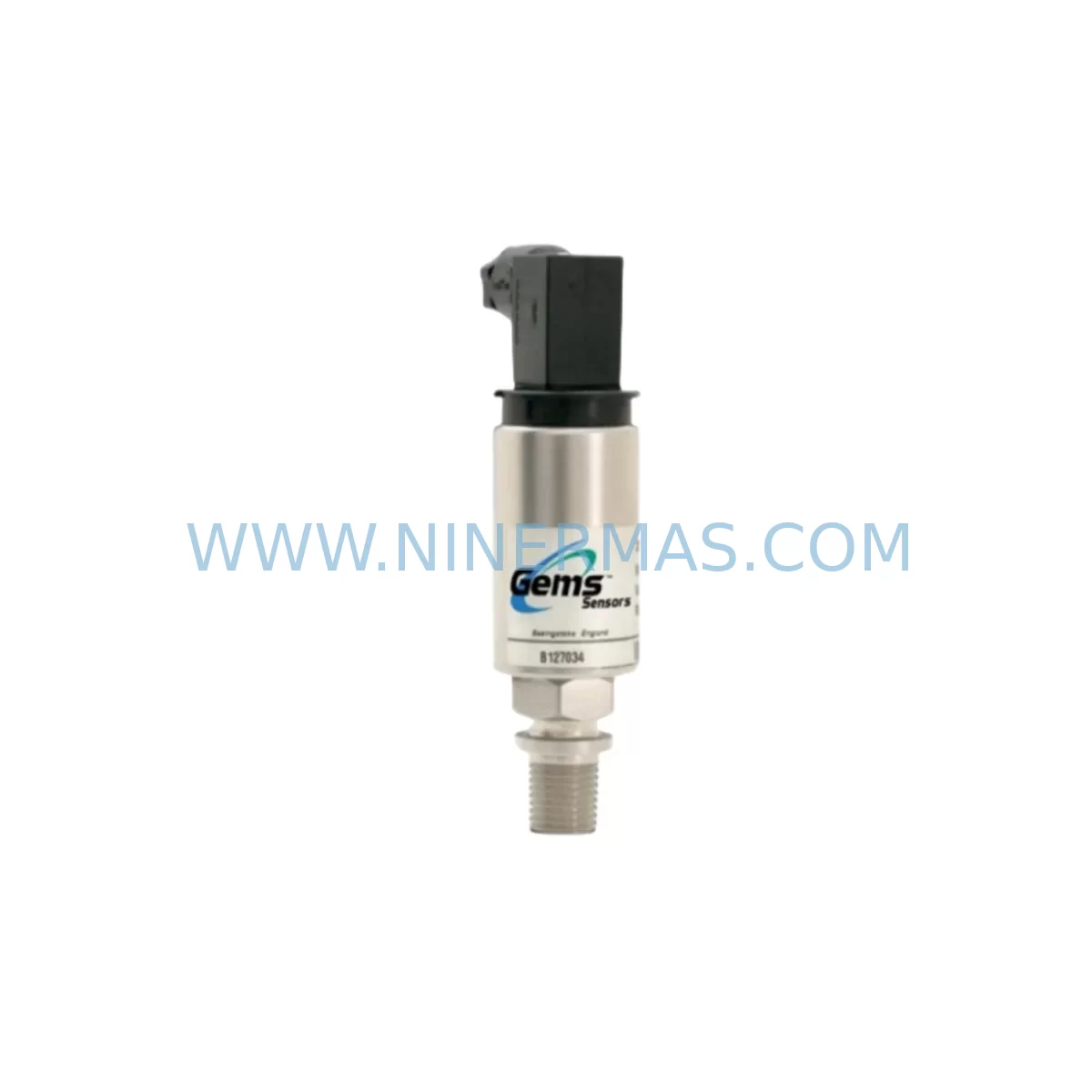

The GEMS Sensors 2200BGA2501A3UA is a ruggedized pressure sensing module from the GEMS 2200 Series, engineered for demanding industrial environments where measurement accuracy, mechanical durability, and long-term signal stability are non-negotiable. As legacy pressure instrumentation reaches end-of-life across process plants, chemical facilities, and discrete manufacturing lines, the 2200BGA2501A3UA has become a preferred retrofit solution for engineers tasked with modernizing aging control architectures without full system replacement.

Designed to interface with existing field wiring, terminal blocks, and signal conditioning circuits, this module supports smooth integration into control cabinets that were originally built around older GEMS pressure transmitter families. Its ruggedized housing tolerates vibration, moisture ingress, and wide temperature swings — conditions common in compressor rooms, hydraulic test benches, and outdoor process skids. Whether you are replacing a failed unit on an emergency basis or executing a planned lifecycle upgrade across multiple measurement points, the 2200BGA2501A3UA delivers the dimensional and electrical compatibility needed to minimize rework.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

A successful retrofit of the GEMS 2200BGA2501A3UA into an existing automation system requires a structured pre-installation review. Begin by auditing the existing field instrument loop: confirm the 24 VDC loop power supply capacity, verify that the existing cable pair meets the loop resistance specification, and check that the PLC analog input card — such as a Siemens S7-300 SM331 or an Allen-Bradley 1756-IF16 ControlLogix analog input module — is configured for the correct input range (4–20 mA or 0–10 V). If the legacy system used a voltage output transmitter and the replacement is current-output, the input card configuration and any associated signal isolator must be updated accordingly.

Terminal block wiring is a critical checkpoint. Many older installations used screw-type terminal blocks with ferrule-terminated conductors; confirm that the existing terminal strip — whether a Phoenix Contact MKDS series or a Weidmüller WDU terminal block — can accept the replacement module’s cable entry without re-termination. If the original transmitter used a 3-wire configuration and the 2200BGA2501A3UA is a 2-wire loop-powered device, the third conductor must be properly capped and documented in the as-built drawings.

For systems where the pressure measurement feeds a Yokogawa CENTUM VP or Honeywell Experion PKS DCS, verify that the field device tag, engineering unit range, and alarm setpoints in the DCS database match the new transmitter’s calibrated span. HMI faceplate displays and historian tags referencing the old instrument tag should be reviewed to ensure continuity of process data trending. If the legacy transmitter was connected via a HART multiplexer or an Emerson 475 Field Communicator, the device descriptor (DD) file for the 2200BGA2501A3UA should be loaded before commissioning to enable full HART diagnostics.

In control cabinets where space is constrained — particularly in retrofit projects involving older GE Fanuc Series 90-30 or Siemens S5 era enclosures — confirm that the new module’s body length and conduit entry direction do not conflict with existing cable trays or adjacent components such as Phoenix Contact TRIO power supplies or Murr Elektronik signal isolators. A dimensional mock-up using the module datasheet drawings before committing to installation saves significant rework time on live plant equipment.

Where the pressure signal feeds a safety instrumented function, coordinate with the SIS engineer to confirm that the 2200BGA2501A3UA’s SIL rating and proof-test interval are compatible with the existing Safety Instrumented System — particularly if the loop interfaces with a Hima HIMatrix or Pilz PNOZmulti safety controller. Document all changes in the Management of Change (MOC) system before energizing the replacement loop.

Downtime Control During System Migration

Minimizing production downtime during a pressure transmitter replacement requires careful sequencing. Where process conditions allow, isolate the measurement point using the existing root valve or manifold block valve rather than shutting down the entire process line. If the transmitter is installed on a 3-valve or 5-valve manifold, the equalization and isolation sequence must follow the site’s written procedure to prevent impulse line pressure shock.

Before removing the legacy unit, capture the current 4–20 mA output reading and the corresponding process value from the DCS or SCADA historian. This baseline allows rapid verification that the replacement module is correctly calibrated and wired after installation — if the output reading at a known stable process condition matches the pre-removal value within the specified accuracy band, commissioning can be completed without a full process upset.

For critical measurement points where the process cannot be isolated, a hot-swap approach using a portable pressure calibrator — such as a Fluke 729 Automatic Pressure Calibrator — can simulate the transmitter output during the physical swap, maintaining the PLC input signal within normal range and preventing spurious alarms or interlock trips. After installation, restore the live signal gradually and confirm that the DCS trend is tracking correctly before releasing the loop to automatic control.

Maintain a rollback plan: retain the removed legacy transmitter in a labeled, protected storage bag with its calibration record. If the replacement unit exhibits unexpected behavior during the first 24 hours of operation, the original unit can be reinstalled while the issue is investigated — avoiding extended production loss. All GEMS 2200BGA2501A3UA units shipped by NINERMAS are pre-tested and documented, reducing the probability of a field failure at first energization.

Retrofit Support FAQ

Q1: Is the GEMS 2200BGA2501A3UA a direct drop-in replacement for older GEMS 2200-series pressure transmitters?
In most cases, yes — the 2200 Series maintains consistent process connection geometry and electrical interface across its product family. However, always verify the pressure range suffix, output type (mA vs. V), and supply voltage specification against your existing loop documentation before ordering. Our technical team can cross-reference your legacy part number against the 2200BGA2501A3UA datasheet to confirm compatibility.

Q2: What pre-shipment testing is performed on each unit?
Every 2200BGA2501A3UA dispatched by NINERMAS undergoes a functional pressure application test and output linearity check across the calibrated span. Test results are documented and available upon request. Units are shipped in anti-static, moisture-protected packaging to preserve calibration integrity during transit.

Q3: Can this module be used with HART-enabled PLC analog input cards?
Yes, provided the variant ordered supports HART communication (confirm the suffix code). HART-enabled units can be interrogated using a standard HART communicator or a HART-capable PLC card such as the Siemens ET 200SP AI Energy Meter or Allen-Bradley 1756-IF8H. Load the appropriate Device Description (DD) file into your asset management software before commissioning.

Q4: What does the 12-month warranty cover, and how is a claim initiated?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. It does not cover damage resulting from incorrect installation, overpressure events beyond the rated range, or exposure to incompatible media. To initiate a warranty claim, contact NINERMAS with the shipment invoice number, a description of the failure mode, and photographic evidence of the installation. Replacement or repair will be coordinated within 5 business days of claim acceptance.
