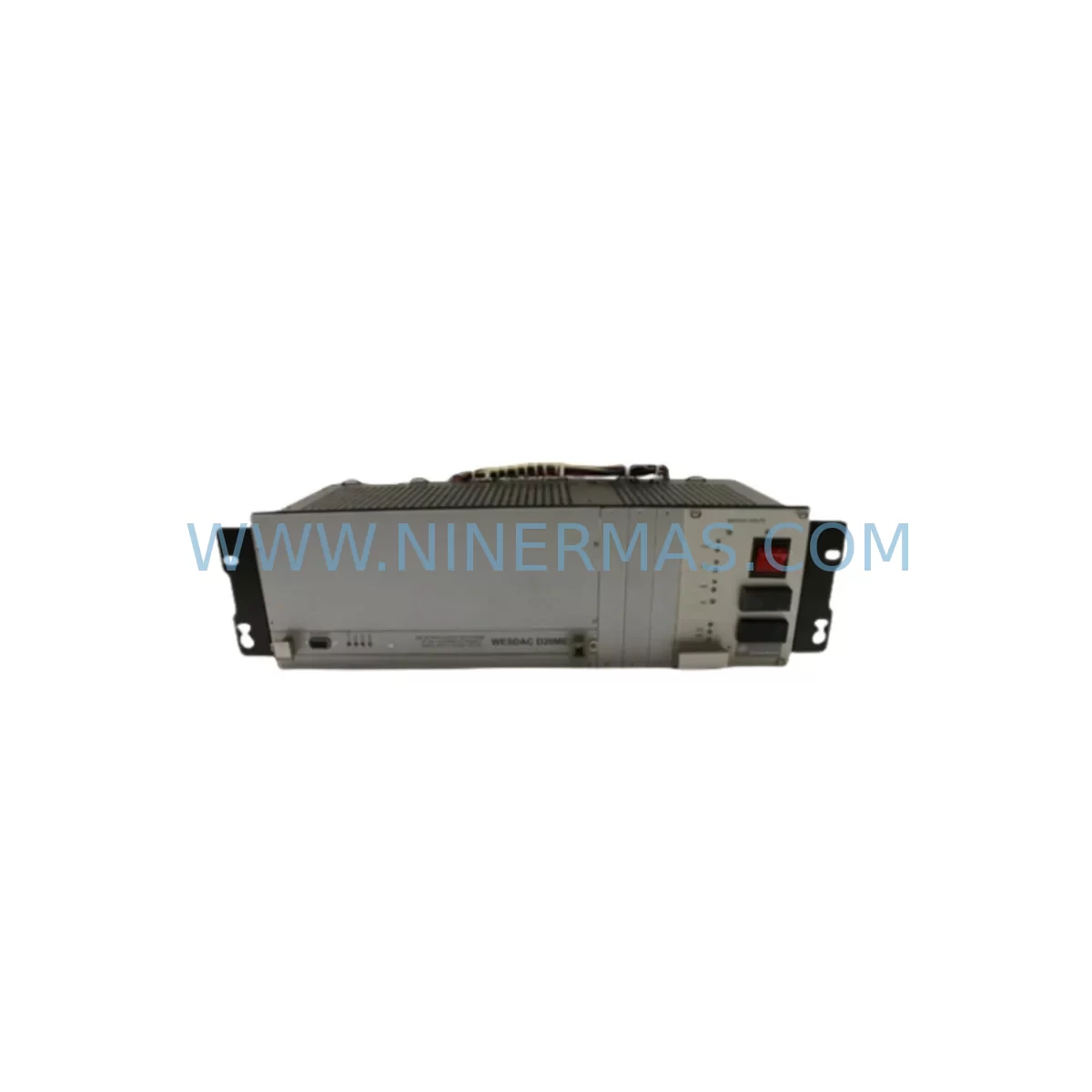

GE WESDAC D20ME 820-0468/00 Spare Part

GE WESDAC D20ME 820-0468/00 Spare Part — Substation RTU Replacement & Downtime Risk Control

The GE Harris WESDAC D20ME 820-0468/00 is a ruggedized substation control module designed for mission-critical RTU (Remote Terminal Unit) applications in electrical utilities, power distribution networks, and substation automation systems. As a core processing and communication module within the WESDAC D20ME platform, this unit manages real-time data acquisition, SCADA communication, and local control logic for high-voltage substation environments. Maintaining a verified service-ready spare of the 820-0468/00 is essential for any maintenance team responsible for continuous substation uptime and grid reliability.

For maintenance engineers and procurement teams operating aging GE Harris WESDAC infrastructure, sourcing a pre-tested replacement module eliminates the risk of extended outages caused by obsolete hardware lead times. The 820-0468/00 is fully compatible with the WESDAC D20ME chassis and backplane architecture, supporting direct swap-in replacement without firmware re-engineering in most site configurations. Each unit supplied by NINERMAS undergoes pre-shipment functional verification and is backed by a 12-month warranty, ensuring procurement confidence for both emergency replacement and planned annual maintenance cycles.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When scheduling replacement of the GE Harris WESDAC D20ME 820-0468/00, a thorough inspection of the surrounding substation control cabinet is strongly recommended. The D20ME platform integrates tightly with multiple subsystems, and a single module fault can cascade into broader communication or control failures if adjacent components are not evaluated concurrently.

Maintenance engineers should inspect the D20ME system power supply module (typically 24 VDC or 48 VDC substation bus input) for output voltage stability and ripple, as power irregularities are a leading cause of RTU module degradation. The D20ME backplane itself should be checked for connector corrosion, bent pins, and secure seating — a compromised backplane slot will cause recurring faults even after a module swap. D20ME I/O modules (digital input, digital output, and analog input cards) should be verified for correct signal mapping and terminal block integrity, particularly if the site has experienced lightning events or ground faults.

Communication continuity depends on the health of the D20ME communication processor module and associated serial or Ethernet interface cards. DNP3 or IEC 60870-5 protocol sessions should be re-validated after any module replacement. Fiber optic or RS-485 communication cables connecting the RTU to the SCADA master should be inspected for physical damage and signal integrity. If the substation uses a GPS time synchronization module within the D20ME rack, verify that time-stamping accuracy is maintained post-replacement, as SCADA event logs depend on synchronized timestamps for fault analysis.

For sites with relay integration, check the protective relay interface wiring and any signal isolators between the RTU I/O and relay output contacts. Terminal blocks and wiring ferrules in the control cabinet should be inspected for loose connections, which can introduce intermittent faults that mimic module failures. If the substation uses a local HMI panel connected to the D20ME, verify display communication and alarm acknowledgment functions after module replacement. Procurement teams should also consider stocking a spare D20ME CPU or master module alongside the 820-0468/00 to cover the most common single-point failure scenarios in aging WESDAC installations.

Site Replacement Workflow

Replacing the GE Harris WESDAC D20ME 820-0468/00 on-site follows a structured procedure to minimize downtime and ensure system compatibility:

Step 1 — Pre-replacement verification: Confirm the replacement module part number (820-0468/00) matches the installed unit. Check firmware revision requirements against site documentation. Download or back up the current RTU configuration database before any hardware change.

Step 2 — Safe isolation: Coordinate with the SCADA control center to place the RTU in maintenance mode. Isolate the D20ME rack from the substation DC bus using the appropriate circuit breaker or fuse. Follow site-specific lockout/tagout (LOTO) procedures for high-voltage substation environments.

Step 3 — Module extraction and installation: Remove the faulty 820-0468/00 by releasing the module locking mechanism and sliding it from the backplane slot. Insert the replacement module firmly until the backplane connector is fully seated. Restore power and observe the module status LEDs for normal initialization sequence.

Step 4 — Configuration restore and communication test: Reload the RTU configuration database. Verify DNP3 or Modbus communication sessions with the SCADA master. Confirm all I/O point mappings, analog scaling, and digital status points are reporting correctly. Test alarm and event logging functions.

Step 5 — Return to service: Notify the SCADA control center that the RTU is returning to normal operation. Monitor the system for 24–48 hours post-replacement for any residual faults. Document the replacement in the site maintenance log with the new module serial number and warranty start date.

This workflow supports MTTR targets of 4–6 hours for experienced maintenance teams with a pre-staged spare module on hand.

Spare Parts Support FAQ

Q1: Is the 820-0468/00 a direct replacement for the original GE Harris WESDAC D20ME module?
A: Yes. The 820-0468/00 is the original GE Harris part number for this WESDAC D20ME control module. It is designed for direct slot-compatible replacement within the D20ME chassis. Compatibility should be confirmed against site firmware revision and configuration documentation before installation, as some legacy sites may require firmware alignment.

Q2: What pre-shipment testing is performed on the 820-0468/00?
A: Each unit undergoes functional power-on verification, communication interface testing, and visual inspection for physical damage before shipment. Units are packed in anti-static ESD-safe packaging with a test report. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment.

Q3: Can NINERMAS support long-term supply of the 820-0468/00 for multi-year maintenance contracts?
A: Yes. NINERMAS maintains reserved inventory programs for obsolete and end-of-life GE Harris WESDAC components, including the 820-0468/00. Long-term supply agreements with committed stock allocation are available for utilities and EPC contractors managing multi-site WESDAC installations. Contact our team to discuss volume pricing and reserved stock arrangements.

Q4: What should I do if the replacement module does not restore normal RTU operation?
A: If the replacement 820-0468/00 does not resolve the fault, the issue may lie with the D20ME backplane, power supply, communication cabling, or configuration database. NINERMAS technical support can assist with fault isolation guidance. If the replacement unit itself is found to be defective within the 12-month warranty period, a replacement or refund will be arranged promptly.
