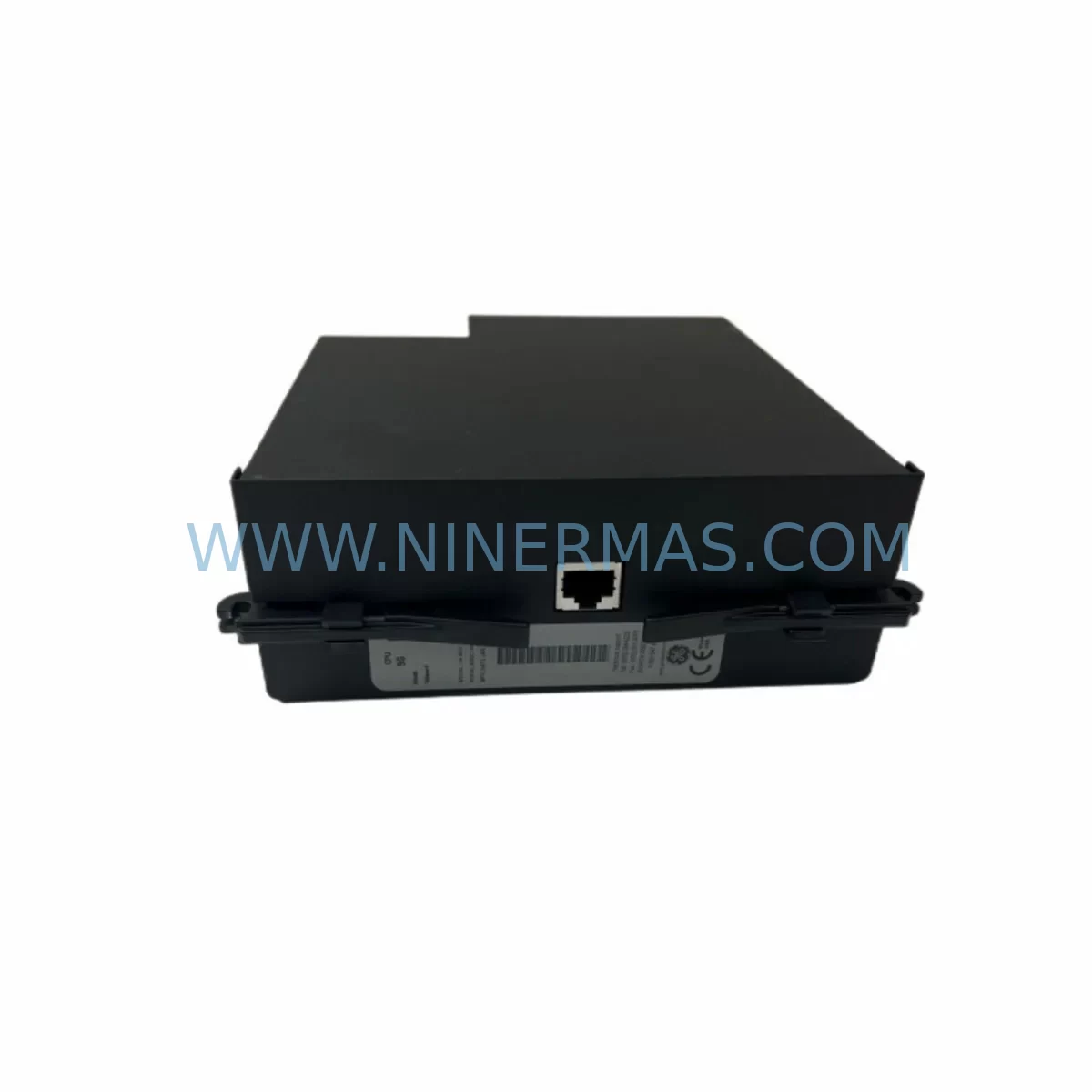

The GE UR9GH is a critical spare part module within the GE Grid Solutions UR Series (Universal Relay) platform — one of the most widely deployed protection relay families in industrial power systems, substations, and utility-grade electrical infrastructure worldwide. Whether you are managing a scheduled annual overhaul, responding to an unplanned trip event, or building a strategic spare parts inventory for aging control systems, the UR9GH represents a high-priority line item for any maintenance engineer responsible for protection relay continuity.

At NINERMAS, we supply the GE UR9GH as a service-ready, tested spare part backed by a 12-month warranty. Every unit undergoes functional verification prior to shipment to ensure it meets the operational demands of live protection circuits. Our long-term supply capability means you can source the UR9GH not just for immediate replacement needs, but also for forward stocking programs designed to reduce future downtime risk.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a GE UR9GH module requires replacement in a live protection relay system, experienced maintenance engineers know that the module itself is rarely the only component that needs attention. A thorough site inspection during the replacement window should encompass the full protection relay panel and associated electrical circuits to prevent repeat failures and maximize the value of each planned outage.

Begin with the UR Series power supply module — an aging or undersized DC power input card can stress downstream relay modules and cause intermittent resets or communication faults. Verify that the auxiliary power supply voltage (typically 24VDC, 48VDC, 110VDC, or 125VDC depending on your substation battery system) is within specification before commissioning the replacement UR9GH. If the power supply module shows signs of capacitor aging or output ripple, schedule it for concurrent replacement.

Next, inspect the UR Series I/O modules — digital input cards, digital output cards, and analog input modules that interface with CTs, VTs, trip coils, and alarm circuits. Corroded or loose terminal connections on these modules are a leading cause of protection misoperation. During the UR9GH swap, clean and re-torque all terminal blocks and verify that UR Series CT/VT input modules are reading correctly against known reference values.

Communications integrity is equally important. The UR Series communications module — whether configured for IEC 61850 GOOSE messaging, DNP3, Modbus, or IEC 60870-5-104 — should be checked for firmware version compatibility with the replacement UR9GH. Mismatched firmware between the communications card and the main processing module is a common source of post-replacement communication loss. Coordinate with your SCADA or DCS team to confirm that the relay’s data points are correctly mapped after the module swap.

For panels that include signal isolators or interposing relays between the UR Series relay and external trip circuits, verify that these components are functioning correctly. A failed interposing relay or a degraded signal isolator can mask a successful UR9GH replacement and create confusion during post-maintenance functional testing. Similarly, inspect protection fuses and miniature circuit breakers in the relay panel — a blown fuse on the DC auxiliary supply or the trip output circuit is easy to overlook but will prevent the relay from operating correctly.

If your installation includes a GE UR Series HMI front panel or a local operator interface, confirm that the display is communicating correctly with the replacement module and that all protection settings, group configurations, and event records have been restored from your settings backup. For older UR Series installations, this is also an appropriate time to evaluate whether the UR Series backplane or chassis shows signs of mechanical wear, connector oxidation, or thermal damage that could affect long-term reliability.

Finally, for sites running mixed protection relay environments, consider whether adjacent relays — such as GE Multilin 750/760 feeder protection relays, GE Multilin 469 motor protection relays, or GE Multilin 339 motor management relays — are due for their own inspection cycles. Coordinating spare parts procurement across your relay fleet reduces emergency sourcing risk and allows for consolidated shipping and testing logistics.

Site Replacement Workflow

Replacing a GE UR9GH in a live industrial or substation environment requires a structured workflow to minimize protection gaps and ensure system compatibility is maintained throughout the process.

Step 1 — Pre-Replacement Preparation: Obtain the current relay settings file from your relay management software (EnerVista UR Setup or equivalent). Confirm the firmware version of the existing module and source a replacement UR9GH with a compatible or upgradeable firmware baseline. Notify your operations team and SCADA/DCS operators of the planned maintenance window.

Step 2 — Isolation and De-energization: Follow your site’s lockout/tagout (LOTO) procedure for the protection relay panel. Isolate the relay from trip circuits, CT/VT inputs, and communications links before removing the UR9GH module. Document the wiring configuration with photographs before disconnection.

Step 3 — Module Swap: Remove the failed or end-of-life UR9GH module from the UR Series chassis. Inspect the backplane connector for damage or contamination. Install the service-ready replacement UR9GH from NINERMAS, ensuring the module is fully seated and secured.

Step 4 — Settings Restoration and Firmware Verification: Upload the saved settings file to the replacement module using EnerVista UR Setup. Verify that all protection elements, communication parameters, and I/O assignments are correctly restored. Confirm firmware compatibility with all other modules in the chassis.

Step 5 — Functional Testing: Perform secondary injection testing on key protection elements (overcurrent, differential, distance, or as applicable) to confirm correct operation. Test trip output circuits and alarm outputs. Verify SCADA/DCS data point mapping and communications link status.

Step 6 — Return to Service: Remove LOTO, re-energize the relay panel, and confirm normal operation. Log the replacement in your maintenance management system (CMMS) and update your spare parts inventory to trigger reorder of a replacement UR9GH for future stock.

This structured approach reduces average replacement downtime, eliminates common post-maintenance faults, and ensures that the protection system is returned to full operational status with documented traceability.

Spare Parts Support FAQ

Q1: Is the GE UR9GH supplied by NINERMAS an original spare part, and what does the 12-month warranty cover?
Yes. NINERMAS supplies the GE UR9GH as an original spare part sourced through established industrial supply channels. The 12-month warranty covers functional defects identified under normal operating conditions. Each unit is tested before shipment to verify operational integrity. If a warranty claim arises, NINERMAS will provide replacement or repair support — contact sale@ninermas.com for warranty procedures.

Q2: How do I confirm compatibility between the UR9GH and my existing UR Series relay chassis?
Compatibility depends on your specific UR Series relay model (e.g., T35, T60, L90, C70, D60, or similar) and the firmware version currently running in your chassis. Provide your relay model number, existing module part numbers, and firmware version to NINERMAS at sale@ninermas.com, and our technical team will confirm compatibility before shipment. We strongly recommend against installing a replacement module without verifying firmware alignment to avoid communication or protection element conflicts.

Q3: What is the recommended inventory strategy for the GE UR9GH in a multi-relay substation environment?
For substations or industrial facilities operating three or more UR Series relays, maintaining at least one UR9GH as a forward stock spare is strongly recommended. Given that GE Grid Solutions has transitioned many UR Series components to limited availability or end-of-life status, early procurement is advisable to avoid extended lead times during emergency outages. NINERMAS supports blanket order arrangements and long-term supply agreements for customers with recurring spare parts requirements.

Q4: Can the GE UR9GH be used to replace older or discontinued UR Series module variants?
In many cases, yes — GE designed the UR Series platform with a degree of backward compatibility across module generations. However, direct substitution depends on the specific slot function, hardware revision, and firmware version of the module being replaced. NINERMAS recommends providing your original module’s full part number and revision code so our team can confirm whether the UR9GH is a direct replacement or whether a firmware update or configuration adjustment is required. Do not assume pin-for-pin compatibility without technical verification.
