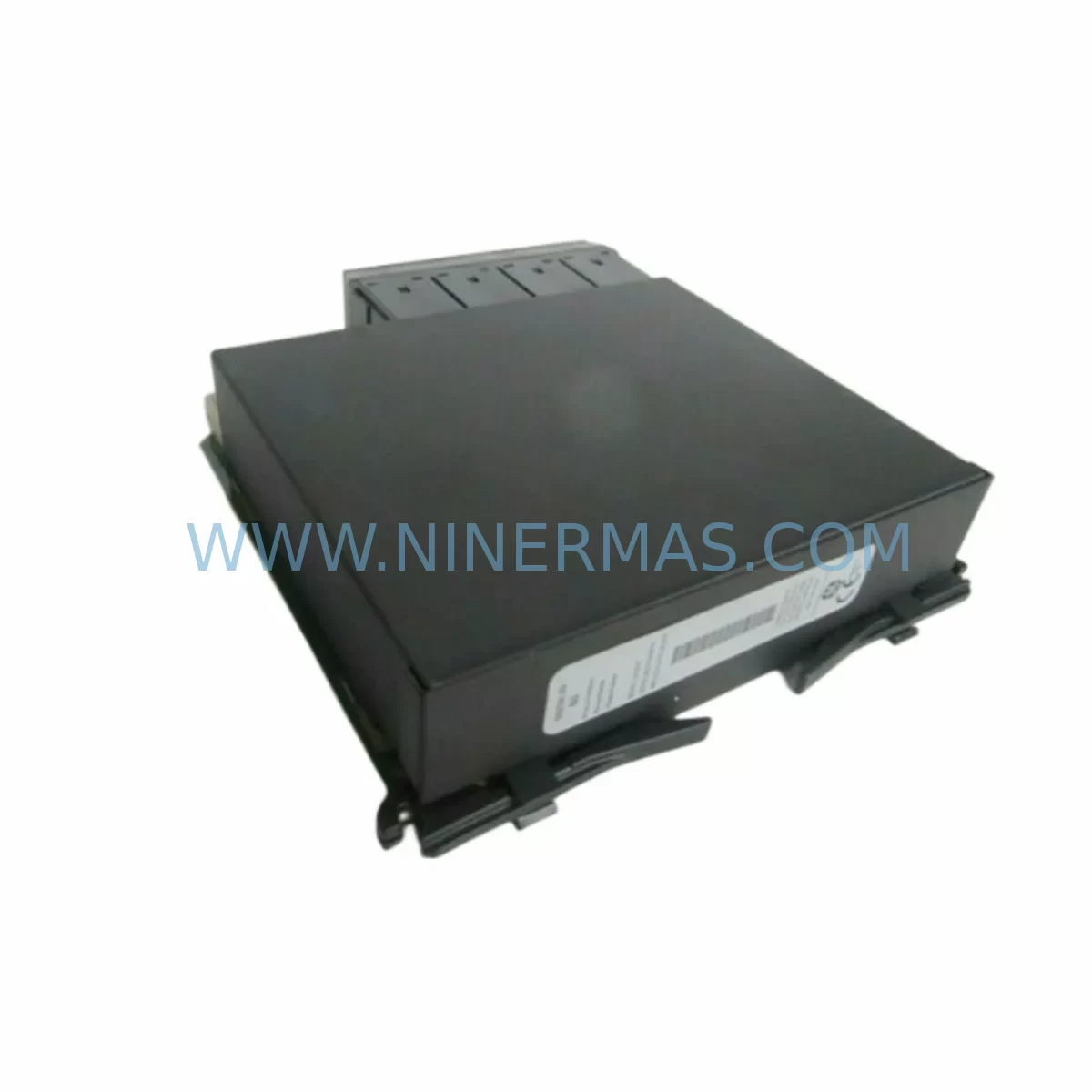

GE UR 9GH CPU Module Retrofit-Compatible Processor

GE UR 9GH CPU Module: Retrofit-Compatible Processor for Legacy UR Series Protection Relays

The GE UR 9GH CPU Module is a high-reliability central processing unit designed for the GE UR Series Universal Relay platform — one of the most widely deployed protection relay families in transmission substations, industrial switchgear, and utility feeder automation systems worldwide. As GE Grid Solutions continues to evolve its relay portfolio, many end users operating legacy UR chassis installations face the critical challenge of sourcing compatible CPU modules for system continuity, protection scheme restoration, and control cabinet modernization without full panel replacement.

NINERMAS maintains verified stock of the UR 9GH CPU Module to support engineers and procurement teams engaged in protection relay retrofit projects, substation refurbishment programs, and spare parts lifecycle management. Each unit ships with a 12-month warranty and undergoes pre-shipment functional verification to confirm firmware compatibility, backplane interface integrity, and communication link readiness.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the GE UR 9GH CPU Module within an operational protection relay system requires careful pre-engineering to avoid protection gaps and communication interruptions. The CPU module is the intelligence core of the UR relay — it executes the protection logic, manages inter-module communication across the backplane, and maintains the active link to SCADA or substation automation systems via DNP3, IEC 61850 GOOSE messaging, or Modbus RTU over RS-485.

Before initiating a CPU swap, engineers should export the full relay settings file using EnerVista UR Setup software and archive the active configuration. This settings file contains all protection element parameters, I/O assignments, communication node addresses, and HMI display configurations. If the relay is integrated into a GE D60 Line Distance Relay or GE F60 Feeder Protection Relay scheme, the inter-relay communication links — particularly GOOSE subscriptions and publisher mappings — must be documented and verified against the replacement CPU’s firmware version.

For installations where the UR relay communicates with a GE Multilin 750/760 Feeder Protection Relay or interfaces with a GE RX3i PACSystems controller via hardwired I/O or Ethernet, the retrofit plan must include a communication link continuity check. Any change in CPU firmware version may alter the DNP3 data map or IEC 61850 logical node structure, requiring updates to the SCADA master station configuration or RTU polling tables.

The UR 9GH CPU Module occupies the designated CPU slot in the UR chassis. Adjacent module positions — typically occupied by UR 9G power supply modules, UR 8D digital I/O modules, or UR 8A analog input modules — do not require removal during a CPU-only swap, which significantly reduces installation time and minimizes the risk of disturbing field wiring on terminal blocks. However, the chassis backplane should be inspected for corrosion, connector wear, or mechanical damage before the new CPU is seated.

In control cabinet environments where the UR relay is mounted alongside GE Multilin SR750 or SR760 feeder relays, or where the protection scheme includes a GE L90 Line Differential Relay for pilot protection, the retrofit team should coordinate the CPU replacement window with the substation operations group to ensure that backup protection is active and that the line or feeder is either de-energized or covered by an alternate protection zone during the maintenance window.

For legacy installations using GE Multilin 489 Generator Management Relays or GE Multilin 369 Motor Management Relays in the same control cabinet, the CPU replacement on the UR platform does not affect those devices directly, but the overall protection coordination study should be reviewed if the UR relay’s protection settings are modified during the retrofit. Signal isolators and GE Multilin EPM power meters connected to the same communication bus should also be verified for address conflicts after the CPU replacement is complete.

Downtime Control During System Migration

Minimizing downtime during a GE UR 9GH CPU Module replacement is achievable with disciplined pre-staging and a structured commissioning sequence. The recommended approach is to pre-configure the replacement CPU offline using EnerVista UR Setup, loading the archived settings file and verifying all protection element parameters, communication addresses, and I/O logic before the unit reaches the site.

On-site, the replacement sequence should follow a defined step-by-step procedure: isolate the relay from the protection scheme by placing it in test mode or bypassing the trip output contacts; remove the failed CPU module; seat the pre-configured replacement; power up the chassis and confirm backplane communication with all installed I/O modules; verify the communication link to the SCADA system or RTU; and finally, restore the relay to service after confirming that all protection elements are active and alarm-free.

For substations operating under strict protection availability requirements, a hot-standby relay or temporary portable relay can be used to maintain protection coverage during the CPU swap window. This approach is particularly important for transmission-level applications where the UR relay provides primary protection for a high-voltage line, transformer, or bus section. The total planned outage window for a CPU-only swap — including pre-staging, installation, firmware verification, settings reload, and functional testing — typically ranges from two to four hours for experienced protection engineers familiar with the UR platform.

NINERMAS supports expedited shipment for urgent retrofit requirements and can provide pre-shipment test reports on request. All UR 9GH CPU Modules supplied by NINERMAS are covered by a 12-month warranty from the date of shipment, with technical support available for commissioning guidance and compatibility verification.

Retrofit Support FAQ

Q1: Is the GE UR 9GH CPU Module a direct drop-in replacement for my existing UR Series relay?
A: The UR 9GH is designed for the GE UR Series chassis platform. Compatibility depends on your specific chassis model (C30, C60, C70, D60, F60, L90, T60) and the firmware version currently installed. NINERMAS recommends confirming the chassis generation and existing CPU part number before ordering. Our technical team can assist with compatibility verification based on your relay nameplate data.

Q2: Do I need to reload my relay settings after replacing the CPU module?
A: Yes. The protection settings, I/O assignments, communication parameters, and HMI configurations are stored in the CPU module. After installing the replacement UR 9GH, you must reload the archived settings file using EnerVista UR Setup software. NINERMAS recommends archiving the settings file before any CPU removal to ensure a complete and accurate restore.

Q3: What communication protocols does the UR 9GH CPU Module support, and will my SCADA integration be affected?
A: The UR 9GH supports DNP3, IEC 61850, and Modbus RTU depending on the firmware version and installed communication modules. If the replacement CPU uses a different firmware version than the original, the DNP3 data map or IEC 61850 logical node structure may differ, requiring updates to the SCADA master station or RTU configuration. NINERMAS can provide firmware version details for each unit upon request.

Q4: What does the 12-month warranty cover, and what pre-shipment testing is performed?
A: All UR 9GH CPU Modules supplied by NINERMAS undergo pre-shipment functional testing to verify backplane interface integrity, communication port operation, and firmware boot sequence. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Units are shipped in anti-static packaging with a test report available on request. For urgent retrofit requirements, expedited shipping options are available — contact our team at sale@ninermas.com or +0086 187 5021 5667.
