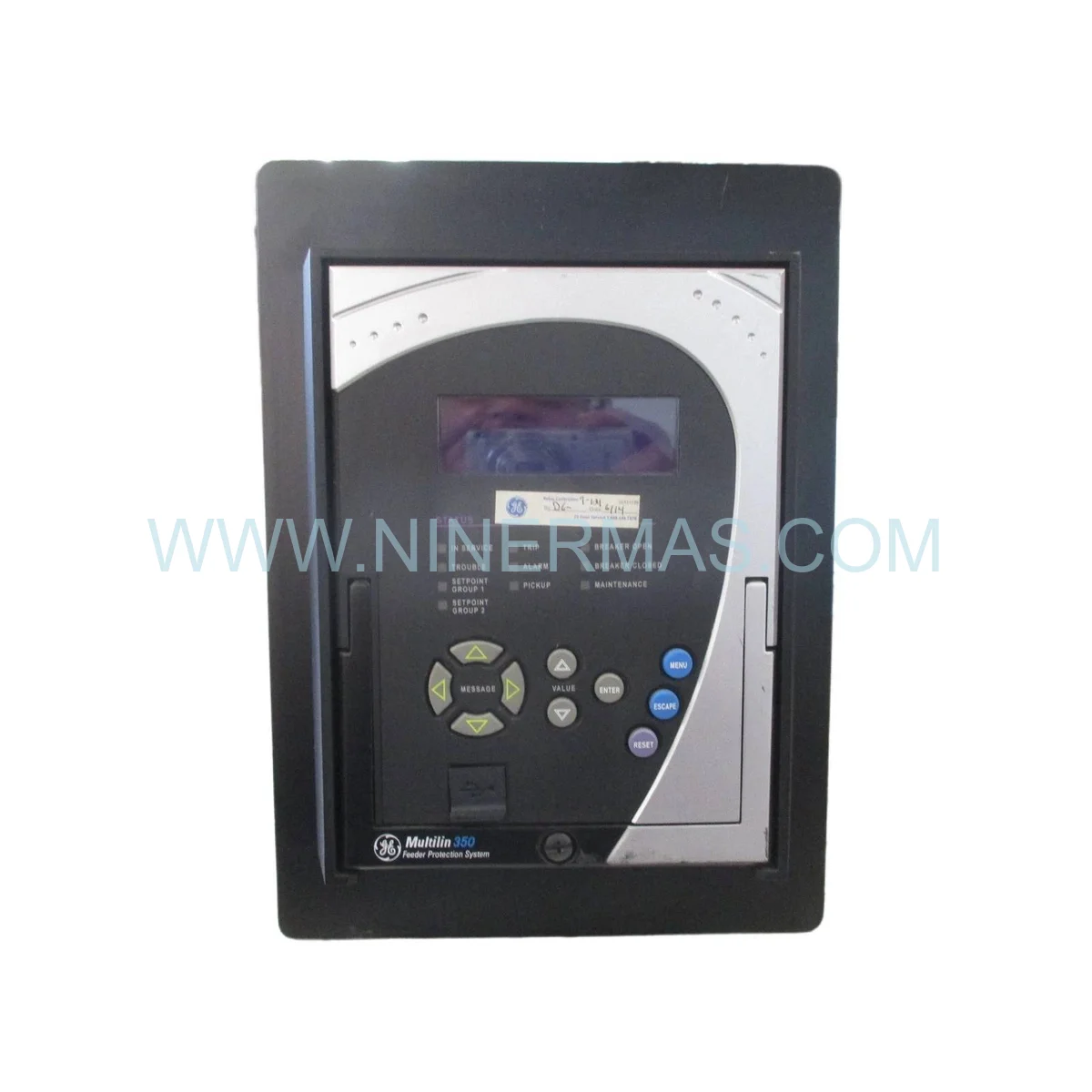

GE Multilin 350-L-P5-G5-H-E-E-N-N-1E-D-N Feeder Protection Relay — New & Original

GE Multilin 350-L-P5-G5-H-E-E-N-N-1E-D-N | Reliable Automation Component for Mission-Critical Power Systems

Field Application & Operational Analysis

From a Site Reliability Engineer’s perspective, the GE Multilin 350-L-P5-G5-H-E-E-N-N-1E-D-N stands as a cornerstone component in sustaining system availability across utility substations and heavy industrial distribution networks. Its multi-function protection architecture — integrating overcurrent, voltage, frequency, and directional elements — eliminates the need for multiple discrete relays, directly reducing panel complexity and mean time to repair (MTTR). For operations where unplanned downtime translates to significant financial exposure, deploying the 350-L-P5-G5-H-E-E-N-N-1E-D-N as both an active protection device and a pre-staged spare is a standard practice among reliability-focused engineering teams.

Rated for operation across a wide temperature envelope (-40°C to +85°C), this relay is engineered to withstand the electromagnetic interference, vibration, and thermal cycling inherent to demanding industrial environments. Installation teams should note that proper CT/VT wiring segregation and grounding discipline are critical during commissioning to preserve measurement accuracy and protection sensitivity. The relay’s panel or rack-mount form factor accommodates both greenfield installations and direct retrofit of legacy electromechanical protection schemes.

Maintaining a certified spare unit of this relay in your critical spares inventory is a recognized best practice under IEC 60300 asset reliability frameworks. Given the increasing scarcity of legacy protection components in the global supply chain, securing original factory stock proactively mitigates the risk of extended outages caused by sourcing delays during emergency replacement scenarios.

Key Operational Features

Redundant Protection Functions: Simultaneous phase and ground overcurrent (50/51, 50N/51N), voltage (27/59), and frequency (81O/U) elements ensure high availability of feeder protection coverage.
Seamless SCADA Integration: Native Modbus RTU and DNP3.0 support enables direct integration into existing process optimization and system integration architectures without gateway hardware.
Autoreclosure Capability: Built-in 79 reclosing element supports automated fault recovery, minimizing manual intervention and reducing operational downtime on distribution feeders.
Advanced Event & Waveform Recording: Onboard oscillography and event log capture accelerate post-fault analysis, a critical tool for root cause elimination in mission-critical applications.
Flexible CT Input Compatibility: Accepts 1A or 5A nominal secondary inputs with programmable CT ratios (1:1 to 50000:1), supporting diverse feeder configurations across industrial and utility networks.
Operational Excellence via Self-Diagnostics: Continuous hardware self-monitoring with alarm outputs ensures early detection of internal faults before they compromise protection integrity.

Maintenance & Performance Benchmarks

The 350-L-P5-G5-H-E-E-N-N-1E-D-N is designed to integrate across a broad spectrum of industrial network architectures — from small radial distribution systems in manufacturing plants to complex looped utility feeder topologies with multiple tie points. Its directional overcurrent elements enable selective coordination in parallel feeder configurations, a requirement for operational excellence in mesh-connected industrial grids.

For I/O module expansion and process optimization in larger substation automation projects, the relay’s communication ports support polling rates compatible with most SCADA master station cycle times, ensuring real-time data fidelity for energy management and fault analysis platforms. Firmware updates are field-deployable via the front RS-232 port or rear communication interface, preserving long-term firmware version compatibility without requiring panel outages.

Benchmark testing confirms trip times within IEC 60255 accuracy class requirements, with instantaneous element operate times typically under 16ms — a performance standard that directly supports arc flash energy reduction strategies in high-availability industrial facilities.

Comprehensive Data Sheet

Professional Logistics & Sourcing Excellence

Every unit of the 350-L-P5-G5-H-E-E-N-N-1E-D-N dispatched from our inventory is supplied in original factory packaging, complete with manufacturer documentation and factory test certification where available. This ensures traceability and compliance with procurement standards required by utility operators and certified industrial facilities.

For urgent maintenance scenarios, same-day dispatch is available on confirmed in-stock units, with worldwide express logistics options covering major industrial hubs across North America, Europe, the Middle East, and Asia-Pacific. Our sourcing network specializes in global supply for EOL (End-of-Life) and legacy automation components, making us a reliable partner for facilities operating aging protection infrastructure where OEM supply channels have been discontinued.

All export documentation, including commercial invoices, packing lists, and certificates of origin, are prepared to facilitate smooth customs clearance for international shipments.

Engineering Support & FAQ

Q1: What are the key installation steps for the 350-L-P5-G5-H-E-E-N-N-1E-D-N?
A: Begin with panel cutout preparation per GE Multilin dimensional drawings, followed by CT/VT wiring to rear terminal blocks with proper polarity verification. Connect auxiliary power supply within the rated range, configure protection settings via the front keypad or EnerVista 350 Setup software, and perform a secondary injection test to validate trip output operation before energizing the feeder.

Q2: Which firmware versions are compatible with this relay model?
A: The 350 series supports field firmware upgrades. Compatibility is determined by the hardware revision suffix in the model number. We recommend verifying the installed firmware version via the relay’s front panel menu and cross-referencing with GE Multilin’s firmware release notes prior to any upgrade to ensure protection function integrity.

Q3: Does this relay support IEC 61850 communication?
A: The 350-L-P5-G5-H-E-E-N-N-1E-D-N natively supports Modbus RTU and DNP3.0. IEC 61850 GOOSE messaging is not a standard feature of this model. For IEC 61850-native applications, GE Multilin’s Universal Relay (UR) platform should be evaluated as an alternative.

Q4: How is the warranty claim process handled?
A: Units are covered by a 1-year warranty from the date of shipment. In the event of a defect, contact our technical support team with the unit serial number and a description of the fault symptom. We coordinate advance replacement or repair logistics to minimize your site downtime, with return shipping instructions provided within 24 business hours of claim initiation.

Q5: Can this relay directly replace older GE IAC or GE MIFII electromechanical relays?
A: Yes. The 350 series is designed for retrofit applications. While terminal wiring adaptation may be required due to differences in rear connector layouts, the protection function mapping is straightforward. Our engineering support team can provide application notes for common retrofit scenarios upon request.

Q6: What configuration software is required for commissioning?
A: GE Multilin’s EnerVista 350 Setup software (available from GE’s official support portal) is the recommended tool for offline configuration, settings upload/download, and event record retrieval. The relay can also be configured entirely via the front panel keypad for basic protection settings without a PC connection.
