GE IS220YDOAS1A Retrofit-Compatible I/O for Legacy Systems

GE IS220YDOAS1A Retrofit-Compatible I/O for Legacy Systems: Seamless Upgrade for Aging Mark VIe Platforms

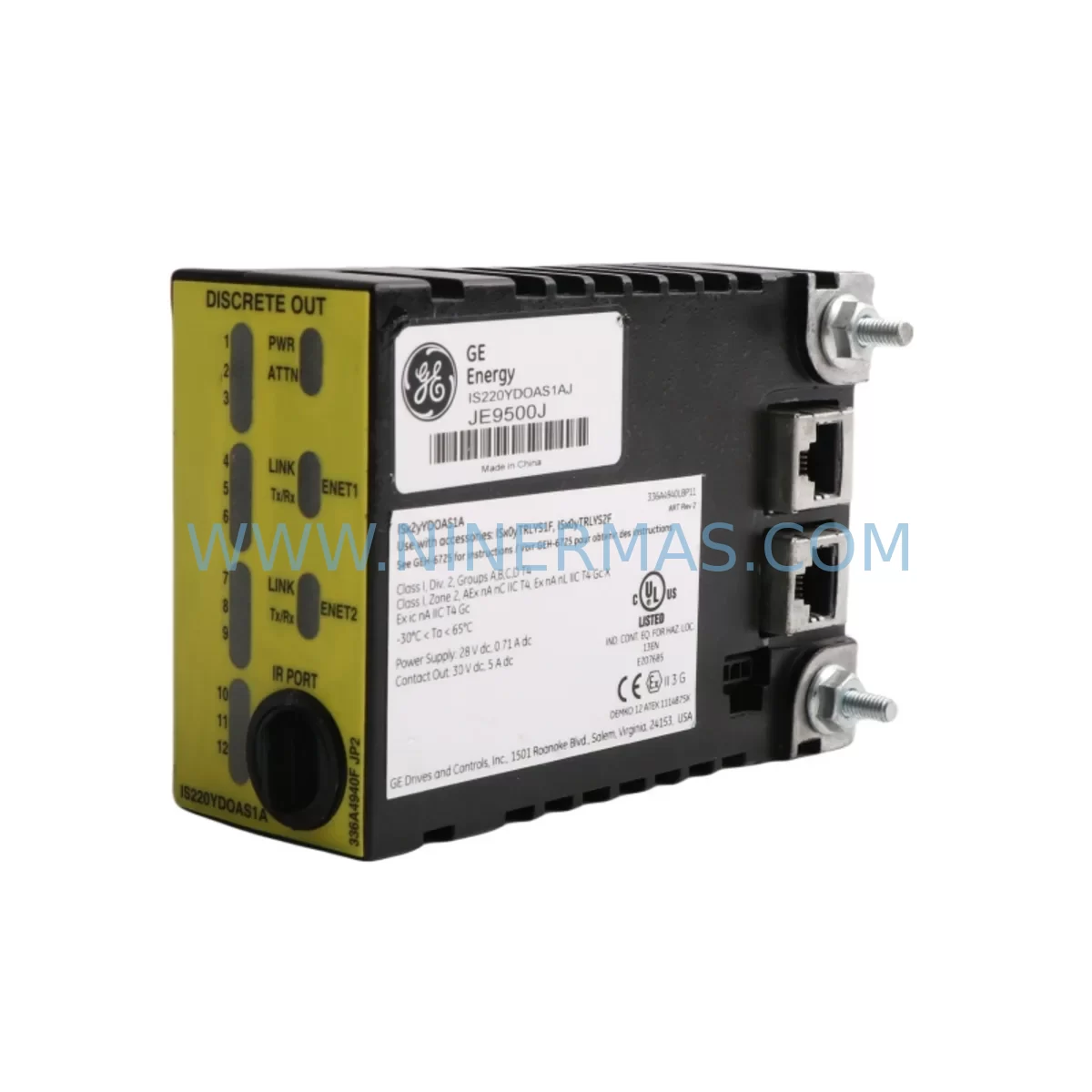

The GE IS220YDOAS1A is a digital output module designed for the GE Mark VIe turbine control platform, widely deployed across power generation, oil & gas, and heavy industrial facilities. As original equipment ages, procurement teams and controls engineers increasingly face the challenge of sourcing discontinued or end-of-life components to sustain operational continuity. The IS220YDOAS1A addresses this need directly — offering a verified retrofit-compatible replacement that integrates into existing Mark VIe racks without requiring firmware overhauls or full system redesigns.

Whether you are managing a planned outage window, responding to an unplanned module failure, or executing a phased control system modernization, the IS220YDOAS1A provides a reliable, tested, and immediately available solution backed by a 12-month warranty.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the IS220YDOAS1A into a legacy Mark VIe system requires a structured retrofit approach. Before the module arrives on site, engineers should pull the original I/O configuration from ToolboxST and verify the slot assignment, module type declaration, and output channel mapping. In many aging installations, the IS220YDOAS1A shares a rack with companion modules such as the IS220PDOAH1B power distribution module, which supplies 28 VDC to the output circuits — confirming that the power budget accommodates the replacement module is a mandatory pre-installation step.

Terminal block wiring should be cross-referenced against the as-built loop drawings. In systems where the IS220YDOAS1A interfaces with solenoid valve drivers or relay coils, technicians must verify that the field device impedance remains within the module’s rated output current range. Where the original installation used IS200 series I/O terminal boards, confirm that the mating connector on the replacement module matches the installed terminal board revision.

In broader control cabinet upgrades, the IS220YDOAS1A is frequently installed alongside other Mark VIe I/O modules such as the IS220YAICS1B analog input module and the IS220PDIOH1B digital input module, forming a complete I/O complement for a turbine control loop. Where communication infrastructure is being modernized, the IS220YDOAS1A operates over the IONet network managed by the UCSC or UCVG Mark VIe controller modules — ensuring that no protocol migration is required when replacing this specific module in an otherwise unchanged system.

For sites undertaking a more comprehensive upgrade — for example, migrating from an older Mark V or Mark VI platform to Mark VIe — the IS220YDOAS1A may be part of a larger I/O replacement scope that includes new IS200 series terminal boards, updated IS220 series analog output modules such as the IS220PAOAH1B, and revised HMI screen configurations in the GE Cimplicity or iFIX SCADA environment. In these cases, the HMI tag database must be updated to reflect any changes in module addressing or channel assignments introduced during the migration.

Where signal isolation is required between the Mark VIe output and field devices operating at different voltage levels, inline signal isolators or relay output modules may be inserted in the wiring path. Rack space confirmation is essential: the IS220YDOAS1A occupies a single slot in the Mark VIe I/O rack, and available adjacent slots should be documented before finalizing the retrofit bill of materials. Programming cable access for ToolboxST configuration — typically via the controller’s Ethernet service port — should be arranged in advance to minimize configuration time during the maintenance window.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary operational concern when replacing a digital output module in a live turbine control system. The IS220YDOAS1A retrofit process is designed to be executed within a planned outage window, with the following sequence recommended to protect program logic and maintain field control continuity.

Prior to module removal, the existing ToolboxST configuration file should be backed up and archived. All output channels on the IS220YDOAS1A should be forced to their safe de-energized state through the controller’s force table, and field devices connected to those outputs should be confirmed in a safe condition. This step protects against inadvertent actuation of solenoid valves, motor starters, or other field actuators during the physical swap.

The replacement IS220YDOAS1A should be inserted into the same rack slot as the removed module. Upon power restoration, the Mark VIe controller will automatically detect the module on the IONet network and load the pre-existing configuration — no re-download of the application program is required in a like-for-like replacement scenario. Output forces should be released in a controlled sequence, with field device response confirmed at each step before proceeding to the next channel.

For sites where a hot-swap is not feasible and a full rack power-down is required, the total outage duration for an IS220YDOAS1A replacement is typically under two hours when pre-commissioning preparation has been completed. Pre-shipment functional testing of each unit ensures that the replacement module is verified operational before it reaches the site, eliminating the risk of a second outage caused by a defective replacement part. The 12-month warranty provides additional assurance that any latent defects identified after installation will be addressed without additional cost.

Retrofit Support FAQ

Q1: Is the IS220YDOAS1A a direct drop-in replacement for the original GE part?
Yes. The IS220YDOAS1A is a like-for-like replacement for the original GE-manufactured module of the same part number. It uses the same backplane connector, occupies the same rack slot, and is recognized by the Mark VIe controller without configuration changes. Hardware revision compatibility should be confirmed against the site’s installed controller firmware version prior to ordering.

Q2: Has the unit been tested before shipment?
Yes. Every IS220YDOAS1A unit is functionally tested prior to dispatch. Test records are available upon request. The unit ships with a 12-month warranty covering manufacturing defects and functional failure under normal operating conditions.

Q3: What wiring changes are required during installation?
In a standard like-for-like replacement, no field wiring changes are required. The existing terminal block connections remain in place. Engineers should verify the as-built loop drawings to confirm that field device wiring matches the channel assignments in the ToolboxST configuration before releasing output forces after installation.

Q4: Is stock available for immediate shipment?
Yes. The IS220YDOAS1A is held in inventory and available for immediate dispatch. Lead times for express shipment can be confirmed at the time of order. For sites managing critical spare parts programs or backup inventory strategies, multiple units can be supplied under a single purchase order.
