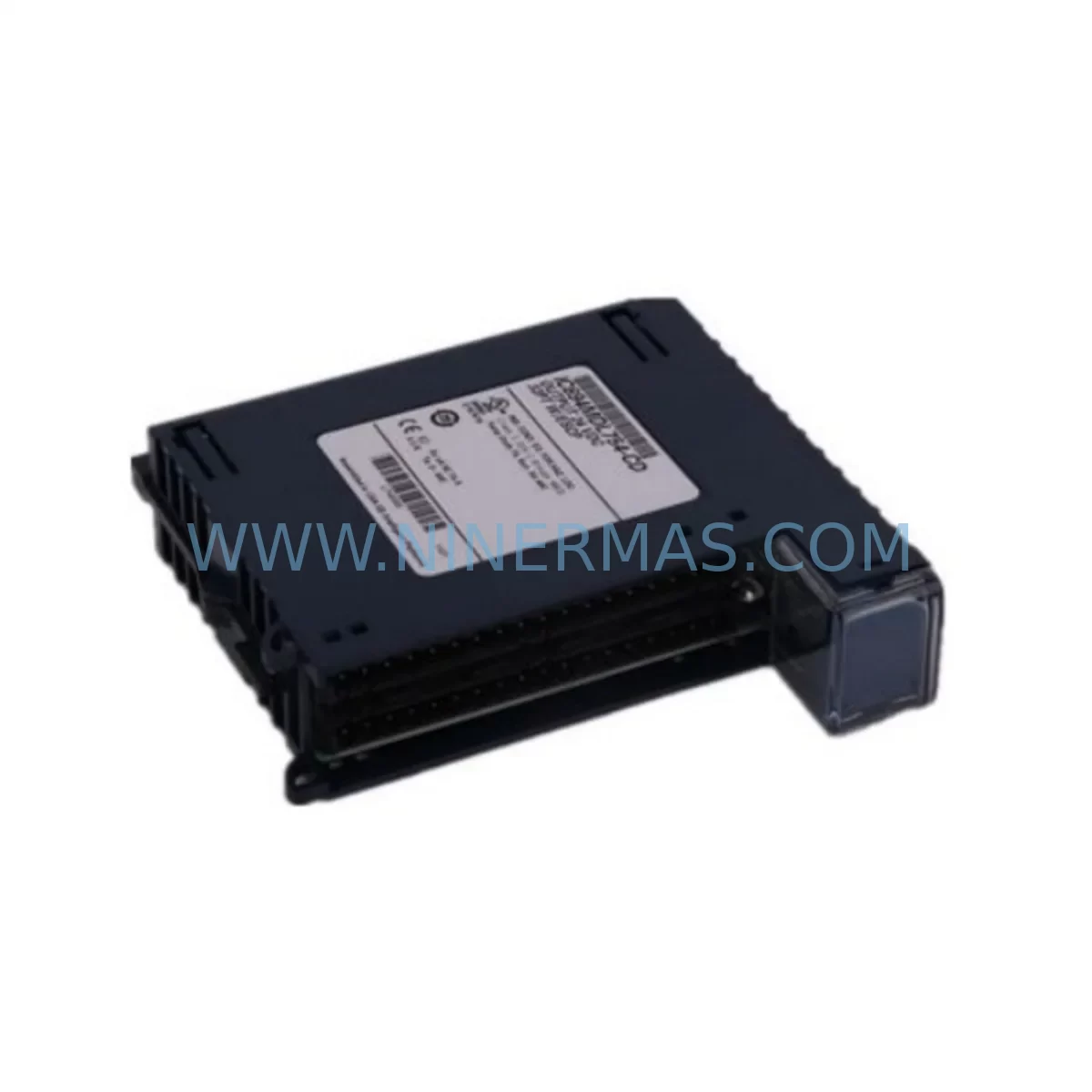

GE IS220PRTDH1AD IS220PRTDH1A Retrofit-Compatible Protection Module

GE IS220PRTDH1AD IS220PRTDH1A Retrofit-Compatible Protection Module for Legacy Mark VIe Systems

The GE IS220PRTDH1AD (also referenced as IS220PRTDH1A) is a protection I/O module designed for the GE Mark VIe turbine control platform. As aging distributed control systems reach end-of-life and OEM support windows close, this module has become a critical component in retrofit projects across power generation, oil & gas, and heavy industrial facilities. Whether you are replacing a failed unit on an emergency basis or executing a planned control system modernization, the IS220PRTDH1AD delivers the compatibility, form factor, and signal integrity required to maintain operational continuity without full system replacement.

This module integrates directly into the Mark VIe I/O rack architecture, communicating over the IONet Ethernet-based I/O network that is standard across the Mark VIe platform. Its role in protection logic — including overspeed detection, flame monitoring signal conditioning, and emergency shutdown relay interfacing — makes it a non-negotiable component when restoring or upgrading legacy turbine control cabinets. Facilities that have been operating Mark VI or early Mark VIe installations for 15 or more years frequently encounter obsolescence challenges with this module family, and sourcing a verified, tested replacement is often the fastest path to restoring full protection system functionality.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful retrofit of the IS220PRTDH1AD into an existing Mark VIe installation requires a structured pre-replacement assessment. The first step is always a power budget review of the I/O rack. The rack power module — commonly the IS200EPCTG1A or equivalent — must have sufficient headroom to support the replacement module without triggering undervoltage conditions on adjacent I/O cards. In aging installations, power modules themselves are often near end-of-life and should be inspected concurrently.

Next, engineers must confirm the backplane slot assignment. The Mark VIe architecture assigns specific module types to defined slot positions within the I/O pack. Inserting the IS220PRTDH1AD into an incorrect slot will result in a configuration mismatch that ToolboxST will flag during the online comparison. Always cross-reference the existing rack layout drawing against the physical installation before proceeding.

Terminal board wiring is another critical checkpoint. The IS220PRTDH1AD interfaces with the field through a dedicated terminal board — typically a IS200TPROH1B or similar protection terminal board — that remains in place during a module swap. Inspect all field wiring terminations for corrosion, loose conductors, and correct labeling. Re-torque all terminal screws to specification before powering the new module.

For facilities migrating from the older Mark VI platform to Mark VIe, the IS220PRTDH1AD is frequently part of a broader I/O migration that also involves replacing IS200 series I/O modules, upgrading the IS215VCMIH2C VME communication module, and transitioning from the legacy IONET coaxial network to the current Ethernet IONet topology. In these projects, the IS220PDOAH1A digital output module and IS220PDIOH1A digital input module are commonly replaced in the same outage window to minimize future risk.

Communication protocol continuity must also be verified. If the control system interfaces with a plant DCS or safety system via Modbus TCP, PROFIBUS, or OPC DA/UA, confirm that the gateway configuration — often managed through a IS215UCVEH2A controller or equivalent — remains intact after the module replacement. Any disruption to the communication link between the Mark VIe controller and the plant historian or DCS can trigger nuisance alarms that complicate post-replacement commissioning.

HMI screen validation is the final pre-return-to-service step. After the IS220PRTDH1AD is installed and the rack is powered, navigate through the relevant CIMPLICITY or third-party HMI screens to confirm that all protection signals — including overspeed trip, flame loss, and emergency shutdown status — are displaying correctly. Any missing or faulted tags should be investigated before the unit is returned to automatic control.

Downtime Control During System Migration

Minimizing downtime during a protection module replacement on a live turbine control system requires disciplined pre-outage preparation. The most effective strategy is to complete all configuration backups, spare part verification, and wiring documentation before the maintenance window begins. Using ToolboxST, export the full application configuration and I/O assignment database. Store this backup on an isolated engineering workstation — not on the controller itself — so it can be reloaded rapidly if the replacement module requires a fresh configuration push.

For facilities that cannot tolerate extended outages, a hot-swap assessment should be conducted in advance. While the Mark VIe platform supports online module replacement in some configurations, protection modules involved in active trip logic should always be replaced with the unit in a safe, de-energized state. Coordinate with operations to confirm that the turbine is at rest, all trip circuits are verified open, and the replacement window is clearly communicated to the control room.

During the replacement itself, work methodically: remove the failed IS220PRTDH1AD, inspect the backplane connector for damage, seat the replacement module firmly, and restore power to the rack. Allow the module to complete its self-test sequence — typically indicated by status LEDs on the module faceplate — before initiating the ToolboxST online comparison. Resolve any configuration mismatches before releasing the unit to operations.

Post-replacement, conduct a functional test of all protection channels associated with the module. This includes injecting test signals at the terminal board to verify that trip relays respond correctly and that all signals appear accurately on the HMI. Document the test results and retain them as part of the maintenance record. This step is essential for facilities subject to NERC CIP, IEC 61511, or internal functional safety audit requirements.

Retrofit Support FAQ

Q: Is the IS220PRTDH1AD a direct replacement for the IS220PRTDH1A?
A: Yes. The IS220PRTDH1AD is the current revision of the IS220PRTDH1A. Both part numbers are functionally equivalent and physically interchangeable within the Mark VIe I/O rack. No configuration changes are required for a like-for-like swap between these two revisions.

Q: What commissioning steps are required after installing the replacement module?
A: After physical installation, connect to the Mark VIe controller using ToolboxST and perform an online comparison to verify that the module is recognized and that its configuration matches the application database. Confirm all I/O signals are healthy, check protection relay outputs, and validate HMI tag display before returning the unit to service.

Q: How do I verify wiring compatibility before replacing the module?
A: The IS220PRTDH1AD connects to the field through its associated terminal board, which remains in place during the swap. Review the existing wiring diagram to confirm terminal assignments, inspect all conductors for integrity, and verify that the terminal board part number matches the module’s requirements. No rewiring is typically needed for a direct replacement.

Q: What does the 12-month warranty cover, and how is the unit tested before shipment?
A: Every IS220PRTDH1AD shipped by NINERMAS includes a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Each unit undergoes pre-shipment functional testing to verify communication, I/O channel integrity, and power-up self-test completion. Test records are available upon request.
