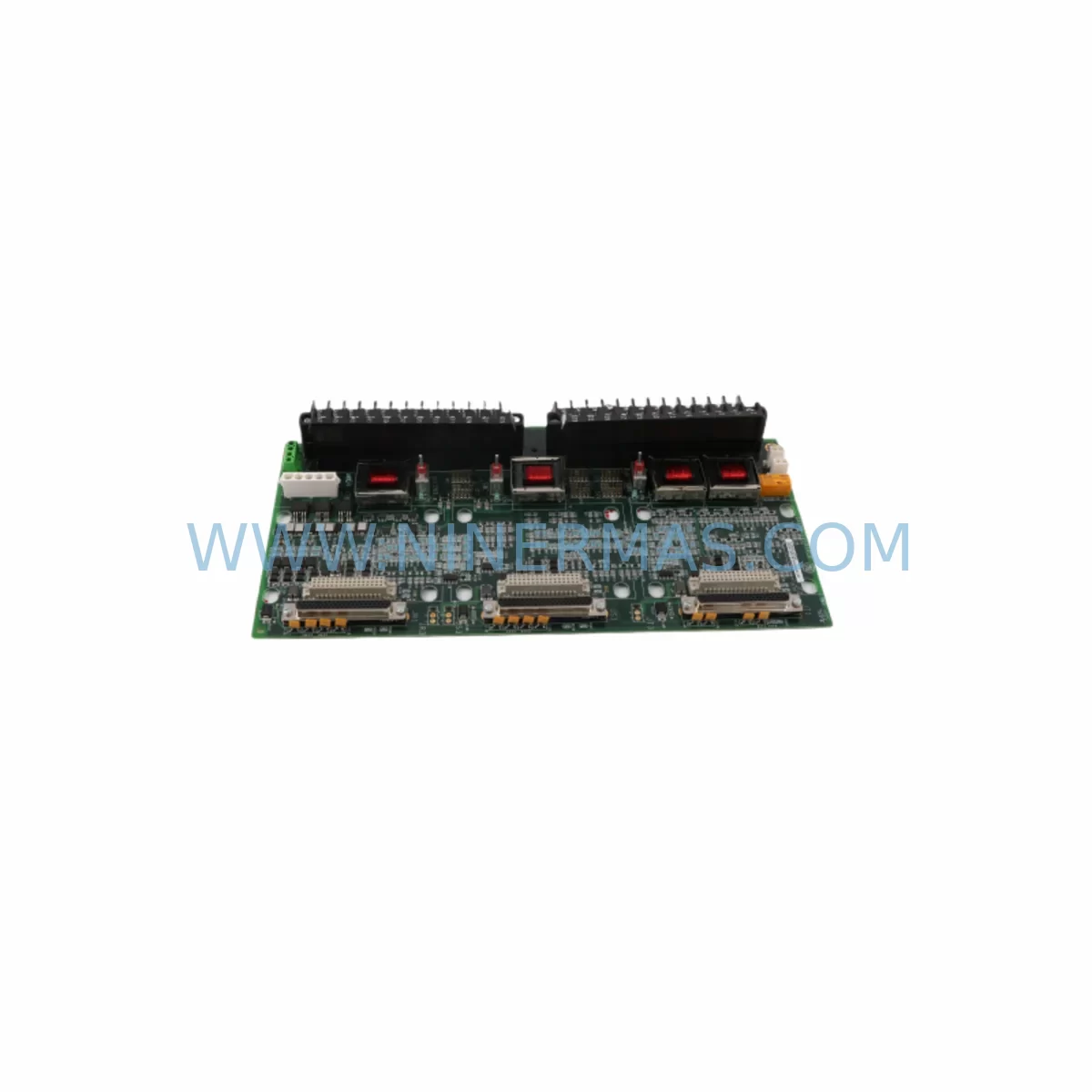

The GE IS200TSVCH1ACB is a critical turbine supervisory control module designed for the GE Mark VI Speedtronic turbine control system — one of the most widely deployed DCS platforms in power generation, oil & gas, and heavy industrial facilities worldwide. When this module fails or degrades, the consequences extend far beyond a single component: unplanned turbine shutdowns, extended downtime, and costly production losses can cascade across the entire plant. Sourcing a verified, service-ready replacement from a reliable spare parts supplier is the fastest path to restoring full operational capacity.

At NINERMAS, every IS200TSVCH1ACB unit is inspected, function-tested, and shipped with a 12-month warranty, giving maintenance engineers and procurement teams the confidence to act quickly without compromising on quality or compatibility.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the IS200TSVCH1ACB in a Mark VI Speedtronic cabinet is rarely an isolated task. Experienced maintenance engineers know that a module fault in the turbine supervisory channel often signals stress across adjacent components in the same control loop. A disciplined site inspection should accompany every IS200TSVCH1ACB replacement to prevent repeat failures and reduce the risk of a second unplanned outage.

Begin with the IS200VTURH1B turbine I/O terminal board, which interfaces directly with the TSVCH module and handles thermocouple and speed signal conditioning. A degraded terminal board can introduce noise or signal dropout that mimics a module fault — replacing the TSVCH without inspecting the VTUR board leaves the root cause unresolved. Similarly, the IS200VCMIH2C communication interface module should be checked for firmware integrity and IONet link status, as communication faults between the VCMI and TSVCH are a common source of nuisance trips.

On the power supply side, verify the IS200EPSMH1A power supply module output rails. Mark VI modules are sensitive to voltage ripple; a marginal EPSM can cause intermittent resets that are difficult to diagnose without a scope. If the cabinet has been in service for more than five years, proactively stocking an IS200EPSMH1A alongside the TSVCH replacement is a sound inventory strategy.

For I/O integrity, inspect the IS200DSPXH1D digital signal processor board and associated IS200IOCIH1A I/O controller interface. These boards manage the handshake between the supervisory layer and the field I/O — a failing IOCI can cause the replacement TSVCH to report faults immediately after installation, leading to unnecessary re-work. Terminal blocks and field wiring connectors on the IS200TBCIH1C terminal board should also be torqued and inspected for corrosion, particularly in humid or coastal environments.

Communication health across the IONet segment is equally important. The IS200ENETIH1A Ethernet interface module and associated network switches should be verified for packet loss and latency before the replacement module is commissioned. A degraded network segment will prevent the new TSVCH from synchronizing with the redundant controllers, negating the benefit of the replacement.

Finally, review the IS200VPROH1BEC protection module event log for any pre-existing protection trips or inhibit states that may have contributed to the original fault. Clearing inhibits and verifying protection setpoints before returning the turbine to service is a mandatory step in any Mark VI maintenance workflow. Keeping a minimum of one spare each of the VTUR, VCMI, EPSM, and VPROH modules in your on-site spare parts kit — alongside the IS200TSVCH1ACB — is the most effective way to minimize mean time to repair (MTTR) for Mark VI-controlled assets.

Site Replacement Workflow

The IS200TSVCH1ACB is a direct replacement for earlier Mark VI TSVCH revisions, including the IS200TSVCH1AAA and IS200TSVCH1ABB. Before beginning the swap, confirm the firmware revision loaded on the replacement module matches the version currently running in the Mark VI controller — mismatched firmware can cause configuration download failures or protection inhibit errors. GE ToolboxST is the standard configuration tool for verifying and updating firmware on Mark VI modules.

Follow this sequence to minimize downtime: (1) Place the turbine in a safe, controlled shutdown state and verify all protection inhibits are properly set per the site-specific maintenance procedure. (2) Document the existing module’s slot position, IONet address, and any jumper or DIP switch settings before removal. (3) Install the replacement IS200TSVCH1ACB, ensuring the VME backplane connector is fully seated and the module latch is engaged. (4) Power up the rack and verify the module’s status LEDs indicate normal operation — typically a solid green COMM LED and no fault LEDs illuminated. (5) Use ToolboxST to download the configuration and verify all I/O points are reading correctly before releasing the turbine for restart. (6) Perform a functional test of all supervisory channels — speed, temperature, and vibration — before returning to automatic control.

This workflow applies equally to emergency replacements during forced outages and planned replacements during scheduled maintenance windows. Having a pre-tested, shelf-ready IS200TSVCH1ACB in your spare parts inventory reduces the critical-path replacement time from days to hours.

Spare Parts Support FAQ

Q1: What is the shelf life and storage requirement for the IS200TSVCH1ACB?
When stored in a dry, ESD-protected environment at 15–25°C with humidity below 60% RH, the IS200TSVCH1ACB has an effective shelf life of 5–7 years. NINERMAS ships all modules in anti-static packaging with desiccant to ensure they arrive in storage-ready condition. Our 12-month warranty begins from the date of shipment, not the date of installation, giving you flexibility for long-term inventory planning.

Q2: How do I verify compatibility before ordering?
Compatibility is confirmed by matching the Mark VI system serial number, cabinet type (VCMI-based or VTUR-based rack), and the existing module’s part number suffix (e.g., H1ACB vs. H1ABB). NINERMAS technical support can assist with compatibility verification using your system’s Bill of Materials or ToolboxST configuration export. Contact us at sale@ninermas.com with your system details before placing a large-volume order.

Q3: What pre-shipment testing is performed on each unit?
Every IS200TSVCH1ACB undergoes a multi-point functional test on a live Mark VI test bench, including IONet communication verification, I/O channel continuity, power rail integrity, and firmware boot sequence validation. A test report is available upon request. Units that do not pass all test criteria are not shipped — no exceptions.

Q4: Can NINERMAS support long-term supply agreements for critical Mark VI spares?
Yes. NINERMAS offers long-term supply agreements (LTSAs) for critical GE Mark VI spare parts, including the IS200TSVCH1ACB and associated modules. LTSAs include reserved stock allocation, priority lead times, fixed pricing for up to 24 months, and dedicated account management. This is particularly valuable for operators managing multiple Mark VI-controlled turbines across geographically distributed sites. Contact sale@ninermas.com or call +0086 187 5021 5667 to discuss your requirements.
