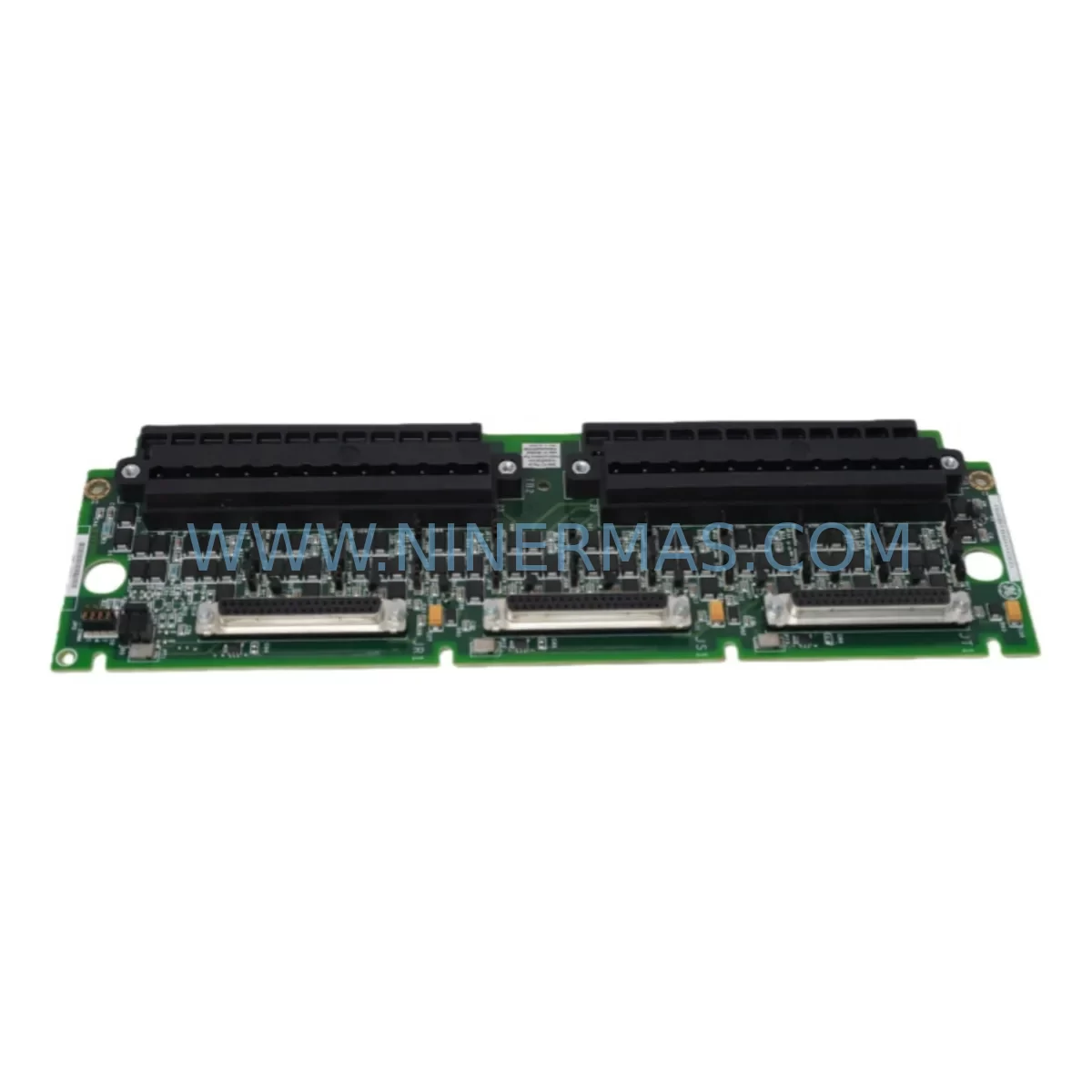

GE IS200TBAIH1C Retrofit-Compatible Analog Input Terminal Board

GE IS200TBAIH1C Retrofit-Compatible Analog Input Terminal Board: Legacy System Compatibility & Smooth Upgrade Path

The GE IS200TBAIH1C is a ruggedized analog input terminal board engineered for the GE Mark VI Turbine Control System platform. Designed to withstand harsh industrial environments, this module serves as a critical interface between field instrumentation and the Mark VI controller backbone — making it an essential component in both active plant operations and legacy system modernization projects. Whether you are replacing a failed board in an aging turbine control cabinet or executing a planned migration from an obsolete Mark V or Mark IV platform, the IS200TBAIH1C provides a reliable, field-proven solution with a clear upgrade path.

For facilities managing aging GE Mark VI installations, sourcing a verified replacement IS200TBAIH1C can mean the difference between a controlled maintenance window and an unplanned production outage. NINERMAS maintains ready inventory of this board, fully tested and backed by a 12-month warranty, ensuring your retrofit or emergency replacement project moves forward without delay.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Integrating the IS200TBAIH1C into an existing Mark VI control system requires careful pre-engineering to avoid commissioning delays and protect the integrity of the running control logic. The following planning considerations apply to the most common retrofit scenarios encountered in power generation, oil & gas, and industrial turbine applications.

Power Budget Verification: Before installing a replacement IS200TBAIH1C, confirm that the rack’s power supply — typically an IS215PSVO4A or IS215PSVO4B power supply module — has sufficient headroom to support the analog input board’s operating load. In aging Mark VI cabinets where multiple I/O boards have been added over the years, power budget overruns are a common root cause of intermittent faults and unexpected module resets.

Terminal Wiring and Field Cable Adaptation: The IS200TBAIH1C uses the standard Mark VI terminal board wiring scheme. However, in systems originally commissioned with earlier-generation terminal boards such as the IS200TBCIH1C (thermocouple input) or IS200TBQCH1C (quad-channel input), field cable pinouts may differ. A wiring audit against the original as-built drawings is essential before energizing the replacement board. In some cases, a JR2 or JR3 ribbon cable assembly connecting the terminal board to the I/O pack must also be inspected for wear or corrosion.

Backplane Slot and Module Address Configuration: The IS200TBAIH1C must be installed in the correct backplane slot to match the original module address defined in the ToolboxST project. Incorrect slot placement will cause the Mark VI controller — typically an IS215UCVEH2A or IS215UCVEH2B controller module — to generate a hardware mismatch alarm and may prevent the turbine control sequence from initializing. Always cross-reference the slot assignment in the ToolboxST I/O configuration before physical installation.

Program Compatibility and Logic Backup: Prior to any board swap, export a full backup of the ToolboxST project from the Mark VI controller. This protects the existing ladder logic, function block diagrams, and I/O calibration data. If the replacement IS200TBAIH1C is a different hardware revision than the original, review the GE Mark VI release notes for any firmware compatibility requirements. In some migration scenarios — particularly when upgrading from a Mark V VCMI or VTUR card-based architecture — a full I/O remapping exercise may be required.

HMI Screen and Alarm Tag Verification: In plants where the Mark VI is integrated with a GE Cimplicity HMI or a third-party SCADA system via IS215UCVEH2A Ethernet ports, replacing an analog input board may affect signal tag names and scaling if the new board’s channel assignments differ from the original. Coordinate with the control room operator to verify that all affected analog tags — particularly process temperature, pressure, and flow inputs — display correctly on HMI screens after the board swap.

Communication Link Integrity: The Mark VI IONet communication bus connecting the IS200TBAIH1C to the controller must be verified after installation. In TMR (Triple Modular Redundant) configurations, all three I/O packs — such as the IS215AEPAH1B Ethernet adapter or IS200BICLH1A I/O link card — must acknowledge the new board before the system will clear the hardware fault. Use the ToolboxST diagnostic view to confirm IONet link status on all three channels (R, S, T) before returning the turbine to service.

Physical Installation and Cabinet Space: The ruggedized conformal coating on the IS200TBAIH1C provides enhanced protection against moisture, dust, and vibration — a key advantage in retrofit applications where the control cabinet environment may have degraded over years of operation. Confirm that the target installation slot is free of debris and that the backplane connector pins are undamaged before seating the board. In cabinets where adjacent modules such as the IS200VTURH1BDB VTUR card or IS200TSVOH1A servo output board are installed in close proximity, verify that the ruggedized board’s slightly increased thickness does not impede adjacent module extraction handles.

Downtime Control During System Migration

Minimizing turbine or process downtime during a Mark VI analog input board replacement is achievable with disciplined pre-planning. The following approach is recommended for maintenance teams executing an IS200TBAIH1C swap under a planned outage window.

Pre-Outage Preparation: Complete all engineering reviews — wiring audits, power budget checks, ToolboxST project backups, and spare parts staging — before the maintenance window opens. Having a tested, pre-configured IS200TBAIH1C on hand from NINERMAS’s verified inventory eliminates the risk of discovering a defective spare during the outage. All units are functionally tested prior to shipment, reducing the likelihood of a board-on-board swap during a time-critical maintenance window.

Protecting Original Control Logic: The existing ToolboxST project should be exported and stored on both the engineering workstation and an offline backup medium before any hardware changes are made. If the replacement board requires a firmware update to match the controller revision, this should be performed on the bench — not in the live cabinet — to avoid inadvertently interrupting the controller’s runtime environment.

Maintaining Field Control Continuity: In simplex Mark VI configurations, the analog input channels served by the IS200TBAIH1C will be unavailable during the board swap. Coordinate with the process control team to place affected control loops in manual mode before removing the board. In TMR configurations, the redundant I/O architecture allows the remaining two I/O packs to maintain control continuity while the faulted board is replaced — a significant advantage for critical turbine protection functions.

Post-Installation Commissioning: After seating the replacement IS200TBAIH1C and restoring power, use ToolboxST to download the I/O configuration and perform a channel-by-channel calibration verification. Confirm that all analog input signals are within expected engineering unit ranges before releasing the turbine or process unit back to automatic control. Document the as-found and as-left calibration readings for the maintenance record.

Retrofit Support FAQ

Q: Is the IS200TBAIH1C a direct drop-in replacement for earlier IS200TBAIH1A and IS200TBAIH1B revisions?
A: In most cases, yes — the IS200TBAIH1C is backward compatible with earlier hardware revisions within the Mark VI platform. However, firmware revision compatibility should be confirmed against the installed controller version using ToolboxST before installation. NINERMAS’s technical team can assist with revision verification prior to shipment.

Q: Does NINERMAS test the IS200TBAIH1C before shipping?
A: Yes. All IS200TBAIH1C units supplied by NINERMAS are functionally tested prior to dispatch and covered by a 12-month warranty. Test reports are available upon request for critical applications.

Q: What wiring changes are required when replacing an IS200TBAIH1C in an existing Mark VI cabinet?
A: For a like-for-like revision replacement, no wiring changes are typically required. The terminal board uses the same field wiring termination scheme as earlier revisions. However, if the replacement is part of a broader I/O expansion or protocol migration project, a full wiring audit against the original as-built drawings is recommended before energizing the new board.

Q: How quickly can NINERMAS supply an IS200TBAIH1C for an emergency replacement?
A: NINERMAS maintains stock of the IS200TBAIH1C and can support expedited shipment for emergency maintenance situations. Contact our team at sale@ninermas.com or +0086 187 5021 5667 to confirm current availability and lead time.
