GE IC697MDL940 Safety-Reliable Output Module for Critical Control

GE IC697MDL940 Safety-Reliable Output Module for Critical Control Sites

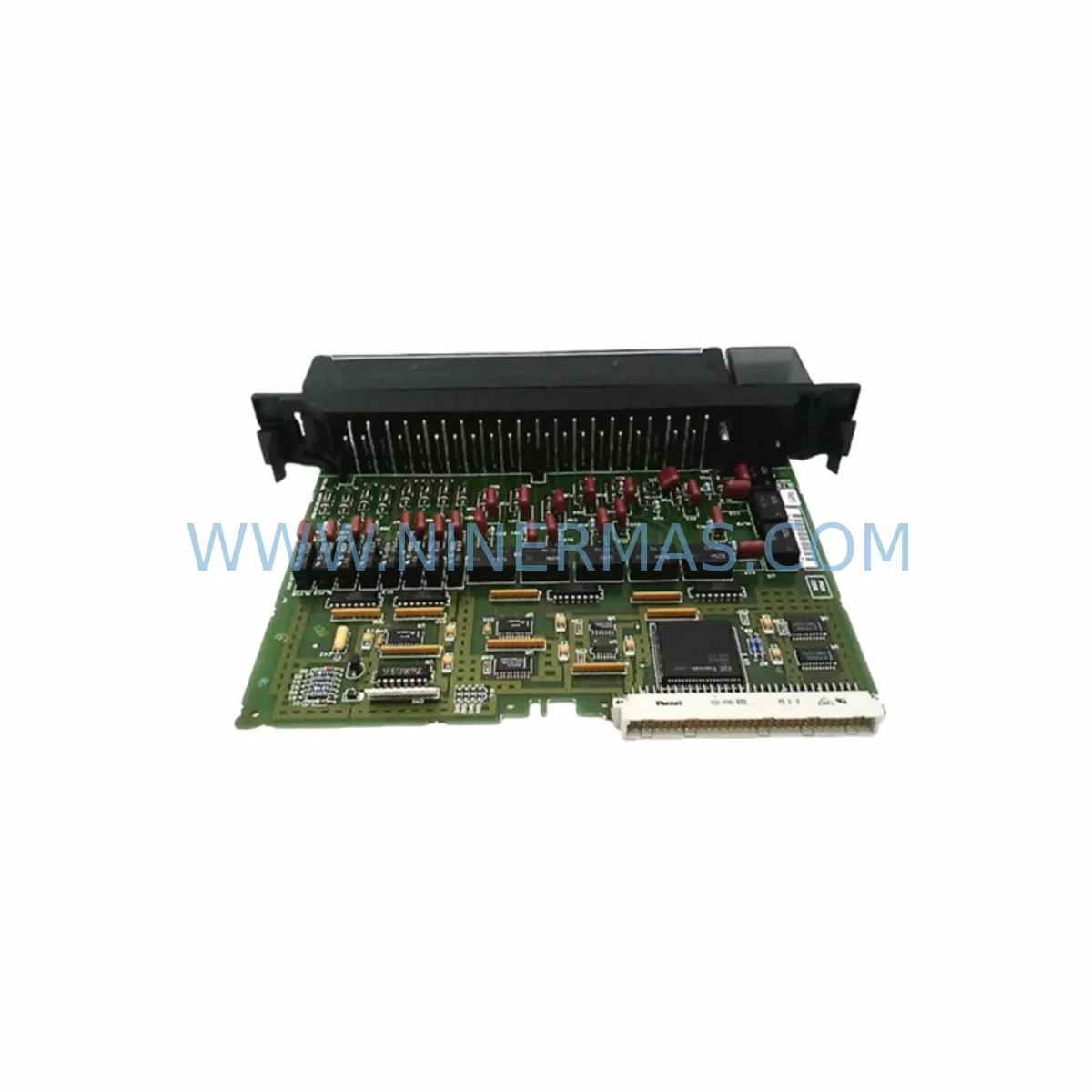

In high-stakes industrial environments — from continuous chemical processing lines to heavy-load power distribution switchgear — the integrity of every discrete output signal is non-negotiable. The GE IC697MDL940 is a 120 VAC discrete output module engineered for the Series 90-70 PLC platform, one of GE’s most widely deployed control architectures across global process and manufacturing industries. Designed to deliver reliable switching performance under demanding electrical and environmental conditions, the IC697MDL940 serves as a cornerstone component in control cabinets where unplanned downtime carries serious operational and safety consequences.

At NINERMAS, every IC697MDL940 unit is sourced as an original spare, subjected to pre-shipment functional testing, and backed by a 12-month warranty — giving maintenance engineers and procurement teams the confidence to stock and deploy this module without hesitation.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

When a maintenance engineer identifies a failing IC697MDL940 in a Series 90-70 rack, the replacement workflow must extend beyond the module itself. The Series 90-70 control cabinet is an integrated system, and a single degraded output module can mask or trigger cascading faults across adjacent components. A thorough risk reduction strategy begins with verifying the integrity of the IC697PWR710 or IC697PWR711 power supply module — voltage sag or ripple on the 5 VDC backplane rail is a common root cause of intermittent output faults that are incorrectly attributed to the output module itself.

Next, inspect the IC697BEM711 bus expansion module if the rack is part of a multi-rack configuration. Communication errors between expansion racks can cause the CPU — typically an IC697CPU772 or IC697CPU781 — to misinterpret output status, leading to nuisance trips or failure-to-energize faults in field devices. The IC697MDL940’s optical isolation protects the logic side from field-side transients, but this protection is only effective when the field wiring is properly terminated through surge-rated terminal blocks and the associated field power circuit is protected by appropriately rated fuses or circuit breakers.

In environments with high electromagnetic interference — such as variable frequency drive (VFD) panels, arc furnace control rooms, or large motor control centers — signal integrity on the output side must be validated. Installing DIN-rail mounted surge protection devices on the 120 VAC output circuits, alongside shielded field wiring, significantly reduces the risk of false output triggering. For applications where the IC697MDL940 drives relay coils or solenoid valves, verify that flyback suppression diodes or RC snubber circuits are installed on each inductive load to prevent voltage spikes from feeding back into the module’s output transistors.

Maintenance teams should also audit the IC697MDL753 or IC697MDL752 discrete input modules in the same rack — input and output modules share the backplane data bus, and a failed input module can generate spurious interrupt signals that affect CPU scan cycle timing and output update rates. Completing the cabinet inspection with a review of the IC697CMM711 communications module ensures that the PLC’s Ethernet or serial communication links remain stable during and after the output module replacement, preventing loss of SCADA visibility during the maintenance window.

Critical Industrial Safety Applications

The GE IC697MDL940 is deployed across a broad spectrum of critical industrial sites where control reliability directly impacts personnel safety and production continuity. In petrochemical and refinery environments, this module drives solenoid-operated safety valves, motor starters, and emergency shutdown (ESD) actuators — applications where a missed output signal can escalate into a process safety incident. The module’s optical isolation and surge tolerance make it well-suited for these high-consequence control loops.

In electric power generation and substation automation, the IC697MDL940 is used to control breaker trip coils, alarm annunciators, and auxiliary relay panels. Its ability to switch 120 VAC loads reliably across thousands of operating cycles makes it a preferred choice for utilities managing aging SCADA and DCS infrastructure built on the Series 90-70 platform. Mining operations — particularly underground coal and hard rock mines — rely on this module for ventilation fan control, conveyor interlocks, and pump station automation, where the combination of dust, humidity, and vibration demands a module with proven environmental robustness.

Water and wastewater treatment facilities use the IC697MDL940 to control chemical dosing pumps, UV disinfection systems, and lift station pumps. In these applications, the module operates continuously for months without manual intervention, making pre-emptive spare parts stocking an essential element of the plant’s maintenance strategy. Metallurgical and steel mill environments present some of the harshest operating conditions — high ambient temperatures, heavy electromagnetic interference from induction furnaces, and mechanical vibration from rolling mills — all of which the Series 90-70 platform, including the IC697MDL940, was designed to withstand.

Port and marine terminal automation systems also benefit from the IC697MDL940’s reliability, particularly in crane control panels and ship-to-shore conveyor systems where 120 VAC output switching must remain consistent across wide temperature ranges and salt-air environments. For all these applications, NINERMAS maintains ready inventory of the IC697MDL940 to support emergency replacement orders with rapid dispatch and full pre-shipment testing.

Safety and Quality FAQ

Q1: Does the IC697MDL940 come with a warranty, and what does it cover?
Every IC697MDL940 supplied by NINERMAS is covered by a 12-month warranty from the date of shipment. This warranty covers functional defects identified under normal operating conditions consistent with GE’s published specifications for the Series 90-70 platform. If a unit fails within the warranty period, NINERMAS will provide a replacement or full refund after technical review.

Q2: How is the IC697MDL940 tested before shipment?
Each unit undergoes pre-shipment functional testing that verifies output switching performance, optical isolation integrity, and backplane communication compatibility. Units that do not meet GE’s original performance benchmarks are quarantined and not shipped. Test records are available upon request for customers with quality documentation requirements.

Q3: Is the IC697MDL940 compatible with all Series 90-70 rack configurations?
The IC697MDL940 is compatible with all standard Series 90-70 VME-based backplanes, including 5-slot, 9-slot, and 12-slot rack configurations. It is slot-independent and does not require specific rack positioning. Customers upgrading from earlier 90-70 output modules should verify that their CPU firmware version supports the module’s I/O map addressing — NINERMAS technical support can assist with compatibility confirmation prior to purchase.

Q4: Can NINERMAS support long-term or recurring supply of the IC697MDL940?
Yes. NINERMAS maintains a dedicated inventory buffer for high-demand Series 90-70 spare parts, including the IC697MDL940. We support blanket purchase orders, scheduled delivery agreements, and emergency same-day dispatch for customers with critical uptime requirements. Contact our team to discuss a long-term supply arrangement tailored to your maintenance schedule and annual consumption forecast.
