GE IC695CHS016CA Service-Ready Spare Part for Industrial Maintenance

GE IC695CHS016CA Service-Ready Spare Part for Industrial Maintenance

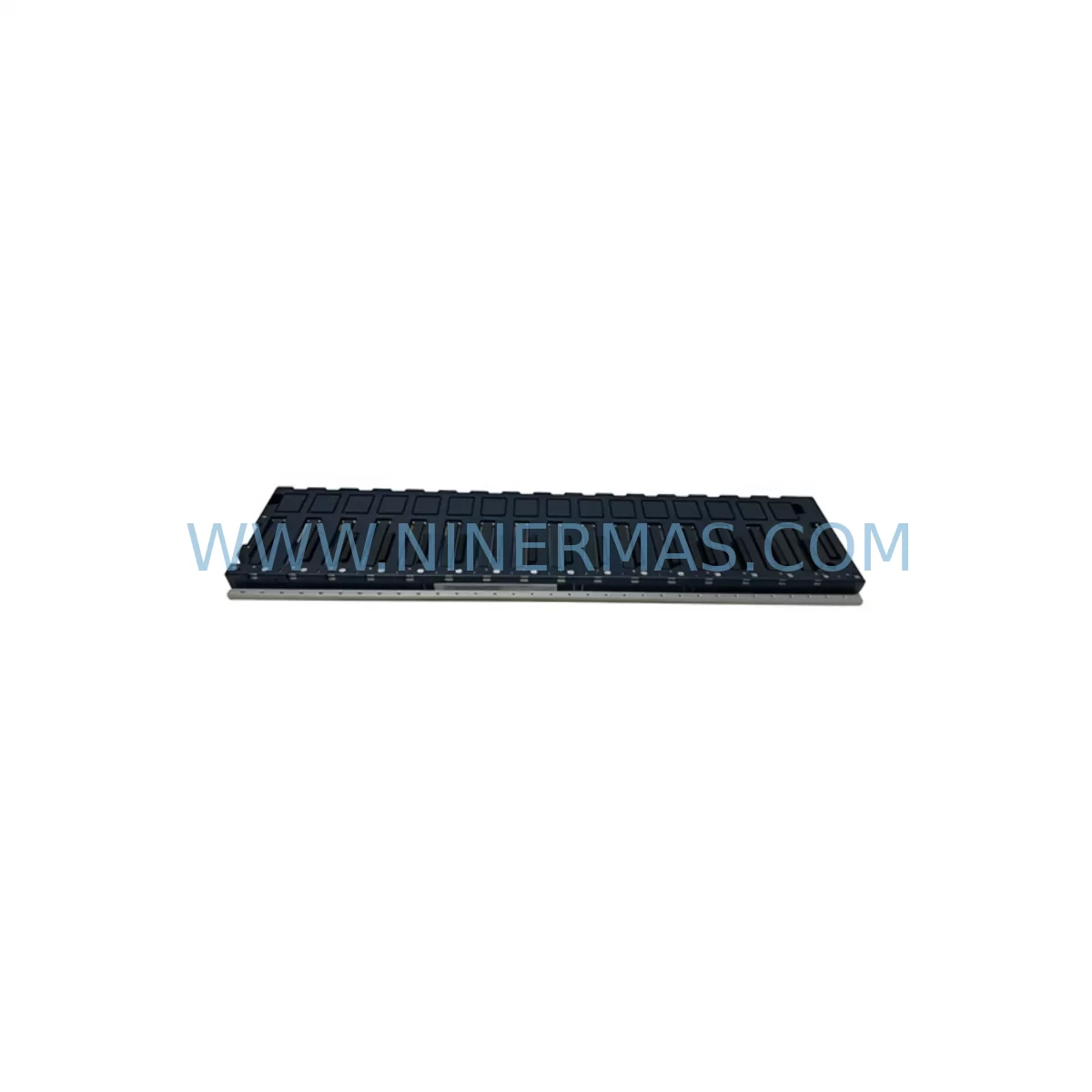

The GE IC695CHS016CA is a 16-slot ruggedized universal backplane module engineered for the GE PACSystems RX3i platform, purpose-built to sustain continuous operation in harsh industrial environments including high-vibration, wide-temperature, and high-humidity installations. For maintenance engineers managing aging control architectures or executing planned shutdowns, having a verified, service-ready IC695CHS016CA in your spare parts inventory is a critical line of defense against unplanned downtime. NINERMAS supplies this backplane as an original-grade spare with full pre-shipment functional testing and a 12-month warranty, ensuring your replacement unit arrives ready to install.

The IC695CHS016CA serves as the structural and electrical backbone of the RX3i rack system. It provides the universal backplane bus that interconnects the CPU module, power supply, I/O modules, and communication modules within a single chassis. When this backplane degrades — whether from thermal cycling, connector wear, vibration fatigue, or age-related dielectric breakdown — the entire control node becomes unreliable. Symptoms often manifest as intermittent I/O faults, unexpected CPU resets, or communication dropouts that are difficult to isolate without swapping the backplane itself.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the IC695CHS016CA backplane is rarely an isolated task. A disciplined maintenance engineer will treat a backplane replacement as an opportunity to audit the entire control cabinet. Begin with the power supply module — the IC695PSA040 or IC695PSD040 — since a failing or undersized power supply is frequently the root cause of backplane stress and premature connector wear. Verify output voltage stability under load before re-seating any modules into the new backplane.

Next, inspect all CPU modules installed in the rack, particularly the IC695CPE330 or IC695CPE400, for firmware currency and battery backup status. A backplane swap is the ideal time to update CPU firmware and replace the lithium backup battery if it has not been changed within the past three years. Simultaneously, audit your installed I/O modules — discrete input modules such as the IC694MDL655 and analog output modules such as the IC695ALG704 — for bent connector pins, oxidation, or heat discoloration that may indicate sustained overcurrent conditions.

Communication modules deserve equal attention. If your RX3i rack hosts an Ethernet module (IC695ETM001) or a PROFIBUS master module, verify that all communication cables are properly strain-relieved and that termination resistors are correctly installed. A backplane replacement that overlooks a degraded communication module will simply shift the fault to a different component within weeks. Similarly, inspect any installed serial communication modules and confirm that RS-232 or RS-485 wiring is within specification.

For sites running redundant control architectures, the IC695CHS016CA backplane replacement must be coordinated with the redundancy synchronization module to avoid a split-brain condition during the switchover. Confirm that the redundancy module firmware matches the primary CPU before bringing the replacement rack online. Additionally, review any installed signal isolators or terminal block assemblies connected to the I/O modules — these passive components are often overlooked during backplane replacements but can introduce ground loops or signal noise if their connections have loosened over time.

Procurement engineers should note that the IC695CHS016CA has a long lead time from OEM channels when ordered reactively. Maintaining at least one verified spare in your on-site inventory — alongside a spare power supply and a spare CPU module — is the most cost-effective insurance against a multi-day production outage. NINERMAS maintains standing stock of IC695CHS016CA and related RX3i components to support both emergency replacement and planned annual maintenance programs.

Site Replacement Workflow

Step 1 — Pre-Replacement Verification: Before removing the existing backplane, perform a full project backup from the RX3i CPU using Proficy Machine Edition. Confirm the backup file is readable and complete. Document all module slot assignments, I/O addresses, and communication module configurations.

Step 2 — Safe De-energization: Follow your site’s lockout/tagout (LOTO) procedure. Remove all I/O modules and communication modules from the existing backplane in sequence, labeling each module with its slot number. Disconnect all field wiring from terminal blocks before removing I/O modules where possible.

Step 3 — Backplane Removal and Inspection: Remove the old IC695CHS016CA from the panel or DIN rail. Inspect the mounting surface for corrosion or mechanical damage. Clean the mounting area before installing the replacement unit.

Step 4 — New Backplane Installation: Mount the replacement IC695CHS016CA and secure it per GE installation torque specifications. Re-install the power supply module first, then the CPU module, followed by I/O and communication modules in their documented slot order.

Step 5 — Power-Up and Verification: Apply power and confirm that the CPU enters RUN mode without faults. Verify all I/O modules are recognized and that communication modules establish their configured connections. Restore the project backup if the CPU does not retain its program. Perform a full I/O scan and confirm field device responses before returning the system to production.

This workflow minimizes downtime and ensures system compatibility is maintained throughout the replacement process, preserving the integrity of your existing PACSystems RX3i architecture without requiring re-engineering.

Spare Parts Support FAQ

Q: Is the IC695CHS016CA compatible with all GE PACSystems RX3i CPU and I/O modules?
A: Yes. The IC695CHS016CA features a universal backplane bus that supports the full range of RX3i-compatible CPU modules, I/O modules, and communication modules. It is backward compatible with earlier RX3i rack configurations. Always verify slot assignments against your existing project configuration before powering up.

Q: What is the recommended spare parts inventory strategy for the IC695CHS016CA?
A: For critical production lines, maintain a minimum of one IC695CHS016CA backplane on-site alongside a spare power supply (IC695PSA040 or equivalent) and a spare CPU module. For multi-rack installations, consider one spare backplane per three operational racks. Rotate spares into service during planned shutdowns to verify functionality and prevent shelf degradation.

Q: How does NINERMAS verify the IC695CHS016CA before shipment?
A: Every IC695CHS016CA unit undergoes full functional testing prior to dispatch, including backplane bus continuity verification, connector integrity inspection, and power rail validation. Units are shipped with anti-static packaging and include a test report. All units are covered by a 12-month warranty from the date of shipment.

Q: Can the IC695CHS016CA replace older GE Series 90-30 or Series 90-70 backplanes?
A: No. The IC695CHS016CA is specific to the PACSystems RX3i platform and is not cross-compatible with the older Series 90-30 (IC693 series) or Series 90-70 (IC697 series) backplanes, which use different bus architectures and physical form factors. If you are migrating from a legacy platform, contact NINERMAS for migration planning support.
