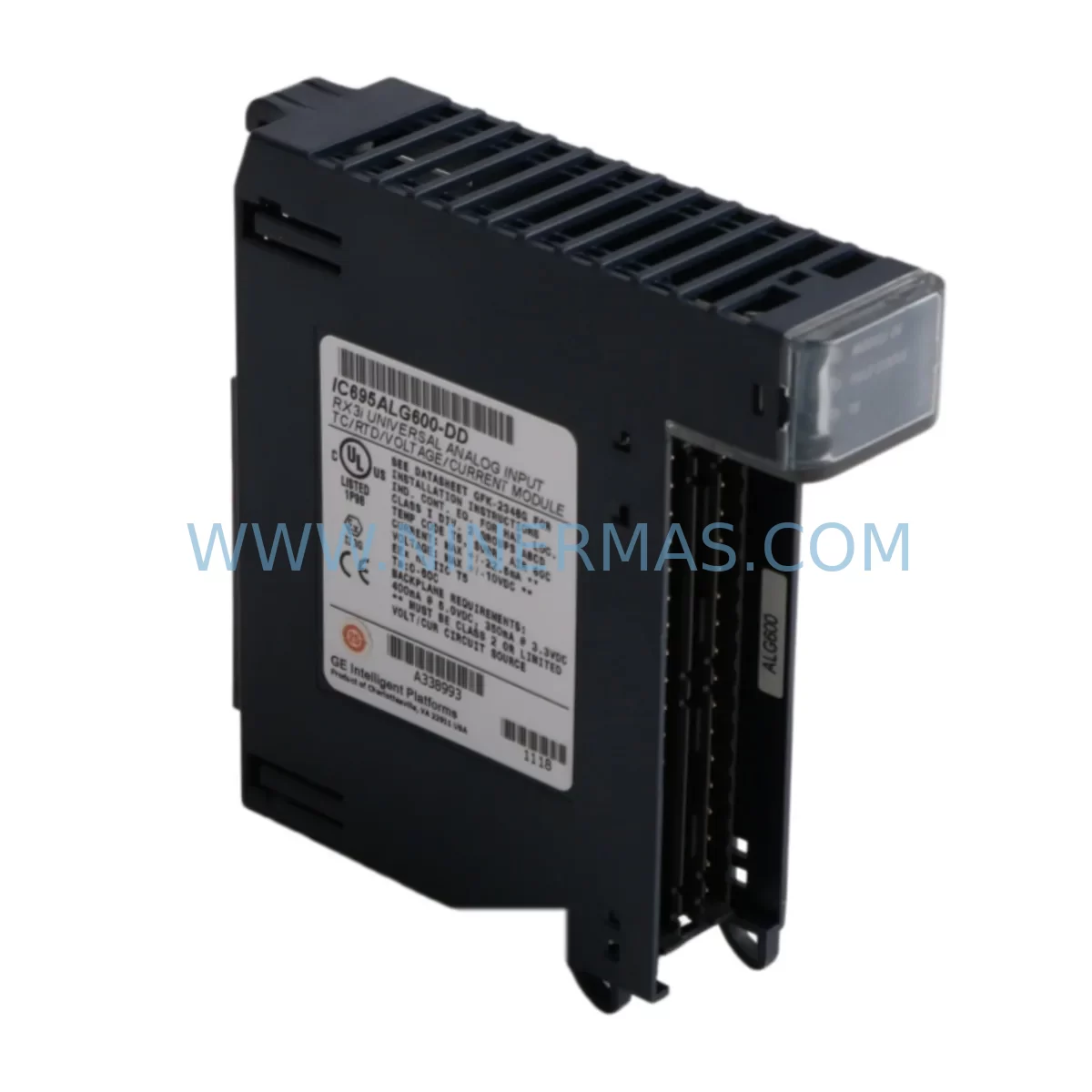

The GE IC695ALG600-DD is an 8-channel analog output module designed for the PACSystems RX3i platform, widely deployed across process control, discrete manufacturing, and utility automation environments. As legacy GE Series 90-30 and Series 90-70 systems approach end-of-life, the IC695ALG600-DD has become a critical component in control system modernization projects — offering a reliable migration path that preserves existing program logic, minimizes rewiring, and reduces total downtime during cutover.

Whether you are replacing a discontinued IC693ALG392 or IC697ALG230 analog output card, upgrading a Series 90-30 rack to a PACSystems RX3i backplane, or expanding I/O capacity in an existing RX3i chassis, the IC695ALG600-DD delivers the signal resolution, channel density, and software compatibility required for a smooth transition. Each channel supports 4–20 mA and 0–10 V DC output ranges, configurable independently through Proficy Machine Edition (PME) without hardware jumpers.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the IC695ALG600-DD into a legacy control environment begins well before the module arrives on site. Engineers should start by auditing the existing rack configuration — confirming available slot positions in the IC695CHS012 or IC695CHS016 universal backplane, verifying that the IC695PSA040 or IC695PSD040 power supply can support the additional load introduced by the new analog output module, and checking that the IC695CPU310 or IC695CPU315 CPU firmware version is compatible with the module’s hardware revision.

Terminal wiring is one of the most time-sensitive steps in the retrofit process. The IC695ALG600-DD uses a removable 40-pin terminal block, which differs from the fixed connector on older Series 90-30 analog cards. Field wiring from existing transmitters, valve positioners, and variable frequency drives must be carefully re-terminated, with attention paid to shield grounding, wire gauge compatibility, and loop power sourcing. Where the legacy system used externally powered 4–20 mA loops, the same loop topology can typically be preserved with the IC695ALG600-DD operating in current output mode.

Module address assignment is handled automatically by the RX3i backplane — the CPU detects the IC695ALG600-DD by slot position and assigns I/O references accordingly in the PME hardware configuration tree. Engineers migrating from a Series 90-30 system should map legacy %AQ reference addresses to the new RX3i output reference table, and verify that all analog scaling blocks, PID function blocks, and HMI tag bindings in the iFIX or CIMPLICITY SCADA system are updated to reflect the new reference addresses before going live.

For installations involving the IC695ETM001 Ethernet module or IC695PBM300 PROFIBUS Master, communication link integrity should be verified after the module swap. If the control cabinet also houses an IC695CMM002 serial communications module for legacy Modbus RTU devices, confirm that the communication module’s configuration is unaffected by the slot reassignment introduced during the retrofit.

Where I/O expansion is required beyond the base chassis, the IC695CHS016 16-slot expansion backplane combined with IC695CHS012 remote drop adapters provides a scalable path without requiring a new CPU or power supply. Signal isolators installed between the IC695ALG600-DD output terminals and field devices can further protect the module from ground loops and transient voltages common in older industrial environments.

Downtime Control During System Migration

Minimizing production interruption is the primary concern in any live system cutover. For the IC695ALG600-DD retrofit, the recommended approach is a parallel commissioning strategy: configure and test the new RX3i module in PME offline, simulate all analog output channels against the expected engineering unit ranges, and validate the hardware configuration file against the existing ladder logic program before the scheduled maintenance window.

During the cutover window, the sequence should follow a structured order — power down the affected rack section, remove the legacy analog output card, install the IC695ALG600-DD, reconnect field wiring to the new terminal block, restore rack power, and allow the CPU to perform automatic module recognition. The entire physical swap typically takes under 30 minutes for a single module. Post-installation, each output channel should be forced to a known safe value through PME’s online forcing function before releasing control back to the program, allowing operators to confirm field device response at the HMI before full automatic operation resumes.

Original program logic stored in the IC695CPU310 or IC695CPU315 does not require modification if I/O reference addresses are correctly mapped during the PME hardware configuration update. Retaining the original ladder logic structure reduces validation time and preserves the institutional knowledge embedded in the existing program. Where HMI faceplates reference specific tag names tied to analog output addresses, a tag remapping exercise in the SCADA system is the only software change required outside of the PLC environment.

All IC695ALG600-DD units supplied by NINERMAS are pre-tested prior to shipment, with output channel verification performed across the full 4–20 mA and 0–10 V DC ranges. This factory acceptance test reduces the risk of commissioning failures caused by transit damage or latent module defects, and supports the goal of completing the retrofit within a single planned maintenance window.

Retrofit Support FAQ

Q: Can the IC695ALG600-DD directly replace an IC693ALG392 in a Series 90-30 system?
A: The IC695ALG600-DD is designed for the PACSystems RX3i backplane and is not directly slot-compatible with Series 90-30 racks. A full rack migration to an RX3i chassis (IC695CHS012 or IC695CHS016) is required. However, the field wiring, loop topology, and analog signal ranges are compatible, making the IC695ALG600-DD the recommended upgrade path for Series 90-30 analog output replacement projects.

Q: What commissioning steps are required after installing the IC695ALG600-DD?
A: After physical installation, open the PME hardware configuration, add the IC695ALG600-DD to the correct slot, configure each channel’s output range and fault state behavior, download the updated hardware configuration to the CPU, and verify each channel output using PME’s online monitoring and forcing tools. Confirm field device response at the HMI before releasing to automatic control.

Q: Does NINERMAS provide pre-shipment testing for the IC695ALG600-DD?
A: Yes. All IC695ALG600-DD modules are tested across all output channels prior to dispatch. Test records are available upon request. Each unit is covered by a 12-month warranty from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions.

Q: What is the typical lead time and stock availability?
A: NINERMAS maintains inventory of the IC695ALG600-DD to support urgent retrofit and breakdown replacement requirements. Standard orders are dispatched within 1–3 business days. For large-quantity or project-based procurement, contact our sales team to confirm allocation and delivery scheduling.
