GE IC693MDL654 Service-Ready Spare Part for Industrial Maintenance

GE IC693MDL654 Service-Ready Spare Part for Industrial Maintenance

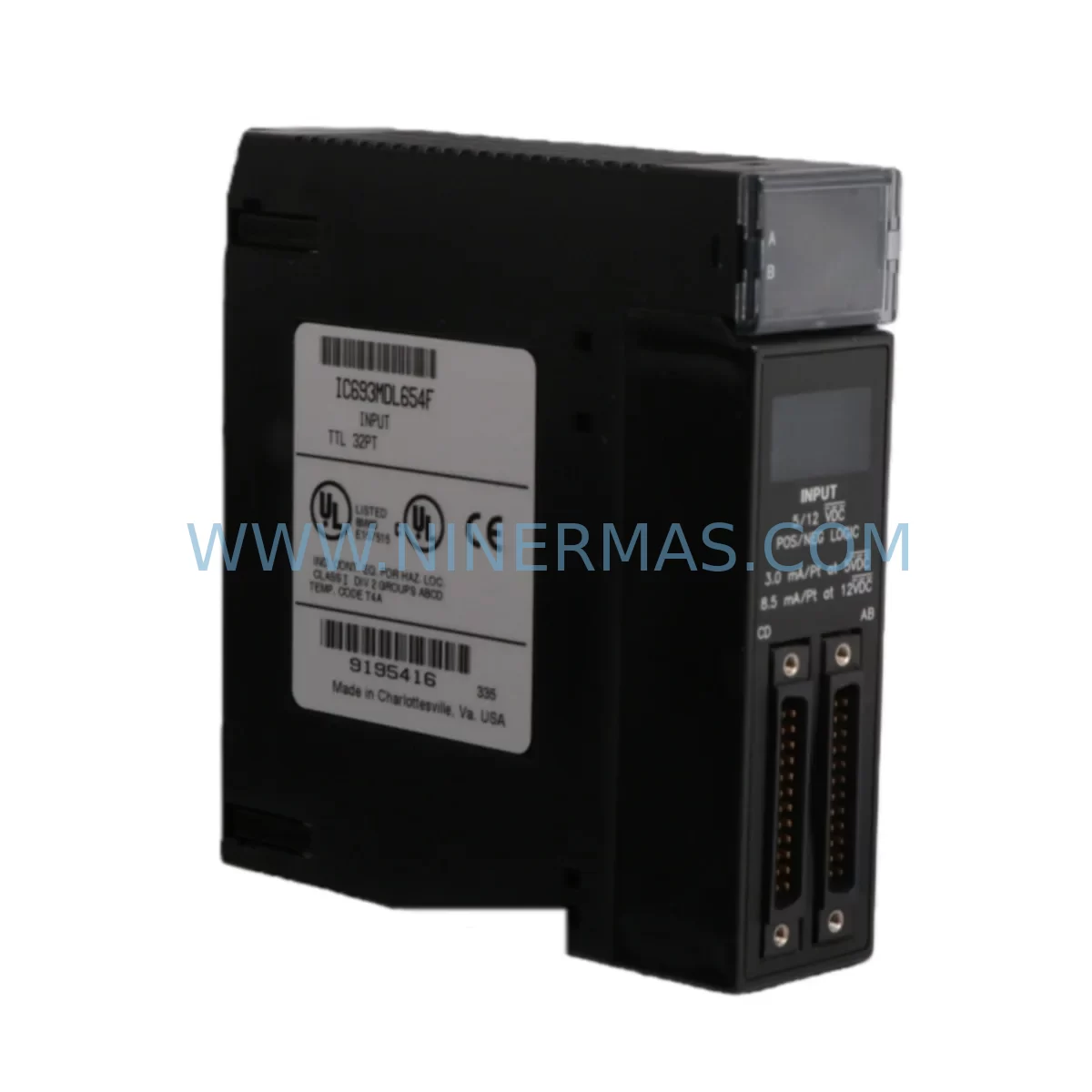

The GE IC693MDL654 is a 16-point discrete output module designed for the GE Series 90-30 PLC platform — one of the most widely deployed programmable logic controller families in North American and global industrial automation. Rated for 120/240 VAC relay outputs, this module serves as a critical interface between the controller backplane and field-side actuators including motor starters, solenoid valves, pilot lights, and contactor coils. When this module fails or degrades, the consequences are immediate: output signals are lost, production lines halt, and maintenance teams face unplanned downtime that can cost thousands of dollars per hour.

At NINERMAS, we stock the IC693MDL654 as a service-ready original spare part, pre-tested before shipment and backed by a 12-month warranty. Whether you are responding to an emergency breakdown, building a preventive maintenance buffer, or executing a scheduled annual overhaul, this module ships promptly to minimize your recovery time.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the IC693MDL654 in a live Series 90-30 control cabinet is rarely an isolated task. Experienced maintenance engineers know that a failed output module is often a symptom of broader electrical stress in the control loop. Before returning the system to service, a thorough inspection of the surrounding components is essential to prevent repeat failures and ensure long-term reliability.

Begin with the IC693PWR321 or IC693PWR330 power supply module — the backbone of the Series 90-30 rack. Verify output voltage stability under load; a sagging 5 VDC bus can cause intermittent module faults that mimic output hardware failures. If the power supply is more than five years old or shows signs of capacitor bulge, plan for a proactive replacement alongside the IC693MDL654.

Next, inspect the IC693CHS391 or IC693CHS397 backplane chassis. Examine the backplane connector pins for oxidation, bent contacts, or carbon tracking from prior arc events. A compromised backplane slot will cause the replacement module to fail prematurely. Clean contacts with approved electrical contact cleaner and verify seating torque on all adjacent modules.

Review the IC693MDL940 or IC693MDL741 discrete input modules in the same rack. If the output module failed due to an overcurrent event driven by a field device fault, the corresponding input module may have absorbed transient energy. Check input filter capacitors and optocoupler response times using a loop tester.

For systems using IC693CMM321 or IC693CMM311 communications modules, confirm that the module’s network heartbeat and I/O scan cycle are intact after the output module swap. A module replacement that changes the rack’s I/O map can trigger communication faults if the CPU program references fixed slot addresses.

Inspect all terminal blocks and field wiring connected to the IC693MDL654 output terminals. Relay output modules are particularly susceptible to terminal loosening caused by thermal cycling from inductive load switching. Re-torque all field terminals to manufacturer specification and check for insulation discoloration that may indicate sustained overload conditions.

If the control cabinet includes an IC693ACC300 hand-held programmer or IC693CBL316 programming cable, use this opportunity to upload and archive the current CPU program before the module swap. This protects against accidental program loss during power cycling and provides a baseline for post-maintenance functional testing.

For facilities managing aging Series 90-30 systems, consider stocking companion spares including the IC693MDL655 (32-point relay output) for higher-density output applications, and the IC693MDL634 (120 VAC input module) to cover the input side of the same control loop. Pairing these with the IC693MDL654 in your spare parts inventory ensures that a single cabinet failure does not require multiple procurement cycles, each adding days to your recovery timeline.

NINERMAS maintains long-term stock of Series 90-30 modules and can support blanket purchase orders for facilities with multiple GE PLC installations. All units are individually tested, serialized, and shipped with inspection documentation to support your maintenance records and ISO audit requirements.

Site Replacement Workflow

Step 1 — Isolation and Lockout/Tagout: De-energize the control cabinet following your site LOTO procedure. Confirm zero energy state on all output field circuits before opening the cabinet door. The IC693MDL654 relay outputs may carry 120/240 VAC field voltage that remains live even when the PLC CPU is in STOP mode.

Step 2 — Document Current Configuration: Before removing the module, photograph the terminal wiring layout and record the slot address in the CPU hardware configuration. Use the IC693ACC300 programmer or Proficy Machine Edition software to verify the I/O map and confirm the slot assignment matches your replacement unit.

Step 3 — Module Removal: Loosen the captive screws on the IC693MDL654 faceplate, disconnect field wiring from the terminal block (label each wire if not already marked), and slide the module out of the backplane slot. Inspect the backplane connector on the removed module for damage that may indicate the root cause of failure.

Step 4 — Replacement Installation: Slide the new IC693MDL654 into the same backplane slot. Ensure the module is fully seated — a partially inserted module will cause a rack fault. Reconnect field wiring in the documented order and re-torque terminals. The relay output module requires no DIP switch or jumper configuration for standard 120/240 VAC operation.

Step 5 — Power-Up and Functional Test: Restore power to the rack. Observe the CPU status LEDs and confirm the IC693MDL654 OK LED illuminates. Place the CPU in RUN mode and exercise each output point through the HMI or programmer. Verify field device response (valve actuation, motor starter engagement, pilot light activation) for all 16 output points before releasing the system to production.

Step 6 — Documentation and Spare Replenishment: Record the replacement in your CMMS (Computerized Maintenance Management System) with the module serial number, date, and technician ID. Immediately initiate a purchase order for a replacement spare to restore your buffer stock — a single-unit spare inventory is a zero-margin safety net.

Spare Parts Support FAQ

Q1: Is the IC693MDL654 still available as a new original part, or only as refurbished?
NINERMAS stocks the IC693MDL654 as original service-ready units. While GE has transitioned the Series 90-30 platform to legacy support status, we maintain inventory sourced from authorized distribution channels. Each unit undergoes pre-shipment functional testing and ships with a 12-month warranty. We recommend confirming availability and lead time with our sales team for large-quantity orders, as stock levels fluctuate based on global demand for legacy GE PLC components.

Q2: How do I verify compatibility between the IC693MDL654 and my existing Series 90-30 CPU and chassis?
The IC693MDL654 is compatible with all standard Series 90-30 5-slot and 10-slot chassis (IC693CHS391, IC693CHS392, IC693CHS397, IC693CHS398) and all Series 90-30 CPU models from IC693CPU311 through IC693CPU374. Compatibility is determined by the backplane bus standard, not the CPU firmware version. If you are running a mixed rack with both 90-30 and 90-70 modules, contact our technical team to confirm slot assignment rules before ordering.

Q3: What is included in the 12-month warranty, and what does the pre-shipment test cover?
All IC693MDL654 units shipped by NINERMAS are covered by a 12-month warranty from the date of shipment against manufacturing defects and functional failures under normal operating conditions. Pre-shipment testing includes relay contact continuity verification for all 16 output points, backplane connector integrity check, optical isolation test, and power-on self-test using a Series 90-30 test rack. A test report is available upon request for quality-critical procurement processes.

Q4: Can NINERMAS support long-term supply agreements for IC693MDL654 and other Series 90-30 spares?
Yes. NINERMAS supports blanket purchase orders and long-term supply agreements for facilities managing multiple GE Series 90-30 installations. We can reserve dedicated stock allocations for your site, provide scheduled delivery against annual maintenance budgets, and extend coverage to companion modules including power supplies, CPU units, communications modules, and discrete input/output modules across the Series 90-30 family. Contact our procurement team at sale@ninermas.com or +0086 187 5021 5667 to discuss your requirements.
