GE IC693DSM324 Retrofit-Compatible Motion Controller for Legacy Systems

GE IC693DSM324 Retrofit-Compatible Motion Controller for Legacy Systems

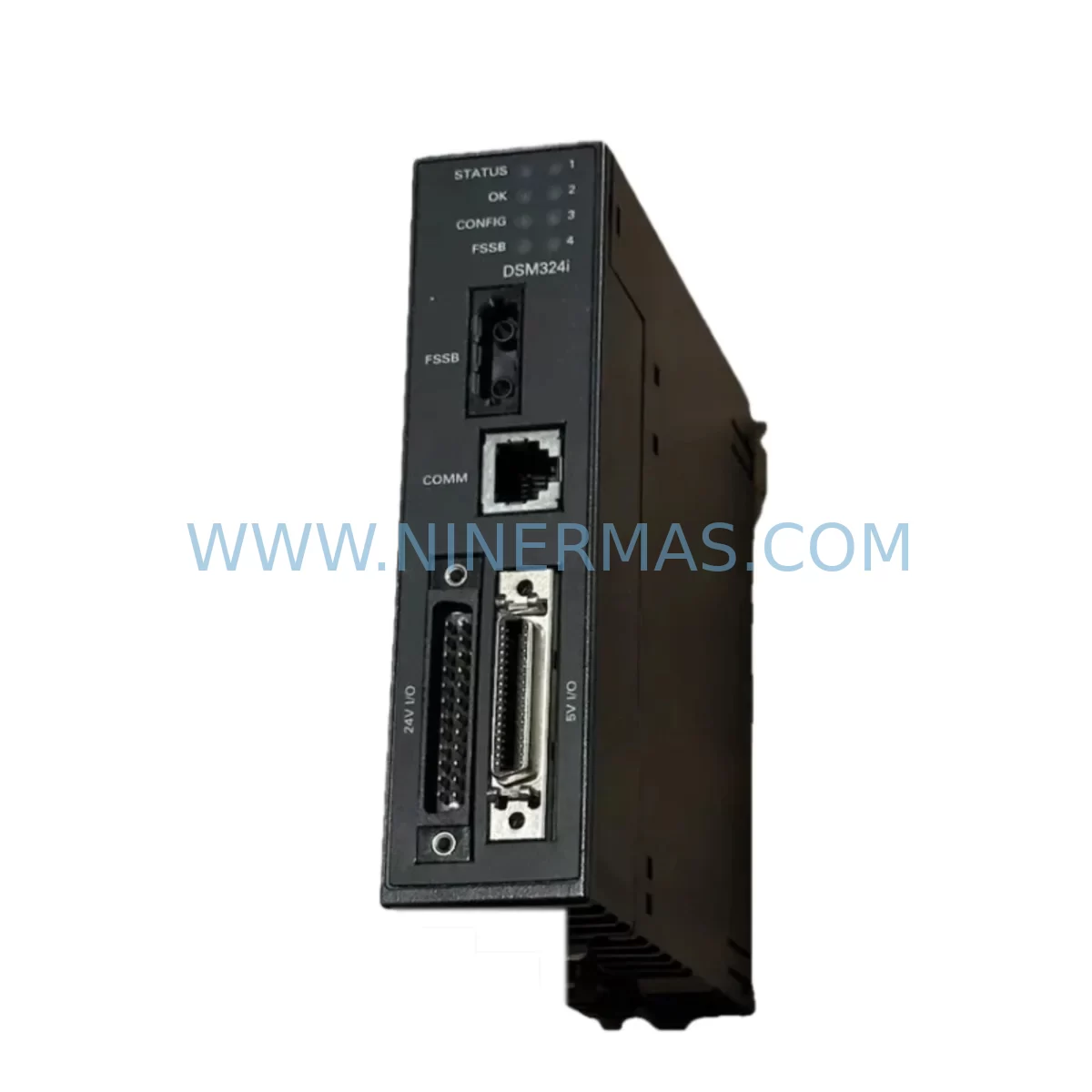

The General Electric IC693DSM324 is a high-performance DSM (Digital Servo Module) motion controller designed for the GE Series 90-30 PLC platform. As production lines age and OEM support for legacy automation systems diminishes, the IC693DSM324 remains one of the most sought-after retrofit and replacement components for facilities that rely on coordinated multi-axis motion control without undertaking a full system overhaul. NINERMAS maintains verified stock of the IC693DSM324 to support planned upgrades, emergency replacements, and long-term spare parts programs — all backed by a 12-month warranty and pre-shipment functional testing.

Whether you are replacing a failed unit on an existing Series 90-30 rack, migrating from an older IC693DSM302 or IC693DSM314 motion module, or consolidating control architecture across multiple machine cells, the IC693DSM324 provides the axis capacity and program compatibility needed to restore or extend system operation with minimal disruption to your production schedule.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Integrating the IC693DSM324 into an existing Series 90-30 control cabinet requires a structured approach to avoid extended downtime and configuration errors. The first step is a thorough audit of the existing rack layout. Series 90-30 base units — including the 5-slot IC693CHS391, 10-slot IC693CHS392, and 12-slot IC693CHS397 — must have an available single-width slot adjacent to or within reach of the servo drive terminal wiring. If the existing rack is fully populated, a rack expansion using an IC693CHS398 expansion chassis with an IC693CXB905 cable may be required before the DSM324 can be installed.

Power budget verification is critical. The IC693PWR321 (30W) and IC693PWR330 (40W) power supplies each have defined backplane current limits. Adding the IC693DSM324 increases the 5V backplane load, and engineers must confirm that the existing power supply has sufficient headroom — particularly in racks that already carry analog I/O modules such as the IC693ALG221 or IC693ALG392, which also draw from the same backplane rail.

On the communication side, if the existing system uses a Genius Bus network managed by an IC693BEM331 Bus Controller, the IC693DSM324 integrates cleanly within the same rack without requiring protocol conversion. For facilities that are simultaneously migrating from Genius to Ethernet I/P or Profibus, an IC693CMM321 communications module may be added to the rack to bridge legacy field devices while the DSM324 continues to manage servo motion independently. This parallel communication architecture is one of the most effective strategies for phased migration — allowing the motion layer to remain stable while the supervisory and field I/O layers are upgraded incrementally.

Servo drive wiring must be carefully mapped during the retrofit. The IC693DSM324 interfaces with servo amplifiers via analog ±10V command signals and differential encoder feedback. If the existing servo drives are being retained (a common cost-saving measure in partial retrofits), the wiring pinout from the DSM324’s axis connector must be verified against the drive’s command input specification. In cases where the original servo drives are also being replaced — for example, upgrading from legacy GE Fanuc Alpha series drives to modern units — the encoder feedback type (incremental vs. absolute) must be confirmed to match the DSM324’s input requirements.

For facilities running Logicmaster 90 programming software on older workstations, the motion program stored in the IC693DSM324 must be backed up before the module is removed. GE Proficy Machine Edition supports import of Logicmaster motion programs with some manual parameter review required. Engineers should allocate time for axis tuning verification after the new module is installed, as servo loop gains stored in the original module are not automatically transferred to a replacement unit.

Downtime Control During System Migration

Minimizing production downtime during an IC693DSM324 replacement is achievable with proper pre-staging and a disciplined changeover procedure. The recommended approach is to pre-configure the replacement module offline before the maintenance window begins. Using a bench test setup with a Series 90-30 rack, IC693CPU374 or IC693CPU364 controller, and a laptop running Proficy Machine Edition, the motion program can be downloaded and axis parameters pre-loaded into the replacement IC693DSM324 before it ever reaches the production floor.

During the actual changeover, the sequence should follow: safe machine state confirmation, servo drive disable, rack power-down, module swap, rack power-up, program verification download, encoder reference cycle, and controlled test run at reduced speed before returning to full production speed. This structured sequence — when rehearsed in advance — typically allows a trained technician to complete the physical swap and initial verification within a two-to-four hour maintenance window, even on complex multi-axis systems.

Protecting the original PLC ladder logic in the IC693CPU is equally important. The CPU’s program is stored independently of the DSM324’s motion program, so a CPU memory backup via the IC693ACC311 memory card or a Proficy ME upload prior to the maintenance window ensures that the control logic can be restored immediately if any unexpected issue arises during commissioning. HMI screens connected via Cimplicity or a QuickPanel display do not require modification when only the DSM324 is being replaced, as the HMI communicates with the CPU — not directly with the motion module — preserving screen continuity throughout the retrofit.

All IC693DSM324 units shipped by NINERMAS undergo pre-shipment functional testing to verify module initialization, axis configuration acceptance, and communication handshake with a Series 90-30 CPU. This testing step reduces the risk of receiving a non-functional unit and is part of the standard 12-month warranty coverage provided on every shipment.

Retrofit Support FAQ

Q: Is the IC693DSM324 a direct replacement for the IC693DSM314?
A: Yes. The IC693DSM324 occupies the same single-slot Series 90-30 backplane position as the IC693DSM314 and is electrically compatible with the same rack and power supply infrastructure. The DSM324 supports up to 4 axes versus the DSM314’s 2-axis capacity, so axis parameter configuration must be reviewed and updated in Proficy Machine Edition after installation. Existing servo drive wiring and encoder connections are typically reusable without modification.

Q: What commissioning steps are required after installing a replacement IC693DSM324?
A: After physical installation, the motion program must be re-downloaded from Proficy Machine Edition or Logicmaster 90 to the new module. Axis parameters — including servo loop gains, position limits, and homing sequences — must be verified and re-entered if they were not previously exported. An encoder reference (home) cycle should be performed on each axis before returning the machine to automatic operation. NINERMAS technical support is available to assist with commissioning questions for units purchased from us.

Q: Does NINERMAS verify IC693DSM324 units before shipment?
A: Yes. Every IC693DSM324 unit undergoes a pre-shipment functional test that includes module power-up, backplane communication verification, and axis configuration acceptance testing using a Series 90-30 test rack. Units that do not pass testing are not shipped. All units are covered by a 12-month warranty from the date of shipment, covering defects in materials and workmanship under normal operating conditions.

Q: Can the IC693DSM324 be used in a system that is also being upgraded to Ethernet communications?
A: Yes. The IC693DSM324 manages servo motion independently through the Series 90-30 backplane and does not directly participate in the rack’s external communication protocol. An IC693CMM321 Ethernet module or IC693CMM302 can be added to the same rack to provide Ethernet connectivity for supervisory systems or SCADA integration, while the DSM324 continues to handle motion control without modification. This makes the IC693DSM324 well-suited for phased upgrade projects where motion control stability must be maintained while the communication infrastructure is modernized.
