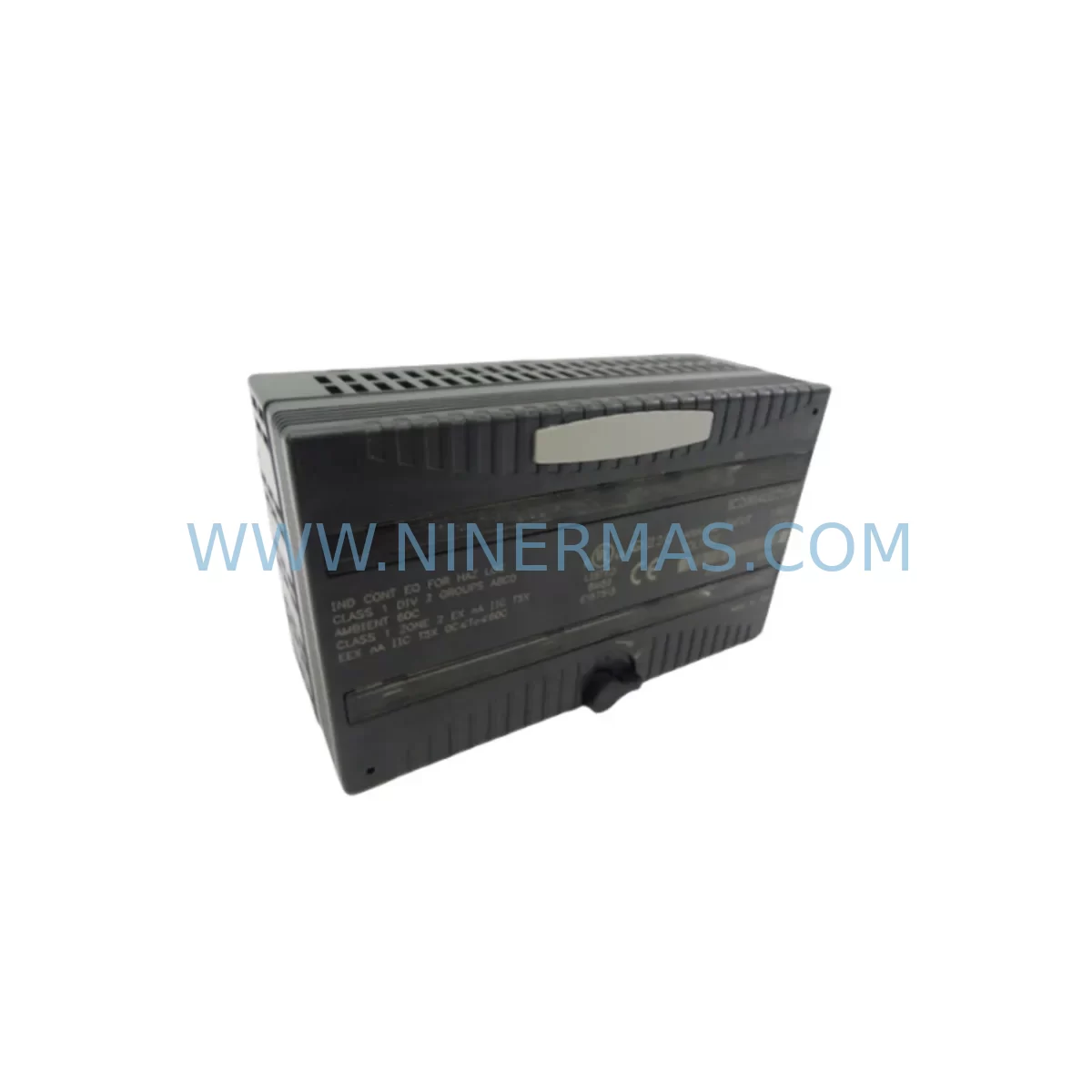

The GE Fanuc IC200ALG265 is a high-integrity analog input module from the GE VersaMax IC200 series, engineered for continuous and uninterrupted signal acquisition in critical industrial control environments. Designed to operate reliably under high electromagnetic interference, wide temperature swings, mechanical vibration, and dusty or humid field conditions, the IC200ALG265 delivers stable, drift-free analog signal processing where control loop integrity is non-negotiable.

In petrochemical plants, power generation facilities, mining operations, water treatment stations, metallurgical furnaces, port crane systems, and continuous manufacturing lines, analog input accuracy is the foundation of safe process control. A single point of signal drift or channel failure can cascade into interlock misoperation, unplanned shutdown, or — in worst-case scenarios — a safety incident. The IC200ALG265 is built to eliminate that risk through robust hardware design, tight channel isolation, and proven field reliability across decades of industrial deployment.

Every IC200ALG265 unit supplied by NINERMAS undergoes pre-shipment functional testing to verify channel accuracy, input range integrity, and communication handshake with the VersaMax CPU. This ensures that the module you receive is field-ready from day one, reducing commissioning time and eliminating the risk of installing a latent-fault component into a live control cabinet.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In a well-engineered industrial control cabinet, the IC200ALG265 does not operate in isolation — it is one node in a layered protection and control architecture. Signal integrity at the analog input layer directly affects the quality of decisions made by the VersaMax CPU, which in turn drives output actions through modules such as the IC200ALG320 analog output module or discrete output modules like the IC200MDL740. When the analog input data is accurate and stable, the CPU can execute PID loops, interlock logic, and alarm thresholds with confidence.

Power quality is a critical upstream dependency. The IC200ALG265 relies on a stable backplane supply, which is typically sourced from a dedicated IC200PWR002 or IC200PWR001 VersaMax power supply module. In sites with frequent voltage sags, surges, or brownouts — common in heavy industrial environments — pairing the power supply with an external surge protection device or UPS ensures that transient events do not corrupt analog readings or cause module resets. This is especially important in arc furnace facilities, large motor start environments, and substations where switching transients are routine.

For remote I/O architectures, the IC200ALG265 is often deployed on a VersaMax remote drop, communicating back to the main PLC rack via a IC200BEM002 Ethernet network interface unit or a IC200PBI001 PROFIBUS interface module. In these configurations, communication health monitoring becomes part of the safety strategy — a lost heartbeat or CRC error on the fieldbus must trigger a safe-state response in the CPU logic, not a silent failure. Proper configuration of the network interface watchdog timer is essential.

In safety-critical interlock loops — such as high-temperature shutdowns in a refinery heat exchanger, high-level trips in a chemical reactor, or overpressure protection in a compressor station — the analog input signal from the IC200ALG265 feeds directly into the interlock evaluation logic. Complementing this with a IC200MDL650 discrete input module for hardwired trip confirmation provides a dual-channel verification architecture that reduces the risk of spurious trips and missed trips simultaneously.

For cabinet-level EMI management, shielded analog signal cables terminated at a dedicated grounding bar, combined with ferrite cores on signal leads, significantly reduce common-mode noise pickup. In high-vibration environments such as mining crushers or offshore platforms, cable strain relief and module retention clips prevent intermittent contact faults that can masquerade as process signal anomalies. Periodic calibration verification of the IC200ALG265 channels — using a precision current or voltage source — is recommended as part of a preventive maintenance schedule to detect any long-term drift before it affects process control accuracy.

Critical Industrial Safety Applications

Petrochemical and Refinery Plants: The IC200ALG265 is widely deployed in refinery control systems for monitoring temperature, pressure, and flow transmitter signals across distillation columns, heat exchangers, and reactor vessels. Its channel isolation and noise immunity make it suitable for environments where ground loops and cable runs exceeding 200 meters are common. Reliable analog input is the first line of defense in preventing runaway reactions and ensuring safe shutdown system (SIS) readiness.

Power Generation and Substation Control: In thermal power plants and hydroelectric stations, the IC200ALG265 handles generator excitation feedback, turbine speed analog signals, and transformer temperature monitoring. The module’s ability to maintain signal accuracy during high-voltage switching events — when EMI levels spike dramatically — is critical for maintaining grid stability and preventing equipment damage.

Mining and Mineral Processing: Conveyor belt load monitoring, crusher motor current feedback, and slurry pump flow measurement are typical applications in mining environments. The IC200ALG265 operates reliably in the presence of heavy dust, vibration from blasting and crushing operations, and wide ambient temperature variations between surface and underground installations.

Water and Wastewater Treatment: Municipal water treatment facilities use the IC200ALG265 to monitor chlorine dosing pump flow rates, pH sensor outputs, turbidity transmitters, and reservoir level signals. Continuous, uninterrupted analog input is essential for maintaining water quality compliance and preventing dosing errors that could affect public health.

Metallurgy and Steel Production: In electric arc furnaces, rolling mills, and continuous casting lines, the IC200ALG265 handles thermocouple signal conditioning outputs, hydraulic pressure feedback, and cooling water flow monitoring. The thermal and vibration stresses in these environments demand a module with proven long-term stability — a characteristic that the GE VersaMax platform has demonstrated across decades of steel industry deployment.

Port and Maritime Crane Systems: Ship-to-shore cranes and rubber-tyred gantry cranes rely on analog input modules for load cell signal acquisition, wind speed monitoring, and hydraulic system pressure feedback. The IC200ALG265’s compact form factor and backplane integration simplify control cabinet design in space-constrained crane electrical rooms.

Safety and Quality FAQ

Q1: Does the IC200ALG265 come with a warranty?
Yes. Every IC200ALG265 supplied by NINERMAS carries a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Our warranty is backed by pre-shipment functional testing on every unit, ensuring that the module meets GE Fanuc performance specifications before it leaves our facility.

Q2: What pre-shipment testing is performed on the IC200ALG265?
Each unit undergoes channel-by-channel analog input accuracy verification across all supported input ranges (0–10 VDC, ±10 VDC, 4–20 mA), backplane communication handshake testing with a VersaMax CPU, and visual inspection for connector integrity and PCB condition. This process ensures that latent faults are identified before the module reaches your control cabinet.

Q3: Is the IC200ALG265 compatible with my existing VersaMax system?
The IC200ALG265 is compatible with the full range of GE VersaMax IC200 backplanes and is supported by VersaMax CPUs including the IC200CPUE05, IC200CPU001, and IC200CPU002 series. It is configured using GE Proficy Machine Edition (formerly Logicmaster) software. If you have a specific CPU or backplane model, contact our technical team to confirm compatibility before ordering.

Q4: Can NINERMAS support long-term supply of the IC200ALG265 as a spare part?
Yes. NINERMAS maintains stock of the IC200ALG265 and related VersaMax components to support ongoing spare parts programs for industrial facilities with long equipment lifecycles. We understand that legacy GE Fanuc systems often remain in service for 15–20 years, and we are committed to providing reliable supply continuity, technical documentation, and replacement support throughout that lifecycle.
