GE IC200ALG264 — Lifecycle Excellence & Technical Performance

Operational Integrity & System Analysis

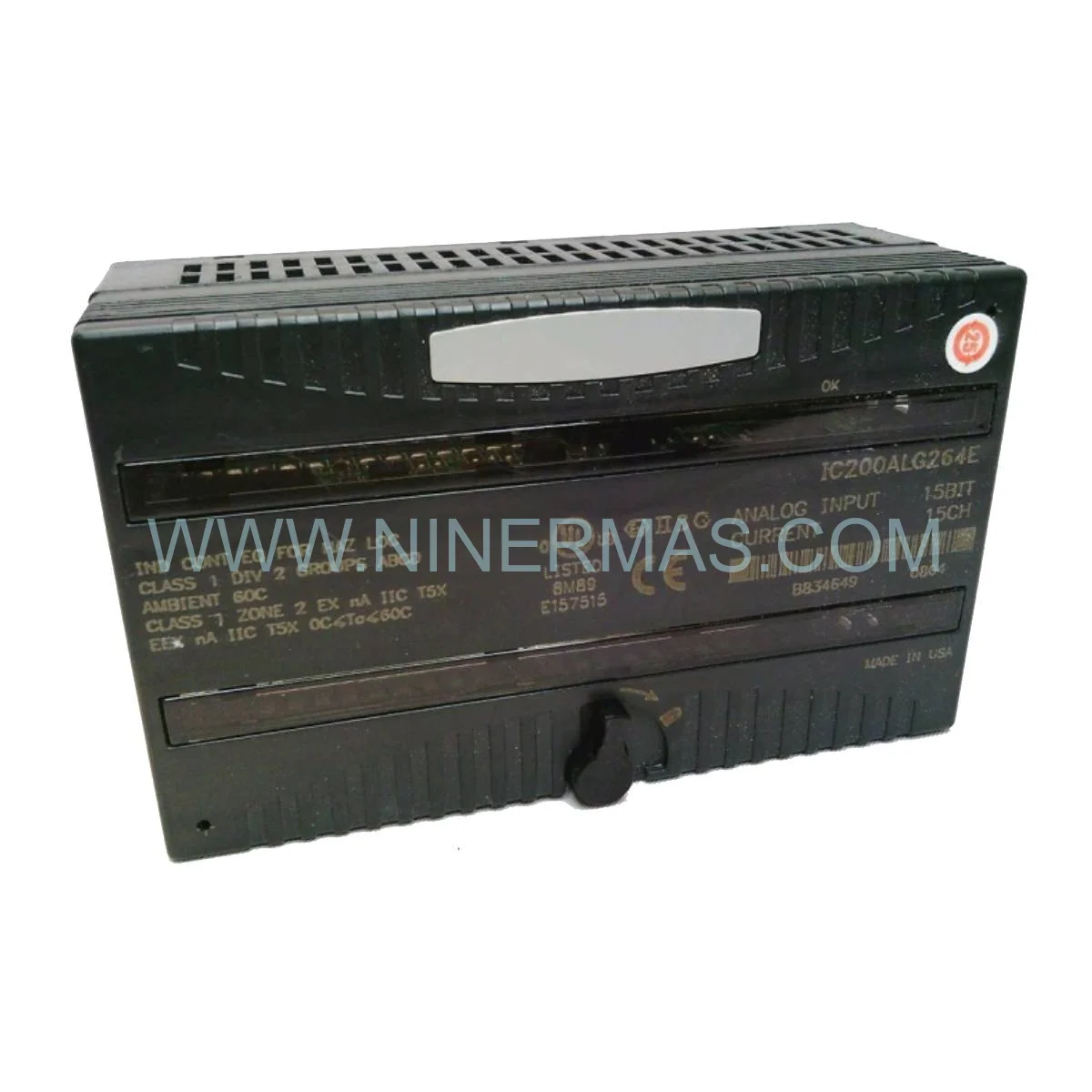

From the perspective of an Industrial Compliance Consultant, the GE IC200ALG264 occupies a foundational role in maintaining the operational integrity of distributed I/O architectures. As a certified VersaMax Analog Input Module engineered by General Electric, the IC200ALG264 delivers 15 single-ended current input channels with a resolution of 15 bits — a specification that directly underpins measurement accuracy, process stability, and regulatory compliance in safety-critical environments. Its role extends beyond signal acquisition; it serves as a compliance anchor within the broader control system, ensuring that analog data entering the PLC backbone adheres to internationally recognized performance benchmarks.

Within the framework of Industry 4.0 and long-cycle asset management strategies, the IC200ALG264 demonstrates sustained compatibility with GE VersaMax carrier systems and Emerson Automation’s legacy integration pathways. Its jumper-selectable input range — supporting both 4-20 mA and 0-20 mA configurations — provides the engineering flexibility required for multi-vendor sensor ecosystems, reducing retrofit costs and extending the operational lifespan of existing control infrastructure. This adaptability is a critical attribute for organizations pursuing Asset Optimization without full system overhaul.

As a factory-sealed, Original Documentation-backed component, the IC200ALG264 satisfies the traceability requirements demanded by ISO 9001-aligned procurement processes. Its certified provenance eliminates counterfeit risk — a growing concern in global industrial supply chains — and ensures that system safety integrity is preserved from installation through decommissioning.

Compliance & Safety Benchmarks

✅ Certified Original Component: Sourced through verified supply channels with full traceability and Original Documentation support.
? Isolation Rating: 250 VAC continuous — meets standard industrial isolation requirements for mixed-signal environments.
Input Range Compliance: Jumper-selectable 4-20 mA / 0-20 mA — conforms to IEC 60381-1 standard for analog signal transmission.
? Resolution & Accuracy: 15-bit resolution with 7.5 ms maximum update rate — aligned with Compliance Standards for high-frequency process monitoring.
Backplane Power Integrity: 100 mA maximum at 5 VDC — engineered for stable coexistence within multi-module VersaMax carrier configurations.
? Lifecycle Durability: Designed for continuous industrial duty cycles; validated for long-term System Performance in demanding thermal and electrical environments.

Vertical Industry Integration & Optimization

The IC200ALG264 is engineered to address the precision signal acquisition demands of industries where process deviation carries significant safety and financial consequences:

Semiconductor Manufacturing: Ultra-clean process environments require analog modules with minimal signal noise and high resolution. The 15-bit architecture of the IC200ALG264 supports the tight process windows characteristic of wafer fabrication and chemical vapor deposition systems, enabling real-time feedback loops that sustain yield consistency.

Pharmaceutical & Life Sciences: GMP-regulated facilities demand full component traceability and validated instrumentation. The IC200ALG264’s certified provenance and Original Documentation support streamline IQ/OQ/PQ validation protocols, reducing compliance audit exposure and accelerating system qualification timelines.

Chemical & Petrochemical Processing: In environments governed by ATEX or IECEx safety frameworks, the module’s 250 VAC isolation rating and stable backplane power consumption contribute to Safety Integrity Level (SIL) assessments, supporting the design of compliant safety instrumented systems (SIS).

Water & Wastewater Treatment: Continuous 4-20 mA current loop monitoring of flow, pressure, and chemical dosing parameters benefits directly from the IC200ALG264’s multi-channel architecture, enabling centralized SCADA integration with reduced wiring complexity and improved diagnostic transparency.

Comprehensive Engineering Specifications

Fulfillment Strategy & Technical Support

Factory Sealed Condition: Every IC200ALG264 unit dispatched by NINERMAS COMPANY LIMITED is maintained in factory-sealed or equivalent preservation packaging, ensuring that electrostatic discharge (ESD) protection, moisture barriers, and mechanical integrity are fully preserved at the point of delivery. This condition is a prerequisite for compliance with OEM installation specifications and warranty activation protocols.

Rapid Global Logistics: Leveraging established freight partnerships across Asia-Pacific, Europe, and the Americas, NINERMAS delivers critical automation components within competitive lead times. Expedited shipping options are available for emergency maintenance scenarios, minimizing unplanned downtime exposure for time-sensitive production environments.

12-Month Quality Guarantee for Legacy Systems: Recognizing the extended service lifecycles common in industrial automation, NINERMAS provides a 12-Month Quality Guarantee covering manufacturing defects and performance non-conformance. This guarantee is specifically structured to support legacy system operators who depend on long-term component availability and post-sale technical accountability.

Technical Documentation Support: Upon request, NINERMAS can facilitate access to Original Documentation including datasheets, installation guides, and compliance certificates — supporting customer IQ/OQ validation, regulatory audits, and engineering change management processes.

Expert Technical FAQ

Q1: What installation compliance requirements apply to the IC200ALG264 in a safety-instrumented system (SIS)?
A: The IC200ALG264 is a standard analog input module and is not independently SIL-rated. However, when integrated within a broader SIS architecture, its 250 VAC isolation rating and deterministic 7.5 ms update cycle contribute to system-level SIL assessments. Compliance engineers should reference IEC 61511 guidelines and consult the GE VersaMax system documentation to determine appropriate application boundaries and required redundancy configurations.

Q2: How does the IC200ALG264 perform in high-temperature or high-humidity industrial environments?
A: The IC200ALG264 is rated for standard industrial ambient conditions as defined in GE’s VersaMax environmental specifications. For installations in elevated-temperature zones (e.g., near furnaces or in non-climate-controlled enclosures), thermal derating analysis should be conducted. Enclosure selection per IEC 60529 (IP rating) is recommended to address humidity and particulate ingress in chemically aggressive or outdoor-adjacent environments.

Q3: Is firmware or software configuration required for the IC200ALG264, and does this affect certification status?
A: The IC200ALG264 does not require firmware updates for standard operation; its input range is configured via hardware jumper settings. Software configuration is performed through the GE Proficy Machine Edition or compatible programming environment for I/O mapping. Firmware version compatibility should be verified against the VersaMax CPU or NIU firmware revision to ensure full System Performance and avoid diagnostic fault conditions.

Q4: What traceability documentation is available to support procurement compliance audits?
A: NINERMAS provides component-level traceability documentation upon request, including supplier chain records and condition verification reports. For regulated industries (pharmaceutical, aerospace, defense), customers may request additional documentation aligned with AS9120 or ISO 9001 procurement standards. Original Documentation from GE/Emerson is referenced where available to support full audit trails.

Q5: Can the IC200ALG264 be used as a direct replacement in an existing VersaMax system without hardware modification?
A: Yes. The IC200ALG264 is a form-fit-function replacement for compatible VersaMax carrier slots. Prior to installation, engineers should verify jumper configuration matches the existing application’s signal range (4-20 mA or 0-20 mA) and confirm I/O mapping within the control program. No carrier or backplane modification is required for standard replacement scenarios, supporting rapid Lifecycle Management and minimizing system downtime.

Q6: What is the recommended approach for decommissioning and lifecycle transition of the IC200ALG264?
A: As part of a structured Asset Optimization program, decommissioning of the IC200ALG264 should follow a documented change management process including: final performance benchmarking, configuration backup, and safe removal per ESD handling protocols. Organizations transitioning to next-generation I/O platforms should conduct a compatibility assessment to determine whether the IC200ALG264 can be redeployed in lower-criticality applications, extending its useful service life and reducing capital expenditure.
