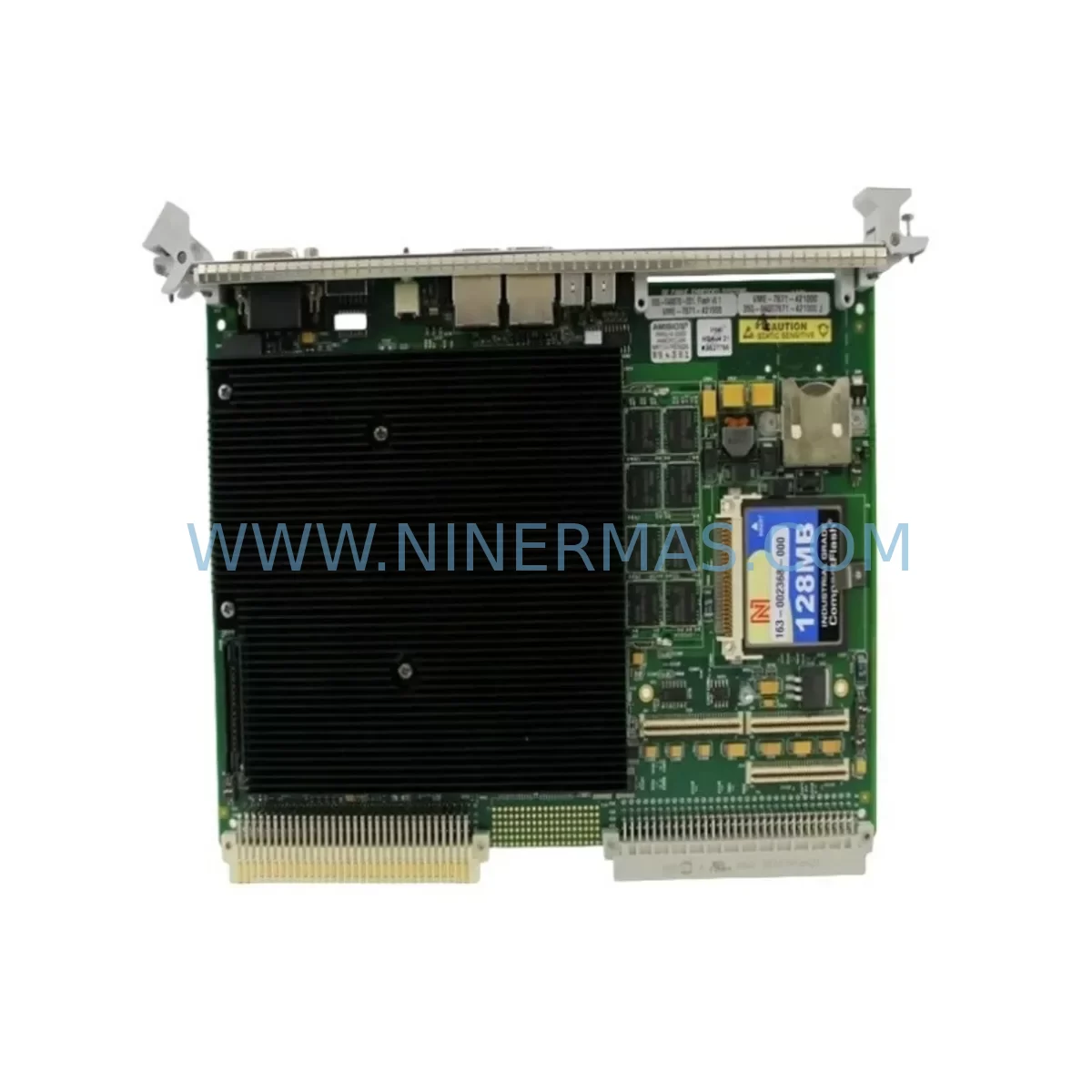

GE Fanuc VME-7671-421000 Retrofit-Compatible VME Module

GE Fanuc VME-7671-421000 Retrofit-Compatible VME Module for Legacy System Upgrades

The GE Fanuc VME-7671-421000 is a VME bus-architecture module designed for industrial automation environments where legacy control infrastructure must be preserved, extended, or migrated with minimal disruption. As a retrofit-compatible spare, this unit addresses the growing demand for discontinued-model replacements in aging production lines, control cabinet upgrades, and multi-axis motion control systems that were originally built around GE Fanuc’s VME platform.

For maintenance engineers and procurement teams managing long-lifecycle automation assets, sourcing a verified replacement for the VME-7671-421000 is critical. NINERMAS maintains in-stock inventory of this module with full pre-shipment functional testing and a 12-month warranty, supporting both emergency breakdown recovery and planned lifecycle extension programs.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

When integrating the VME-7671-421000 into an existing GE Fanuc VME-based control system, the retrofit process typically begins with a thorough audit of the host chassis. Most legacy GE Fanuc VME installations use a multi-slot VME backplane — commonly a 6-slot or 12-slot chassis — populated with a combination of CPU modules, I/O interface cards, and communication modules. Before removing the failed or end-of-life unit, engineers should document the full slot map, including the position of any Series 90 VME CPU cards, analog input/output modules, and discrete I/O boards that share the same backplane.

Power budget verification is a mandatory first step. The VME-7671-421000 draws regulated voltage from the VME backplane’s P1 connector. If the existing VME power supply — often a dedicated 5 VDC / ±12 VDC unit mounted in the control cabinet — is already operating near capacity due to additional modules such as a VME-7671-421000 companion card, a serial communication module, or an Ethernet gateway card, the replacement module may trigger an overcurrent condition. Always measure actual rail voltages under load before and after the swap.

Terminal wiring and rear I/O connections via the P2 connector must be carefully mapped. In many legacy GE Fanuc VME installations, the P2 rear transition module carries field wiring for analog signals, encoder feedback, or serial communication lines. Disconnecting and reconnecting these harnesses without a verified wiring diagram is a common source of commissioning errors. If the original wiring documentation is unavailable, a point-to-point continuity check against the VME backplane pinout is strongly recommended before powering up.

Module address configuration — typically set via DIP switches or rotary hex switches on the card edge — must replicate the original unit’s address map exactly. The host controller, whether a GE Fanuc Series 90-70 PLC, a Motion Mate DSM314 motion controller, or a third-party VME master, will attempt to communicate with the replacement module at the same base address as the original. An address mismatch will result in a bus error or a failed I/O scan, which may not be immediately obvious during initial power-up.

For systems that also include a GE Fanuc IC697CMM742 communications coprocessor, an IC693MDL940 discrete output module, or an IC200ALG320 analog input module in adjacent racks or remote I/O drops, the retrofit plan must account for the communication link integrity between these devices and the VME host. Serial or Ethernet-based I/O links should be verified end-to-end after the module replacement, particularly if the VME-7671-421000 serves as a bus interface or data concentrator within the control architecture.

HMI screen validation is another critical checkpoint. Operator interface terminals — including legacy GE Fanuc Cimplicity HMI stations or third-party SCADA systems connected via OPC or serial drivers — may display alarm conditions or stale data if the replacement module’s data table layout differs from the original. A controlled test in manual mode, with the process isolated, is the safest approach to confirming that all HMI tags are reading correctly before returning the system to automatic operation.

Downtime Control During System Migration

Minimizing unplanned downtime during a VME module replacement requires a structured pre-swap preparation protocol. Before the maintenance window begins, the original PLC or controller program — including all rung logic, data table values, and motion profiles — should be uploaded and archived to a programming terminal. For GE Fanuc Series 90-70 systems, this is typically performed using Proficy Machine Edition or the legacy Logicmaster 90 software, depending on the controller generation. Having a verified program backup eliminates the risk of logic loss if the host CPU loses its program during the power cycle associated with the module swap.

Where possible, the replacement VME-7671-421000 should be bench-tested prior to installation. NINERMAS ships all units with a pre-shipment functional test report, but a site-level acceptance test — confirming that the module initializes correctly in a spare VME chassis or a test rack — provides an additional layer of confidence before the unit enters the live production environment.

During the physical swap, the VME backplane should be de-energized and the control cabinet locked out in accordance with local LOTO procedures. The replacement module should be inserted carefully into the correct slot, with all DIP switch and jumper settings pre-configured to match the original unit before insertion. After power restoration, the controller’s I/O fault log should be reviewed immediately to confirm that the new module has been recognized and that no bus errors are present.

For systems where continuous process control is required and a cold swap is not acceptable, a hot-standby or redundant VME architecture — using a secondary VME chassis with a synchronized CPU — may allow the replacement to be performed with the process running in degraded mode. This approach requires careful coordination between the control system engineer and the process operations team, but it can reduce effective downtime to the duration of a single bus switchover event rather than a full system restart.

Field commissioning after the swap should include a full I/O checkout, a communication link test for all connected modules, and a supervised automatic cycle before the system is returned to full production. Any deviations from expected behavior should be documented and investigated before sign-off.

Retrofit Support FAQ

Q1: Is the VME-7671-421000 a direct drop-in replacement for the original GE Fanuc unit?
A: Yes. The NINERMAS-supplied VME-7671-421000 is a functionally equivalent replacement for the original GE Fanuc part. All units are sourced from verified supply channels and undergo pre-shipment functional testing. Customers should confirm firmware revision compatibility with their host controller before installation, as some VME host CPUs are sensitive to firmware version mismatches.

Q2: What wiring or configuration changes are required during installation?
A: In most cases, no wiring changes are required if the replacement module is installed in the same VME slot as the original. The P1 and P2 backplane connectors carry all power and I/O signals. Customers should verify DIP switch and jumper settings on the replacement card match the original unit’s configuration before powering up. A wiring diagram review and continuity check of the P2 rear I/O harness is recommended as a precaution.

Q3: How does NINERMAS verify compatibility and functionality before shipment?
A: Every VME-7671-421000 unit shipped by NINERMAS undergoes a pre-shipment functional test in a compatible VME test chassis. A test report is included with each shipment. Units are covered by a 12-month warranty from the date of shipment. If a unit fails to initialize correctly upon installation, NINERMAS provides technical support and, where applicable, advance replacement to minimize customer downtime.

Q4: What is the typical lead time and inventory availability?
A: NINERMAS maintains in-stock inventory of the VME-7671-421000 to support both emergency breakdown orders and planned procurement programs. Standard orders ship within 1–3 business days. For customers requiring long-term supply commitments or blanket purchase orders as part of a spare parts lifecycle program, NINERMAS offers stock reservation agreements to ensure availability over multi-year maintenance horizons.
