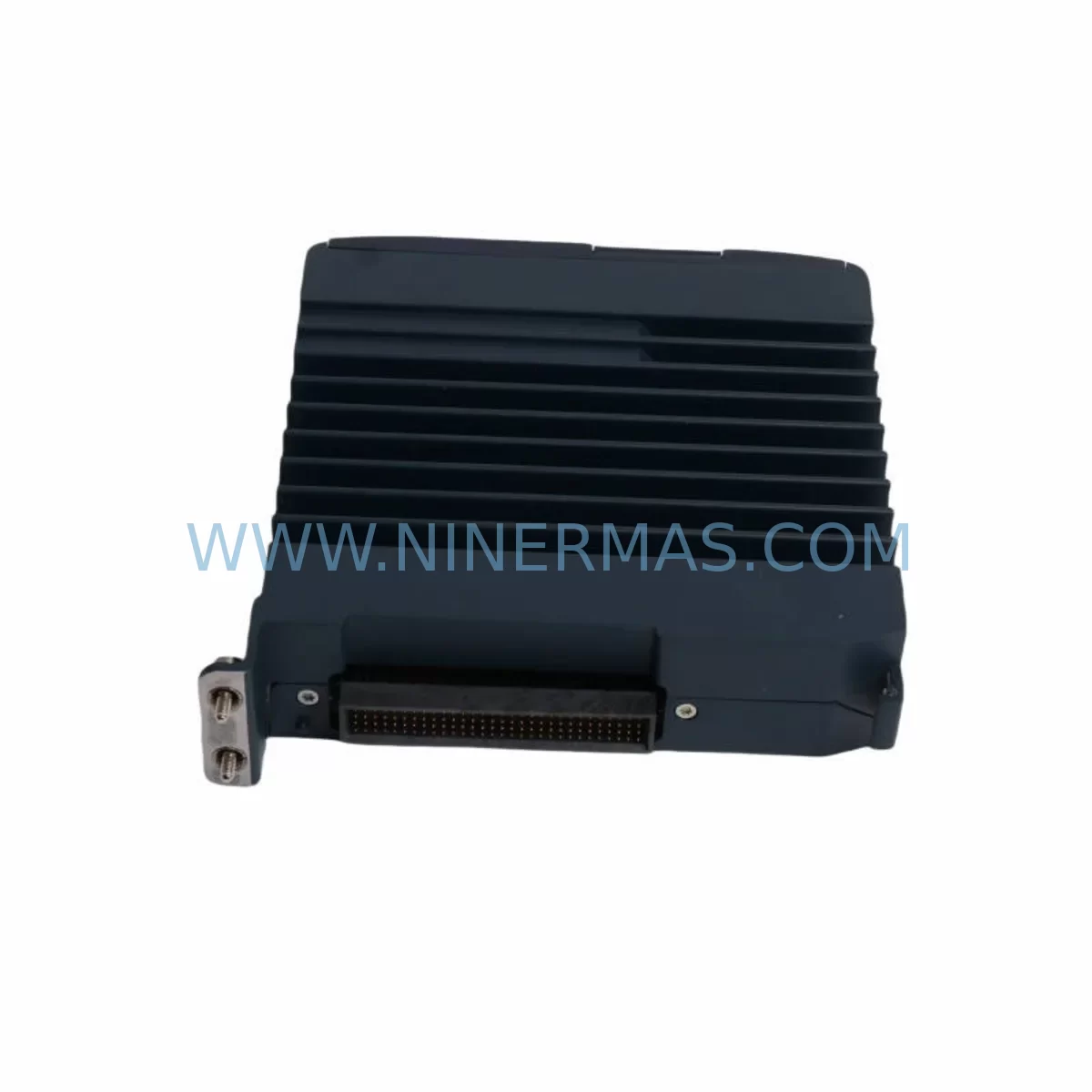

GE Fanuc IC695CPU315-BB Safety-Reliable CPU for RX3i

GE Fanuc IC695CPU315-BB Safety-Reliable CPU for RX3i Critical Control Sites

The GE Fanuc IC695CPU315-BB is a high-performance central processing unit module designed for the PACSystems RX3i platform — one of the most widely deployed programmable automation controller architectures in continuous process industries. Engineered to deliver deterministic scan-cycle execution and robust fault tolerance, this CPU module is the backbone of safety-critical control cabinets across petrochemical plants, power generation facilities, mining operations, water treatment stations, metallurgical lines, port logistics systems, and continuous manufacturing environments.

At NINERMAS, every IC695CPU315-BB unit is sourced from verified supply channels, subjected to outgoing functional inspection, and backed by a 12-month warranty — giving maintenance engineers and procurement teams the confidence to deploy or hold it as a critical spare without reservation.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In a fully integrated RX3i control cabinet, the IC695CPU315-BB does not operate in isolation — its safety and reliability are inseparable from the quality of every module sharing the same backplane and power rail. A common source of unplanned downtime is not the CPU itself, but the degradation of supporting components that feed it power, I/O signals, and communications.

On the power side, the IC695PSA040 40-watt AC power supply module provides the regulated 3.3 V and 5 V backplane rails that the CPU depends on for stable clock and memory operation. In high-vibration or voltage-fluctuation environments — such as those found near large motor drives or arc furnaces — pairing the CPU with a quality IC695PSA040 or its DC equivalent IC695PSD040 is the first line of defense against brownout-induced CPU faults and watchdog resets.

For I/O integrity, the IC695MDL654 16-point 24 VDC discrete input module and the IC695MDL752 16-point 24 VDC discrete output module are the most common companions in safety interlock circuits. These modules feature optical isolation that prevents field-side transients — generated by solenoid valves, motor contactors, or inductive loads — from propagating back into the CPU’s logic bus. When a field device generates a voltage spike, the isolation barrier in the MDL654 or MDL752 absorbs it before it can cause a spurious input read or output latch error.

Analog signal integrity is equally critical in process control. The IC695ALG600 universal analog input module supports 4–20 mA and 0–10 V signals with 16-bit resolution and per-channel open-wire detection. In a continuous chemical reactor or boiler control loop, an undetected open-wire condition on a temperature or pressure transmitter can cause the CPU to act on a stale or zero value — a scenario that the ALG600’s diagnostics are specifically designed to flag before the CPU executes a dangerous control action.

For Ethernet-based supervisory communication, the IC695ETM001 Ethernet interface module extends the CPU’s network reach to SCADA systems and historian servers without burdening the CPU’s onboard Ethernet port with high-traffic polling. In plants where the DCS or MES polls hundreds of tags per second, offloading that traffic to a dedicated ETM001 prevents communication saturation from affecting the CPU’s deterministic scan time — a subtle but real risk in time-critical interlock applications.

In installations where legacy Series 90-30 I/O racks must coexist with the RX3i system, the IC695CMM002 serial communications module provides the RS-485 / RS-232 bridge that allows the IC695CPU315-BB to supervise older remote I/O drops without requiring a full hardware migration. This is particularly valuable in brownfield petrochemical or power plant upgrades where budget constraints prevent a full rip-and-replace approach.

Finally, for installations requiring deterministic motion or high-speed counter inputs — such as turbine speed monitoring or conveyor positioning — the IC695HSC304 high-speed counter module integrates directly into the RX3i backplane and reports encoder or pulse data to the CPU with microsecond-level timestamping, eliminating the scan-cycle jitter that would otherwise introduce positioning errors or missed safety events.

Taken together, a control cabinet built around the IC695CPU315-BB and populated with properly selected RX3i I/O, power, communications, and specialty modules creates a layered defense against the most common causes of control system failure: power instability, signal noise, communication overload, and diagnostic blind spots.

Critical Industrial Safety Applications

Petrochemical & Refinery Plants: The IC695CPU315-BB is widely deployed in emergency shutdown (ESD) pre-logic and process safety interlock systems at refinery units. Its deterministic scan execution ensures that high-pressure or high-temperature trip signals are processed within a defined time window, reducing the risk of delayed protective action. In compressor anti-surge control and fired heater fuel gas management, the CPU’s memory capacity and fast I/O scan support complex ladder and function block programs that would exceed the capacity of smaller PLCs.

Power Generation & Substation Automation: In coal-fired, gas turbine, and hydroelectric generating stations, the RX3i platform with IC695CPU315-BB handles boiler combustion management, turbine auxiliary control, and balance-of-plant automation. The CPU’s EMC compliance and wide operating temperature range make it suitable for installation in outdoor switchgear buildings and substation relay rooms where temperature swings and electromagnetic interference from high-voltage switching are constant challenges.

Mining & Mineral Processing: Underground and surface mining operations subject control equipment to extreme dust, humidity, and vibration. The IC695CPU315-BB, installed in sealed IP54 or IP65 control enclosures with appropriate thermal management, controls conveyor drive sequencing, crusher interlock logic, and ventilation fan safety circuits. Its ability to handle large discrete I/O counts is essential in longwall mining systems where hundreds of hydraulic roof support sensors must be monitored simultaneously.

Water & Wastewater Treatment: Municipal and industrial water treatment facilities rely on the RX3i platform for pump station control, chemical dosing interlock, and SCADA integration. The IC695CPU315-BB’s Ethernet connectivity and support for standard communication protocols allow seamless integration with plant-wide SCADA systems, while its robust fault diagnostics reduce the risk of undetected pump failures that could compromise water quality or cause environmental incidents.

Metallurgy & Steel Mills: In electric arc furnace (EAF) and continuous casting operations, the control environment is characterized by extreme electromagnetic interference from high-current switching, intense heat radiation, and mechanical vibration from rolling mills. The IC695CPU315-BB’s IEC 61000-4 EMC compliance and vibration-rated design allow it to maintain reliable program execution in these demanding conditions, controlling electrode positioning, mold oscillation, and cooling water interlock systems.

Port Logistics & Ship-to-Shore Cranes: Container terminal automation systems use the RX3i platform to control ship-to-shore cranes, rubber-tyred gantry (RTG) cranes, and automated stacking systems. The CPU’s high I/O capacity and fast scan time support the real-time anti-sway and load monitoring algorithms that are essential for safe crane operation in wind-exposed marine environments.

Safety and Quality FAQ

Q1: What warranty does NINERMAS provide for the IC695CPU315-BB?
Every IC695CPU315-BB supplied by NINERMAS COMPANY LIMITED is covered by a 12-month warranty from the date of shipment. If the unit develops a fault attributable to manufacturing defect or latent component failure within this period, NINERMAS will provide a replacement or repair at no additional cost. This warranty applies to both new and tested-good surplus units that have passed our outgoing inspection protocol.

Q2: What outgoing inspection and testing does each unit undergo before shipment?
Each IC695CPU315-BB is subjected to a functional verification process prior to dispatch. This includes visual inspection for physical damage, connector integrity check, firmware version verification, and where applicable, a power-on self-test (POST) confirmation. Units that do not pass inspection are quarantined and not shipped. Test records are retained and can be provided upon request for critical spare applications.

Q3: Is the IC695CPU315-BB compatible with existing RX3i backplanes and I/O modules?
Yes. The IC695CPU315-BB is fully compatible with the IC695CHS012 (12-slot) and IC695CHS016 (16-slot) universal backplanes, as well as the full range of RX3i I/O, communications, and specialty modules. It is also backward-compatible with legacy Series 90-30 I/O expansion racks when used with the appropriate remote I/O scanner module. Firmware compatibility should be verified against the installed version of Proficy Machine Edition before deployment in a live system.

Q4: Can NINERMAS guarantee long-term supply and replacement support for the IC695CPU315-BB?
NINERMAS maintains dedicated inventory of GE Fanuc PACSystems RX3i components, including the IC695CPU315-BB, to support both planned maintenance programs and emergency breakdown situations. We understand that industrial control systems have operational lifespans of 15–25 years, and that OEM discontinuation of legacy modules creates critical spare parts risk. Our sourcing strategy is specifically designed to provide reliable access to these components beyond their OEM production lifecycle, ensuring that your installed base remains supportable without forced system migration.
