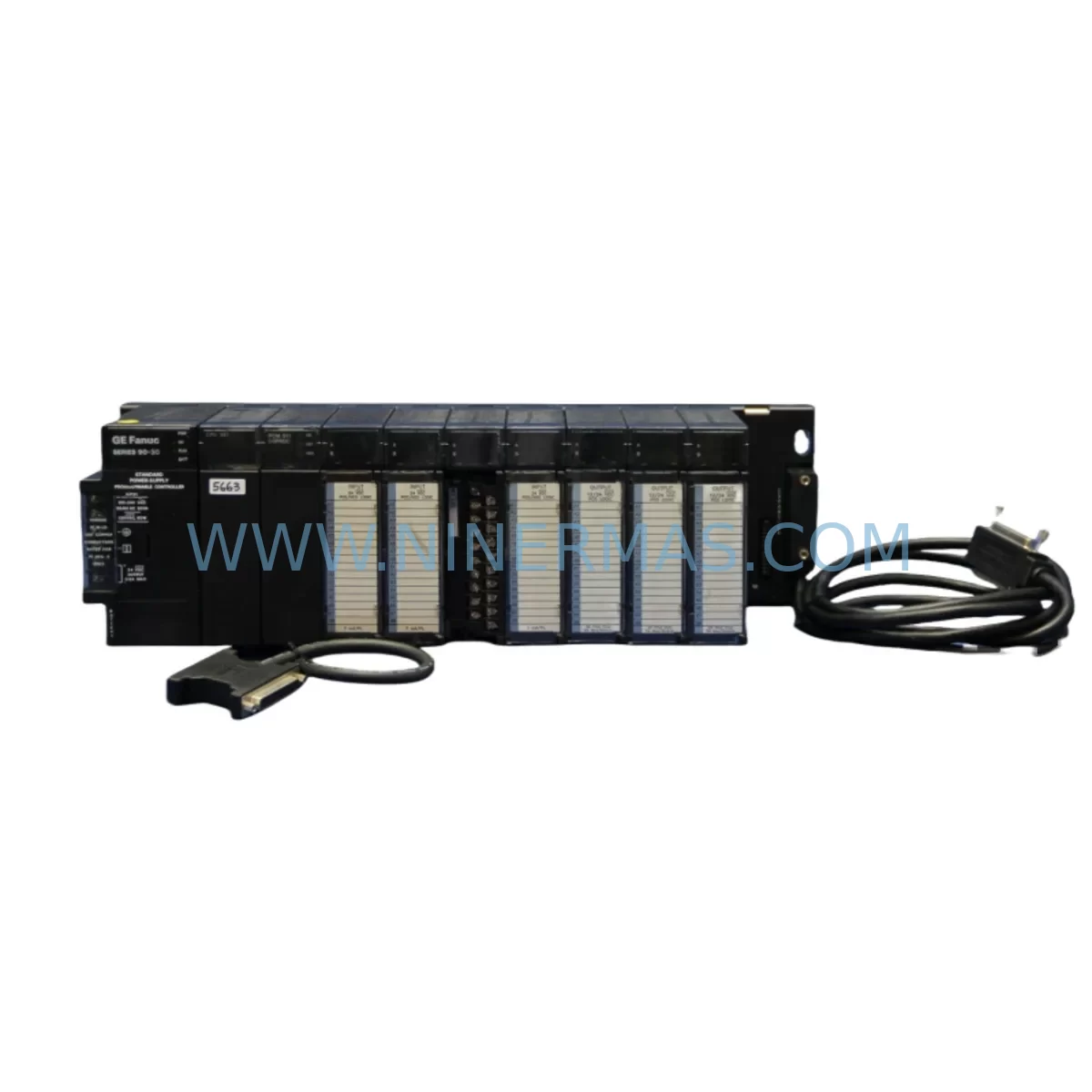

GE Fanuc IC693PWR3215 Service-Ready Industrial Spare Part

GE Fanuc IC693PWR3215 Service-Ready Industrial Spare Part: Spare Replacement and Downtime Risk Control

The GE Fanuc IC693PWR3215 is a high-reliability power supply module designed for the Series 90-30 programmable logic controller platform — one of the most widely deployed PLC families in discrete manufacturing, process control, and utility automation. As production lines age and OEM support windows close, maintaining a service-ready stock of the IC693PWR3215 becomes a critical element of any industrial maintenance strategy. This module provides regulated DC power to the Series 90-30 backplane, supporting CPU modules, I/O modules, and communication interfaces across the rack. A failed or degraded power supply is one of the most common root causes of unplanned PLC shutdowns, making the IC693PWR3215 a high-priority spare in any control cabinet inventory.

At NINERMAS, every IC693PWR3215 unit is sourced from verified industrial channels, pre-shipment tested under load conditions, and dispatched with a 12-month warranty. Our inventory is maintained for long-term supply continuity, ensuring that maintenance engineers and procurement teams can secure replacement units even as this model approaches end-of-life status from the original manufacturer.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When the IC693PWR3215 is identified as a fault point or scheduled for preventive replacement, a thorough control cabinet inspection is essential to avoid repeat failures and ensure full system restoration. Maintenance engineers should treat a power supply replacement as an opportunity to audit the entire rack and associated electrical circuit.

Begin by verifying the integrity of the AC input wiring and the upstream circuit breaker or fuse protecting the panel. A degraded IC693PWR3215 is frequently caused by sustained overvoltage, voltage sag, or harmonic distortion on the supply line — conditions that may also affect other sensitive components in the same cabinet. Inspect the terminal blocks and wiring harnesses connected to the power supply input for signs of heat stress, insulation breakdown, or loose terminations.

Within the Series 90-30 rack, the CPU module — commonly an IC693CPU364 or IC693CPU374 — should be inspected for firmware integrity and battery backup status. The IC693ACC300 battery module, which maintains CPU memory during power loss, should be tested and replaced on a scheduled cycle independent of the power supply swap. If the rack includes analog I/O, modules such as the IC693ALG220 analog input module or IC693ALG390 analog output module should be verified for calibration drift that may have occurred during the power interruption.

Discrete I/O modules — including the IC693MDL655 24VDC input module and IC693MDL740 relay output module — should be functionally tested after power restoration to confirm that field wiring and relay contacts have not been damaged by the fault event. Communication modules such as the IC693CMM321 serial communications module or IC693BEM331 Ethernet interface module should be checked for correct IP configuration and network connectivity, as these modules may require re-initialization after an unplanned power cycle.

For sites running multi-rack configurations, the IC693CHS391 baseplate and its inter-rack cabling should be inspected for continuity. Signal isolators and surge protection devices installed on field I/O circuits are also worth checking, as transient events that damage a power supply can propagate through unprotected signal lines. Maintaining a consolidated spare parts kit — including the IC693PWR3215, a spare CPU battery, at least one I/O module of each type in use, and a set of terminal block spares — is the most effective strategy for minimizing mean time to repair (MTTR) on Series 90-30 installations.

Site Replacement Workflow

Replacing the IC693PWR3215 on a live production site requires a structured approach to minimize downtime and avoid configuration loss. Before beginning, confirm that the replacement unit’s firmware revision is compatible with the installed CPU and I/O configuration. NINERMAS provides compatibility verification support upon request — share your CPU part number and rack configuration, and our technical team will confirm suitability before shipment.

Step 1 — Pre-Shutdown Preparation: Back up the PLC program and configuration using GE’s Proficy Machine Edition or equivalent programming software. Document the current I/O status and any active alarms. Notify operations of the planned shutdown window.

Step 2 — Safe Isolation: De-energize the panel using the upstream isolator. Verify zero voltage at the power supply input terminals using a calibrated multimeter. Apply lockout/tagout (LOTO) procedures per site safety policy.

Step 3 — Module Removal: Disconnect the AC input wiring from the IC693PWR3215 terminal block. Release the module retention clips and slide the unit out of slot 1. Inspect the backplane connector for damage or contamination.

Step 4 — Replacement Installation: Insert the new IC693PWR3215 into slot 1, ensuring full engagement with the backplane connector. Reconnect AC input wiring to the correct terminals, observing polarity and grounding requirements.

Step 5 — Power-Up and Verification: Re-energize the panel and observe the power supply status LEDs. Confirm that the CPU module initializes correctly and that all I/O modules report healthy status. Restore the PLC program from backup if required. Verify communication module connectivity and field device responses before returning the system to production.

This workflow is applicable to both like-for-like replacements and retrofit scenarios where an older IC693PWR321 or IC693PWR330 variant is being upgraded to the IC693PWR3215 specification. The IC693PWR3215 is backward-compatible with all standard Series 90-30 baseplates, making it a reliable drop-in solution for aging installations.

Spare Parts Support FAQ

Q1: Is the IC693PWR3215 still available as a new original part, or is it end-of-life?
GE Fanuc has transitioned many Series 90-30 components to end-of-life or limited-availability status. NINERMAS maintains a dedicated inventory of original IC693PWR3215 units sourced prior to production discontinuation. Each unit is stored under controlled conditions and tested before shipment. We support long-term supply agreements for customers requiring guaranteed availability over a 12–36 month horizon.

Q2: How is the IC693PWR3215 tested before shipment?
Every unit undergoes pre-shipment functional testing under rated load conditions, including output voltage verification, ripple measurement, and thermal stability check. Units that do not meet original GE Fanuc specifications are rejected. A test report is available upon request. All shipped units are covered by a 12-month warranty from the date of dispatch.

Q3: Can the IC693PWR3215 replace older power supply variants such as the IC693PWR321 or IC693PWR330?
Yes. The IC693PWR3215 is compatible with all standard Series 90-30 baseplates including the IC693CHS391 and IC693CHS392. It is a direct replacement for earlier power supply variants in the same series. Customers should verify input voltage requirements (120/240 VAC) match their site supply before installation. NINERMAS technical support can assist with compatibility confirmation for specific rack configurations.

Q4: What is the recommended spare parts strategy for Series 90-30 installations?
For critical production lines, we recommend maintaining a minimum of one IC693PWR3215 per installed rack, plus spares for the CPU module, at least one of each I/O module type in use, and the IC693ACC300 battery module. For sites with multiple racks, a centralized spare parts cabinet with clearly labeled, tested units reduces MTTR significantly. NINERMAS offers reserved inventory agreements to ensure your critical spares are available when needed, without requiring large upfront purchases.
