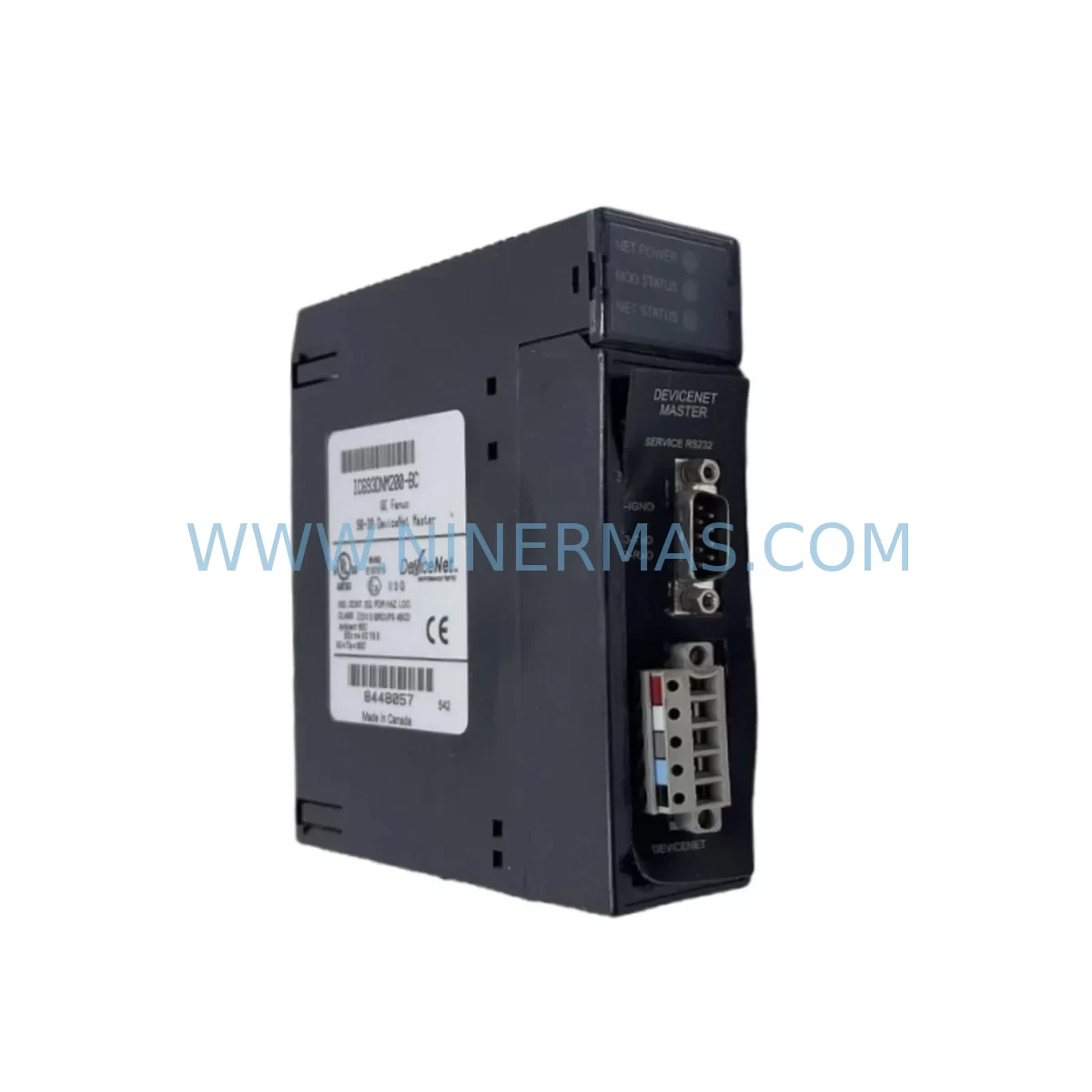

The GE Fanuc IC693DNM200-BC is a DeviceNet Master Module designed for the Series 90-30 PLC platform — one of the most widely deployed programmable logic controller families in discrete manufacturing, automotive assembly, material handling, and process automation environments. As production lines age and OEM support windows close, maintaining a reliable inventory of service-ready spare parts like the IC693DNM200-BC becomes a critical pillar of any industrial maintenance strategy. Whether you are managing a scheduled annual overhaul, responding to an unplanned line stoppage, or building a proactive spare parts buffer, sourcing a verified replacement module is the fastest path to restoring full DeviceNet network communication and resuming normal operations.

The IC693DNM200-BC functions as the DeviceNet master on the Series 90-30 backplane, coordinating cyclic and explicit messaging between the PLC CPU and field-level DeviceNet slave devices — including variable frequency drives, smart sensors, valve manifolds, and distributed I/O blocks. A failure or degradation of this module can silently disrupt the entire DeviceNet segment, causing cascading faults across multiple field devices before the root cause is isolated. Maintenance engineers familiar with GE Fanuc Series 90-30 architecture understand that the DNM200 module must be treated as a high-priority spare, particularly in facilities where DeviceNet is the primary fieldbus for machine-level control.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When a maintenance or procurement engineer schedules replacement of the IC693DNM200-BC, the scope of inspection should extend well beyond the module itself. The DeviceNet master module sits at the intersection of the PLC backplane and the field network, meaning that a single fault event often implicates several adjacent components. A thorough site assessment should include the Series 90-30 CPU module — commonly the IC693CPU364 or IC693CPU374 — to verify firmware revision compatibility with the replacement DNM200 and to confirm that the CPU’s DeviceNet configuration table is intact and correctly mapped.

The Series 90-30 power supply module, such as the IC693PWR321 or IC693PWR330, should be load-tested during the same maintenance window. An aging or undersized power supply is a frequent contributor to intermittent backplane communication errors that are misdiagnosed as module failures. Alongside the power supply, the backplane itself — whether a 5-slot IC693CHS391 or a 10-slot IC693CHS392 — should be visually inspected for corrosion, bent connector pins, or heat damage that could cause unreliable module seating.

On the DeviceNet network side, the trunk cable, drop cables, and network termination resistors (120Ω at each end of the trunk) must be verified before the replacement module is commissioned. A degraded cable or missing terminator will cause the new IC693DNM200-BC to report the same node dropout faults as the failed unit, leading to unnecessary repeat downtime. DeviceNet power tap assemblies and the 24VDC network power supply feeding the DeviceNet trunk should also be checked for correct voltage and current capacity relative to the number of connected slave nodes.

Discrete I/O modules in the same rack — such as IC693MDL645 input modules or IC693MDL740 output modules — should be functionally tested after the DNM200 is replaced and the DeviceNet network is re-established, as some slave device faults may have generated latched output states or corrupted I/O table entries in the CPU. If the control cabinet includes an IC693CMM321 or IC693CMM311 communications module for Ethernet or serial connectivity, verify that its configuration and ladder logic references remain unaffected by the maintenance event.

For facilities running GE Fanuc HMI panels — such as the QuickPanel series or legacy Cimplicity workstations — confirm that the HMI’s DeviceNet tag database and alarm configurations are consistent with the restored network topology after the IC693DNM200-BC replacement. Finally, review the cabinet’s terminal blocks, fuse holders, and surge protection devices as part of the annual inspection cycle to ensure the overall control system is protected against transient events that accelerate module wear.

Site Replacement Workflow

Replacing the IC693DNM200-BC in a live production environment requires a structured approach to minimize downtime and avoid configuration errors. Begin by exporting the existing DeviceNet network configuration from the GE Proficy Machine Edition or Logicmaster 90 programming environment, capturing the full node address map, I/O connection parameters, and explicit messaging schedules. This export serves as the restoration baseline if the replacement module requires reconfiguration.

With the Series 90-30 rack de-energized and the DeviceNet trunk isolated, remove the failed IC693DNM200-BC from its backplane slot. Inspect the slot connector for debris or damage before inserting the service-ready replacement. After seating the new module, restore power and allow the CPU to complete its initialization sequence. Use the programming software to download the saved DeviceNet configuration to the new module and verify that all expected slave nodes appear online with correct I/O sizes and connection status.

Conduct a functional test of each DeviceNet slave device — drives, sensors, valve manifolds, and distributed I/O — before releasing the line to production. Document the replacement event, including the module revision level, date of installation, and any configuration changes made during the process. This documentation supports future maintenance planning and warranty claims. The service-ready IC693DNM200-BC supplied by NINERMAS is tested before shipment and backed by a 12-month warranty, reducing procurement risk and supporting long-term spare parts supply continuity for aging Series 90-30 installations.

Spare Parts Support FAQ

Q1: Is the IC693DNM200-BC compatible with all Series 90-30 CPU revisions?
The IC693DNM200-BC is designed for the GE Fanuc Series 90-30 platform and is compatible with a wide range of CPU modules including the IC693CPU350, IC693CPU360, IC693CPU364, and IC693CPU374. Compatibility should be confirmed against the specific firmware revision of the installed CPU using GE Fanuc’s hardware compatibility matrix or by consulting with our technical team prior to ordering.

Q2: How is the module tested before shipment?
Each IC693DNM200-BC unit supplied by NINERMAS undergoes functional testing to verify backplane communication, DeviceNet master initialization, and node scanning capability before dispatch. Units are shipped with a 12-month warranty covering defects in materials and workmanship under normal operating conditions.

Q3: Can this module replace older IC693DNM200 revisions (e.g., -AA, -AB)?
The -BC revision is a later hardware release and is generally backward compatible with earlier -AA and -AB revisions in standard DeviceNet master applications. However, revision-specific firmware features or configuration tool requirements should be verified in the project’s Proficy Machine Edition or Logicmaster 90 environment before installation to ensure seamless replacement without ladder logic modifications.

Q4: What is the recommended spare parts holding strategy for Series 90-30 DeviceNet systems?
For production lines with high DeviceNet dependency, maintaining at least one IC693DNM200-BC as a cold standby spare is strongly recommended. Given the age of the Series 90-30 platform and the declining availability of new OEM stock, procurement engineers should consider securing a multi-unit buffer to cover a 3–5 year maintenance horizon. NINERMAS supports long-term supply agreements and can provide consistent sourcing for Series 90-30 spare parts including CPU modules, power supplies, I/O modules, and communications modules.
