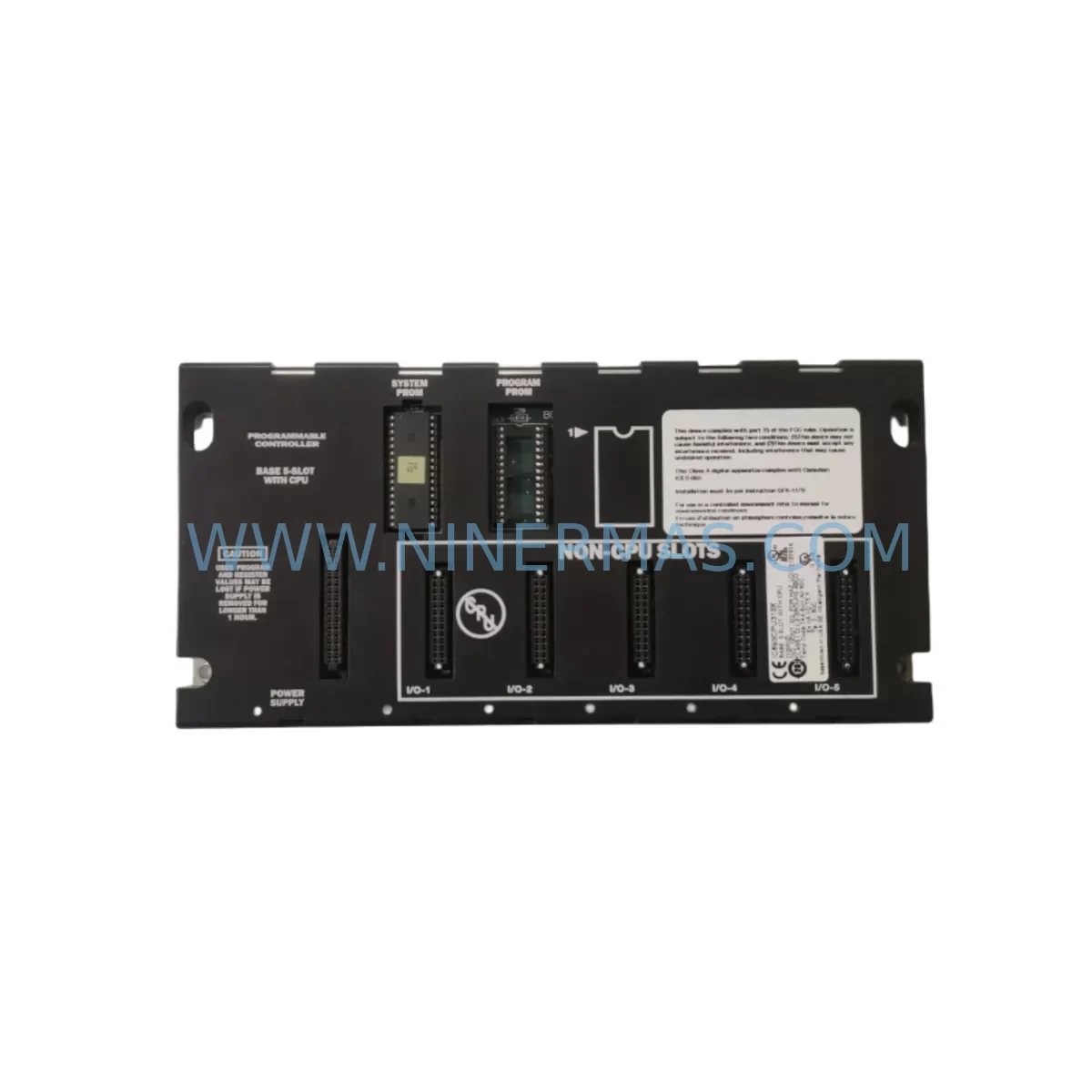

The GE Fanuc IC693CHS397M is a high-density backplane chassis module engineered for the Series 90-30 programmable logic controller platform. Designed to serve as the structural and electrical backbone of the control cabinet, this chassis provides the critical slot infrastructure that interconnects CPU modules, I/O modules, power supplies, and communications interfaces within safety-sensitive industrial environments. In continuous production facilities, petrochemical plants, power generation stations, and heavy manufacturing sites where unplanned downtime carries severe operational and safety consequences, the IC693CHS397M delivers the structural integrity and signal isolation required to maintain reliable control loop performance under demanding conditions.

Industrial control systems operating in high electromagnetic interference environments, dusty or humid process areas, high-temperature enclosures, and mechanically vibrating machinery require a chassis platform that maintains stable backplane communication without signal drift, voltage fluctuation, or intermittent connectivity. The IC693CHS397M addresses these challenges through its robust mechanical construction, gold-plated backplane bus contacts, and thermally stable housing that preserves module seating integrity across wide ambient temperature ranges. This directly reduces the risk of control interruption, spurious output activation, and communication anomalies that can compromise safety interlocks and process stability.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

Effective risk reduction in safety-critical control cabinets depends on the coordinated reliability of every component within the backplane ecosystem. The IC693CHS397M chassis forms the foundation upon which the entire Series 90-30 control architecture is built. When paired with the IC693PWR330 power supply module, the chassis receives stable, regulated DC power that protects all installed modules from voltage surges, brownouts, and transient spikes common in heavy industrial environments. The IC693PWR330 provides overcurrent protection and power-good signaling that prevents the CPU and I/O modules from operating under unsafe supply conditions.

The IC693CPU374 central processing unit, seated directly in the chassis, executes the control program and manages all I/O scanning. Its reliable operation depends on the chassis maintaining clean backplane signal integrity — any intermittent contact or ground noise on the backplane bus can cause scan cycle errors, watchdog faults, or unexpected program halts. The IC693CHS397M’s gold-contact backplane connectors minimize contact resistance and oxidation-related signal degradation over long service intervals.

Discrete field signals are managed through modules such as the IC693MDL740 24VDC discrete input module and the IC693MDL940 relay output module. These modules rely on the chassis backplane for both power distribution and data communication with the CPU. In safety interlock circuits — such as emergency stop loops, pressure relief activation, and motor protection schemes — the accuracy and speed of signal transmission across the backplane directly affects response time and system safety. The IC693CHS397M ensures that these signals are transmitted without delay or corruption.

For process control applications requiring analog measurement, the IC693ALG220 analog input module provides 4–20mA and voltage signal acquisition. Signal drift and noise pickup in analog channels are among the most common causes of false alarms and process deviations in industrial plants. The chassis’s shielded backplane architecture reduces common-mode noise coupling that can corrupt analog readings in high-EMI environments such as variable frequency drive (VFD) panels and motor control centers.

Network connectivity is maintained through the IC693CMM321 communications module, which supports serial and network protocols for SCADA integration, HMI communication, and remote diagnostics. In distributed control architectures, the IC693BEM331 bus expansion module extends the Series 90-30 rack across multiple chassis, allowing large-scale I/O configurations to be distributed across the control cabinet or remote field panels while maintaining synchronized backplane communication. The IC693ACC300 battery backup module protects the CPU’s program memory and retentive data registers during power interruptions, ensuring that the control program and process setpoints are preserved across power cycles without requiring manual reloading.

Together, these components form a tightly integrated safety and control architecture. The IC693CHS397M chassis is the physical and electrical hub that makes this integration possible, and its reliability directly determines the reliability of the entire control system.

Critical Industrial Safety Applications

The GE Fanuc IC693CHS397M is deployed across a wide range of safety-critical industrial sectors where control system reliability is non-negotiable. In petrochemical and refinery operations, the chassis supports PLC-based safety instrumented systems (SIS) that monitor pressure, temperature, and flow parameters and initiate emergency shutdowns when process variables exceed safe operating limits. The chassis must maintain continuous backplane communication even in environments with high ambient temperatures, hydrocarbon vapors, and significant electrical noise from large motor loads.

In electric power generation and substation automation, the IC693CHS397M supports protection relay coordination, transformer monitoring, and switchgear control. Power system environments expose control hardware to severe voltage transients and ground potential differences that can damage poorly shielded backplane buses. The chassis’s robust grounding architecture and EMI-hardened construction protect the installed modules from these threats.

Mining and mineral processing operations rely on the Series 90-30 platform for conveyor control, crusher automation, and ventilation management. These environments combine mechanical vibration, coal dust or mineral particulate, and high humidity — conditions that accelerate connector oxidation and mechanical loosening in lesser chassis designs. The IC693CHS397M’s robust module retention and sealed backplane contacts maintain reliable operation in these harsh conditions.

Water and wastewater treatment facilities use the Series 90-30 for pump station control, chemical dosing automation, and SCADA-integrated process monitoring. Continuous operation requirements in these facilities mean that control system failures directly impact public health and regulatory compliance. The IC693CHS397M supports long-term, maintenance-free operation that aligns with the uptime expectations of water utility operators.

In port and maritime automation, the chassis supports crane control systems, cargo handling automation, and vessel berthing management. Coastal environments introduce salt air corrosion risks that demand chassis materials and coatings capable of resisting oxidation over multi-year service intervals. The IC693CHS397M’s industrial-grade construction meets these requirements.

Safety and Quality FAQ

Q1: What warranty coverage does the IC693CHS397M carry?
Every IC693CHS397M unit supplied by NINERMAS COMPANY LIMITED is covered by a 12-month warranty from the date of shipment. This warranty covers defects in materials and workmanship under normal operating conditions. NINERMAS provides replacement or repair support for any unit that fails within the warranty period, ensuring that your control system downtime is minimized.

Q2: What pre-shipment testing is performed on the IC693CHS397M?
Each unit undergoes functional verification testing prior to shipment. This includes backplane bus continuity checks, module slot contact resistance measurement, and visual inspection for mechanical damage, corrosion, or component anomalies. Units that do not meet acceptance criteria are quarantined and not shipped. Test records are available upon request for quality-critical procurement processes.

Q3: Is the IC693CHS397M compatible with all Series 90-30 modules?
Yes. The IC693CHS397M is fully compatible with the complete GE Fanuc Series 90-30 module family, including CPU modules (IC693CPU374, IC693CPU372), discrete I/O modules (IC693MDL740, IC693MDL940), analog modules (IC693ALG220), communications modules (IC693CMM321), and power supplies (IC693PWR330). It is also compatible with bus expansion configurations using the IC693BEM331 module.

Q4: Can NINERMAS support long-term supply of the IC693CHS397M for ongoing maintenance programs?
Yes. NINERMAS maintains reserved inventory of the IC693CHS397M and other Series 90-30 components to support long-term spare parts programs for industrial facilities. We offer supply commitment agreements that guarantee stock availability over multi-year maintenance cycles, reducing the risk of lead time disruptions for critical spare parts. Contact our team to discuss reserved stock arrangements for your facility’s maintenance requirements.
