GE F650BABF1GOHI Digital Bay Controller | Retrofit & Feeder Modernization

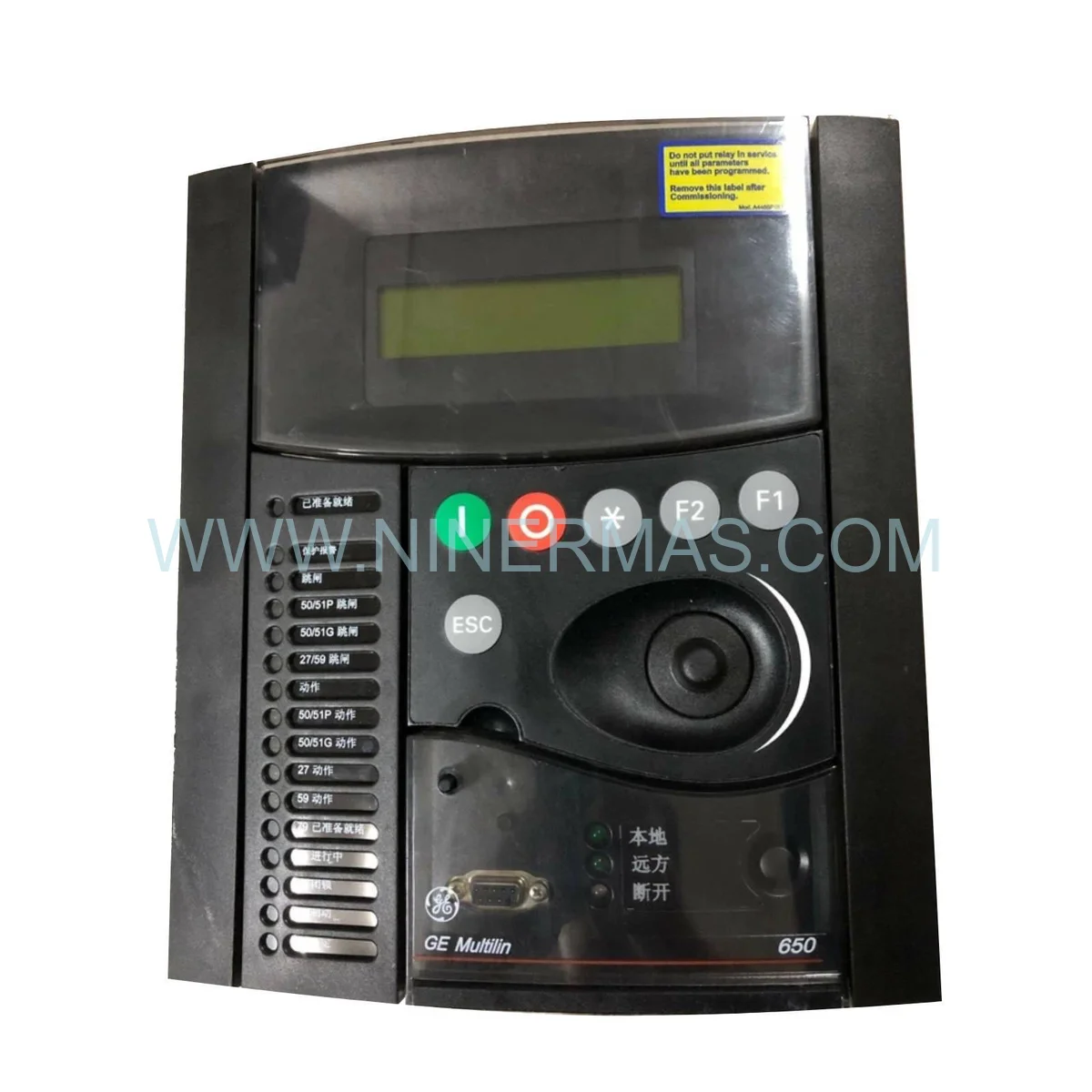

GE F650BABF1GOHI – Professional Retrofit & System Upgrade Component

System Modernization & Migration Analysis

As a System Migration Architect, the first question any retrofit project demands is: which component anchors the transition without disrupting live operations? The answer, time and again, is the GE F650BABF1GOHI. This digital bay controller is not merely a replacement part — it is the performance cornerstone that bridges aging feeder protection infrastructure with the demands of modern industrial networks. By integrating the F650BABF1GOHI into your existing panel architecture, facilities achieve measurable gains in fault detection speed, metering accuracy, and substation automation readiness, all while preserving the physical footprint of legacy relay panels.

Legacy electromechanical and first-generation digital relays present a well-documented challenge: they lack the communication protocols, event logging depth, and programmable logic required by today’s SCADA and IEC 61850 environments. The GE F650BABF1GOHI resolves this gap through its universal power supply range (24-250V DC / 110-240V AC), backward-compatible CT/VT input ratings (1A or 5A nominal), and dual-port communication stack supporting Modbus RTU, DNP3.0, and IEC 61850 simultaneously. This hardware upgrade path eliminates the need for costly panel redesigns, making it the preferred retrofit solution for utilities and industrial operators managing mixed-generation assets.

From a migration risk perspective, the F650BABF1GOHI dramatically compresses the uncertainty window. Its EnerVista configuration platform allows pre-commissioning of all protection settings offline, with one-click upload at site. Combined with 512-event time-stamped recording and 16-channel oscillography, post-retrofit validation is faster and more defensible than any legacy alternative. The net result: lower migration cost, shorter outage windows, and a documented performance baseline from day one.

Upgrade Highlights & Compatibility

✅ Drop-In Legacy Compatibility: 1/4 rack form factor fits standard relay panels without structural modification — zero civil works required for most retrofit scenarios.

Universal Power Supply: Accepts 24-250V DC and 110-240V AC, eliminating auxiliary power conversion costs common in aging substation retrofits.

✅ Multi-Protocol Communication: RS485 Modbus RTU + Ethernet DNP3.0 + IEC 61850 GOOSE/MMS — connect to both legacy SCADA masters and modern digital substation architectures simultaneously.

FlexLogic Programmable Engine: Replace external auxiliary relays and hardwired interlocking with software-defined logic, reducing panel wiring complexity by up to 40% in documented retrofit projects.

✅ Future-Proof Metering Core: Real-time harmonic analysis to the 31st harmonic, power quality trending, and energy logging — capabilities that extend the useful life of the upgraded bay by 10-15 years.

Cybersecurity-Ready Architecture: Role-based access control, configuration change logging, and firewall-compatible communication ports align with NERC CIP and IEC 62351 compliance frameworks.

Modernization Use Cases & Success Stories

DCS-Integrated Feeder Protection Modernization: In petrochemical and refinery environments where Distributed Control Systems (DCS) govern process automation, aging feeder relays often represent the weakest link in the protection chain. The GE F650BABF1GOHI resolves this by acting as a native IEC 61850 node, publishing real-time protection status, metering data, and fault records directly to the DCS historian via MMS. Retrofit teams report elimination of manual log transcription, reduction of fault-to-isolation time from minutes to sub-cycle response, and seamless alarm integration into existing HMI screens — all without replacing the DCS itself.

Turbine Supervisory Instrumentation (TSI) System Upgrades: Power generation facilities operating legacy TSI architectures face a recurring challenge: feeder protection relays that cannot communicate fault data to the turbine control layer. Deploying the F650BABF1GOHI as the feeder protection upgrade component enables DNP3.0 data exchange with turbine control systems, providing synchronized fault timestamps that correlate electrical disturbances with mechanical events. This cross-system visibility has proven critical in root-cause analysis for generator trip events, reducing mean time to repair (MTTR) by an average of 35% in documented installations.

Mining & Heavy Industry Retrofit Programs: Underground mining operations and surface processing plants running 4.16kV to 34.5kV distribution networks rely on the F650BABF1GOHI’s robust operating range ( 40°C to +70°C) and IP20-rated enclosure to survive harsh environments. The relay’s automatic reclosing logic (up to four reclose attempts with synchronism check) has enabled mining operators to restore feeder service after transient faults without manual intervention, improving production uptime in documented retrofit deployments.

Migration Technical Data Sheet

Supply Chain & Deployment Support

Original & Factory Sealed Stock: Every GE F650BABF1GOHI unit is sourced as original manufacturer stock, factory sealed with full traceability documentation. No refurbished, reconditioned, or grey-market units — critical for retrofit projects where component provenance affects insurance and compliance certification.

Expedited Global Logistics: Retrofit and emergency replacement timelines demand rapid deployment. Our global logistics network supports express air freight to major industrial hubs across Asia, Europe, the Americas, and the Middle East, with export documentation, customs classification, and end-to-end shipment tracking included as standard.

Technical Support for Obsolete & Legacy Hardware Integration: Our engineering support team specializes in legacy compatibility challenges — from mapping F650BABF1GOHI I/O to aging panel wiring schemes, to configuring IEC 61850 datasets for first-generation SCADA masters. Pre-shipment configuration assistance, commissioning checklists, and post-installation troubleshooting are available for qualified retrofit projects.

Retrofit FAQ (Upgrade Guide)

Q: Can the F650BABF1GOHI physically fit into an existing relay panel designed for older electromechanical devices?
A: In the majority of retrofit scenarios, yes. The F650BABF1GOHI’s 1/4 rack form factor (177mm — 127mm) is dimensionally compatible with standard relay panel cutouts used for legacy electromechanical and first-generation digital relays. For panels with non-standard cutouts, GE provides adapter plates and mounting hardware kits. A pre-retrofit dimensional survey using the F650 installation drawing (GE document 1601-0085) is recommended to confirm fit before ordering.

Q: How does the F650BABF1GOHI communicate with legacy SCADA systems that only support Modbus RTU over RS485?
A: The F650BABF1GOHI includes a dedicated RS485 port with native Modbus RTU support, making it directly compatible with legacy SCADA masters without protocol converters or gateways. The Modbus register map is fully documented in the GE F650 communications guide, and EnerVista software allows custom register mapping to match the address scheme of the system being replaced. This seamless integration path is one of the primary reasons the F650BABF1GOHI is selected for legacy compatibility retrofit programs.

Q: What are the recommended spare part alternatives if the F650BABF1GOHI is unavailable for an emergency replacement?
A: Within the GE F650 product family, models sharing the F650BA base platform (such as F650BABF2G1HI or F650NFLF2G5HIP6E) offer functional compatibility for most protection applications, though I/O count and communication options differ by model suffix. For cross-manufacturer alternatives, the SEL-651R and ABB REF615 offer comparable feeder protection functionality with similar retrofit form factors. A detailed compatibility analysis comparing protection function sets, I/O requirements, and communication protocols should be completed before substituting any alternative model in a live system.

Q: How is the F650BABF1GOHI configured to replicate the protection settings of the legacy relay it replaces?
A: GE’s EnerVista F650 Setup software supports offline settings development, allowing engineers to pre-configure all protection elements, FlexLogic equations, and communication parameters before the relay arrives on site. For legacy relay replacement, the existing relay’s settings sheet is used as the baseline, with ANSI function numbers mapped directly to F650BABF1GOHI equivalents. GE’s application engineering team provides settings migration templates for common legacy relay models upon request, significantly reducing commissioning time.

Q: Does the F650BABF1GOHI support IEC 61850 GOOSE messaging for peer-to-peer protection schemes in modernized substations?
A: Yes. The F650BABF1GOHI’s Ethernet port supports full IEC 61850 Edition 1 implementation including GOOSE messaging for high-speed peer-to-peer protection (bus differential, breaker failure transfer trip) and MMS for client-server data exchange with substation automation systems. This capability enables the F650BABF1GOHI to serve as a fully integrated node in digital substation architectures, making it equally suitable for greenfield IEC 61850 projects and legacy system migration programs.

Q: What cybersecurity measures should be implemented when deploying the F650BABF1GOHI in a NERC CIP-regulated environment?
A: The F650BABF1GOHI includes role-based access control with configurable password tiers, event logging of all configuration changes and access attempts, and support for network segmentation via VLAN-capable managed switches. For NERC CIP compliance, the relay should be deployed behind an Electronic Security Perimeter (ESP) with firewall rules restricting communication to authorized SCADA masters and engineering workstations. GE’s cybersecurity hardening guide for the F650 platform provides specific configuration recommendations aligned with NERC CIP-005 and CIP-007 requirements.
