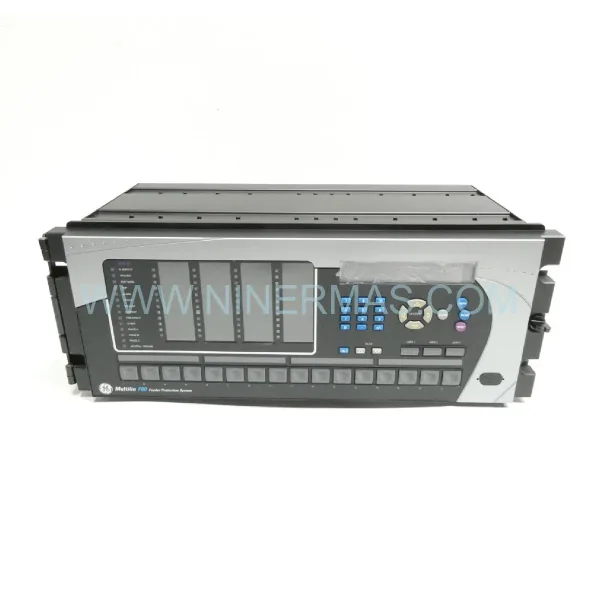

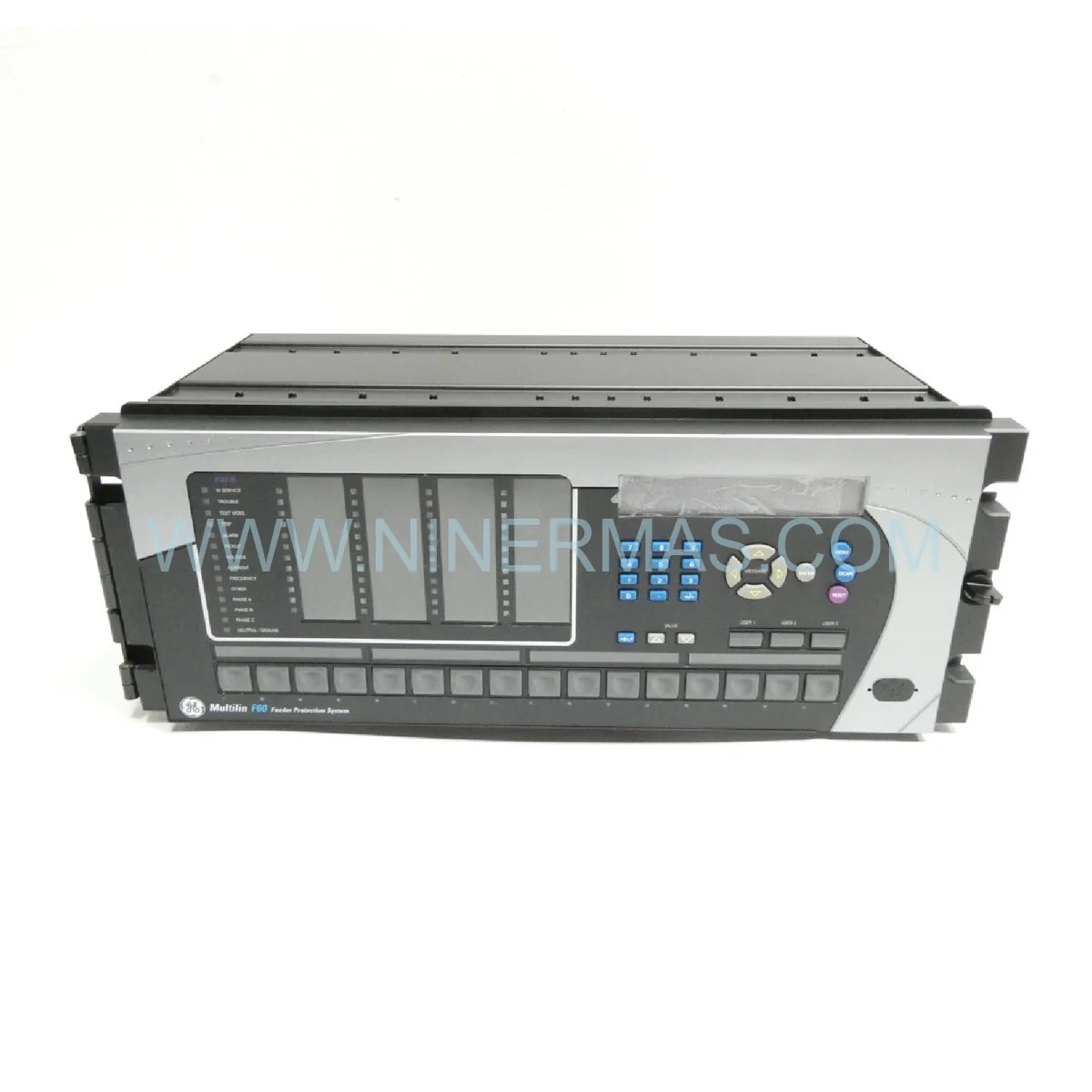

GE F60 Feeder Protection Relay | Multilin UR Series IED

GE F60 Feeder Protection Relay – Lifecycle Excellence & Technical Performance

Operational Integrity & System Analysis

From the perspective of an Industrial Compliance Consultant, the GE F60 represents a cornerstone component in maintaining the operational integrity of modern distribution protection architectures. The GE F60 is engineered to fulfill the most demanding feeder protection mandates across utility substations, heavy industrial facilities, and critical infrastructure environments. Its role extends beyond simple fault detection — it serves as a certified, original-equipment guardian of system continuity, ensuring that every protection decision is executed with precision, traceability, and full adherence to international safety standards. The deployment of this relay directly supports Safety Integrity Level (SIL) compliance frameworks, reducing the probability of dangerous failure modes in high-consequence electrical systems.

Within the Industrial 4.0 paradigm, the GE F60 demonstrates exceptional long-term compatibility with digital substation architectures. Its native support for IEC 61850 Edition 2, DNP3 Secure Authentication, and Modbus TCP/RTU ensures seamless integration into both legacy SCADA environments and next-generation substation automation platforms. This multi-protocol interoperability is a critical asset for lifecycle asset managers tasked with extending the operational horizon of protection infrastructure without costly full-system replacements. The relay’s firmware architecture supports field-upgradeable logic, enabling compliance with evolving grid codes and regulatory mandates throughout its operational lifespan.

As a factory-sealed, certified original component sourced through verified supply chains, the GE F60 delivers the highest assurance of authenticity and performance consistency. Original Documentation — including factory test reports, calibration certificates, and conformance declarations — accompanies each unit, providing the evidentiary foundation required for regulatory audits, insurance assessments, and asset lifecycle records. This commitment to certified provenance is non-negotiable in environments where system safety and Asset Optimization are paramount.

Compliance & Safety Benchmarks

✅ IEC 60255 Compliance: Fully certified to IEC 60255 series standards governing measuring relays and protection equipment, ensuring consistent performance under all specified operating conditions.

✅ IEEE C37.90 & ANSI Certification: Meets IEEE C37.90 relay standards for electrical endurance, surge withstand capability, and dielectric strength — mandatory benchmarks for utility-grade protection devices.

IEC 61850 Edition 2 Conformance: Independently tested and certified for IEC 61850 interoperability, supporting GOOSE messaging, MMS client/server, and Sampled Values for fully digital substation integration.

✅ DNP3 Secure Authentication (SAv5): Implements NERC CIP-aligned cybersecurity protocols, including role-based access control, encrypted communications, and digitally signed firmware — essential for critical infrastructure protection.

EMC & Environmental Durability: Rated for operation from -40°C to +70°C with full EMC compliance, ensuring Standard Adherence in harsh industrial environments including high-vibration, high-humidity, and chemically aggressive atmospheres.

✅ Self-Monitoring Diagnostics: Continuous internal self-test routines verify measurement accuracy, contact integrity, and circuit health — a fundamental requirement for Safety Integrity in mission-critical protection applications.

Vertical Industry Integration & Optimization

Semiconductor & Electronics Manufacturing: Precision power quality is non-negotiable in semiconductor fabrication. The GE F60’s advanced harmonic metering and power quality monitoring capabilities enable proactive identification of voltage disturbances that could compromise yield rates or damage sensitive process equipment. Its fast fault clearance times minimize exposure of cleanroom electrical systems to fault-induced transients, directly supporting process continuity and Asset Optimization.

Pharmaceutical & Life Sciences: GMP-regulated manufacturing environments demand uninterrupted power delivery and comprehensive audit trails. The F60’s 1-millisecond resolution event recording and oscillography capabilities provide the forensic-grade data required for regulatory compliance documentation. Its integration with building management systems via Modbus TCP ensures that power quality events are automatically logged and correlated with production batch records.

Chemical & Petrochemical Processing: In hazardous area applications, the F60’s directional overcurrent elements (ANSI 67/67N) enable selective fault isolation in complex looped distribution networks, preventing cascading failures that could trigger process upsets or safety system activations. Its thermal overload (49) and negative sequence (46) protection functions safeguard critical motor-driven process equipment against abnormal operating conditions.

Utility & Power Generation: The F60’s synchrocheck (25) and frequency (81) protection functions are essential for safe paralleling of distributed generation assets, including renewable energy sources. Its IEC 61850 GOOSE messaging enables high-speed protection coordination across digital substations, reducing fault clearance times and improving overall System Performance metrics for grid operators.

Mining & Heavy Industry: Extreme environmental conditions and high-impedance fault scenarios in mining applications demand robust protection solutions. The F60’s adaptive overcurrent algorithms and CT saturation compensation maintain protection accuracy even under the most challenging fault conditions, ensuring personnel safety and equipment protection in environments where Compliance Standards are strictly enforced by regulatory authorities.

Comprehensive Engineering Specifications

Fulfillment Strategy & Technical Support

Factory Sealed Condition: Every GE F60 unit is supplied in its original factory-sealed packaging, complete with Original Documentation including factory acceptance test reports, calibration certificates, and conformance declarations. This ensures full traceability from manufacturer to end-user, a critical requirement for regulated industries and lifecycle asset management programs.

Rapid Global Logistics: Our established logistics network supports expedited international shipping to all major industrial regions. Priority fulfillment options are available for emergency replacement scenarios, minimizing system downtime and supporting operational continuity objectives. All shipments include full export documentation and customs compliance support.

12-Month Quality Guarantee for Legacy Systems: Each GE F60 is backed by a comprehensive 12-Month Quality Guarantee covering manufacturing defects, component failures, and performance deviations from published specifications. This extended warranty commitment reflects our confidence in the authenticity and quality of every unit we supply, and provides the long-term assurance required for critical infrastructure asset management.

Technical Support & Application Engineering: Our team of certified protection engineers provides pre-sales application consultation, commissioning support, and post-installation technical assistance. We offer relay setting calculation services, coordination studies, and EnerVista software configuration support to ensure optimal System Performance from day one of deployment.

Expert Technical FAQ

Q: How does the GE F60 comply with IEC 61850 Edition 2 for substation automation integration?
A: The GE F60 has undergone independent conformance testing to IEC 61850 Edition 2, validating its GOOSE messaging, MMS client/server functionality, and time synchronization via SNTP and IRIG-B. This certification ensures interoperability with multi-vendor substation automation systems and supports the digital substation architectures mandated by modern grid modernization programs. The relay’s SCL (Substation Configuration Language) files are available for seamless integration into IEC 61850 engineering tools.

Q: What firmware version and certification status should be verified before installation in a regulated environment?
A: Prior to installation in utility or regulated industrial environments, the firmware version should be verified against the manufacturer’s current release notes and any applicable grid code requirements. Each GE F60 unit supplied by us includes documentation of the installed firmware version and associated certification status. We recommend consulting the GE Multilin firmware compatibility matrix to ensure alignment with your substation automation system’s IEC 61850 implementation and any NERC CIP cybersecurity compliance requirements.

Q: What are the environmental adaptability limits of the GE F60 for harsh industrial deployments?
A: The GE F60 is rated for continuous operation across a temperature range of -40°C to +70°C, with full EMC compliance to IEC 60255-26. It withstands high-humidity environments (up to 95% non-condensing), mechanical vibration per IEC 60255-21, and electrical fast transients per IEC 61000-4-4. These environmental ratings make it suitable for outdoor switchgear enclosures, underground substations, and industrial facilities with aggressive chemical atmospheres, provided appropriate enclosure protection is applied.

Q: How does the GE F60 support installation compliance verification during commissioning?
A: The F60 incorporates a comprehensive simulation mode that allows complete functional testing of all protection elements, I/O circuits, and communication interfaces without energizing primary equipment. This feature is essential for commissioning compliance verification, enabling engineers to validate relay settings, logic equations, and communication configurations against the approved protection design documentation before live system energization. All test results can be logged and exported for inclusion in commissioning records.

Q: What cybersecurity measures does the GE F60 implement to meet NERC CIP requirements?
A: The GE F60 implements a multi-layered cybersecurity architecture including role-based access control with configurable password policies, encrypted communications via TLS/SSL, DNP3 Secure Authentication version 5 (SAv5), comprehensive audit logging of all user actions and configuration changes, and digitally signed firmware to prevent unauthorized modifications. These measures align with NERC CIP-007 (System Security Management) and CIP-010 (Configuration Change Management) requirements for Electronic Security Perimeter protection.

Q: Can the GE F60 be integrated into an existing legacy SCADA system while migrating toward IEC 61850?
A: Yes. The GE F60’s simultaneous multi-protocol support — including Modbus RTU/TCP, DNP3, IEC 60870-5-103, and IEC 61850 — enables a phased migration strategy. The relay can communicate with legacy SCADA systems via Modbus or DNP3 while simultaneously participating in an IEC 61850 substation automation network. This dual-protocol capability protects existing SCADA investments while enabling progressive adoption of digital substation standards, a key consideration in long-term Lifecycle Management planning.
