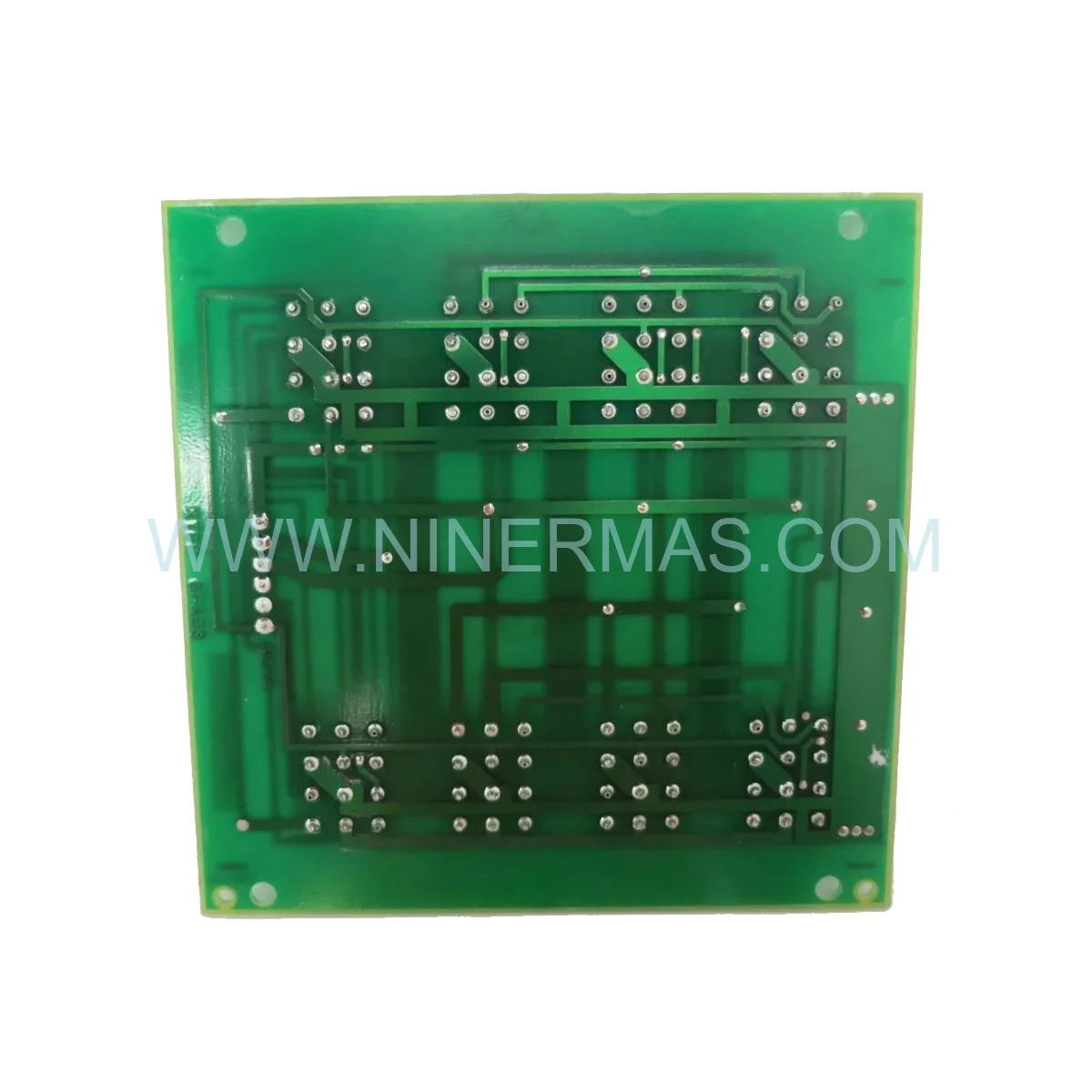

GE DS3800XTFP1E1C Thyristor Fan-Out Board (Mark IV) – New & Original

GE DS3800XTFP1E1C Thyristor Fan-Out Board | Reliable Automation Component

Field Application & Operational Analysis

From the perspective of a Site Reliability Engineer managing mission-critical turbine infrastructure, the GE DS3800XTFP1E1C represents a cornerstone of system availability in Mark IV Speedtronic control architectures. This thyristor fan-out board governs the precise distribution of gate-trigger signals across multiple thyristor firing circuits, directly influencing the uptime and operational excellence of gas and steam turbine installations. When a single control signal path degrades, the cascading effect on turbine output can be immediate and costly — the DS3800XTFP1E1C is engineered to eliminate that risk.

Deployed in environments where ambient temperatures fluctuate between -40°C and +85°C, the GE DS3800XTFP1E1C maintains signal fidelity under thermal stress, vibration, and electromagnetic interference typical of heavy industrial facilities. During installation, technicians should verify proper seating of edge connectors, confirm conformal coating integrity on all PCB surfaces, and validate gate-signal continuity using a calibrated oscilloscope before energizing the control panel. Torque specifications for mounting hardware must adhere to GE Mark IV field service guidelines to prevent micro-fractures in solder joints.

As legacy Mark IV systems approach end-of-production status, maintaining a qualified spare inventory of the DS3800XTFP1E1C is no longer optional — it is a strategic imperative. Unplanned downtime in power generation or petrochemical processing can exceed $50,000 per hour. Stocking this board as a certified spare eliminates lead-time risk and ensures your maintenance team can execute a swap within a single shift window.

Key Operational Features

Multi-Channel Signal Distribution — Fans out thyristor gate-trigger signals across parallel firing circuits for high-availability redundancy.
Seamless Integration with GE Mark IV Speedtronic control racks — zero hardware modification required for drop-in replacement.
Industrial-Grade Conformal Coating — Protects against moisture, dust, and corrosive atmospheres in process optimization environments.
Wide Operating Voltage Range (24-48 VDC) — Compatible with diverse power supply configurations across system integration projects.
Precision Gate Timing — Maintains microsecond-level firing accuracy critical for I/O modules and thyristor bridge synchronization.
Compact PCB Form Factor — Standard rack-mount dimensions ensure compatibility with existing Mark IV enclosure layouts.

Maintenance & Performance Benchmarks

The DS3800XTFP1E1C is designed to serve as a reliable node within both small-scale cogeneration units and large combined-cycle power plants. In distributed control architectures, this board interfaces directly with the Mark IV processor module, receiving firing-angle commands and translating them into synchronized gate pulses across all connected thyristor stacks. This process optimization capability ensures that load-sharing between parallel thyristor bridges remains balanced, reducing thermal stress on individual devices and extending overall system service life.

For facilities operating multiple turbine strings, the board’s multi-channel fan-out architecture supports centralized control without sacrificing per-channel signal integrity. Maintenance intervals should include periodic inspection of gate-signal waveforms under full-load conditions, verification of isolation resistance between channels, and functional testing of the board’s built-in diagnostic indicators. Integrating this board into a predictive maintenance schedule — rather than a reactive replacement strategy — is the hallmark of operational excellence in mission-critical automation environments.

Comprehensive Data Sheet

Professional Logistics & Sourcing Excellence

Every GE DS3800XTFP1E1C unit shipped by our team is sourced directly from authorized distribution channels and arrives in original factory packaging with full traceability documentation. For in-stock units, same-day dispatch is available on orders confirmed before the daily cut-off time, ensuring your maintenance team receives the component before the next planned maintenance window.

We maintain a dedicated global supply pipeline for end-of-life (EOL) and legacy automation components, including the full GE Mark IV Speedtronic board family. Whether your facility is located in North America, Europe, the Middle East, or Southeast Asia, our worldwide express logistics network delivers to your site with full customs documentation and export compliance. For time-sensitive plant shutdowns, contact our sourcing desk directly for priority allocation from reserve inventory.

Engineering Support & FAQ

Q: What are the installation steps for replacing a DS3800XTFP1E1C in a live Mark IV system?
A: De-energize the affected control panel section and follow GE Mark IV lockout/tagout procedures. Remove the faulty board by releasing the ejector levers, inspect the backplane connector for bent pins, seat the new DS3800XTFP1E1C firmly until the ejectors click, then restore power and verify gate-signal waveforms on all output channels before returning the turbine to service.

Q: Which firmware versions are compatible with the DS3800XTFP1E1C?
A: This board operates at the hardware signal-distribution level and does not carry onboard firmware. Compatibility is determined by the Mark IV processor module firmware version. Consult your GE Mark IV system documentation or contact our engineering team for version-specific guidance.

Q: How does the warranty claim process work?
A: All units carry a 12-month warranty from the date of shipment. To initiate a claim, contact our support team with your order number and a description of the observed fault. We will issue a Return Merchandise Authorization (RMA) within 24 hours and provide a replacement or repair at no additional cost for confirmed manufacturing defects.

Q: Can the DS3800XTFP1E1C be used in Mark V or Mark VI systems?
A: This board is specifically qualified for Mark IV Speedtronic architectures. Mark V and Mark VI systems use different backplane interfaces and signal protocols. Our engineering team can recommend the correct board for your specific system generation.

Q: Is incoming inspection testing available before shipment?
A: Yes. Upon request, we can perform functional bench testing of the DS3800XTFP1E1C prior to dispatch, including gate-signal output verification and isolation resistance measurement. A test report can be provided with the shipment documentation.

Q: What is the typical lead time for out-of-stock units?
A: For units not immediately available in our primary warehouse, our global sourcing network typically locates and ships verified stock within 3-7 business days. Expedited sourcing for critical plant shutdowns is available — contact our team directly for priority handling.
