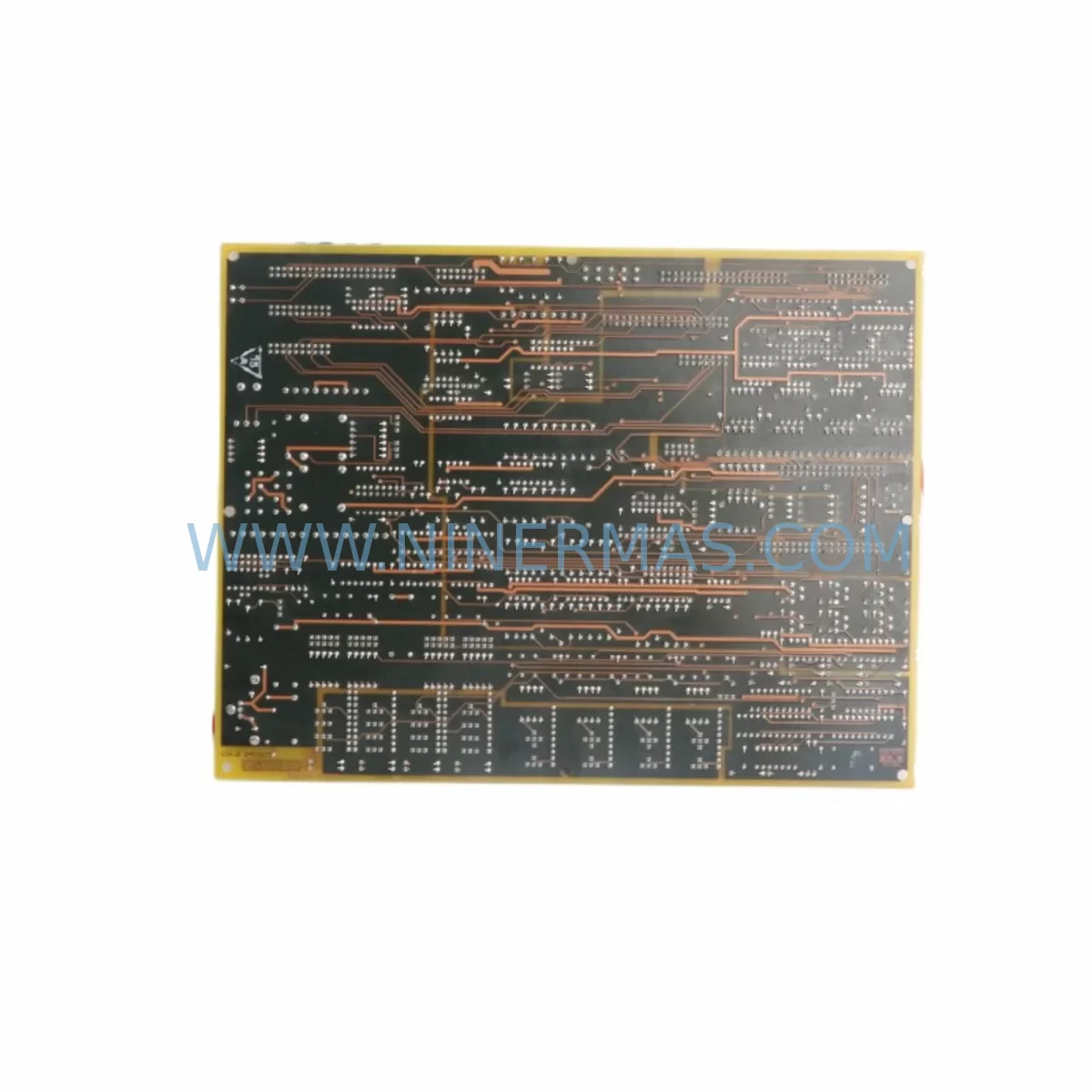

GE DS200TCOBG1AEB Safety-Reliable Turbine Control Board

GE DS200TCOBG1AEB Safety-Reliable Turbine Control Board for Critical Control Sites

The GE DS200TCOBG1AEB is a high-integrity turbine control output board engineered for the GE Mark V Turbine Control System — one of the most widely deployed safety-critical control platforms in power generation, petrochemical processing, and heavy industrial operations. Designed to operate continuously in demanding field environments, the DS200TCOBG1AEB delivers the output signal reliability and control loop stability that mission-critical turbine applications demand.

At NINERMAS, every DS200TCOBG1AEB unit is sourced from verified supply channels, subjected to pre-shipment functional testing, and backed by a 12-month warranty. Whether you are managing a planned maintenance window or responding to an unplanned control system fault, our in-stock availability ensures minimal lead time and rapid dispatch to your site.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In a GE Mark V turbine control cabinet, the DS200TCOBG1AEB does not operate in isolation — it is part of a tightly integrated safety and control architecture where every board’s reliability directly affects the integrity of the entire turbine protection loop. A failure in the output board can cascade into missed trip signals, actuator non-response, or uncontrolled speed excursions. This is why selecting a verified, tested replacement is non-negotiable for critical sites.

The DS200TCOBG1AEB works in close coordination with the DS200TCQBG1AEB (Turbine Control Q Board), which handles sequencing and logic arbitration, and the DS200SDCIG2AEB (Signal Distribution and Control Interface Board), which routes I/O signals between the control processor and field devices. Together, these boards form the backbone of the Mark V’s output and interlock management layer.

Power integrity is equally critical. The DS200PCCAG1AEB (Power Conditioning and Control Board) and the DS200DCFBG1AEB (DC Feedback Board) regulate and monitor the DC bus that feeds the output boards. Voltage sags, surges, or ripple on this bus can induce signal drift or spurious output transitions — conditions that the DS200TCOBG1AEB is designed to tolerate, but which are best mitigated by maintaining healthy upstream power boards.

For communication integrity within the Mark V rack, the DS200SLCCG3AEB (Serial Link Communication Card) and the DS200EXPSG1AEB (Expansion Signal Board) ensure that control commands and feedback signals traverse the system without corruption. In high-EMI environments — common in gas turbine enclosures near high-voltage switchgear — these communication boards must be in good condition to prevent command loss or delayed response that could compromise the turbine’s safety state.

Field-side protection is further reinforced by surge suppression modules and shielded cable assemblies on the actuator and relay output terminals. When replacing the DS200TCOBG1AEB, it is good practice to simultaneously inspect the DS200TCEAG1AEB (Turbine Control Expansion Board) and the DS200TCDAG1AEB (Turbine Control Diagnostic Board) for signs of thermal stress, connector oxidation, or firmware version mismatches that could affect coordinated output behavior.

NINERMAS maintains stock of the full DS200 series Mark V board family, enabling customers to source multiple components in a single procurement event — reducing downtime, simplifying logistics, and ensuring cross-board firmware and hardware revision compatibility.

Critical Industrial Safety Applications

The GE DS200TCOBG1AEB is deployed across a broad spectrum of safety-critical industrial environments where turbine-driven machinery forms the core of continuous production or utility infrastructure.

Power Generation: In combined-cycle and simple-cycle gas turbine power plants, the DS200TCOBG1AEB governs the output signals that control fuel valve actuators, inlet guide vanes, and generator load management relays. A fault in this board during peak generation can trigger an unplanned unit trip, with significant grid stability and revenue consequences. Planned spare holding of the DS200TCOBG1AEB is standard practice for plant reliability engineers managing aging Mark V fleets.

Petrochemical and Refinery Operations: In refinery compressor trains and process gas turbines, the DS200TCOBG1AEB interfaces with anti-surge control systems and emergency shutdown (ESD) actuators. Its output signal integrity is directly linked to the plant’s ability to execute a safe, controlled shutdown in response to process upsets — a requirement mandated by IEC 61511 functional safety standards for SIL-rated loops.

LNG and Offshore Platforms: Offshore gas compression and LNG liquefaction trains operate in environments with extreme humidity, salt-laden air, and persistent vibration. The conformal-coated DS200TCOBG1AEB is well-suited to these conditions, maintaining output signal stability even when ambient conditions degrade connector integrity on lesser-quality replacement boards.

Mining and Mineral Processing: Large-scale mining operations rely on turbine-driven compressors and pumps for ventilation, slurry transport, and ore processing. The DS200TCOBG1AEB supports the control output layer that governs these assets, where an unplanned stop can halt an entire production circuit and trigger safety evacuation procedures.

Water and Wastewater Treatment: Municipal and industrial water treatment facilities using turbine-driven high-pressure pumps depend on reliable control output boards to maintain flow rates, pressure setpoints, and chemical dosing sequences. The DS200TCOBG1AEB’s stable output performance supports uninterrupted operation of these critical utility assets.

Steel and Metallurgical Plants: In electric arc furnace (EAF) and blast furnace operations, turbine-driven blowers and compressors are controlled via Mark V systems. The DS200TCOBG1AEB’s resistance to high electromagnetic interference — generated by large induction furnaces and high-current bus systems — makes it a reliable choice for these electrically hostile environments.

Safety and Quality FAQ

Q1: What warranty coverage does NINERMAS provide for the DS200TCOBG1AEB?
Every DS200TCOBG1AEB supplied by NINERMAS is covered by a 12-month warranty from the date of shipment. This covers functional failures under normal operating conditions. Our technical team provides post-sale support to assist with installation verification and fault diagnosis if issues arise during the warranty period.

Q2: Is the DS200TCOBG1AEB tested before shipment?
Yes. Each unit undergoes pre-shipment functional testing to verify output channel integrity, signal response, and board communication before dispatch. Test records are available upon request for quality-critical procurement processes.

Q3: Is this board compatible with all Mark V turbine control system configurations?
The DS200TCOBG1AEB is designed for the GE Mark V Turbine Control System. Compatibility depends on your specific Mark V panel configuration (TMR, Simplex, or DMPX) and firmware revision. NINERMAS recommends confirming your panel serial number and existing board revision before ordering. Our technical team can assist with compatibility verification at no charge.

Q4: Can NINERMAS support long-term spare parts supply for aging Mark V systems?
Yes. NINERMAS specializes in long-term spare parts programs for legacy GE Mark V and Mark VI control systems. We maintain standing inventory of the DS200 board series and can establish scheduled supply agreements to support your plant’s multi-year maintenance plan — ensuring you are never caught without a critical spare when a board failure occurs.
