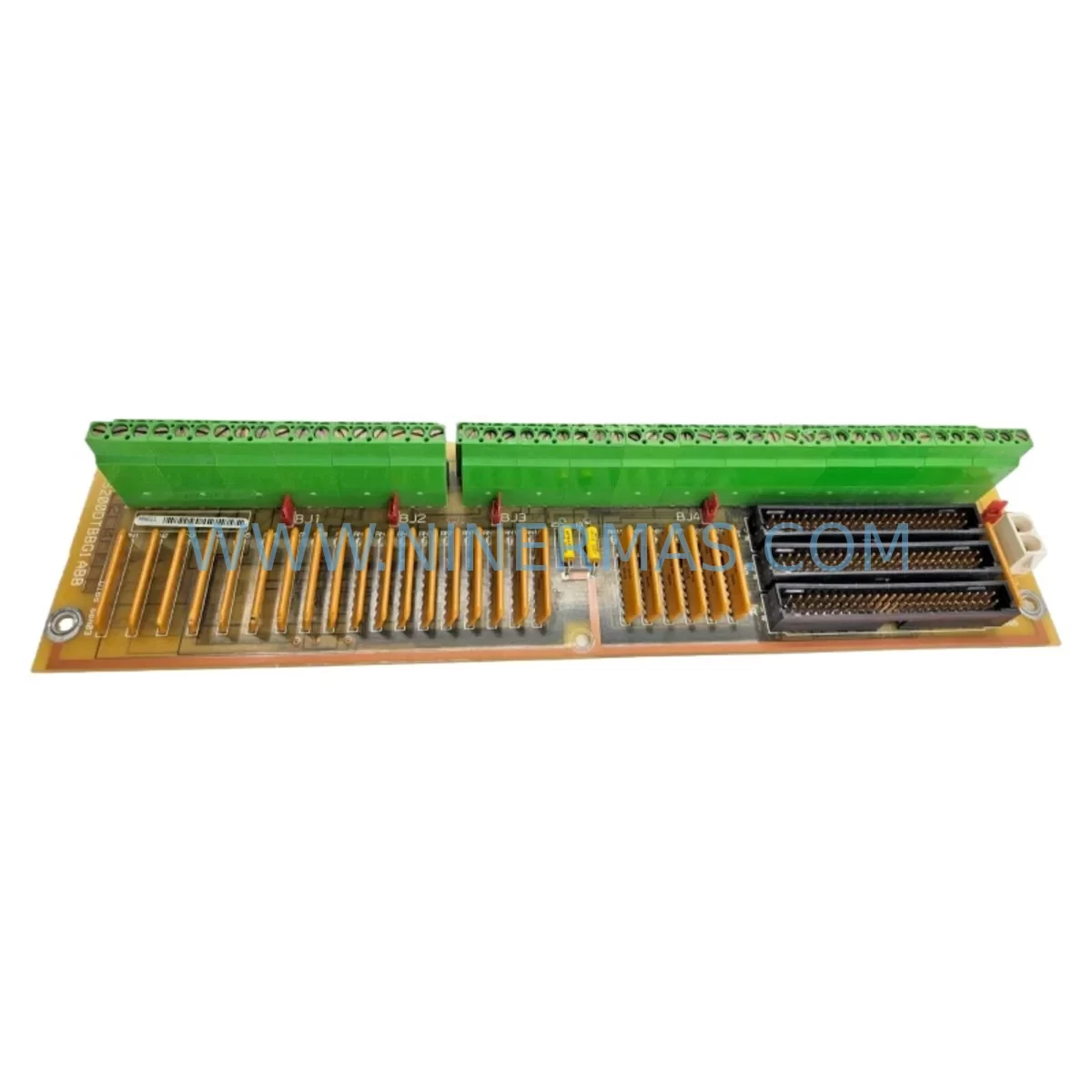

The GE DS200TBQGG1ABB is a high-integrity terminal board engineered for the GE Mark V Turbine Control System, one of the most widely deployed safety-critical control platforms in continuous industrial operations worldwide. Designed to serve as the primary I/O interface within the Mark V control cabinet, the DS200TBQGG1ABB provides robust, stable signal termination for analog and digital field devices operating under demanding process conditions. Whether deployed in gas turbine power generation, combined-cycle plants, petrochemical compressor trains, or heavy industrial drive systems, this terminal board is a foundational component in maintaining uninterrupted control loop integrity and operational safety.

In critical industrial environments — where control interruption, spurious trips, signal drift, or communication anomalies can trigger cascading failures, unplanned shutdowns, or safety system activations — the quality and reliability of every component in the control cabinet matters. The DS200TBQGG1ABB is built to GE’s stringent manufacturing standards, ensuring consistent electrical performance, secure field wiring termination, and long-term mechanical stability even under high-vibration, high-temperature, and high-humidity site conditions. At NINERMAS, every DS200TBQGG1ABB unit is sourced from verified supply channels, subjected to pre-shipment functional inspection, and backed by a 12-month warranty to support your maintenance planning and spare parts strategy.

Safety Reliability Table

Control Cabinet Risk Reduction Strategy

In a GE Mark V turbine control cabinet, the DS200TBQGG1ABB does not operate in isolation — it is part of a tightly integrated control architecture where every board, power supply, and communication module contributes to overall system safety and availability. A single degraded terminal board can introduce signal noise, intermittent I/O faults, or complete loss of field feedback, which in safety-critical applications such as turbine overspeed protection or flame detection interlocks, can result in either a dangerous undetected failure or a costly spurious trip.

To build a truly resilient control cabinet around the DS200TBQGG1ABB, maintenance engineers and reliability teams should consider the broader ecosystem of Mark V components. The DS200TCQAG1BHF and DS200TCQAG1BEF I/O terminal boards serve complementary signal termination roles within the same cabinet, and maintaining spares of these alongside the DS200TBQGG1ABB ensures rapid swap-out capability during unplanned maintenance windows. The DS200SDCCG3A Speed Detector Controller Card works in close coordination with terminal boards to process turbine speed signals — a critical safety parameter — and should be part of any comprehensive spare parts inventory.

Power supply stability is equally critical. The DS200DPBCG1A Power Distribution Board and associated DS200PCCAG1A Power Supply Card regulate the DC bus feeding the Mark V I/O racks. Voltage fluctuations or power supply degradation upstream of the terminal board can cause erratic signal behavior that mimics a faulty terminal board, making it essential to maintain healthy power components. Surge and transient protection at the cabinet level — through properly rated surge protective devices on incoming AC feeds — further reduces the risk of surge-induced damage to the DS200TBQGG1ABB’s termination circuits.

For communication integrity, the DS200SLCCG3AFG LAN Communication Card and DS200DSPCH1A Digital Signal Processor Card manage the data exchange between the Mark V controller and the plant DCS or HMI. Communication anomalies at the processor level can mask genuine field faults reported through the terminal board, making it important to ensure these cards are in verified working condition. In high-EMI environments — common in plants with large variable frequency drives, arc furnaces, or high-voltage switchgear nearby — proper cabinet grounding, shielded cable routing, and the use of ferrite cores on signal cables entering the terminal board are essential risk mitigation measures.

Finally, the DS200TBCBG1AAA and DS200TBQCG1A terminal boards represent close functional relatives of the DS200TBQGG1ABB within the Mark V family, and cross-referencing their compatibility with your specific Mark V revision ensures that your spare parts strategy covers the full range of potential failure points in the I/O termination layer. NINERMAS maintains stock across the DS200 series to support rapid response to field emergencies.

Critical Industrial Safety Applications

The GE DS200TBQGG1ABB terminal board is deployed across a wide spectrum of safety-critical and continuous-process industrial sites where control system reliability is directly linked to personnel safety, environmental compliance, and production continuity.

In power generation — including gas turbine, steam turbine, and combined-cycle plants — the Mark V system governs turbine start/stop sequences, load control, overspeed protection, and flame monitoring. The DS200TBQGG1ABB provides the field wiring interface for temperature, pressure, vibration, and position sensors that feed these safety functions. A degraded terminal board in this context can cause loss of sensor visibility, triggering either a protective trip or, more dangerously, a masked fault condition.

In petrochemical and refining facilities, the Mark V platform is used to control compressor trains, process gas turbines, and critical rotating equipment. These environments are characterized by explosive atmospheres, high ambient temperatures, and aggressive chemical exposure. The DS200TBQGG1ABB’s robust construction supports reliable operation in these conditions, and its availability as a stocked spare at NINERMAS ensures that maintenance teams can restore control system functionality within hours rather than weeks.

In mining and mineral processing operations, where high-power drives, dusty environments, and remote locations create unique maintenance challenges, the Mark V system controls critical conveyor drives, crusher motors, and ventilation systems. Signal integrity from the terminal board is essential to prevent nuisance trips that halt production or, conversely, to ensure that genuine fault conditions are correctly detected and acted upon.

In water and wastewater treatment plants, metallurgical facilities, and port and marine applications, the DS200TBQGG1ABB supports control of pumps, blowers, cranes, and propulsion systems where continuous availability and safety interlock reliability are non-negotiable. NINERMAS’s 12-month warranty and pre-shipment testing protocol provide the assurance that replacement units will perform to specification from the moment of installation.

Safety and Quality FAQ

Q1: What warranty does NINERMAS provide for the GE DS200TBQGG1ABB?
All DS200TBQGG1ABB units supplied by NINERMAS are covered by a 12-month warranty from the date of shipment. This warranty covers functional defects and ensures that any unit that fails to perform to specification within the warranty period will be replaced or credited. Our warranty policy is designed to support your maintenance planning and reduce the financial risk of spare parts procurement.

Q2: Is the DS200TBQGG1ABB tested before shipment?
Yes. Every DS200TBQGG1ABB unit undergoes a pre-shipment functional inspection at NINERMAS before dispatch. This inspection verifies the physical condition of the board, checks for visible damage, and confirms basic electrical integrity. This process ensures that units arriving at your site are ready for installation and reduces the risk of receiving a defective spare during a critical maintenance event.

Q3: Is this terminal board compatible with all GE Mark V configurations?
The DS200TBQGG1ABB is designed for use within the GE Mark V Turbine Control System. Compatibility depends on your specific Mark V revision, cabinet configuration, and I/O assignment. NINERMAS recommends that customers verify the part number against their existing Mark V documentation or contact our technical team at sale@ninermas.com to confirm compatibility before ordering. We can assist with cross-referencing related DS200 series boards if an exact match is required.

Q4: Can NINERMAS support long-term supply of the DS200TBQGG1ABB for ongoing maintenance programs?
Yes. NINERMAS maintains inventory across the GE Mark V DS200 series to support both emergency replacement needs and planned maintenance programs. We understand that industrial sites operating legacy control systems require a reliable, long-term supply partner. Our team can work with your procurement and reliability engineering teams to establish a supply agreement that ensures DS200TBQGG1ABB availability for the duration of your plant’s operational life.
