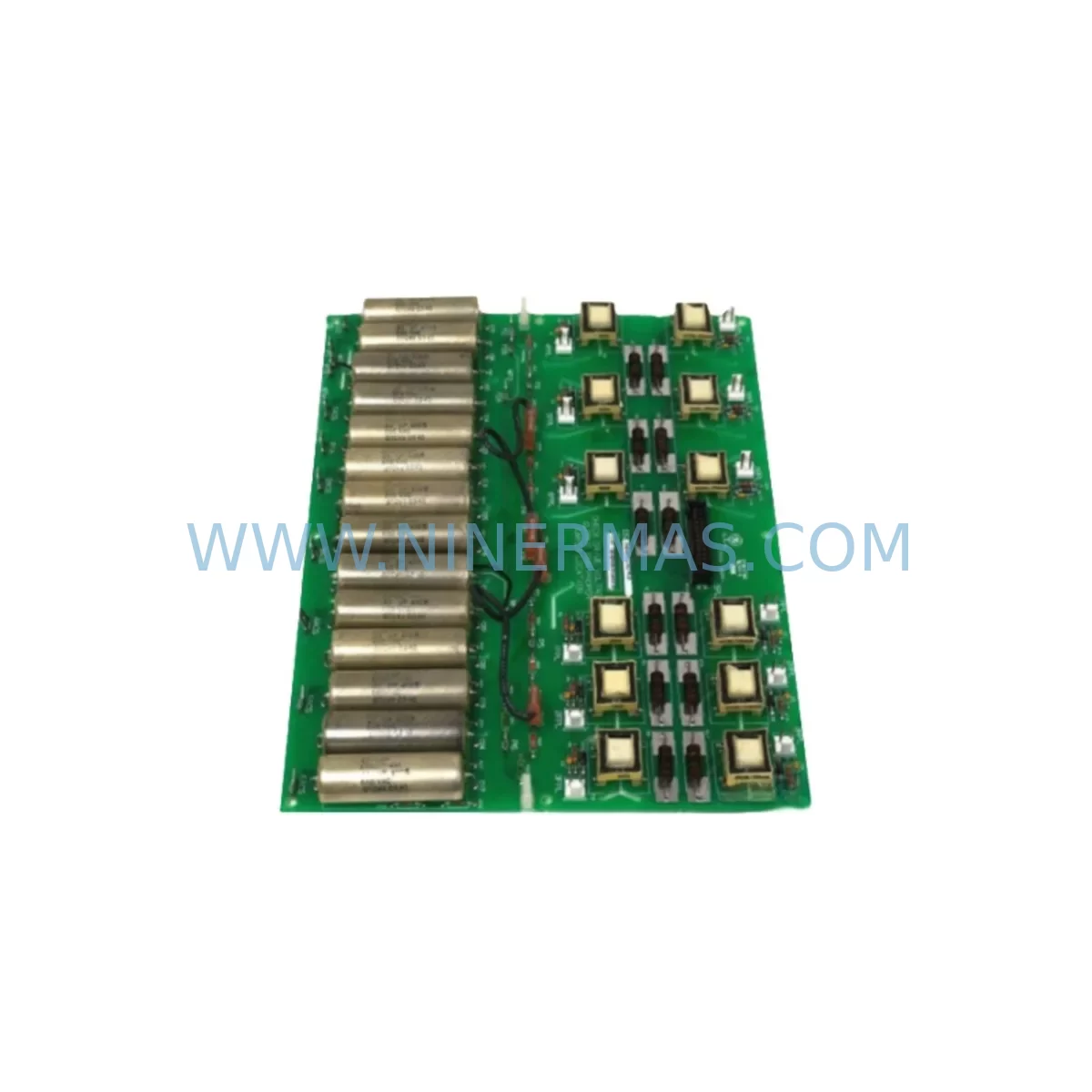

GE DS200PCCAG7ACB Retrofit-Compatible Process Control Card

GE DS200PCCAG7ACB Retrofit-Compatible Process Control Card for Legacy Mark V Speedtronic Systems

The GE DS200PCCAG7ACB is a process control and communication card originally designed for the GE Mark V Speedtronic turbine control platform. As the Mark V series reaches end-of-life and OEM support is discontinued, industrial facilities operating gas turbines, steam turbines, and combined-cycle power plants increasingly rely on verified aftermarket replacements to maintain operational continuity. This DS200PCCAG7ACB card serves as a direct retrofit-compatible replacement, enabling control system engineers to restore or upgrade legacy panels without full platform migration.

Each unit is pre-shipment tested against original GE Mark V electrical and communication specifications. Backed by a 12-month warranty, this card is suitable for facilities managing long-term spare parts inventory, emergency breakdown recovery, or phased control system modernization programs.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the DS200PCCAG7ACB within an operational Mark V Speedtronic panel requires a structured approach to avoid unplanned downtime and protect existing control logic. Before removing the failed card, engineers should document the current rack configuration, including the positions of adjacent boards such as the DS200TCQAG1A (turbine control card), DS200SDCCG3A (speed and dynamics control card), and DS200IOCAG1A (I/O controller). These boards communicate directly with the PCC over the backplane bus, and their slot addresses must remain consistent after the replacement card is seated.

Power supply capacity is a critical pre-check. The Mark V panel typically draws regulated 5 VDC and ±15 VDC from dedicated power supply modules such as the DS200PTBAG1A. Verify that the existing power supply can sustain the load after the new DS200PCCAG7ACB is installed, particularly in panels where additional I/O expansion boards have been added over the years. Insufficient power headroom is a common cause of intermittent faults after card replacement.

Terminal wiring connected to the I/O terminal boards — including the DS200TBQAG1A and DS200TBCAG1A — should be photographed and labeled before any work begins. These terminal assemblies carry analog signals from thermocouples, RTDs, pressure transmitters, and position feedback devices. Incorrect reconnection after a card swap can result in sensor faults, spurious trips, or loss of protection functions.

Communication link integrity must be verified after installation. The Mark V ARCNET network connects the PCC to the operator interface (HMI) and to peer control cards. If the facility uses a GE Cimplicity or ToolboxST HMI workstation, confirm that the communication node address assigned to the replacement DS200PCCAG7ACB matches the original configuration. Mismatched node addresses will prevent the HMI from establishing a data link, causing loss of operator visibility even if the turbine continues to run under local control.

For facilities undertaking a broader control system modernization — such as migrating from Mark V to Mark VIe — the DS200PCCAG7ACB replacement can serve as a bridge solution, maintaining turbine availability while the new platform is engineered and staged. During this transition period, it is common to also source replacement units for the DS200DSPCH7A (digital signal processor card) and DS200EXPSG1A (expansion power supply) to ensure the legacy panel remains fully operational until cutover.

Where communication protocol migration is part of the upgrade scope — for example, transitioning from ARCNET to Ethernet-based EGD (Ethernet Global Data) — signal isolation modules and protocol converters may be required at the panel boundary. These components protect the existing I/O wiring from ground loops and signal interference during the transition period.

Downtime Control During System Migration

Minimizing turbine downtime during a DS200PCCAG7ACB replacement requires advance preparation and a disciplined commissioning sequence. The recommended approach is to perform all pre-installation checks — power supply verification, rack slot confirmation, communication node documentation, and software backup — during a scheduled maintenance window rather than during an emergency breakdown response.

Before powering down the Mark V panel, create a full backup of the application software using the GE Mark V programming interface or ToolboxST if the panel has been partially upgraded. This backup preserves all setpoints, I/O assignments, alarm limits, and sequence logic. If the original application files are unavailable, the commissioning team will need to reconstruct the configuration from as-built drawings, which significantly extends the outage duration.

Once the replacement DS200PCCAG7ACB is seated and the panel is powered up, perform a staged restart: verify power supply outputs first, then confirm backplane communication between the PCC and adjacent control cards, and finally restore the HMI data link. Do not attempt to restart the turbine until all I/O channels have been verified against the pre-outage baseline. Pay particular attention to protective relay inputs and emergency shutdown (ESD) logic, as these functions must be confirmed active before returning the unit to service.

For facilities with redundant control configurations, the replacement can be performed on the standby channel while the active channel maintains turbine control, reducing the required outage window to the time needed for a controlled channel switchover. This approach is strongly recommended for baseload generation units where extended outages carry significant commercial penalties.

Maintaining a pre-tested DS200PCCAG7ACB in local spare parts inventory — alongside critical companion boards such as the DS200TCQAG1A and DS200SDCCG3A — is the most effective strategy for reducing mean time to repair (MTTR) on aging Mark V panels. With a 12-month warranty and pre-shipment functional verification, each unit is ready for immediate installation upon receipt.

Retrofit Support FAQ

Q: Is the DS200PCCAG7ACB a direct drop-in replacement for earlier PCC revisions such as DS200PCCAG7ABB?
A: In most cases, yes. The G7ACB revision is functionally compatible with earlier G7ABB and G7ACC variants within the Mark V Speedtronic platform. However, firmware revision differences may require a software reload after installation. Always verify the application software version against the replacement card’s firmware baseline before returning the turbine to service.

Q: What commissioning steps are required after installing the replacement card?
A: After seating the DS200PCCAG7ACB, restore the application software from backup, verify ARCNET node address assignment, confirm I/O channel calibration for all analog inputs, and test all digital output functions against the control narrative. Protective functions — including overspeed, overtemperature, and ESD inputs — must be individually verified before turbine restart.

Q: How is terminal wiring compatibility confirmed before installation?
A: The DS200PCCAG7ACB connects to the Mark V backplane rather than directly to field wiring. Field signals are terminated at dedicated terminal boards (e.g., DS200TBQAG1A, DS200TBCAG1A) and routed to the PCC via the backplane. No field wiring changes are required for a direct card replacement, provided the terminal board configuration remains unchanged.

Q: What warranty and testing coverage is included with this unit?
A: Every DS200PCCAG7ACB is pre-shipment tested for functional operation and communication integrity before dispatch. A 12-month warranty is included from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions. In-stock units are available for immediate dispatch to support emergency breakdown and planned maintenance requirements.
