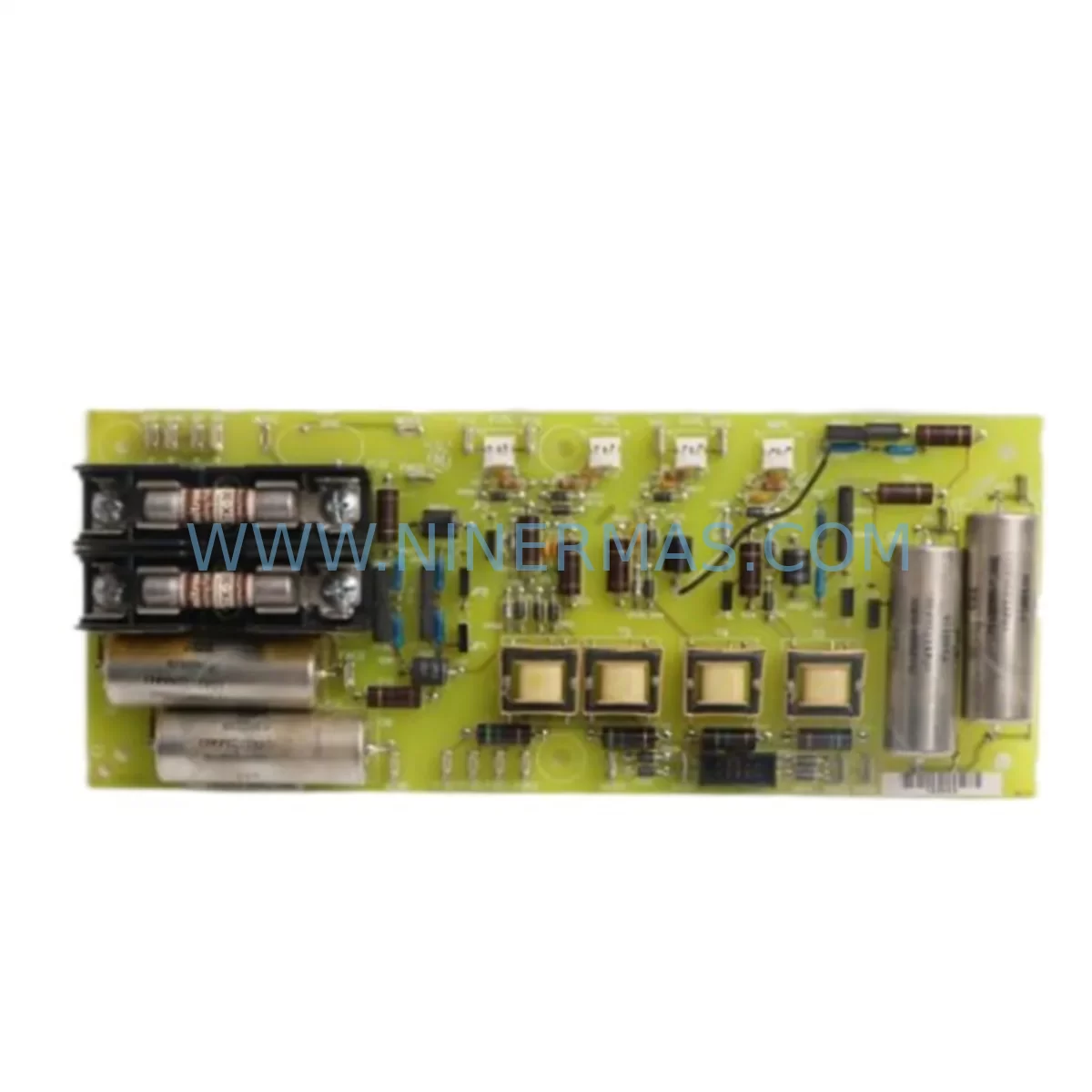

GE DS200FSAAG1A Retrofit-Compatible Fire & Safety Module for Legacy Systems

GE DS200FSAAG1A Retrofit-Compatible Fire & Safety Module for Legacy Systems

The GE DS200FSAAG1A is a fire and safety detection module originally designed for the GE Mark V Speedtronic turbine control platform. As aging power generation facilities and industrial plants continue to operate legacy Mark V systems well beyond their original design life, sourcing reliable, tested replacement modules like the DS200FSAAG1A has become a critical priority for maintenance engineers and plant managers worldwide.

NINERMAS supplies the DS200FSAAG1A as a retrofit-compatible replacement for facilities undergoing partial or full Mark V system modernization. Whether your plant is replacing a failed fire detection board, extending the operational life of an existing Speedtronic cabinet, or bridging the gap during a phased migration to the GE Mark VIe platform, the DS200FSAAG1A provides a proven, cost-effective solution with verified compatibility and a 12-month warranty.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the DS200FSAAG1A within an operational Mark V Speedtronic cabinet requires careful pre-engineering to avoid unplanned downtime and control logic disruption. Before procurement, maintenance teams should confirm the following:

Power Supply Capacity: The Mark V cabinet typically relies on the DS200PCCAG1A or similar power conditioning modules to supply regulated DC voltage to safety boards. Verify that the existing power supply can support the replacement module’s load without derating.

Terminal Block and Field Wiring: The DS200FSAAG1A connects to field-mounted flame detectors and fire sensors through dedicated terminal blocks. Document all existing wiring before removal, paying close attention to UV/IR detector signal pairs, shield grounding, and common return paths. Modules such as the DS200TCQAG1A (terminal board) may interface directly with the safety module and must remain undisturbed during the swap.

Backplane and Rack Slot Assignment: The Mark V system uses a structured rack architecture. The DS200FSAAG1A occupies a defined slot within the DS200RACK or equivalent Mark V rack assembly. Confirm the physical slot number, backplane connector condition, and adjacent module clearance — particularly if neighboring I/O modules such as the DS200DSPCH1A (digital signal processor) or DS200ADPAG1A (analog input board) are installed in adjacent positions.

Module Address and I/O Configuration: Each Mark V module is assigned a hardware address that must match the software configuration stored in the DS200TCDAG1A (turbine control processor). After installing the DS200FSAAG1A, verify that the module address DIP switches or jumpers are set identically to the removed unit. Mismatched addressing will cause the control processor to flag a hardware fault and may inhibit turbine start permissives.

Program Logic and HMI Screen Compatibility: The Mark V control logic referencing fire and safety I/O points is stored in the turbine control processor. No logic changes are required for a like-for-like DS200FSAAG1A replacement. However, if the plant is simultaneously upgrading the HMI from a legacy Cimplicity-based workstation to a modern SCADA interface, confirm that all alarm tags and safety interlock display points are correctly mapped to the new HMI screens before returning the unit to service.

Communication Link Verification: The Mark V ARCNET communication bus links all control, I/O, and safety modules. After replacement, use the Mark V diagnostic tools to confirm that the DS200FSAAG1A is recognized on the network and that no communication errors are logged. If the plant is migrating toward a GE Mark VIe architecture, note that the DS200FSAAG1A is not directly compatible with the Mark VIe I/O pack system — a migration adapter or full I/O replacement using IS200 series modules will be required for that transition.

Installation Space and Cabinet Layout: Confirm that the replacement module’s physical dimensions match the original. Some DS200-series boards have revision-specific faceplate heights. Ensure the module seats fully into the backplane without mechanical interference from cable harnesses or adjacent modules such as the DS200EXPAG1A (I/O expansion board).

Downtime Control During System Migration

For operating turbines and critical process equipment, minimizing downtime during a DS200FSAAG1A replacement is essential. NINERMAS recommends the following approach to protect program logic, maintain field control continuity, and reduce retrofit risk:

• Pre-stage the replacement module before the planned maintenance window. Confirm the unit is tested, addressed, and ready for installation before the turbine is taken offline.
• Back up the Mark V configuration using the Toolbox software or equivalent configuration management tool. Store a copy of the I/O configuration, control constants, and alarm setpoints before any hardware is disturbed.
• Isolate field wiring systematically. Use labeled terminal markers and photograph all wiring before disconnection. This is especially important for multi-conductor flame detector cables where polarity errors can cause nuisance trips or missed flame signals.
• Perform a cold swap during a scheduled outage whenever possible. Hot-swapping safety modules in a Mark V system is not recommended without explicit OEM guidance, as it may trigger safety shutdowns or corrupt module initialization sequences.
• Conduct a full functional test after installation: verify flame detector response, confirm safety interlock activation at the correct setpoints, check HMI alarm annunciation, and validate ARCNET communication status before returning the turbine to automatic control.
• Document the replacement in the plant maintenance management system (CMMS) with the new module serial number, installation date, and test results to support future audits and warranty claims.

With proper pre-planning, a DS200FSAAG1A replacement can typically be completed within a 2–4 hour maintenance window, keeping unplanned production losses to a minimum.

Retrofit Support FAQ

Q1: Is the DS200FSAAG1A a direct drop-in replacement for the original board in my Mark V cabinet?
A: Yes, for like-for-like replacements within the same Mark V rack and slot position, the DS200FSAAG1A is a direct replacement. Confirm that the module revision level is compatible with your existing Mark V software version. NINERMAS can assist with revision verification prior to shipment.

Q2: Has the DS200FSAAG1A been tested before shipment?
A: All DS200FSAAG1A units supplied by NINERMAS are functionally tested prior to dispatch. Each unit ships with a test report and is covered by a 12-month warranty from the date of delivery.

Q3: What wiring changes are needed when replacing the DS200FSAAG1A?
A: No wiring changes are required for a like-for-like replacement. Reconnect all field cables to the same terminal positions as the original module. If the terminal block (such as the DS200TCQAG1A) is also being replaced, refer to the original wiring diagram to restore all connections accurately.

Q4: Do you maintain stock of the DS200FSAAG1A for urgent orders?
A: NINERMAS maintains inventory of the DS200FSAAG1A and other Mark V Speedtronic spare parts to support urgent replacement requirements. Contact our team at sale@ninermas.com or +0086 187 5021 5667 for availability and lead time confirmation.
