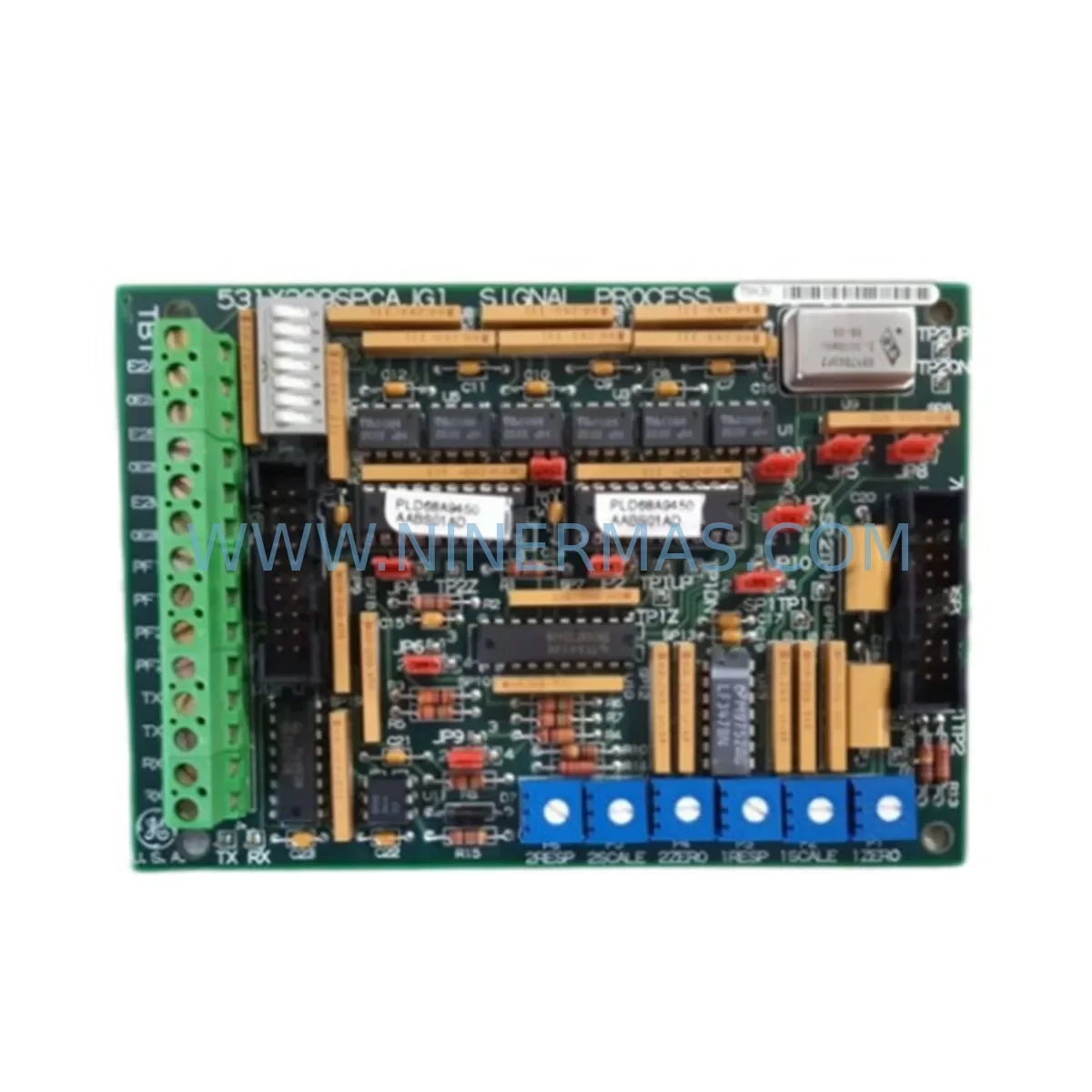

The GE 531X309SPCAJG1 is a ruggedized signal processing board engineered for demanding industrial environments, widely deployed in GE Mark V and Mark VI turbine control systems. For maintenance engineers managing gas turbine control cabinets, power generation facilities, or heavy process plants, this board is a critical component in ensuring continuous signal integrity across I/O channels, analog inputs, and protective relay circuits. When this board fails or degrades, the result is often an unplanned shutdown — making fast, reliable spare part availability essential to any maintenance strategy.

At NINERMAS, every 531X309SPCAJG1 unit is sourced as an original GE spare, inspected, and functionally tested prior to shipment. We maintain ready stock to support emergency replacement, scheduled overhaul, and long-term spare parts inventory programs. Each unit ships with a 12-month warranty, giving procurement engineers confidence in both quality and supply continuity.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the GE 531X309SPCAJG1 signal processing board, a thorough maintenance engineer will not stop at the board itself. Signal processing failures in Mark V and Mark VI systems are frequently symptomatic of upstream or downstream component stress. Before returning the turbine control system to service, it is strongly recommended to inspect and verify the following associated components:

Begin with the power supply modules feeding the control rack — boards like the IS200EPCTG1A or DS200TCPSG1A power conditioner should be checked for output voltage stability, as undervoltage conditions accelerate signal board degradation. Next, inspect the terminal board assemblies (such as the IS200TBCIH1C) for loose wiring, corrosion on screw terminals, and insulation breakdown on field cables connected to the I/O channels served by the 531X309SPCAJG1.

The I/O processor boards in the same rack — including models such as the DS200IOCAG1A — should be verified for firmware compatibility and communication integrity with the signal processing board. If the system uses communication modules such as the IS200STCIH1A or Ethernet interface cards, confirm that network handshaking is restored after board replacement and that no watchdog faults persist.

For systems with protective relay integration, check the relay output modules (e.g., IS200TRLYH1B) for contact wear and correct trip logic. Signal processing anomalies can mask relay faults that only surface under load. Additionally, inspect signal isolators and barrier modules in the field wiring loop — degraded isolation can introduce ground loops that corrupt analog readings processed by the 531X309SPCAJG1.

Finally, if the control system includes an HMI panel or operator workstation running GE’s ToolboxST or CIMPLICITY software, verify that alarm histories and trend logs are cleared of residual fault codes after the board swap. Fuse holders and miniature circuit breakers on the 24VDC and 48VDC distribution rails within the control cabinet should also be tested for continuity as part of the post-replacement commissioning checklist.

Maintaining a recommended spare parts kit that includes the 531X309SPCAJG1 alongside one spare power supply module, one I/O processor board, and a set of terminal board connectors reduces mean time to repair (MTTR) significantly and supports a proactive maintenance culture rather than a reactive one.

Site Replacement Workflow

Replacing the GE 531X309SPCAJG1 in the field follows a structured procedure to minimize downtime and ensure system compatibility:

1. Pre-Replacement Verification: Confirm the replacement unit’s part number and revision suffix (JG1) matches the installed board. Cross-reference the GE Mark V or Mark VI system drawing to identify the correct slot position within the control rack. Document all active alarms and system states before de-energizing the cabinet.

2. Safe Isolation: Follow your site’s lockout/tagout (LOTO) procedure. De-energize the control rack section housing the 531X309SPCAJG1. Allow capacitors to discharge before handling the board. Use ESD-safe handling procedures throughout.

3. Board Removal and Inspection: Remove the faulty board and inspect the backplane connector for bent pins, carbon tracking, or moisture ingress. Clean the slot with compressed air if contamination is present. Inspect the adjacent boards for signs of thermal stress or arcing.

4. Installation and Commissioning: Seat the new 531X309SPCAJG1 firmly into the backplane slot. Re-energize the rack and observe the system startup sequence. Verify that the board initializes correctly, that all I/O channels report expected values, and that no new fault codes appear in the HMI or diagnostic terminal.

5. Post-Replacement Documentation: Record the replacement in the equipment maintenance log, including the date, replaced part number, and technician name. Update the spare parts inventory to trigger reorder of a replacement unit, maintaining minimum stock levels for critical components.

This workflow supports rapid recovery from unplanned outages and ensures that the replaced system meets original GE performance specifications. For aging Mark V systems approaching end-of-life, the 531X309SPCAJG1 is a proven path to extending operational life without full system migration.

Spare Parts Support FAQ

Q1: Is the GE 531X309SPCAJG1 compatible with both Mark V and Mark VI control systems?
The 531X309SPCAJG1 is primarily associated with GE’s Mark V turbine control platform. Compatibility with Mark VI configurations depends on the specific rack and backplane revision. NINERMAS recommends providing your system drawing or panel serial number for compatibility confirmation before ordering. Our technical team can verify fit based on your exact installation.

Q2: How is each unit tested before shipment?
Every 531X309SPCAJG1 unit in our inventory undergoes a pre-shipment functional inspection covering board-level power integrity, connector condition, and visual inspection for component damage. Units are packed in ESD-safe anti-static bags with foam cushioning to prevent transit damage. A test report is available upon request for critical procurement applications.

Q3: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. In the event of a warranty claim, NINERMAS provides a replacement unit or full refund, with return shipping coordinated by our support team.

Q4: Can NINERMAS support long-term or blanket purchase orders for this part?
Yes. NINERMAS supports long-term supply agreements for the GE 531X309SPCAJG1 and related Mark V/VI spare parts. For maintenance programs requiring guaranteed stock availability over 12–36 month horizons, we offer reserved inventory arrangements and priority fulfillment. Contact our sales team to discuss volume pricing and supply continuity terms.
