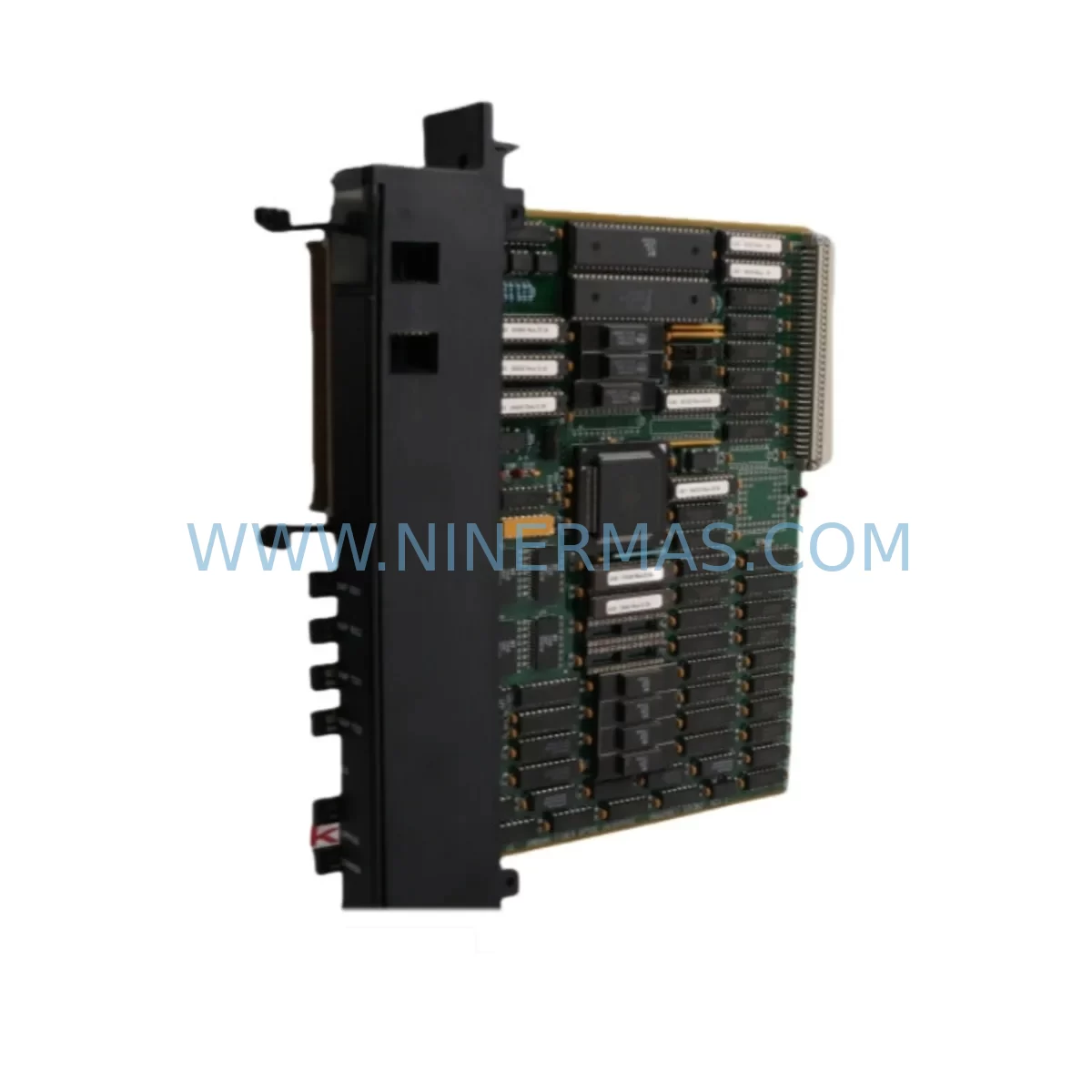

GE 151X1225DF01PC03RA Retrofit-Compatible Power Converter

GE 151X1225DF01PC03RA Retrofit-Compatible Power Converter for Legacy Systems

The GE 151X1225DF01PC03RA is a ruggedized power converter module engineered for demanding industrial environments and designed to serve as a direct retrofit replacement within aging GE control system architectures. As legacy automation platforms approach end-of-life and OEM support windows close, facilities managers and controls engineers increasingly rely on verified replacement modules like the 151X1225DF01PC03RA to extend operational continuity without committing to a full platform migration. NINERMAS maintains in-stock inventory of this module, fully tested and backed by a 12-month warranty, to support planned and emergency retrofit scenarios across power generation, oil & gas, petrochemical, and heavy manufacturing sectors.

When integrating the 151X1225DF01PC03RA into an existing control cabinet, engineers must first confirm the incoming DC bus voltage and current capacity of the existing power supply rail. GE turbine control platforms such as the Mark V and Mark VI series impose strict power budgets across their backplane slots, and adding or replacing a power converter module requires a careful audit of total load distribution. Modules sharing the same rack — including I/O terminal boards, communication interface cards, and processor boards — must remain within the rated supply envelope to avoid nuisance trips or thermal derating.

Terminal wiring compatibility is a critical checkpoint during any retrofit. The 151X1225DF01PC03RA uses a defined connector pinout that must be cross-referenced against the existing field wiring harness. In older installations, wire labeling may have degraded or deviated from original engineering drawings, making a point-to-point continuity check essential before energizing the replacement module. Where terminal block layouts differ from the legacy unit, intermediate marshalling panels or adapter terminal strips may be required to preserve signal integrity without re-pulling field cables.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the GE 151X1225DF01PC03RA into a live or recently decommissioned control system requires a structured retrofit plan that addresses hardware, software, and commissioning dimensions simultaneously. The following considerations apply to the most common retrofit scenarios encountered in turbine control and distributed control system (DCS) environments.

Backplane and Rack Compatibility: The 151X1225DF01PC03RA is designed for installation within GE’s standard control rack infrastructure. Before ordering, engineers should confirm the physical slot width, depth clearance, and backplane connector type against the existing rack assembly. In Mark V installations, the VMIVME backplane and associated rack chassis define the mechanical envelope. Mark VI systems use a different rack geometry, and while the 151X1225 power converter series spans both platforms in certain configurations, slot-level compatibility must be verified using the original system bill of materials or GE engineering drawings.

Power Supply and Load Audit: The existing GE IS200 series power supply modules or equivalent DC distribution boards feeding the control rack must be audited for available headroom. Replacing a failed power converter with the 151X1225DF01PC03RA may alter the load profile if the original unit had partially failed and was drawing reduced current. A full load calculation — accounting for processor boards, I/O modules such as the GE IS200IOCAH1A or similar analog and digital I/O cards, and communication modules — should be completed before energizing the new module.

Communication and Protocol Continuity: In systems where the power converter module interfaces with a communication backbone — such as GE’s ARCNET or IONet networks used in Mark VI architectures — the replacement module must not disrupt the network topology. Communication interface modules, including the GE IS200EACAH1A Ethernet adapter or legacy serial communication boards, should remain powered and online during the swap where hot-swap capability is supported. Where it is not, a controlled shutdown sequence must be documented and approved before work begins.

I/O Signal Isolation and Marshalling: Field signals routed through the control cabinet to the affected rack section may require temporary isolation during module replacement. Signal isolators and marshalling terminal blocks — such as those used in conjunction with GE Multilin protection relays or third-party signal conditioning equipment — should be identified in the loop drawings and isolated in a sequence that preserves process safety. After the 151X1225DF01PC03RA is installed and powered, each I/O channel should be verified against the original loop calibration records before returning the system to automatic control.

HMI and SCADA Screen Validation: Following module replacement, operators should verify that all HMI faceplate displays — whether running on GE’s Cimplicity SCADA platform or a third-party HMI — correctly reflect the restored I/O status. Alarm setpoints, analog scaling, and digital status indicators associated with the replaced module’s signal paths should be confirmed against the pre-outage baseline. Any discrepancies in displayed values should be investigated at the field instrument level before the unit is returned to service.

Programming and Logic Compatibility: The control logic residing in the associated GE Mark V TCCA or Mark VI VCMI processor cards does not typically require modification when replacing a power converter module of the same type. However, if the 151X1225DF01PC03RA is being used as a cross-series substitute — for example, replacing an older 151X series unit in a partially upgraded rack — the engineer should confirm that module address assignments and rack configuration files in the GE ToolboxST or legacy Mark V configuration software remain consistent with the physical installation.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary operational objective in any retrofit involving the GE 151X1225DF01PC03RA. NINERMAS recommends a pre-staged replacement strategy: the module is received, inspected, and functionally tested at the facility’s maintenance workshop before the scheduled outage window begins. This eliminates the risk of discovering a shipping or handling defect during the outage itself, which can extend downtime significantly in remote or offshore installations.

Where the control system architecture permits, a shadow rack or hot-standby configuration using redundant processor and I/O modules can maintain process control continuity while the primary rack is taken offline for the power converter swap. In non-redundant systems, the outage window should be planned around the minimum time required to: isolate the rack, remove the failed module, install and seat the 151X1225DF01PC03RA, restore power, verify module status LEDs, confirm I/O channel health, and release the system back to the control room. NINERMAS technical documentation and commissioning checklists are available to support this process.

Original control program backups — including Mark V DSPX processor memory images or Mark VI ToolboxST project archives — should be secured and verified before any hardware change. If the replacement module triggers a processor re-initialization, having a verified program backup allows rapid restoration without manual re-entry of setpoints or tuning parameters. This is particularly important in turbine control applications where combustion tuning data and protective relay setpoints represent significant commissioning investment.

Post-installation, a structured commissioning test sequence — covering power-up self-diagnostics, I/O loop checks, communication link verification, and a supervised return-to-auto sequence — should be completed and documented before the outage is formally closed. NINERMAS provides pre-shipment functional test reports for all 151X1225DF01PC03RA units to serve as a baseline reference during site commissioning.

Retrofit Support FAQ

Q1: Is the GE 151X1225DF01PC03RA a direct drop-in replacement for my existing power converter module?
In most GE Mark V and Mark VI control rack configurations, the 151X1225DF01PC03RA is a direct mechanical and electrical replacement for same-series units. However, customers should confirm the backplane connector type, slot dimensions, and DC bus voltage rating against their specific rack assembly before installation. NINERMAS technical staff can assist with compatibility verification using your system’s part number and rack configuration data.

Q2: What pre-shipment testing does NINERMAS perform on the 151X1225DF01PC03RA?
Every unit shipped by NINERMAS undergoes a full functional test under simulated load conditions, including input voltage range verification, output regulation accuracy, thermal performance check, and connector integrity inspection. A test report is included with each shipment. All units are covered by a 12-month warranty from the date of shipment.

Q3: Can this module be used in a system that has already been partially upgraded to a newer GE control platform?
Yes, in many hybrid retrofit scenarios where legacy Mark V racks coexist with newer Mark VI or Mark VIe controllers, the 151X1225DF01PC03RA can continue to serve its original power conversion function within the legacy rack section. Communication between the legacy and new platform sections is typically handled by protocol gateway modules or dedicated communication bridges, and the power converter module itself does not require modification. NINERMAS recommends a site-specific compatibility review for all hybrid architecture applications.

Q4: What is the typical lead time and availability for the GE 151X1225DF01PC03RA?
NINERMAS maintains stock inventory of the 151X1225DF01PC03RA to support both planned maintenance schedules and emergency breakdown situations. Standard lead time for in-stock units is 3–7 business days for international shipments, including export documentation and packaging for safe transit. For urgent requirements, expedited shipping options are available. Contact our sales team at sale@ninermas.com or +0086 187 5021 5667 for real-time stock confirmation.
