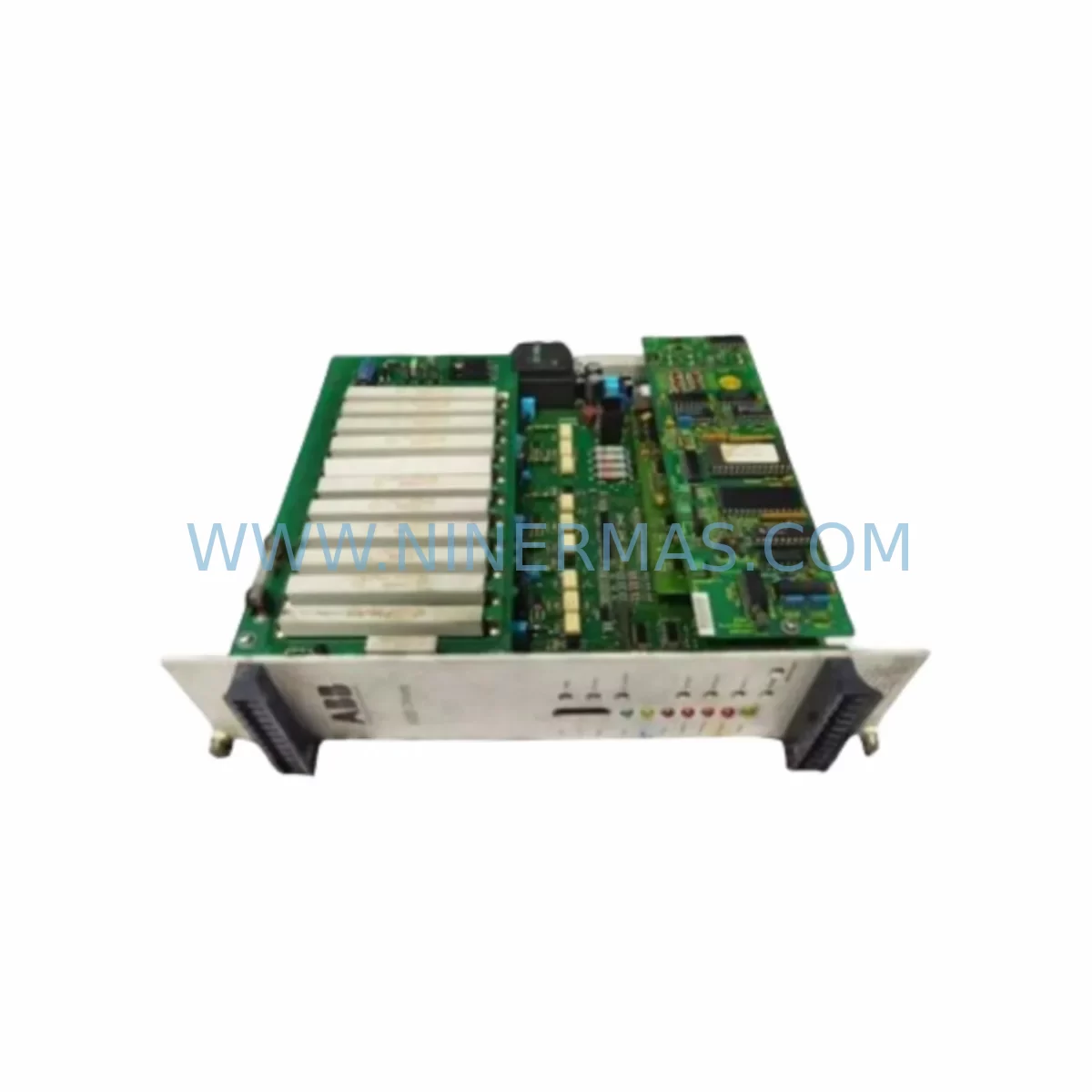

The GAT-543020R0001 is a servo control board engineered for demanding industrial automation environments where uptime is non-negotiable. As a direct service-ready replacement for legacy servo drive systems, this board addresses one of the most critical pain points in plant maintenance: sourcing a verified, compatible spare part that can be installed quickly during an unplanned shutdown. Whether you are managing a scheduled annual overhaul or responding to an emergency fault condition on the production floor, the GAT-543020R0001 is designed to restore system operation with minimal intervention.

Industrial maintenance engineers and procurement specialists working with aging servo drive platforms understand the compounding risk of deferred replacement. A failed servo control board can halt an entire production line, triggering cascading downtime across upstream and downstream processes. Stocking the GAT-543020R0001 as part of a proactive spare parts inventory strategy eliminates the lead-time risk associated with end-of-life components and ensures that your maintenance team can execute a rapid board swap without waiting days or weeks for a sourced replacement.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the GAT-543020R0001 servo control board is rarely an isolated task. Experienced maintenance engineers treat a board replacement as an opportunity to audit the entire servo drive assembly and its surrounding electrical infrastructure. During the same maintenance window, it is strongly recommended to inspect and, where necessary, replace the following components to prevent repeat failures and extend the operational life of the system.

Begin with the servo drive power supply module. A degraded DC bus capacitor bank or a failing switch-mode power supply can subject the control board to voltage ripple that accelerates component aging. Verify output voltage stability under load before reinstalling the GAT-543020R0001. Next, check the encoder feedback cable and connector assembly: damaged shielding or corroded pins on the encoder interface are a leading cause of position feedback errors that are often misdiagnosed as control board failures.

Inspect the I/O terminal block strip connected to the drive’s digital and analog inputs. Loose or oxidized terminals introduce intermittent signal faults that can trigger nuisance trips and mask the true root cause of a servo fault. Similarly, the 24 VDC control power fuse and associated fuse holder should be tested for continuity and replaced if the fuse holder shows signs of heat discoloration or contact resistance.

For systems integrated into a PLC or DCS architecture, verify the integrity of the communication module or fieldbus interface card — whether PROFIBUS-DP, DeviceNet, EtherNet/IP, or a proprietary serial link. A marginal communication module can cause intermittent drive faults that are difficult to reproduce and diagnose. If the servo drive communicates via a signal isolator for analog speed or torque reference, inspect the isolator’s input and output calibration and replace if drift exceeds specification.

The regenerative braking resistor and its thermal cutout should also be checked during any servo board replacement. An open-circuit braking resistor will cause DC bus overvoltage faults under deceleration, which can damage a newly installed control board within hours of commissioning. Finally, review the condition of the control cabinet door seal and cooling fan filter: contamination ingress is a primary cause of premature board failure in harsh industrial environments. Replacing the GAT-543020R0001 in a cabinet with a blocked filter or failed cooling fan will not resolve the underlying thermal stress condition.

For facilities running multiple servo axes, consider stocking a spare HMI operator panel compatible with the GAT 543 series drive, as well as a spare backplane or drive chassis for critical production lines. Coordinating these spare parts under a single procurement order reduces per-unit shipping costs and ensures that your maintenance team has everything needed to restore a complete drive system without secondary sourcing delays.

Site Replacement Workflow

Replacing the GAT-543020R0001 on-site follows a structured sequence designed to minimize downtime and eliminate the risk of installation errors that could damage the new board or connected equipment.

Step 1 — Fault Documentation: Before powering down the drive, record all active fault codes, parameter settings, and axis configuration data from the drive’s operator panel or via the connected PLC/SCADA system. This data is essential for recommissioning after the board swap.

Step 2 — Safe Isolation: Isolate the servo drive from the AC mains supply and engage the appropriate lockout/tagout procedure. Allow a minimum of five minutes for the DC bus capacitors to discharge before opening the drive enclosure. Verify bus voltage with a calibrated meter before touching internal components.

Step 3 — ESD Protection: Don an ESD wrist strap and connect it to the drive chassis ground before handling the GAT-543020R0001. Servo control boards contain sensitive CMOS and DSP components that can be permanently damaged by electrostatic discharge.

Step 4 — Board Removal and Inspection: Remove the faulty board and inspect the connector pins, mounting standoffs, and adjacent components for signs of arcing, overheating, or physical damage. Photograph the installation before removal to ensure correct reassembly.

Step 5 — Installation and Verification: Install the replacement GAT-543020R0001, restore all connectors, and verify that all ribbon cables and harness connectors are fully seated. Restore power and confirm that the drive initializes without fault. Reload saved parameters and perform a low-speed jog test before returning the axis to full production speed.

This workflow is compatible with both planned maintenance windows and emergency breakdown recovery scenarios, and it is designed to keep total replacement time under two hours for a trained technician.

Spare Parts Support FAQ

Q1: Is the GAT-543020R0001 a new original part or a refurbished unit?
All units supplied by NINERMAS are original spare parts sourced from authorized supply channels. Each unit undergoes functional testing and visual inspection before shipment. A 12-month warranty is provided from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions.

Q2: How do I confirm compatibility with my existing servo drive chassis before ordering?
Compatibility is confirmed by matching the full part number GAT-543020R0001 against your drive’s nameplate data and the board’s silk-screen marking. If you have a legacy system where the original part number is partially obscured, our technical team can assist with cross-referencing based on the drive model, series, and electrical specifications. Contact sale@ninermas.com with your drive model and application details.

Q3: What is the long-term supply outlook for the GAT-543020R0001, and how should I plan my spare parts inventory?
For end-of-life and legacy components, NINERMAS recommends a minimum stock of one to two boards per critical servo axis, with a review cycle of 12 months. We maintain ongoing sourcing relationships to support long-term supply continuity. Customers with multiple sites or high-criticality applications are encouraged to discuss blanket order arrangements to secure stock at current pricing and reduce future procurement risk.

Q4: What pre-shipment testing is performed on the GAT-543020R0001?
Each unit is subjected to a multi-point inspection covering visual integrity, connector condition, component-level checks, and where test fixtures are available, functional power-on verification. Test results are documented and available upon request. Units that do not pass inspection are not shipped. This process supports our 12-month warranty commitment and reduces the risk of receiving a non-functional part during a critical maintenance event.
