Foxboro RLY4 T2550S/08R Service-Ready Spare Part for Industrial Maintenance

Foxboro RLY4 T2550S/08R Service-Ready Spare Part for Industrial Maintenance

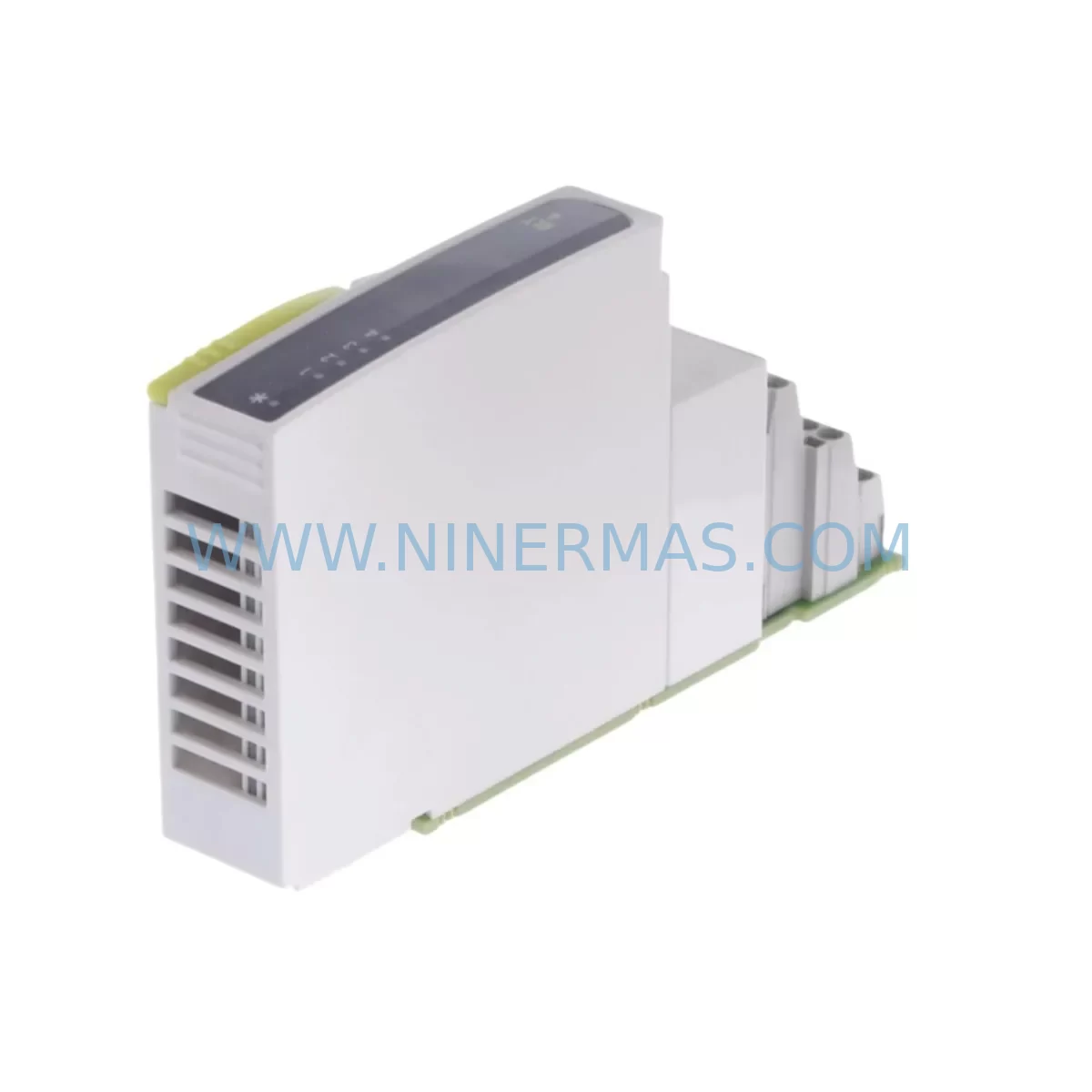

The Foxboro RLY4 T2550S/08R/NONE/L30/ELIN/SERIAL/RJ45 is an 8-channel relay output module designed for the Foxboro I/A Series Distributed Control System (DCS). As a critical discrete output component within the T2550S fieldbus module family, the RLY4 handles relay-driven actuator control, solenoid valve switching, motor starter interlocks, and alarm annunciator outputs across continuous process industries including oil and gas, petrochemical, power generation, and pulp and paper. Maintaining a verified, pre-tested spare of this module is a fundamental requirement for any site operating legacy Foxboro I/A Series control cabinets where unplanned downtime carries significant production and safety risk.

This unit is supplied as an original Foxboro spare part, pre-shipment tested, and backed by a 12-month warranty. It is suitable for direct replacement in existing T2550S baseplate assemblies without requiring software reconfiguration when the module address and configuration database remain intact.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When scheduling replacement of the RLY4 T2550S/08R during a planned or emergency maintenance window, experienced maintenance engineers treat this module as part of a broader discrete output subsystem review. A relay output failure in a Foxboro I/A Series cabinet rarely occurs in isolation — the surrounding components that share the same fieldbus segment, power rail, or wiring termination block are subject to the same environmental stressors and aging cycles.

During the same maintenance window, engineers should inspect and consider stocking the following associated components: the T2550S baseplate carrier that houses the RLY4 module, as worn or corroded module connectors can cause intermittent relay faults that are misdiagnosed as module failures. The FBM (Fieldbus Module) power supply feeding the T2550S segment should be load-tested, as degraded DC bus voltage directly affects relay coil pull-in reliability. The CP60 or CP30 control processor module managing the fieldbus segment should have its firmware revision confirmed for compatibility with the RLY4 configuration block.

Wiring termination integrity is equally critical: the MTL or Foxboro marshalling terminal blocks connected to the relay output wiring should be inspected for loose screws, oxidized contacts, and insulation degradation — particularly in high-vibration or high-humidity environments. The 24 VDC field power distribution fuses supplying the relay load circuits should be verified for correct rating and replaced preventively if they show signs of thermal discoloration. For sites using the RLY4 to drive solenoid valves, the solenoid valve coil resistance should be measured to confirm it falls within the relay contact current rating.

Communication path integrity should also be validated: the RJ45 fieldbus cable and patch panel connections between the T2550S module and the FCP (Fieldbus Communications Processor) should be inspected for bent pins, damaged shielding, and correct cable routing away from high-voltage conductors. If the site uses signal isolators or intrinsic safety barriers on any I/O channels in the same cabinet, their calibration dates should be reviewed as part of the same maintenance cycle. Finally, the Foxboro I/A Series workstation historian and alarm management configuration should be verified to confirm that relay output status tags are correctly mapped and that any forced or inhibited outputs are cleared before returning the loop to automatic control.

Site Replacement Workflow

Replacing the RLY4 T2550S/08R in a live Foxboro I/A Series DCS environment requires a structured approach to minimize loop disruption and confirm system integrity before returning to automatic operation.

Step 1 — Pre-Replacement Preparation: Obtain the current module configuration from the Foxboro Control Configurator (FoxCAE or I/A Series System Configuration) and record all relay output assignments, tag names, and alarm setpoints. Confirm the replacement module’s firmware version matches or is compatible with the existing FCP firmware. Place all affected relay output loops in manual mode at the DCS operator station and notify field operators of the planned maintenance window.

Step 2 — Safe Isolation: De-energize the relay load circuits at the field power distribution panel. Do not rely solely on the DCS output inhibit function for electrical isolation — verify zero voltage at the relay output terminals using a calibrated multimeter before proceeding. Tag out the field power fuses in accordance with site LOTO (Lockout/Tagout) procedures.

Step 3 — Module Removal and Installation: The RLY4 T2550S/08R is a hot-swappable module in most I/A Series configurations, but site-specific safety procedures should always take precedence. Slide the module out of the T2550S baseplate carrier, inspect the carrier connector for damage, and insert the replacement module until the locking tab engages. The DCS should automatically detect the new module and begin downloading the stored configuration from the FCP database within 30–60 seconds.

Step 4 — Functional Verification: From the DCS operator station, confirm that all 8 relay output channels report correct status. Perform a manual output test on each channel by commanding the relay to energize and verifying field device response. Restore field power to the load circuits and confirm correct operation under normal process conditions before returning loops to automatic control.

Step 5 — Documentation: Record the replacement in the site maintenance management system (CMMS) with the new module serial number, installation date, and post-replacement test results. Update the spare parts inventory to trigger reorder of a replacement RLY4 T2550S/08R to maintain minimum stock levels.

Spare Parts Support FAQ

Q1: Is this RLY4 T2550S/08R unit an original Foxboro part or a third-party replacement?
This unit is an original OEM Foxboro spare part sourced through authorized industrial supply channels. It is not a third-party clone or remanufactured substitute. Each unit undergoes pre-shipment functional testing to verify relay contact operation, communication interface integrity, and module self-diagnostics before dispatch.

Q2: What is the recommended inventory strategy for the RLY4 T2550S/08R at a continuous process plant?
For plants operating Foxboro I/A Series DCS with multiple T2550S fieldbus segments, the standard recommendation is to maintain a minimum of one RLY4 spare per 10 installed units, with a floor of two units regardless of installed base size. Sites with critical relay outputs controlling safety-instrumented functions or emergency shutdown sequences should consider a higher ratio. Annual procurement aligned with the plant turnaround schedule ensures spares are available without excessive carrying cost.

Q3: Can the RLY4 T2550S/08R replace older Foxboro relay output modules from earlier I/A Series generations?
Compatibility depends on the baseplate carrier generation and FCP firmware version in use at the site. The T2550S form factor is compatible with T2550S-series baseplates. Sites migrating from earlier FBM generations such as the T2100 or T2150 series will require baseplate replacement as part of the upgrade. Compatibility verification against the site’s specific FCP firmware revision is recommended before procurement — our technical team can assist with compatibility confirmation based on your system configuration details.

Q4: What does the 12-month warranty cover, and what is the process for a warranty claim?
The 12-month warranty covers manufacturing defects, relay contact failure under normal operating conditions, and communication interface faults that arise during the warranty period from the shipment date. It does not cover damage resulting from incorrect installation, overvoltage events, or operation outside the module’s rated environmental conditions. To initiate a warranty claim, contact our technical support team with the module serial number, installation date, fault description, and site DCS alarm logs. Replacement units are dispatched on a priority basis to minimize site downtime.
