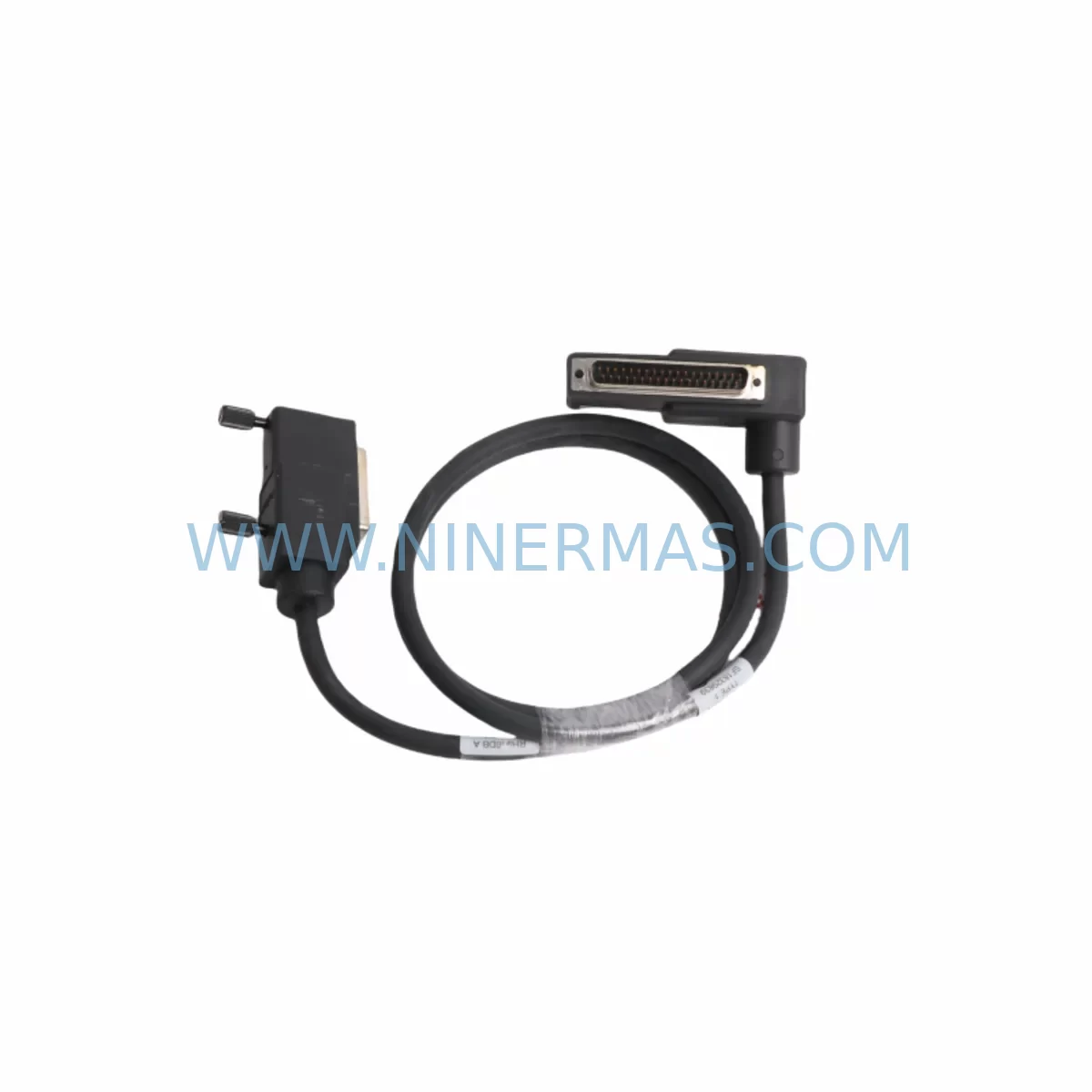

Foxboro RH916DB Retrofit-Compatible Termination Module

Foxboro RH916DB Retrofit-Compatible Termination Cable Module for Legacy Systems

The Foxboro RH916DB is a ruggedized termination cable module engineered for seamless integration into existing Foxboro I/A Series Distributed Control System (DCS) architectures. As aging process plants face the dual challenge of maintaining operational continuity while modernizing control infrastructure, the RH916DB provides a reliable, drop-in compatible solution that bridges legacy field wiring with current-generation FBM (Field Bus Module) hardware — minimizing retrofit risk and protecting decades of installed investment.

Designed for demanding industrial environments including petrochemical complexes, power generation facilities, pulp and paper mills, and continuous process manufacturing, the RH916DB maintains signal integrity across its termination points even under conditions of elevated temperature, mechanical vibration, and high ambient humidity. Its ruggedized construction ensures that field wiring connections remain stable throughout the retrofit process and long into the upgraded system’s operational life.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful retrofit of a Foxboro I/A Series control system begins well before the first cable is disconnected. When replacing the RH916DB termination cable module, engineers must first audit the existing field wiring layout — confirming terminal block assignments, cable shield grounding points, and connector gender to avoid signal reversal or ground loop introduction during the changeover.

In a typical I/A Series cabinet, the RH916DB interfaces directly with Foxboro FBM207 or FBM237 field bus modules mounted on the CP60 or CP270 control processor baseplate. Before removal of the legacy termination assembly, it is essential to document the active channel assignments using the Foxboro IACC (I/A Series Configuration and Control) software or equivalent engineering workstation tools. This ensures that after the RH916DB swap, all I/O channel mappings remain intact without requiring a full database reload.

Power supply integrity is another critical checkpoint. The Foxboro FPS100 or equivalent redundant power supply feeding the FBM rack should be verified for adequate current headroom before adding or replacing termination modules. Voltage sag during module hot-swap can cause transient faults on adjacent FBM204 analog input modules or FBM242 HART communication modules, potentially triggering nuisance alarms in the control room.

For systems incorporating Foxboro 200 Series FBMs alongside the RH916DB, communication link continuity on the Nodebus must be confirmed before and after the swap. A temporary Nodebus repeater or bypass jumper may be required in installations where the termination module also serves as a signal conditioning point for long cable runs exceeding 300 meters.

Where the retrofit scope extends beyond a single module replacement to a broader I/O expansion — for example, adding new measurement points to an existing FBM rack — the RH916DB’s wiring harness design allows incremental field connection without disturbing adjacent live channels. This is particularly valuable in continuous process plants where a full control system shutdown is not operationally feasible.

Signal isolation requirements should also be reviewed. In applications where the field device generates high common-mode voltage or operates in a zone with significant ground potential difference, supplementary signal isolators or galvanic separators installed upstream of the RH916DB termination points will protect both the module and the connected FBM from damage during and after the retrofit.

Finally, all replacement RH916DB units supplied by NINERMAS undergo pre-shipment functional testing, including continuity verification across all termination points and connector integrity checks, ensuring that the module arrives ready for immediate installation without requiring bench testing on-site.

Downtime Control During System Migration

Minimizing unplanned downtime during a Foxboro I/A Series termination module replacement requires a structured migration approach. The first principle is to preserve the original control logic: before any hardware is disturbed, a verified backup of the CP60 or CP270 control processor database — including all FBM channel configurations, PID tuning parameters, and alarm setpoints — must be archived to the engineering workstation. This backup serves as the recovery baseline if any configuration anomaly is detected after the RH916DB swap.

The second principle is staged isolation. Rather than taking an entire FBM rack offline, experienced retrofit teams isolate only the specific FBM and its associated RH916DB termination assembly, placing affected control loops into manual mode at the DCS operator console before disconnecting field wiring. This approach keeps the remainder of the control system fully operational and limits the blast radius of any unexpected issue during the swap.

Cable labeling is non-negotiable. Every field wire connected to the RH916DB must be individually tagged with its channel number, signal type, and engineering unit before removal. Pre-printed cable markers compatible with the existing Foxboro termination panel labeling convention should be prepared in advance. Reconnection errors — particularly on multi-conductor cables serving FBM207 discrete input channels — are among the most common causes of extended post-retrofit commissioning time.

After the new RH916DB is installed and field wiring reconnected, a systematic loop check using a HART communicator or milliamp source/meter confirms signal continuity from the field device through the termination module to the FBM input channel. Only after all channels pass loop verification should the affected control loops be returned to automatic mode. This disciplined sequence typically allows a single FBM termination module replacement to be completed within a planned maintenance window of two to four hours, with zero impact on adjacent control loops.

Retrofit Support FAQ

Q1: Is the Foxboro RH916DB a direct replacement for the original module without wiring changes?
In most I/A Series installations, the RH916DB is a direct drop-in replacement. However, customers should verify the cable connector type (DB-style vs. screw terminal variant) and confirm that the field wiring harness pinout matches the replacement unit’s terminal assignment before installation. NINERMAS technical support can assist with cross-reference verification prior to shipment.

Q2: What pre-shipment testing does NINERMAS perform on the RH916DB?
Every RH916DB unit undergoes full continuity testing across all termination points, connector seating verification, and visual inspection for mechanical damage before dispatch. A test record is available upon request. All units are covered by a 12-month warranty from the date of shipment.

Q3: Can the RH916DB be used in a system that has been partially upgraded to newer Foxboro Evo hardware?
Yes. The RH916DB is compatible with mixed I/A Series and Foxboro Evo environments where legacy FBM racks remain in service alongside newer control hardware. Customers should confirm that the termination assembly’s cable length and connector type are compatible with the specific FBM baseplate in use in their hybrid configuration.

Q4: What is NINERMAS’s lead time and long-term supply commitment for the RH916DB?
NINERMAS maintains stock inventory of the RH916DB to support urgent replacement requirements. Standard lead time for in-stock units is 3–7 business days for international shipment. For customers managing long-term maintenance contracts on Foxboro I/A Series systems, NINERMAS offers blanket order arrangements to guarantee supply continuity for discontinued or hard-to-source spare parts.
