Foxboro P0916TQ FCM2F10 Retrofit-Compatible Fieldbus Module

Foxboro P0916TQ FCM2F10 Retrofit-Compatible Fieldbus Module: Legacy System Compatibility and Smooth Upgrade

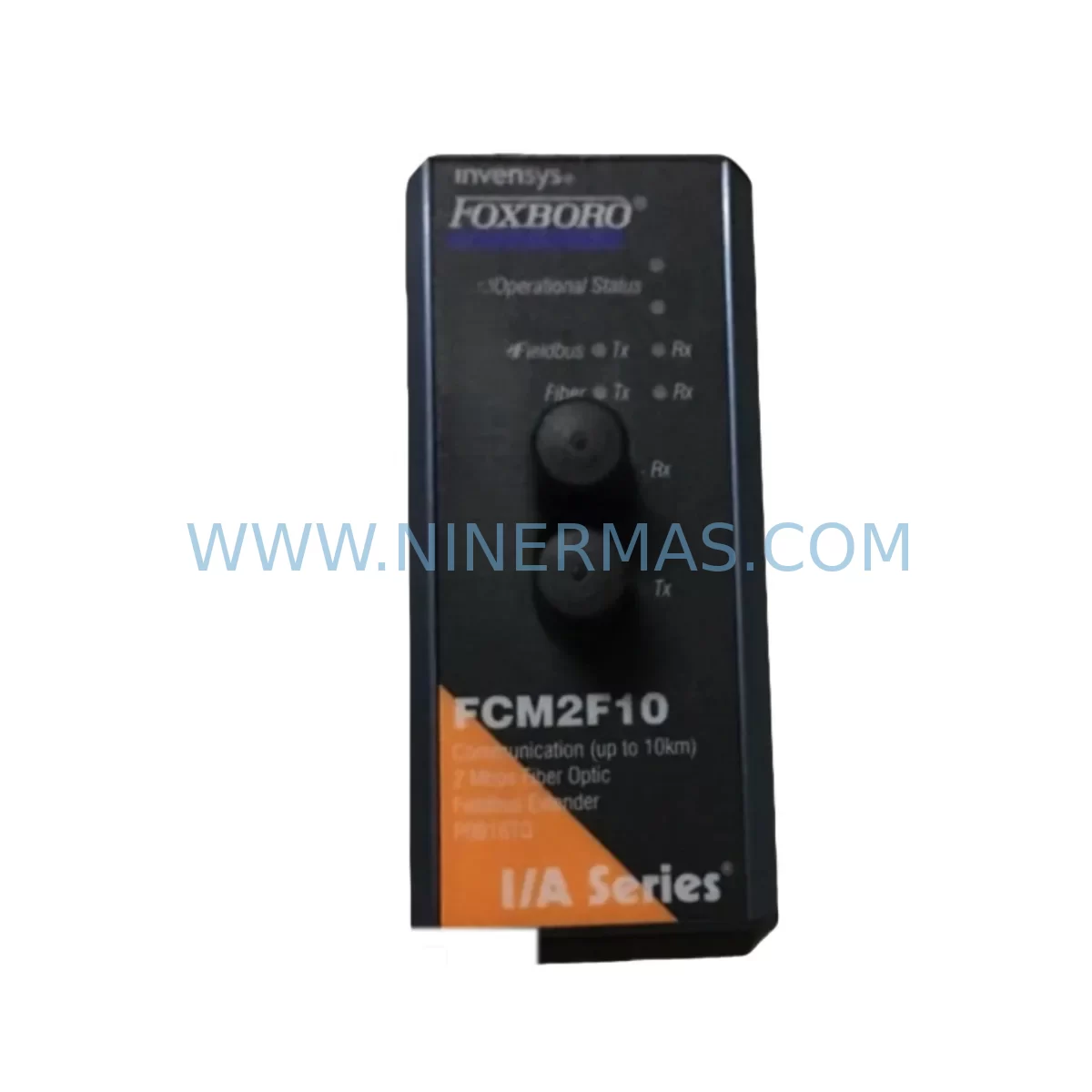

The Foxboro FCM2F10 (part number P0916TQ) is a ruggedized Foundation Fieldbus H1 Communications Module designed for use within the Foxboro I/A Series Distributed Control System (DCS). As legacy automation infrastructure ages and original equipment manufacturers discontinue support for older fieldbus architectures, plant engineers and maintenance teams increasingly rely on verified retrofit-compatible replacements to extend the operational life of their control systems without committing to a full platform migration.

This module serves as a direct retrofit replacement for end-of-life FCM2F10 units installed in Foxboro I/A Series control cabinets. It interfaces with the standard I/A Series baseplate and communicates over Foundation Fieldbus H1 segments, supporting up to 16 field devices per segment at 31.25 kbps. The P0916TQ variant is specifically ruggedized for harsh industrial environments, making it suitable for petrochemical, refining, power generation, and heavy manufacturing applications where ambient temperature extremes, vibration, and electromagnetic interference are common concerns.

When planning a retrofit or spare-part replacement using the FCM2F10 P0916TQ, engineers must carefully evaluate several system-level parameters to ensure a seamless transition with minimal process disruption.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the FCM2F10 P0916TQ into an existing I/A Series control system requires a structured pre-installation assessment. The following considerations apply to most retrofit scenarios encountered in the field.

Power Budget Verification: Before installing the replacement module, audit the power supply capacity of the affected control cabinet. The I/A Series fieldbus infrastructure typically relies on dedicated fieldbus power conditioners — such as the FBM224 or the P0922YU power supply module — to deliver conditioned 24 VDC to H1 segments. Each FCM2F10 draws power from the backplane, and the total load across all populated slots must remain within the rated capacity of the installed power supply. If the cabinet also houses FBM242 analog input modules, FBM207 discrete I/O modules, or FBM230 HART multiplexer modules, the cumulative power draw must be recalculated to confirm headroom.

Backplane and Rack Slot Confirmation: The FCM2F10 P0916TQ occupies a single FBM slot on the I/A Series baseplate. Confirm that the target slot is physically unobstructed and that the backplane connector shows no signs of corrosion or mechanical damage. In multi-rack configurations managed by a CP60 or CP40B controller, verify that the slot address assignment does not conflict with other installed modules such as the P0914YM gateway module or the P0916CW communications interface.

Letterbug and Module Address Assignment: Each FBM in the I/A Series system is identified by a unique letterbug — a physical label that maps to a logical address in the control database. When replacing a failed FCM2F10, the replacement module must be assigned the same letterbug as the original to preserve all existing control block associations. This is performed through the IACC configuration tool or the AW70 workstation. Failure to match the letterbug will result in the controller treating the new module as an unknown device, causing alarm floods and potential process upsets.

H1 Segment Topology and Termination: Foundation Fieldbus H1 segments require exactly two terminators — one at each physical end of the segment cable. Before removing the failed FCM2F10, document the segment wiring topology, including the location of all terminators, junction boxes, and field device connections. After installing the P0916TQ replacement, verify terminator placement using a fieldbus diagnostic tool before energizing the segment. Incorrect termination is one of the most common causes of communication errors following a module swap.

Control Database Backup and Verification: Prior to any module replacement, create a full backup of the I/A Series control database from the AW70 workstation. This backup preserves all function block configurations, PID tuning parameters, alarm setpoints, and interlock logic associated with the H1 segment managed by the FCM2F10. After the replacement module is installed and addressed, perform a database download and verify that all field devices on the segment are communicating correctly. Signal isolators installed between the FCM2F10 and field instruments — such as those used with legacy 4–20 mA HART devices being migrated to fieldbus — should also be verified for correct configuration.

Downtime Control During System Migration

Minimizing unplanned downtime is the primary concern when replacing a failed or end-of-life FCM2F10 in a live production environment. The following practices are recommended to protect process continuity and reduce migration risk.

Hot-Standby and Redundancy Considerations: In I/A Series installations where the FCM2F10 is configured in a redundant pair, the standby module can maintain H1 segment communications while the primary is replaced. Confirm that the redundancy switchover has occurred successfully before removing the failed module. If the system is non-redundant, coordinate the replacement with the process team to schedule a controlled shutdown of the affected loop or unit.

Pre-Staging and Bench Testing: The replacement P0916TQ module should be bench-tested prior to installation. Our pre-shipment functional test verifies backplane communication, H1 segment initialization, and firmware integrity. This reduces the risk of installing a defective unit and extends the effective 12-month warranty period from the date of commissioning.

Preserving Original Program Logic: The FCM2F10 does not store control logic locally — all function blocks reside in the CP60 or CP40B controller. As a result, replacing the communications module does not require any changes to the control program. However, if the replacement is part of a broader migration from an older FBM type to the FCM2F10 platform, the control engineer must verify that all function block types used in the existing database are supported by the new module firmware version.

Post-Installation Commissioning Checklist: After installation, confirm the following before returning the loop to automatic control: letterbug assignment verified in IACC; all H1 field devices visible in the device list; segment diagnostic showing no communication errors; alarm suppression lifted; and process variable readings cross-checked against independent instrumentation. Document the replacement in the plant maintenance management system (CMMS) and update the spare parts inventory to reflect the consumed unit.

Retrofit Support FAQ

Q1: Is the FCM2F10 P0916TQ a direct drop-in replacement for the original Foxboro FCM2F10?
Yes. The P0916TQ is the Foxboro part number for the FCM2F10 ruggedized variant. It is mechanically and electrically compatible with the original module and installs into the same I/A Series FBM slot without any hardware modification. The replacement module must be assigned the same letterbug as the original unit using the IACC configuration tool.

Q2: What pre-shipment testing is performed on the FCM2F10 P0916TQ?
Each unit undergoes a functional burn-in test that verifies backplane communication, H1 segment initialization, power consumption within specification, and firmware version integrity. A test report is available upon request. All units are covered by a 12-month warranty from the date of shipment.

Q3: Can this module be used in a system that also has FBM230 HART multiplexer modules and FBM242 analog input modules?
Yes. The FCM2F10 P0916TQ coexists with other FBM types on the same I/A Series baseplate. The only constraint is the total power budget of the cabinet power supply and the available slot count on the baseplate. Verify that the combined load of all installed modules — including FBM230, FBM242, FBM207, and any signal conditioning modules — does not exceed the rated output of the installed power supply.

Q4: What is the lead time and stock availability for the FCM2F10 P0916TQ?
We maintain inventory of the FCM2F10 P0916TQ to support urgent replacement requirements. Standard lead time for in-stock units is 3–5 business days for international shipment. For critical plant shutdowns or emergency replacements, expedited shipping options are available. Contact our team at sale@ninermas.com or +0086 187 5021 5667 to confirm current stock levels and delivery timelines.
