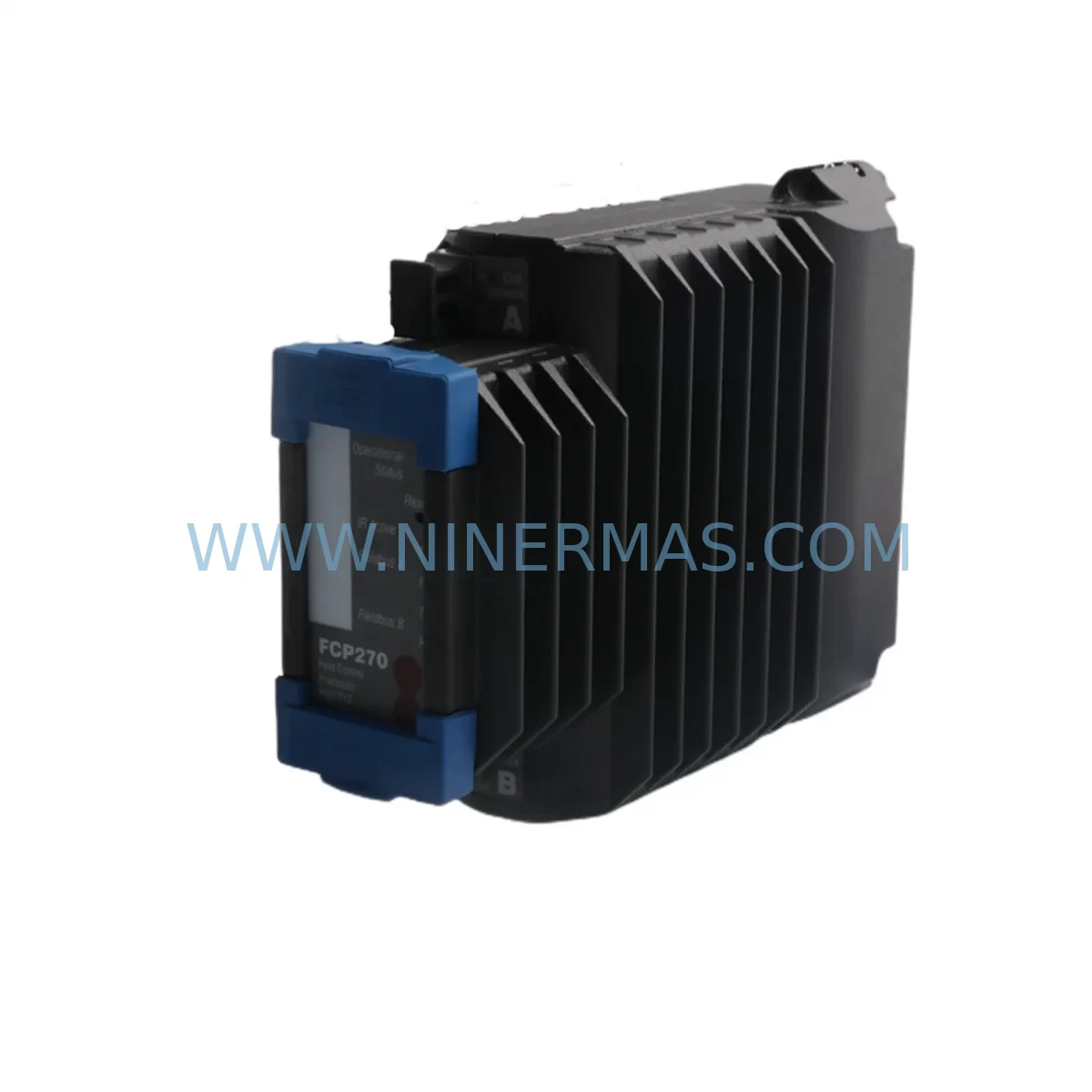

The Foxboro FCP270 P0917YZ is a high-performance Field Control Processor designed for the Foxboro I/A Series Distributed Control System (DCS). As aging I/A Series installations approach end-of-life and original spare parts become increasingly scarce, the FCP270 P0917YZ has become a critical component in plant-wide retrofit programs, legacy control cabinet upgrades, and production line modernization projects across the oil & gas, chemical, power generation, and pulp & paper industries.

NINERMAS maintains verified in-stock inventory of the FCP270 P0917YZ, fully tested and backed by a 12-month warranty. Each unit undergoes pre-shipment functional verification to ensure compatibility with existing I/A Series backplane architectures before leaving our facility.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing an FCP270 P0917YZ in a live I/A Series environment requires careful pre-engineering to avoid unplanned downtime and configuration loss. The retrofit process typically begins with a full audit of the existing control cabinet, including identification of all installed FBM (Fieldbus Module) types — such as the FBM201 for analog input, FBM202 for analog output, and FBM207 for digital I/O — to confirm that the replacement FCP270 will correctly address all downstream I/O points after the module swap.

Power budget verification is a mandatory step. The existing P0922VW or P0926GW power supply modules must be checked to confirm they can sustain the full load of the FCP270 P0917YZ alongside all active FBMs in the same rack. Insufficient power headroom is a common cause of intermittent faults following a module replacement and must be resolved before commissioning.

Terminal wiring and backplane connector integrity should be inspected during the retrofit window. In older I/A Series installations, backplane connectors may show oxidation or mechanical wear that can cause intermittent communication faults between the FCP270 and its associated FBMs. Cleaning or replacing the P0916 baseplate or rack assembly at the same time as the FCP270 swap is a best practice that reduces the risk of repeat failures.

For sites migrating from an older FCP270 P0917XZ or FCP280 P0917DZ, the module address configuration stored in the System Configuration Studio must be exported and validated before the old module is removed. The replacement FCP270 P0917YZ must be assigned the same node address and compound structure to ensure seamless re-integration with the existing control strategy. Any mismatch in compound names or block addresses will prevent the I/A Series data highway from correctly routing process values to the HMI and historian.

Communication link continuity is especially important in multi-drop Nodebus topologies. Before removing the original FCP270, confirm that the Nodebus segment remains operational and that no other processors on the same segment will be affected by the brief interruption. In redundant FCP configurations, the standby module should be promoted to primary before the faulty unit is extracted, preserving control loop continuity throughout the swap.

Sites that also operate Foxboro 761CNA or 873DP field transmitters connected through HART-enabled FBMs should verify that the HART pass-through configuration is preserved after the FCP270 replacement. AMS Device Manager or equivalent asset management software should be used to re-scan the HART network and confirm that all device descriptors are correctly loaded following commissioning.

For control cabinets that include a Foxboro P0400 Workstation or a Sun Microsystems-based I/A Series operator station, the engineering team should confirm that the workstation’s I/A Series software version is compatible with the FCP270 P0917YZ firmware level. Mismatched firmware can cause configuration download failures or unexpected alarm behavior. NINERMAS can provide firmware version documentation upon request to support pre-retrofit compatibility verification.

Where the retrofit scope extends beyond a single FCP270 replacement to include a broader I/O expansion or protocol migration — for example, adding FBM214 PROFIBUS DP modules or FBM237 FOUNDATION Fieldbus H1 modules to an existing rack — the FCP270 P0917YZ’s processing capacity and memory allocation should be reviewed against the expanded I/O count to ensure stable scan cycle performance after the upgrade.

Downtime Control During System Migration

Minimizing production interruption during an FCP270 P0917YZ replacement is achievable with disciplined pre-planning. The most effective approach is to schedule the physical module swap during a planned maintenance window and complete all preparatory steps — configuration backup, power budget verification, wiring inspection, and spare parts staging — in advance so that the actual swap and recommissioning can be completed within a two-to-four-hour window.

Before the maintenance window opens, the full compound and block configuration of the existing FCP270 should be exported from the I/A Series System Configuration Studio and stored on a secure engineering workstation. This backup serves as both a recovery baseline and a reference for post-swap verification. If the replacement FCP270 P0917YZ is being installed into a redundant pair, the switchover to the standby processor should be tested and confirmed before the primary is removed, ensuring that control loops remain in automatic mode throughout the hardware exchange.

Loop controllers that cannot tolerate even brief interruptions — such as those governing fired heaters, compressor anti-surge systems, or reactor temperature control — should be placed in manual mode at the field operator station before the FCP270 is extracted. Clear communication between the control room operator and the field engineer is essential during this phase to prevent process upsets caused by unexpected mode changes.

After the replacement FCP270 P0917YZ is seated and powered, the configuration download should be performed immediately and verified block by block against the pre-swap export. Analog input and output channels should be checked against live field readings to confirm correct scaling and engineering unit conversion. Digital I/O points should be exercised through the HMI to verify correct state mapping before the loops are returned to automatic control.

NINERMAS ships all FCP270 P0917YZ units with a pre-shipment functional test report, reducing the risk of receiving a non-functional module and eliminating the need for bench testing on arrival. Units are available from stock for same-day or next-day dispatch, supporting tight maintenance window schedules.

Retrofit Support FAQ

Q1: Is the FCP270 P0917YZ a direct drop-in replacement for the FCP270 P0917XZ?
In most cases, yes. The P0917YZ is a later hardware revision of the FCP270 platform and is mechanically and electrically compatible with the same I/A Series backplane slots. However, firmware compatibility with the installed version of Foxboro Control Software should be confirmed before installation. NINERMAS can provide the firmware revision of the supplied unit upon request.

Q2: What wiring changes are required when replacing an FCP270 in an existing cabinet?
No field wiring changes are required for a like-for-like FCP270 replacement. All I/O connections are made through the FBM modules on the same backplane, not directly to the FCP270. The only connections to the FCP270 itself are the backplane power and communication bus, which are made through the module’s rear connector when it is seated in the rack.

Q3: How is the replacement unit tested before shipment?
Every FCP270 P0917YZ supplied by NINERMAS undergoes a functional power-on test and communication verification before dispatch. A test report is included with each shipment. The unit is covered by a 12-month warranty against manufacturing defects from the date of invoice.

Q4: Can NINERMAS supply other I/A Series components needed for a broader retrofit project?
Yes. NINERMAS maintains inventory of a wide range of Foxboro I/A Series components, including FBM input/output modules, power supply modules, baseplate assemblies, and communication modules. Contact our technical sales team to discuss your full bill of materials and confirm availability before your maintenance window.
