Foxboro FCM100ET P0926GS Retrofit-Compatible FBM for Legacy Systems

Foxboro FCM100ET P0926GS Retrofit-Compatible Fieldbus Communication Module for Legacy I/A Series DCS Systems

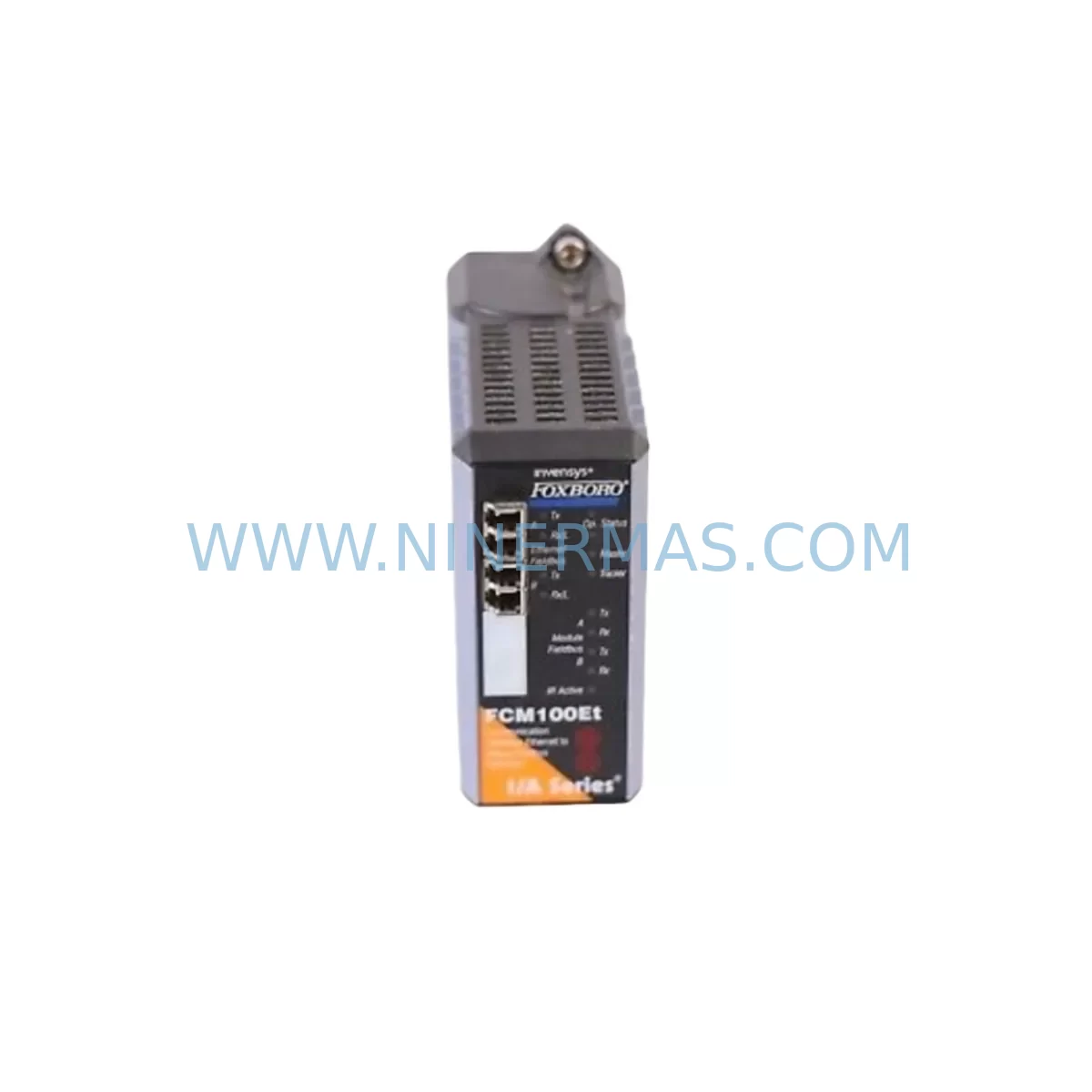

The Foxboro FCM100ET P0926GS is a fieldbus communication module engineered for the Foxboro I/A Series Distributed Control System (DCS). As legacy automation infrastructure ages and original spare parts become increasingly difficult to source, the FCM100ET P0926GS has become a critical component in retrofit projects, control system upgrades, and emergency spare part replacement programs across refineries, chemical plants, power generation facilities, and continuous process industries worldwide.

NINERMAS maintains verified, pre-tested inventory of the FCM100ET P0926GS to support maintenance engineers, system integrators, and procurement teams who require reliable, fast-delivery spare parts for aging Foxboro I/A Series installations. Every unit shipped undergoes functional verification and is covered by a 12-month warranty from the date of delivery.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the FCM100ET P0926GS within an operational I/A Series DCS environment requires careful pre-planning to avoid unplanned process interruptions. The FCM module sits at the heart of the fieldbus communication architecture, bridging the control processor and the field I/O modules distributed across the plant. Before initiating a swap, maintenance teams should audit the full rack assembly to identify co-installed modules that may be affected by a brief communication interruption.

In a typical I/A Series control cabinet, the FCM100ET P0926GS operates alongside FBM (Field Bus Module) I/O modules such as the FBM201, FBM202, FBM204, and FBM207, which handle analog input, analog output, digital input, and digital output signals respectively. These FBM modules communicate upstream through the FCM, so any replacement of the FCM must account for the temporary loss of I/O visibility during the swap window. Engineers should place the associated control loops in manual mode and notify the control room before proceeding.

The control processor — typically a ZCP270 or CP60 — manages the FCM through the Nodebus segment. When replacing the FCM100ET P0926GS, the Nodebus segment address and module slot assignment must be replicated exactly on the replacement unit. This information is stored in the I/A Series system configuration database and should be exported and documented prior to any hardware change. The CP will automatically re-download the module configuration upon detection of the new FCM, provided the hardware address matches.

Power supply integrity is another critical checkpoint. The rack power supply module — such as the P0922VW or a compatible redundant power supply pair — must have sufficient headroom to support the FCM100ET P0926GS alongside all co-resident modules. Verify the total rack current draw against the power supply rating before installation, particularly in high-density racks where I/O expansion has been added over time.

For plants that have extended their I/A Series installations with additional I/O capacity, the FCM100ET P0926GS may also interface with remote I/O enclosures connected via Nodebus extension cables. In these configurations, confirm that the cable termination resistors are correctly installed at both ends of the Nodebus segment to prevent communication errors after the FCM replacement. Signal isolators installed on analog I/O loops should also be verified for correct loop power levels before returning loops to automatic control.

HMI screens connected to the I/A Series system — whether running on Foxboro IACC workstations or third-party SCADA platforms via OPC — should be monitored during the commissioning phase to confirm that all process variables are updating correctly after the FCM replacement. Any stale or frozen displays should be investigated at the Nodebus segment level before declaring the replacement complete.

Programming cables and configuration tools such as the Foxboro IA_CONFIG or FoxView software suite are required for post-replacement verification. Ensure that the engineering workstation has the correct software version installed and that a backup of the control database has been taken before the maintenance window begins.

Downtime Control During System Migration

Minimizing downtime during an FCM100ET P0926GS replacement is achievable with disciplined pre-work. The recommended approach is to schedule the swap during a planned maintenance window, pre-stage the replacement module with the correct hardware address settings, and prepare a rollback plan in case the replacement unit does not initialize correctly.

Before removing the existing FCM100ET P0926GS, place all control loops served by the affected Nodebus segment into manual mode. This protects the process from responding to stale or lost I/O signals during the swap. Document the current process values for all critical loops so that operators can maintain manual control at the correct setpoints during the transition.

The physical swap of the FCM module typically takes less than five minutes. The majority of the downtime window is consumed by pre-swap preparation and post-swap verification. Once the replacement FCM100ET P0926GS is seated in the rack, the control processor will detect the new module and begin the configuration download automatically. Monitor the module status LEDs and the system diagnostic display to confirm successful initialization before returning loops to automatic control.

If the system uses redundant FCM modules for high-availability configurations, the replacement can often be performed without placing loops in manual mode, as the redundant FCM maintains communication continuity during the swap. Confirm the redundancy configuration in the system documentation before relying on this approach.

NINERMAS ships all FCM100ET P0926GS units with pre-shipment functional testing documentation, reducing the risk of receiving a non-functional module and extending the downtime window unexpectedly. Units are dispatched from verified inventory with full traceability records.

Retrofit Support FAQ

Q1: Is the FCM100ET P0926GS a direct drop-in replacement for other FCM variants in the I/A Series?
The FCM100ET P0926GS is designed for specific slot and Nodebus segment configurations within the I/A Series rack. While it shares the same physical form factor as other FCM variants, the hardware address and firmware version must be verified against the existing system configuration before installation. NINERMAS technical support can assist with compatibility verification based on your system software version and rack layout.

Q2: Has the FCM100ET P0926GS been tested before shipment?
Yes. Every FCM100ET P0926GS unit shipped by NINERMAS undergoes functional pre-shipment testing to verify communication initialization, backplane interface integrity, and module self-diagnostics. Test records are available upon request and accompany each shipment.

Q3: What is the warranty coverage for the FCM100ET P0926GS?
NINERMAS provides a 12-month warranty from the date of delivery, covering functional failure under normal operating conditions. The warranty does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. Warranty claims are processed directly through NINERMAS with a target response time of one business day.

Q4: Can NINERMAS supply related I/A Series components to support a broader retrofit project?
Yes. NINERMAS maintains inventory of a wide range of Foxboro I/A Series components including FBM I/O modules, control processors, rack power supplies, Nodebus cables, and HMI workstation hardware. Contact our team with your full bill of materials and we will confirm availability and lead times for all required components.
