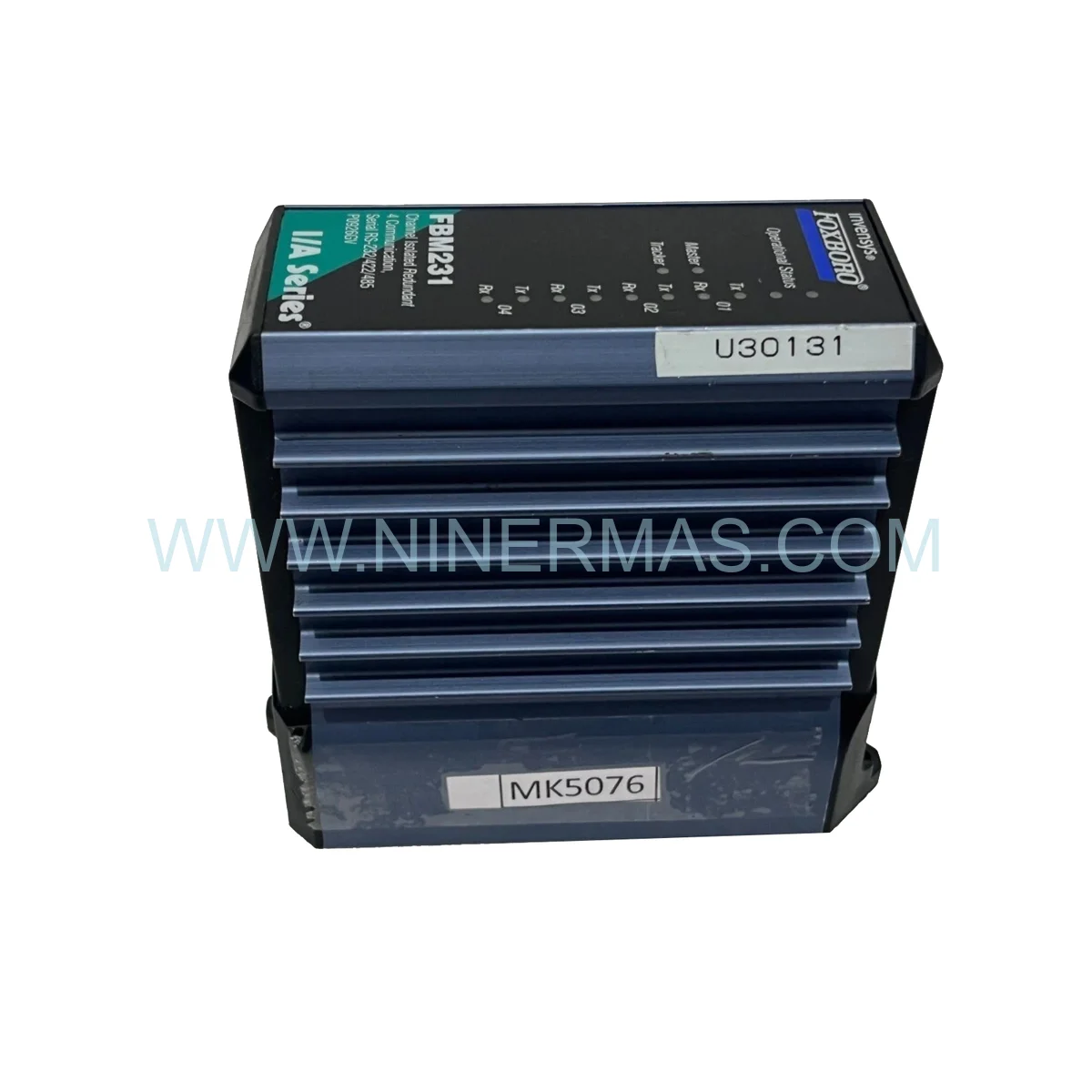

Foxboro FBM231 P0926GV FDSI Module — New & Original in Stock

Foxboro FBM231 P0926GV | Reliable Automation Component for Mission-Critical Systems

Field Application & Operational Analysis

From the perspective of a Site Reliability Engineer managing continuous-process facilities, the Foxboro FBM231 P0926GV represents a cornerstone of system availability strategy. This Field Device System Integrator (FDSI) module bridges legacy serial instruments and third-party field devices into the Foxboro I/A Series distributed control architecture — eliminating communication gaps that would otherwise compromise uptime in refinery, chemical, and power generation environments. The FBM231 P0926GV delivers four independently configurable RS-232/RS-485 serial ports, enabling simultaneous multi-protocol polling across HART, Modbus RTU, and proprietary ASCII device networks without cross-channel interference.

Durability under adversarial conditions is non-negotiable on the plant floor. Rated for operation from -40°C to +70°C with 1500V optical isolation per channel, this module withstands high-EMI zones adjacent to variable-frequency drives, switchgear rooms, and heavy motor loads. Installation teams should observe proper cable shielding practices — shielded twisted-pair terminated at a single ground point — to preserve signal integrity at extended RS-485 cable runs. Chassis seating must be confirmed with positive latch engagement before energizing to avoid intermittent contact faults that mimic protocol errors.

For Operational Excellence programs targeting zero unplanned downtime, maintaining at least one spare FBM231 P0926GV in bonded inventory is a recognized best practice. As a hot-swappable module within the FBM chassis, replacement can be executed during live operations, reducing mean time to restore (MTTR) to under 15 minutes when a pre-configured spare is on hand.

Key Operational Features

Quad-Port Serial Architecture — 4 — RS-232/RS-485 channels, each independently configurable for protocol and baud rate (300-38,400 bps)
Multi-Protocol Support — Native HART, Modbus RTU, ASCII, and proprietary serial protocol handling for seamless System Integration
High Availability Design — Hot-swappable module replacement with zero-shutdown maintenance capability
Robust Isolation — 1500V optical isolation per channel for Redundancy against ground loops and transient surges
Wide Thermal Envelope — -40°C to +70°C operating range for harsh industrial deployment
Certified Compliance — UL, CSA, CE, ATEX Zone 2, IECEx for global hazardous-area installations
Real-Time Diagnostics — Port-level error counters and communication health metrics via I/A Series operator interface
Process Optimization Ready — Supports integration of analyzers, flow computers, and vibration monitors for closed-loop control strategies

Maintenance & Performance Benchmarks

The FBM231 P0926GV is engineered to scale across industrial network architectures ranging from small skid-mounted systems to enterprise-wide DCS networks spanning multiple process units. In compact installations, a single module can consolidate four legacy serial instruments onto one chassis slot, reducing wiring complexity and I/O Module count. In large-scale architectures, multiple FBM231 units operate in parallel within the same FBM chassis, each independently managed by the Fieldbus Module Manager (FMM) — enabling granular per-port diagnostics without impacting adjacent channels.

Performance benchmarks confirm sustained throughput at 38,400 bps per port under continuous polling cycles with no packet loss in controlled EMI environments. For I/O Modules operating in high-noise zones, reducing baud rate to 9,600 bps extends RS-485 cable reach to 1,200 meters while maintaining >99.9% message integrity. Firmware revision management is handled through standard FMM procedures; always validate firmware compatibility against the active I/A Series software baseline before deployment to avoid configuration drift.

Preventive maintenance intervals recommended by field reliability data: inspect chassis connector pins every 24 months, verify optical isolation resistance annually using a 500V megohmmeter, and audit communication error logs quarterly to detect early-stage cable degradation before it escalates to module replacement events.

Comprehensive Data Sheet

Professional Logistics & Sourcing Excellence

Every FBM231 P0926GV unit dispatched from our facility ships in Original Factory Packaging with full traceability documentation — including manufacturer date codes and batch records — to support your incoming inspection and asset management protocols. For urgent plant recovery scenarios, same-day dispatch is available on confirmed in-stock units when orders are placed before the daily cut-off window; contact our logistics team to verify real-time availability.

Our global sourcing network specializes in End-of-Life (EOL) and Legacy Module supply for Foxboro I/A Series platforms, ensuring procurement continuity for facilities operating extended asset lifecycles beyond OEM support windows. Shipments are routed via DHL Express, FedEx International Priority, and UPS Worldwide Expedited — with full customs documentation, commercial invoices, and HS code classification provided to minimize clearance delays at destination ports. Export compliance screening is performed on every order in accordance with applicable trade regulations.

Engineering Support & FAQ

Q1: What is the correct installation sequence for the FBM231 P0926GV in a live I/A Series chassis?
A: Confirm the chassis slot is powered and the FMM is online. Slide the module into the designated slot until the latch clicks positively. The FMM will auto-detect the module within 30-60 seconds. Assign the module address via FMM, then download the pre-configured port settings. Verify communication status on each port before releasing the loop to automatic control.

Q2: Which firmware versions are compatible with current I/A Series software releases?
A: Firmware compatibility is tied to the I/A Series software baseline. Cross-reference the FBM231 firmware revision against the Foxboro Software Compatibility Matrix (SCM) document for your installed I/A Series version. Upgrading firmware without SCM validation risks configuration incompatibility. Contact our technical team for guidance on specific version pairings.

Q3: Can the FBM231 P0926GV simultaneously run different protocols on each of its four ports?
A: Yes. Each port is independently configured within FMM, allowing Port 1 to run Modbus RTU, Port 2 to run HART, and Ports 3-4 to handle proprietary ASCII protocols concurrently. There is no cross-port protocol dependency.

Q4: How is the 12-month warranty claim process initiated?
A: Submit a warranty claim by contacting sale@ninermas.com with your order reference, module serial number, and a description of the observed fault. Our technical team will issue an RMA number within one business day. Defective units are evaluated within 5 business days of receipt; replacement or repair is dispatched with priority freight at no additional cost.

Q5: What diagnostic steps should be taken if a port shows persistent communication errors?
A: First, review the FMM error log for the specific port — distinguish between framing errors (baud rate mismatch), timeout errors (device offline), and CRC errors (cable noise). Verify cable shielding continuity and ground termination. Test with a known-good device on the suspect port. If errors persist after cable verification, perform an optical isolation resistance test; values below 1MΩ indicate channel degradation requiring module replacement.

Q6: Is the FBM231 P0926GV suitable for ATEX Zone 2 hazardous area installation?
A: The module carries ATEX Zone 2 and IECEx certification, confirming suitability for installation in areas where flammable atmospheres may occasionally be present. Ensure the FBM chassis enclosure and associated wiring practices comply with the applicable ATEX installation standard (EN 60079-14) for your facility classification.
