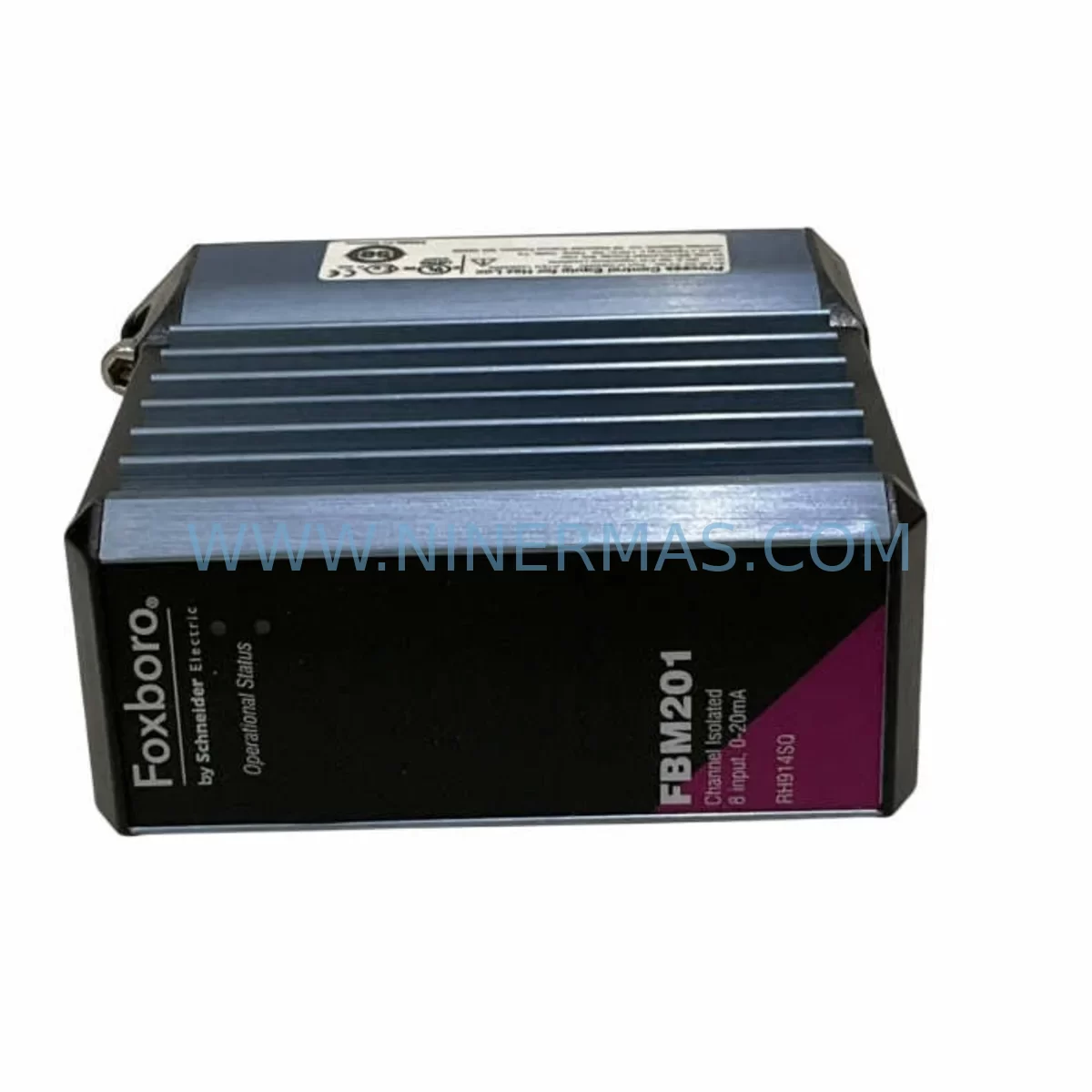

The Foxboro FBM201 RH914SQ is an original-grade spare interface module engineered for continuous operation within Foxboro’s FBM200 Series Distributed Control System (DCS) architecture. Designed to meet the demanding requirements of process industries — including oil & gas, petrochemical, power generation, and chemical manufacturing — this module serves as a critical field bus interface component that bridges field instrumentation with the I/A Series control infrastructure.

For maintenance engineers managing aging DCS installations, the FBM201 RH914SQ represents a high-priority spare. Its role in signal conditioning, field device communication, and I/O marshalling makes it a single point of failure risk if not held in reserve. Procurement engineers sourcing long-lifecycle spare parts for Foxboro systems will find this module essential for sustaining uptime commitments and avoiding costly emergency procurement delays.

Every unit shipped by NINERMAS undergoes pre-shipment functional verification, ensuring compatibility confirmation before dispatch. Backed by a 12-month warranty, this spare part supports both immediate breakdown recovery and planned annual maintenance cycles.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

When replacing the FBM201 RH914SQ during a scheduled outage or emergency breakdown, a disciplined site inspection of the surrounding control cabinet is essential to prevent repeat failures and ensure full system restoration. Maintenance engineers should treat this replacement as an opportunity to audit the broader I/O and power infrastructure.

Begin by inspecting the FBM200 Series baseplate for corrosion, loose seating contacts, or mechanical damage — a degraded baseplate can cause intermittent faults even after a module swap. Verify the Foxboro CP60 or CP270 controller module firmware version to confirm compatibility with the replacement FBM201 variant, as firmware mismatches can cause communication dropouts post-installation.

Check the 24VDC field power supply feeding the FBM rack — voltage sag or ripple above tolerance is a common root cause of FBM module failures. If the power supply is original to the installation, consider stocking a replacement unit such as a Foxboro FPS-24 or equivalent DIN-rail 24VDC supply as a parallel spare. Inspect all field wiring terminal blocks on the marshalling panel for loose connections, oxidation, or insulation breakdown, particularly on analog input channels where signal integrity is critical.

For systems using FOUNDATION Fieldbus or HART communication, verify that the field segment conditioner and HART multiplexer are functioning correctly — a failed segment conditioner can be misdiagnosed as an FBM module fault. Review the I/O signal isolators on high-noise circuits; degraded isolators introduce ground loops that accelerate module wear.

During annual maintenance cycles, include the Foxboro FBM207 or FBM237 modules in the same inspection sweep if they share the same baseplate or power rail — these modules operate under similar thermal and electrical stress profiles. Inspect DIN-rail mounted fuse holders and blade fuses on the 24VDC distribution bus; a blown fuse on a shared rail can cause cascading FBM faults that are difficult to trace without a systematic power audit.

For facilities running legacy Foxboro I/A Series systems beyond their original design life, a proactive spare parts program should include the FBM201 RH914SQ alongside related components: FBM202, FBM204, and FBM211 modules for analog and digital I/O coverage, ZCP270 communication processors for redundancy, and Foxboro P0916SA or equivalent ribbon cables for baseplate interconnection. Maintaining a minimum of one cold-standby unit per critical FBM type reduces mean time to repair (MTTR) from days to hours.

Control cabinet inspections should also verify the condition of surge protection devices (SPDs) on field cable entries — unprotected cabinets in outdoor or exposed installations are vulnerable to transient damage that can destroy FBM input circuits. Replace any SPD showing signs of thermal discoloration or mechanical damage as part of the same maintenance window.

Site Replacement Workflow

Step 1 — Pre-Replacement Verification: Confirm the replacement FBM201 RH914SQ part number matches the installed unit exactly. Cross-reference the baseplate slot assignment in the Foxboro system configuration database (SCD) to ensure the correct I/O block mapping is preserved after swap.

Step 2 — Safe Isolation: Follow site-specific LOTO (Lockout/Tagout) procedures. For non-redundant FBM installations, coordinate with the control room to place affected loops in manual mode before removal. For redundant configurations, verify the standby module is active before removing the primary.

Step 3 — Module Removal and Inspection: Remove the FBM201 from the baseplate and inspect the connector pins for damage or contamination. Clean the baseplate slot contacts with approved contact cleaner if oxidation is present.

Step 4 — Installation and Seating: Insert the replacement FBM201 RH914SQ firmly into the baseplate slot until the locking latch engages. Verify the module status LED sequence matches the expected power-on behavior per the Foxboro FBM200 Series hardware manual.

Step 5 — System Verification: From the Foxboro AIM historian or DCS operator station, confirm all I/O points associated with the replaced module return to normal scan status. Check for any BAD or UNCERTAIN quality tags and resolve field wiring issues before returning loops to automatic control.

Step 6 — Documentation: Record the replacement in the site maintenance management system (CMMS) with the new module serial number, installation date, and post-replacement test results. Update the spare parts inventory to trigger reorder of the consumed unit.

Spare Parts Support FAQ

Q1: Is the FBM201 RH914SQ compatible with all Foxboro I/A Series baseplate configurations?
The FBM201 RH914SQ is designed for the FBM200 Series baseplate architecture used in Foxboro I/A Series DCS installations. Compatibility depends on the specific baseplate model and system software revision. We recommend providing your system configuration details to our technical team for confirmation before ordering.

Q2: What pre-shipment testing is performed on this spare part?
Every FBM201 RH914SQ unit shipped by NINERMAS undergoes functional verification testing prior to dispatch. This includes power-on self-test confirmation and visual inspection of connector integrity. A test report is available upon request for quality-critical procurement requirements.

Q3: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or environmental exposure beyond the module’s rated specifications. Warranty claims are processed with full technical support from our team.

Q4: Can NINERMAS support long-term supply agreements for the FBM201 RH914SQ?
Yes. NINERMAS specializes in long-lifecycle spare parts programs for legacy DCS and PLC systems. We support blanket purchase orders, consignment stock arrangements, and multi-year supply commitments for critical spare parts including the FBM201 RH914SQ. Contact our procurement team to discuss volume pricing and lead-time guarantees.
