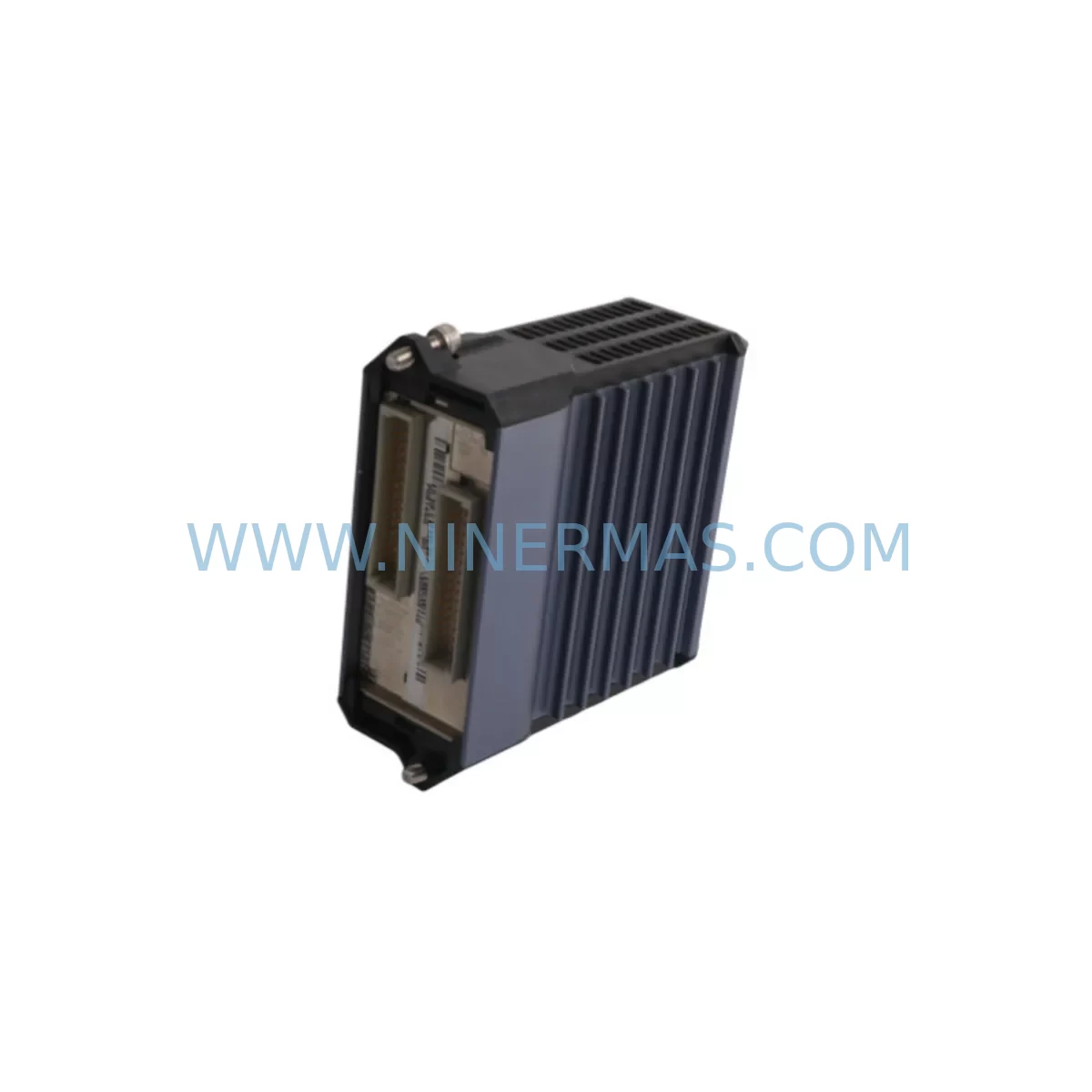

Foxboro FBM201 P0914SQ Retrofit-Compatible Analog Input Module

Foxboro FBM201 P0914SQ Retrofit-Compatible Analog Input Module for Legacy Systems

The Foxboro FBM201 P0914SQ is a high-density analog input module designed for use within the Foxboro Distributed Control System (DCS) platform, specifically the I/A Series and Evo control architecture. As a critical component in legacy automation environments, the FBM201 P0914SQ provides reliable analog signal acquisition for process variables including temperature, pressure, flow, and level measurements across a wide range of industrial applications in petrochemical, oil and gas, power generation, and pharmaceutical manufacturing sectors.

With the Foxboro FBM201 now classified as a discontinued or end-of-life module by the original manufacturer, procurement teams and control system engineers face increasing pressure to source verified replacement units that maintain full backward compatibility with existing I/A Series control cabinets, backplane assemblies, and fieldbus communication infrastructure. NINERMAS COMPANY LIMITED maintains a dedicated inventory of the FBM201 P0914SQ to support long-term spare parts programs, emergency replacement requirements, and planned retrofit projects. Each unit undergoes pre-shipment functional testing and is covered by a 12-month warranty from the date of delivery.

The FBM201 P0914SQ integrates directly into the standard Foxboro FBM baseplate and communicates over the Nodebus or Fieldbus Module Bus (FMB) depending on the system configuration. Engineers replacing a failed or aging FBM201 should verify the baseplate slot assignment, module address configuration, and the associated control block definitions within the Foxboro Control Configurator or FoxCAE environment before installation. Compatibility with the existing FCP270 or CP60 field control processor must also be confirmed to ensure seamless signal handoff without requiring program logic modifications.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the FBM201 P0914SQ within an operational Foxboro I/A Series system requires careful pre-engineering to avoid unplanned process interruptions. The retrofit process typically begins with a full audit of the existing control cabinet layout, including the identification of all occupied baseplate slots, the current module address assignments, and the power distribution architecture within the cabinet. Engineers should document the existing FBM201 wiring connections at the marshalling panel before any physical removal takes place.

In systems where the FBM201 P0914SQ shares a baseplate with other active modules such as the FBM202 analog output module or the FBM203 pulse input module, care must be taken to avoid disturbing adjacent module connections during the swap. The FBM204 and FBM207 modules, which handle thermocouple and RTD inputs respectively, are commonly installed in the same control cabinet and may share the same fieldbus segment. Any disruption to the bus communication during module replacement can affect the entire segment, so isolation procedures must be followed in accordance with the site’s management of change (MOC) protocol.

Power supply capacity is a critical consideration during any FBM retrofit. The Foxboro P0916JA power supply module, commonly used in I/A Series cabinets, must have sufficient headroom to support the replacement FBM201 without exceeding the rated output current. In older installations, the power supply may already be operating near its capacity limit, particularly in cabinets that have been expanded over time with additional I/O modules. A load calculation should be performed before the replacement module is installed.

Communication link integrity must also be verified. In systems using the FBM230 PROFIBUS interface module or the FBM211 serial communication module for integration with third-party devices, the Nodebus segment carrying the FBM201 signals must remain stable throughout the replacement process. The P0914YM termination assembly and associated fieldbus cabling should be inspected for wear or corrosion, particularly in installations that have been in service for more than ten years.

HMI screen updates may be required if the replacement FBM201 P0914SQ is associated with display tags in the Foxboro IACC or FoxView operator interface. Tag database consistency between the control processor and the HMI server should be confirmed after module installation and before returning the loop to automatic control. In systems using the FBM214 DeviceNet interface or the FBM217 Foundation Fieldbus module for smart transmitter integration, the device descriptor files and function block configurations should be backed up before any physical changes are made to the cabinet.

Downtime Control During System Migration

Minimizing process downtime during an FBM201 P0914SQ replacement is achievable through disciplined pre-planning and the use of hot-swap procedures where the system architecture permits. Foxboro I/A Series systems support module replacement under power in many configurations, allowing the new FBM201 to be inserted into the baseplate while the control processor continues to execute the control strategy. However, the specific behavior during hot-swap depends on the firmware version of the field control processor and the configuration of the associated control blocks.

Before initiating the physical replacement, the control engineer should place all affected control loops into manual mode at the operator station. This prevents the control processor from acting on stale or invalid input values during the brief period when the module is being removed and reinserted. The FoxCAE or Control Configurator database should be used to confirm that all control blocks associated with the FBM201 channels are in a safe state before proceeding.

Once the replacement FBM201 P0914SQ is installed and the module has completed its self-diagnostic sequence, the engineer should verify that all 16 input channels are reading correctly against known process values or calibrated signal sources. Any discrepancy in channel readings should be investigated before returning loops to automatic control. The original program logic, including scaling parameters, alarm limits, and engineering unit conversions, should be preserved without modification during the replacement process. NINERMAS provides pre-shipment test documentation for each FBM201 P0914SQ unit, which can be used as a baseline reference during commissioning.

For sites with strict change management requirements, a parallel testing approach can be used where the replacement module is validated in a test rack using the P0914SQ baseplate assembly before being transferred to the live cabinet. This approach eliminates uncertainty about module behavior and reduces the risk of extended downtime due to unexpected compatibility issues.

Retrofit Support FAQ

Q: Is the FBM201 P0914SQ a direct drop-in replacement for the original Foxboro FBM201 module?
A: Yes. The FBM201 P0914SQ is designed as a direct replacement for the original Foxboro FBM201 analog input module. It is compatible with the standard Foxboro FBM baseplate and communicates using the same Nodebus or FMB protocol. No hardware modifications to the cabinet or baseplate are required. Engineers should verify the module address configuration and control block assignments in the Foxboro Control Configurator before installation to ensure a seamless transition.

Q: What pre-shipment testing is performed on the FBM201 P0914SQ before delivery?
A: Each FBM201 P0914SQ unit supplied by NINERMAS undergoes functional testing prior to shipment. Testing includes power-on self-diagnostics, channel-level signal verification across the full input range, and communication bus integrity checks. A test report is available upon request. All units are covered by a 12-month warranty from the date of delivery, providing assurance of module performance in the field.

Q: How should field wiring be handled during the FBM201 replacement process?
A: Existing field wiring connected to the marshalling terminal blocks associated with the FBM201 P0914SQ should not require modification during a like-for-like replacement. Engineers should document the existing terminal assignments against the loop drawings before removing the original module. After installing the replacement FBM201, each field circuit should be verified for continuity and correct signal level before the associated control loops are returned to service.

Q: What is the lead time and inventory availability for the FBM201 P0914SQ?
A: NINERMAS maintains reserved inventory of the FBM201 P0914SQ to support both emergency replacement and planned maintenance programs. Standard lead time for in-stock units is 3–7 business days depending on destination. For customers with ongoing spare parts requirements, long-term supply agreements with reserved stock allocation are available. Contact our technical sales team at sale@ninermas.com or +0086 187 5021 5667 to confirm current availability and discuss supply program options.
