Foxboro CP60 P0961FR Service-Ready Spare Part for Industrial Maintenance

Foxboro CP60 P0961FR Service-Ready Spare Part for Industrial Maintenance

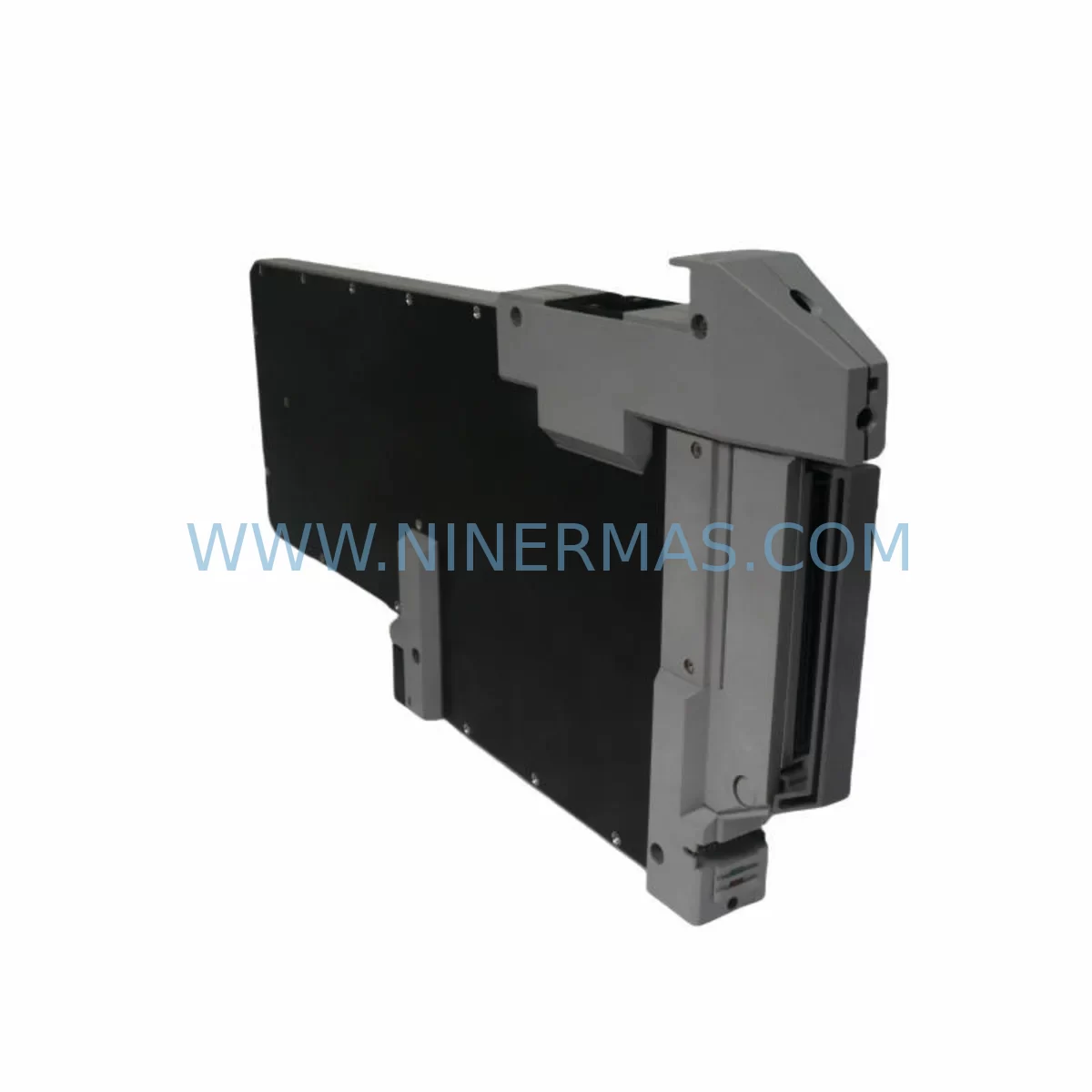

The Foxboro CP60 P0961FR is an original control processor module designed for the Foxboro I/A Series Distributed Control System (DCS). As a critical component in process automation environments — including oil & gas, chemical processing, power generation, and pulp & paper — the CP60 P0961FR serves as the computational backbone of field control stations (FCS). When this module fails or degrades, the consequences can range from process upsets to full production shutdowns. Sourcing a verified, service-ready replacement from a reliable spare parts supplier is the fastest path to restoring normal operations.

At NINERMAS, every Foxboro CP60 P0961FR unit is inspected, function-tested, and shipped with a 12-month warranty. We maintain long-term inventory of I/A Series components to support both emergency breakdown replacements and planned annual maintenance programs. Whether you are a maintenance engineer responding to an unplanned outage or a procurement engineer building a strategic spare parts buffer, we provide the supply continuity and technical confidence your operation demands.

Spare Maintenance Table

Maintenance Planning for Continuous Operation

Replacing the Foxboro CP60 P0961FR is rarely an isolated task. In a well-structured I/A Series field control station, the CP60 processor works in close coordination with several other modules and subsystems. A thorough maintenance plan — whether triggered by an emergency fault or scheduled during a planned turnaround — should account for the health and compatibility of all adjacent components.

Begin with the FCS power supply modules (such as the Foxboro P0922VW or equivalent redundant power units). A degraded power supply is one of the most common root causes of processor instability and should be inspected or replaced alongside the CP60. Next, verify the condition of the I/O baseplate and I/O modules — including analog input modules (e.g., FBM201, FBM202) and digital I/O modules (e.g., FBM207, FBM237) — since a failing processor may have masked underlying I/O faults that will surface after the CP60 is restored.

Check the Nodebus communication cables and terminators connecting the FCS to the plant network. Degraded cable shielding or loose termination resistors can cause intermittent communication errors that are often misdiagnosed as processor failures. Similarly, inspect the Foxboro AW70 or AW51 application workstation connectivity to ensure the replacement CP60 is recognized correctly on the network after commissioning.

For sites running redundant CP60 configurations, confirm that the redundancy cable (P0914YS or equivalent) is intact and that the standby processor module is also within its service life. A redundant pair where one unit is already aged significantly increases the risk of a simultaneous dual failure during high-load periods.

Do not overlook the FCS chassis backplane. Backplane connector pins can oxidize over years of service, causing intermittent seating issues that mimic processor faults. Clean and inspect the backplane before installing the replacement CP60. Additionally, review the status of any signal isolators or intrinsic safety barriers in the field wiring loops connected to this FCS — these components protect the I/O modules and can degrade silently over time.

Finally, if the plant uses Foxboro HART pass-through or fieldbus segment couplers connected to this FCS, verify their firmware compatibility with the replacement CP60 firmware version. Mismatched firmware between the processor and fieldbus interface modules is a known source of post-replacement communication instability in I/A Series systems.

Site Replacement Workflow

Step 1 — Pre-replacement preparation: Download and archive the current CP60 configuration using Foxboro Control Software (FCS configuration tool). Confirm the replacement P0961FR firmware version matches or is compatible with the existing system baseline. Notify the control room of the planned replacement window.

Step 2 — Safe isolation: In a non-redundant FCS, transfer control loops to manual mode at the DCS operator station before removing the processor. In a redundant configuration, initiate a controlled switchover to the standby CP60 and confirm the standby has assumed control before proceeding.

Step 3 — Module removal and installation: Follow Foxboro’s ESD precautions. Remove the faulty CP60 P0961FR from the FCS chassis. Inspect the backplane slot for debris or pin damage. Seat the replacement module firmly and verify the locking mechanism is engaged.

Step 4 — Commissioning and verification: Power up the FCS and monitor the CP60 status LEDs. Confirm the module boots successfully and re-establishes Nodebus communication. Verify all I/O points report correctly at the operator workstation. Return control loops to automatic mode incrementally, monitoring process variables for stability.

Step 5 — Documentation: Record the replacement date, new module serial number, and firmware version in the plant maintenance management system (CMMS). Update the spare parts inventory to trigger reorder of a replacement buffer unit.

Spare Parts Support FAQ

Q1: Is the Foxboro CP60 P0961FR still available as a new original part?
The Foxboro I/A Series has transitioned to end-of-active-production status under Schneider Electric’s lifecycle management. However, NINERMAS maintains verified original stock of the CP60 P0961FR sourced from authorized channels. Each unit is individually tested before shipment to confirm full operational readiness. We support long-term supply continuity for plants committed to extending the service life of their I/A Series systems.

Q2: How do I confirm compatibility between the replacement CP60 P0961FR and my existing FCS configuration?
Compatibility depends on the FCS hardware revision, firmware baseline, and I/A Series software version running on your application workstations. Provide us with your existing CP60 part number suffix, firmware label, and I/A Series software release, and our technical team will confirm compatibility before shipment. We recommend requesting a pre-shipment test report for critical applications.

Q3: What does the 12-month warranty cover for the CP60 P0961FR?
Our 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. If the module fails within the warranty period, we provide a replacement unit at no additional cost, including expedited shipping for emergency situations. The warranty does not cover damage caused by incorrect installation, overvoltage events, or physical mishandling on site.

Q4: How should we manage CP60 P0961FR inventory for a multi-FCS plant?
For plants operating three or more I/A Series FCS units, we recommend maintaining a minimum of one CP60 P0961FR as a hot-spare in the control room. For plants with redundant FCS configurations, a single spare is typically sufficient given the built-in redundancy. For older plants where the CP60 population is aging beyond 10 years, consider holding two units to cover the increased probability of concurrent failures during peak production periods. NINERMAS offers reserved stock agreements for high-volume customers requiring guaranteed availability.
