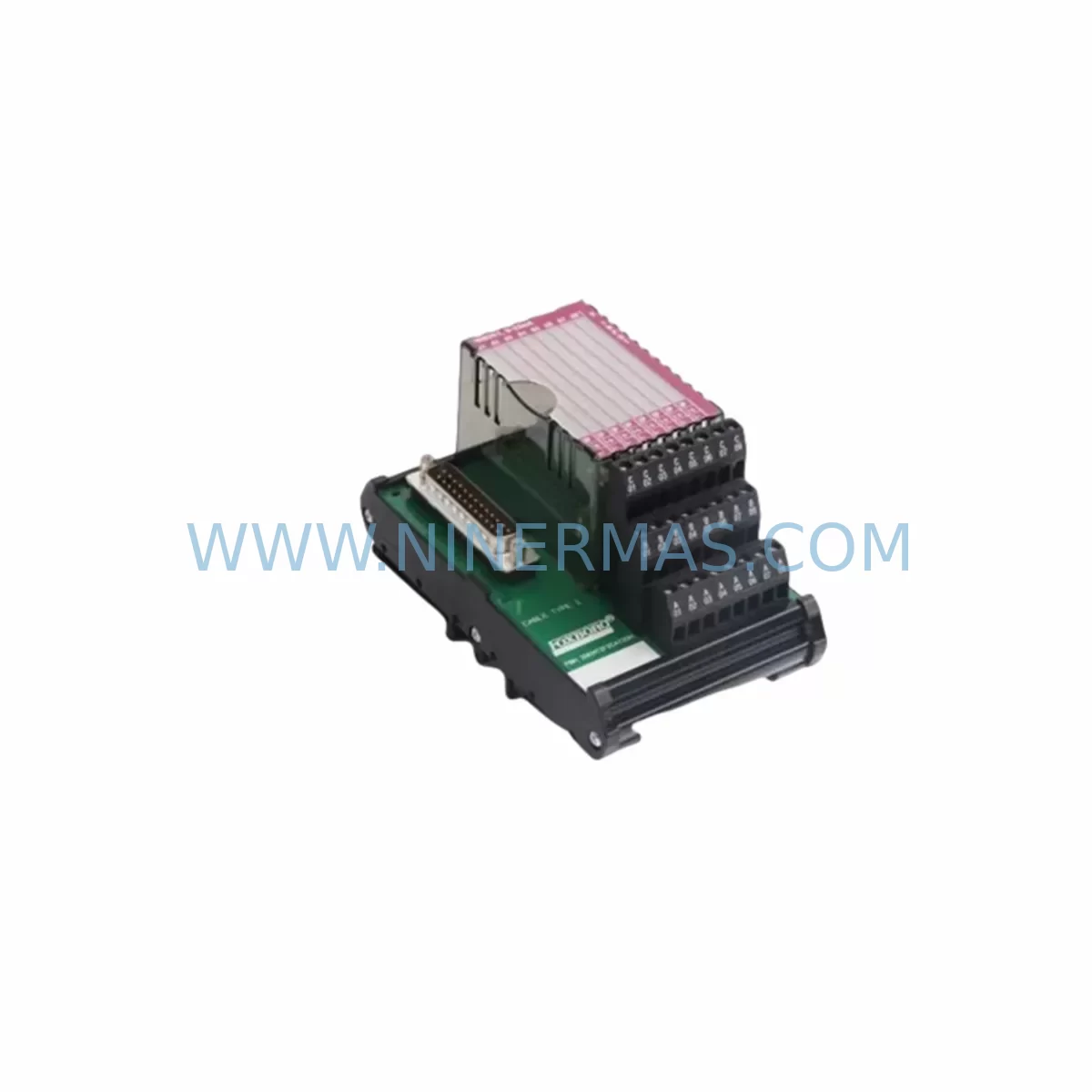

FOXBORO AD916AC FBM202 Retrofit-Compatible TC/mV Input Module

FOXBORO AD916AC FBM202 Retrofit-Compatible Thermocouple/mV Input Module for Legacy DCS Modernization

The FOXBORO AD916AC FBM202 is a ruggedized thermocouple and millivolt (mV) input module engineered for the Foxboro I/A Series Distributed Control System (DCS). Designed to operate reliably in harsh industrial environments — including high-vibration, high-humidity, and wide-temperature-range process areas — this module serves as a direct retrofit replacement for aging or discontinued field bus modules within legacy control architectures. Whether you are executing a planned spare-parts replenishment, an unplanned emergency replacement, or a phased control system modernization, the AD916AC FBM202 provides a validated, drop-in compatible solution that minimizes engineering rework and reduces total downtime exposure.

As industrial facilities extend the operational life of their Foxboro I/A Series platforms beyond original design horizons, sourcing discontinued or end-of-life field bus modules becomes a critical procurement challenge. The AD916AC FBM202 addresses this challenge directly, offering a ruggedized construction that meets the demands of petrochemical, refining, power generation, and pulp-and-paper process environments where sensor signal integrity and module longevity are non-negotiable.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Replacing the AD916AC FBM202 within an operational I/A Series DCS requires a structured approach that accounts for both hardware compatibility and software configuration. Before initiating the physical swap, maintenance engineers should audit the existing baseplate slot assignments and confirm that the replacement module’s hardware revision is compatible with the installed version of the Foxboro AIM software. In many legacy installations, the FBM Baseplate (also referred to as the Fieldbus Module Carrier) may be shared with adjacent modules such as the FBM201 (RTD/resistance input), FBM204 (analog output), or FBM207 (pulse input), and any physical disturbance to the baseplate during module extraction must be managed carefully to avoid disrupting neighboring I/O channels.

Power budget verification is a mandatory pre-retrofit step. The Field Power Supply (FPS) units that feed the baseplate must have sufficient headroom to support the replacement module, particularly in installations where the baseplate is fully populated. Engineers should also inspect the Nodebus termination and cabling integrity at this stage, as degraded Nodebus segments can cause communication faults that are incorrectly attributed to the new module after installation.

Terminal wiring for thermocouple inputs on the AD916AC FBM202 follows the standard I/A Series field termination assembly (FTA) convention. The associated FTA (Field Termination Assembly) — typically a ZCP270 or equivalent termination panel — must be inspected for correct TC polarity, cold junction compensation integrity, and shield grounding continuity. In retrofit scenarios where the original FTA is aged or corroded, simultaneous FTA replacement is strongly recommended to avoid introducing measurement errors post-commissioning.

For facilities undertaking broader control system upgrades — such as migrating from an older CP60 or CP40B controller to a CP270 or CP270E — the AD916AC FBM202 remains compatible across these controller generations, which significantly reduces the I/O hardware replacement scope. In such migration projects, the Foxboro ICC (Integrated Control Configurator) or AIM database export/import workflow is used to preserve existing control block configurations, PID tuning parameters, and alarm setpoints, ensuring that the upgraded controller platform inherits the full process logic without manual re-entry.

Where I/O expansion is required alongside the retrofit — for example, adding new thermocouple measurement points to an existing loop — additional FBM202 modules or complementary FBM203 (4–20 mA analog input) modules can be added to available baseplate slots, provided the Nodebus segment loading limits are respected. Signal isolators may be required at the field termination level when integrating third-party sensors or when extending wiring runs beyond recommended distances.

Downtime Control During System Migration

Minimizing process downtime during an FBM202 module swap is achievable through disciplined pre-outage preparation. The recommended approach begins with a full export of the AIM database segment containing the affected module’s tag definitions, control block assignments, and module address parameters. This export serves as both a configuration backup and a commissioning reference document, enabling rapid re-commissioning if the replacement module requires address re-assignment or if AIM fails to auto-detect the new hardware.

Where process conditions permit, a hot-swap sequence should be evaluated: placing the affected control loops in manual mode at the DCS operator workstation (typically running Foxboro IACC or equivalent HMI software) before physically removing the failed module. This preserves the last known output state on all associated analog output modules — such as the FBM204 — and prevents uncontrolled process upsets during the hardware exchange. Field operators should be stationed at critical control valves and final control elements during the swap window to provide manual override capability if required.

Post-installation, the replacement AD916AC FBM202 should be verified through a structured commissioning checklist: confirm module address recognition in AIM, validate all 16 channel tag assignments, perform a live thermocouple signal check against field reference instruments, verify cold junction compensation accuracy, and confirm alarm and trip setpoint restoration. HMI faceplate displays should be reviewed to ensure that all process variable (PV) readings are updating correctly and that no spurious alarms have been generated by the module swap. Total planned downtime for a single FBM202 replacement, with adequate preparation, typically ranges from 30 to 90 minutes depending on site access conditions and the number of channels requiring field verification.

For sites with zero-downtime requirements, a parallel redundancy strategy using a spare baseplate slot — pre-loaded with a configured AD916AC FBM202 and held in standby — can be implemented to enable seamless switchover without process interruption. This approach is particularly valuable in continuous process industries where even brief measurement gaps can trigger safety system responses.

Retrofit Support FAQ

Q1: Is the AD916AC FBM202 a direct drop-in replacement for all FBM202 variants?
The AD916AC is the ruggedized hardware variant of the FBM202 and is designed for direct physical and functional replacement within I/A Series baseplates. However, engineers should verify the AIM software version compatibility and confirm that the hardware revision of the replacement module is supported by the installed DCS software release. In most cases, the module will be auto-detected by AIM upon insertion, but a manual address confirmation step is recommended as best practice.

Q2: What wiring changes are required when replacing a failed FBM202?
For a like-for-like replacement, no field wiring changes are required at the FTA level, provided the existing Field Termination Assembly is in serviceable condition. The thermocouple field cables remain connected to the FTA throughout the module swap. If the FTA itself is being replaced simultaneously, all TC pairs must be re-terminated according to the original loop drawings, with careful attention to polarity and cold junction compensation sensor placement.

Q3: How is the replacement module tested before shipment?
All AD916AC FBM202 units supplied by NINERMAS undergo a pre-shipment functional test that verifies channel integrity, communication response, and environmental sealing. Each unit is shipped with a test report confirming operational status. The 12-month warranty covers manufacturing defects identified during installation and commissioning, and our technical team is available to support remote troubleshooting if any channel anomalies are detected during site commissioning.

Q4: What is the typical lead time and stock availability?
NINERMAS maintains dedicated inventory of the AD916AC FBM202 to support emergency replacement and planned maintenance programs. Standard orders are processed within 1–3 business days, with expedited shipping options available for critical plant shutdowns. For long-term spare-parts programs and multi-unit procurement commitments, we offer stock reservation agreements to guarantee supply continuity across extended maintenance cycles. Contact our team at sale@ninermas.com or +0086 187 5021 5667 to discuss your inventory requirements.
