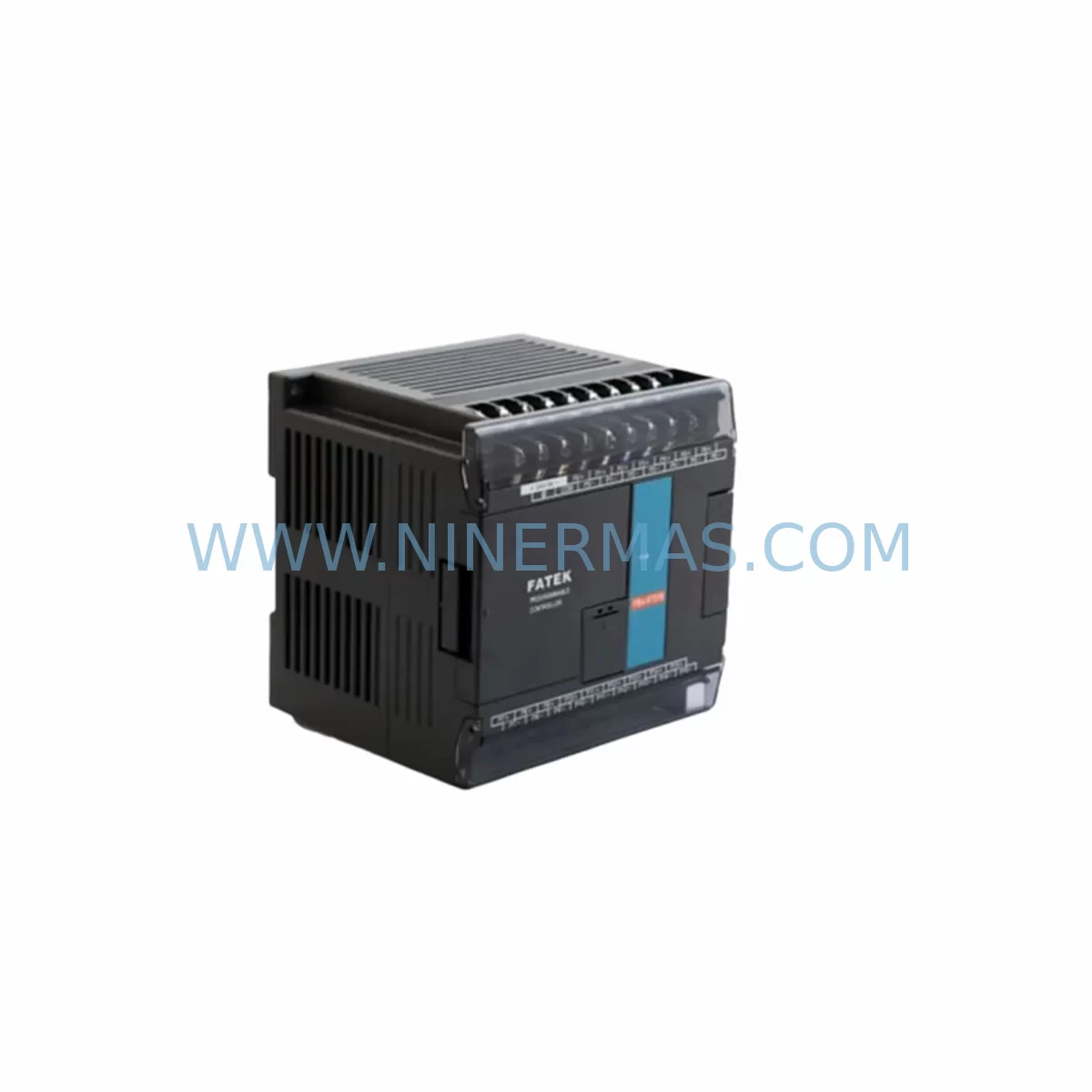

The FATEK FBS-14MA is a compact, high-reliability programmable logic controller from FATEK’s proven FBS series, purpose-built for applications where legacy system continuity, minimal downtime, and long-term spare parts availability are non-negotiable. Whether you are replacing a discontinued controller in an aging production line, upgrading a control cabinet that has outlived its original hardware lifecycle, or migrating from an obsolete platform to a modern yet backward-compatible architecture, the FBS-14MA delivers the electrical and logical compatibility required to complete the transition with confidence.

With 8 DC inputs and 6 relay outputs in a compact DIN-rail-mountable housing, the FBS-14MA is engineered to slot into existing panel layouts without requiring structural modifications to the control cabinet. Its 24 VDC power supply input aligns with the majority of legacy FATEK FBs-series installations, and its ladder logic instruction set is fully compatible with WinProladder programming software, allowing engineers to upload, verify, and re-deploy existing programs without rewriting control logic from scratch.

Upgrade Compatibility Table

Retrofit Planning for Existing Automation Systems

Successful integration of the FATEK FBS-14MA into a legacy control system begins well before the unit arrives on site. Engineers should start by auditing the existing I/O count and confirming that the 8-input / 6-output configuration covers all active field signals. In installations where the original controller was paired with expansion modules such as the FBs-8X digital input expander or the FBs-8YR relay output module, those modules can remain in place and connect directly to the FBS-14MA’s right-side expansion port without any hardware modification.

Power supply verification is a critical pre-installation step. The FBS-14MA draws its logic power from the 24 VDC rail, and in older cabinets where the original FATEK FBs-PS01 power supply module has been running continuously for years, it is advisable to measure actual output voltage under load before commissioning the new controller. A marginal or aging PSU can cause intermittent resets that are difficult to diagnose after the fact.

Terminal wiring on the FBS-14MA follows the same screw-terminal layout as earlier FBS-series units, which significantly reduces rewiring time during a hot-swap replacement. Engineers should photograph the existing terminal assignments and cross-reference them against the FBS-14MA wiring diagram before disconnecting any field cables. In applications where the legacy system used a FATEK FBs-4AD analog input module or a FBs-2DA analog output module for process variable monitoring, those modules connect to the expansion bus and do not require reconfiguration of the base unit.

Communication link continuity is another area that requires careful planning. Many legacy FATEK FBS installations use RS-232 connections to FATEK HMI panels or third-party operator interfaces. The FBS-14MA’s built-in RS-232 port (Port 1) supports the same FATEK communication protocol, so existing HMI screen projects and tag databases remain valid. Where the original system used RS-485 multi-drop networking to connect multiple PLCs or remote I/O nodes, the FBs-232P485 communication adapter can be fitted to Port 1 to restore the RS-485 link without modifying the network topology. In more complex installations involving MODBUS RTU or MODBUS TCP integration, the FBs-CBEH Ethernet communication module can be added to the expansion bus to bridge legacy serial devices to a modern Ethernet backbone.

For installations that include signal isolation between field devices and the PLC input cards — a common requirement in environments with high electrical noise from variable frequency drives or servo amplifiers — existing DIN-rail-mounted signal isolators can remain in the circuit. The FBS-14MA’s input impedance and threshold voltages are consistent with the FBS series standard, so no recalibration of upstream signal conditioning equipment is required.

Before the replacement unit is powered up, engineers should back up the existing program from the original controller using WinProladder and verify the step count against the FBS-14MA’s 16K-step program memory. In the majority of legacy FBS installations, the original program occupies well under 8,000 steps, leaving ample headroom. Once the program is confirmed compatible, it can be downloaded to the FBS-14MA via the FATEK FBs-CB5 programming cable connected to a laptop running WinProladder 3.x.

Downtime Control During System Migration

Minimizing production downtime during a PLC replacement is the primary concern for most maintenance teams. The FATEK FBS-14MA’s compatibility with existing FBS-series wiring, expansion modules, and programming software makes it one of the lowest-risk retrofit options available for legacy FATEK installations. A well-prepared team can typically complete a like-for-like FBS-14MA swap — including program download, I/O verification, and HMI communication test — within a single planned maintenance window of two to four hours.

The recommended sequence is: isolate the control cabinet and de-energize the existing PLC; photograph all terminal connections; remove the original unit; mount the FBS-14MA on the DIN rail; reconnect field wiring terminal by terminal using the reference photographs; reconnect expansion modules to the right-side bus; power up the 24 VDC rail; download the verified program via WinProladder; perform a forced I/O test to confirm all inputs and outputs respond correctly; restore HMI communication and verify all screen pages display live data; and finally, return the system to automatic mode under operator supervision.

To protect the original program logic throughout this process, engineers should maintain a copy of the .fpp project file on a dedicated USB drive that travels with the replacement unit. If the original controller is still partially functional, a final program upload immediately before shutdown ensures the backup reflects the most recent version, including any undocumented field modifications made since the last formal revision.

In installations where a complete shutdown is not feasible, a parallel commissioning approach can be used: the FBS-14MA is mounted adjacent to the original controller, the program is downloaded and verified offline, and the field wiring is transferred in stages during brief process pauses. This approach is particularly effective in continuous-process environments where even a two-hour window is difficult to schedule.

Every FATEK FBS-14MA unit supplied by NINERMAS undergoes a pre-shipment functional test covering power-on self-diagnostics, I/O channel verification, and communication port response. Units are shipped with a test report and are covered by a 12-month warranty from the date of delivery, providing assurance that the replacement unit will perform reliably from the first power-on.

Retrofit Support FAQ

Q1: Is the FATEK FBS-14MA a direct replacement for the FBS-10MA or FBS-20MA?
The FBS-14MA (8 inputs / 6 relay outputs) sits between the FBS-10MA (6 inputs / 4 outputs) and the FBS-20MA (12 inputs / 8 outputs) in the FBS series lineup. It is a direct electrical replacement for the FBS-10MA in applications where additional I/O capacity is needed, and a functional substitute for the FBS-20MA in applications where the full 20-point I/O count is not required. Terminal layout and expansion bus compatibility are consistent across the FBS series.

Q2: Can I reuse my existing WinProladder program without modification?
In most cases, yes. Programs developed for any FBS-series controller can be opened in WinProladder 3.x and downloaded to the FBS-14MA without modification, provided the program does not reference I/O addresses beyond the FBS-14MA’s physical point count. Engineers should perform a full I/O force test after download to confirm all field signals map correctly before returning the system to automatic operation.

Q3: What communication options are available for connecting the FBS-14MA to an HMI or SCADA system?
The FBS-14MA includes one RS-232 port (Port 1) supporting FATEK’s native communication protocol, MODBUS RTU, and ASCII mode. RS-485 multi-drop communication is available via the FBs-232P485 adapter. Ethernet connectivity for MODBUS TCP or remote programming can be added using the FBs-CBEH Ethernet module on the expansion bus. These options cover the majority of HMI and SCADA integration scenarios encountered in legacy FBS installations.

Q4: What warranty and pre-shipment testing does NINERMAS provide?
All FATEK FBS-14MA units supplied by NINERMAS are covered by a 12-month warranty from the date of delivery. Each unit undergoes a pre-shipment functional test including power-on diagnostics, I/O channel verification, and communication port response testing. A test report is included with each shipment. In-stock units are typically dispatched within 1–3 business days. For urgent retrofit requirements, please contact our team directly to confirm lead time and stock availability.
